WINDS ALOFT

Winds Aloft data shows the forecasted wind speed and direction at the surface
and at selected altitudes. Altitudes can be displayed in 3,000-foot increments up to
42,000 feet MSL.

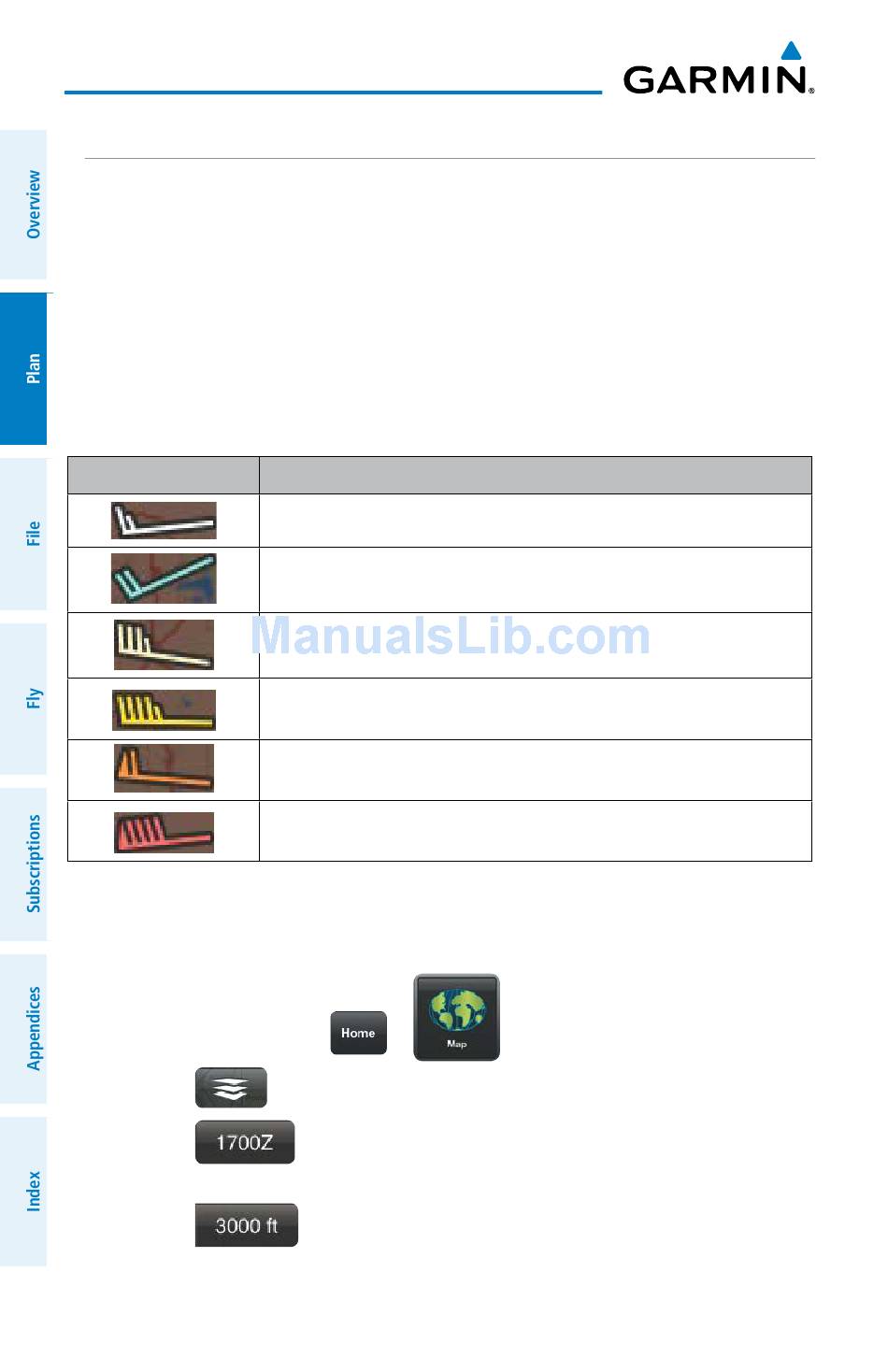

Winds Aloft are displayed using wind barbs. The wind barbs indicate wind speed
and direction. The wind speed is depicted using flags at the end of the wind barb. A
short wind flag is 5 knots, a long wind flag is 10 knots, and a filled triangle is 50 knots.
Wind barbs are also color coded to indicate wind speed. The flagged end indicates the
direction from which the wind is coming.
Icons

Viewing Winds Aloft Information:

1) From any page touch
2) Touch
3) Touch
aloft.
4) Touch
Altitudes are displayed in 3,000-foot increments up to 42,000 feet MSL.
72
White indicates wind speeds of 20 kts or less.
Light blue indicates wind speeds of 21-30 kts.
Light yellow indicates wind speeds of 31-40 kts.
Yellow indicates wind speeds of 41-50 kts.
Orange indicates wind speeds of 51-80 kts.
Red indicates wind speeds of 81 kts or greater.

Winds Aloft Barbs

>
> Overlays > Winds Aloft.
and use the slider to view current and forecast winds
and use the slider to select the desired altitude.
Garmin Pilot for iOS User's Guide
