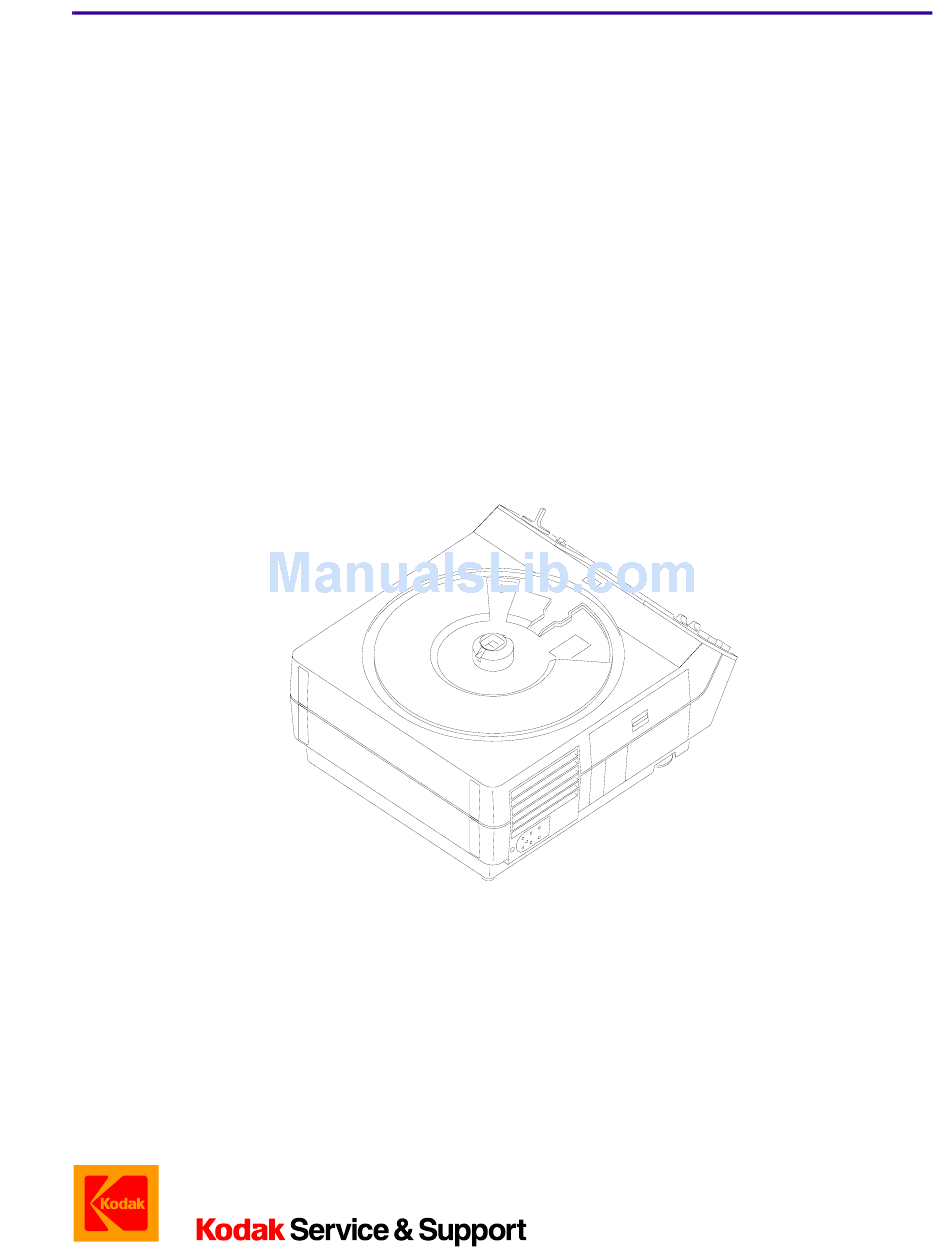

{IllustratedPartsList}{Production}{KodakServiceSupport}{ExternalAndInternal}
Publication No. IP5440-1
11DEC03
Supersedes IP5440-1
23JUL01

ILLUSTRATED PARTS LIST

for the
Kodak Carousel 4200/4200-J/4200-KK/4400/
4600/4600-KK PROJECTORS
Kodak Carousel 5600/5600-J/5600-KK PROJECTORS
New Look PROJECTORS
Service Code: 5440
A100_0027HA
Confidential
Restricted Information
© Eastman Kodak Company, 2003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC4401 - Carousel 4400 Projector and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kodak BC4401 - Carousel 4400 Projector

Summary of Contents for Kodak BC4401 - Carousel 4400 Projector

  • Page 1: Illustrated Parts List

    {IllustratedPartsList}{Production}{KodakServiceSupport}{ExternalAndInternal} Publication No. IP5440-1 11DEC03 Supersedes IP5440-1 23JUL01 ILLUSTRATED PARTS LIST for the Kodak Carousel 4200/4200-J/4200-KK/4400/ 4600/4600-KK PROJECTORS Kodak Carousel 5600/5600-J/5600-KK PROJECTORS New Look PROJECTORS Service Code: 5440 A100_0027HA Confidential Restricted Information © Eastman Kodak Company, 2003...

  • Page 2: Table Of Contents

    Eastman Kodak Company reserves the right to change this information without notice, and makes no warranty, express or implied, with respect to this information. Kodak shall not be liable for any loss or damage, including consequential or special damages, resulting from any use of this information, even if loss or damage is caused by Kodak’s negligence or other fault.

  • Page 3: Illustrated Parts List

    Illustrated Parts List Section 1: Illustrated Parts List Figure 1 CONTROL PANEL A091_4044DCA A091_4044DA Figure 1 CONTROL PANEL Item Part No. Description Quantity Notes 226082 KNOB - focus 6C0907 PANEL - control, 4200 projector, long life only 6C0908 PANEL - control, 4400 projector, long life only 6C0909 PANEL - control, 4600 projector, long life only 6C0910...

  • Page 4: Lower Housing Ay

    ILLUSTRATED PARTS LIST Figure 2 LOWER HOUSING AY A100_0026DCA A100_0026DA 11DEC03 – IP5440-1...
  • Page 5 Illustrated Parts List Figure 2 LOWER HOUSING AY Item Part No. Description Quantity Notes 221133 SPRING - elevation 129795 E-RING 254379 SCREW - hex, button 221223 PLATE - elevation 231687 LEVER - elevation 229364 BUTTON - elevation 221160 KNOB - elevation 221252 ELEVATION AY 7C3457...

  • Page 6: Mount Mirror And Viewer Drawer

    ILLUSTRATED PARTS LIST Figure 3 MOUNT MIRROR and VIEWER DRAWER A100_0024DCA A100_0024DA Figure 3 MOUNT MIRROR and VIEWER DRAWER Item Part No. Description Quantity Notes 5B4641 MIRROR - mount, 5600, 5600-J, 5600-KK projectors 221054 SPRING 5B4644 DRAWER AY - viewer, 5600, 5600-J, 5600-KK, medalist I projectors 221053 SPRING 5B4642...

  • Page 7: Lamp Module Ay

    Illustrated Parts List Figure 4 LAMP MODULE AY A100_0003DCA A100_0003DA IP5440-1 – 11DEC03...
  • Page 8 5B5047 PLATE AY - lamp and door For the LAMP MODULE AY. 259556 SCREW LAMP - ANSI code, FHS Listed in the Kodak Price Catalog. 259748 TERMINAL AY - lamp socket 628491 LENS - heat absorbing 628305 LENS - condenser...

  • Page 9: Extra Bright Lamp Module Ay

    Illustrated Parts List Figure 5 EXTRA BRIGHT LAMP MODULE AY shown A100_0046DCA A100_0046DA IP5440-1 – 11DEC03...
  • Page 10 2B5832 PLATE AY - lamp and door For the extra bright LAMP MODULE AY. 259556 SCREW 628104 LAMP - ANSI code, FHS Listed in the Kodak Price Catalog. 259748 TERMINAL AY - lamp socket 628305 LENS - condenser 2B7754 MIRROR For the EXTRA BRIGHT LAMP MODULE AY.

  • Page 11: Motor And Electrical

    Illustrated Parts List Figure 6 MOTOR and Electrical (not shown) A100_0028DCA A100_0028DA IP5440-1 – 11DEC03...
  • Page 12 ILLUSTRATED PARTS LIST Figure 6 MOTOR and Electrical Item Part No. Description Quantity Notes 215242 SCREW 215178 GROMMET 7C9783 MOTOR - 4200-J, 5600-J, standard projectors 7C9785 MOTOR - 4200-J, 5600-J, long life projectors 221075 MOTOR - U.S., all other standard projectors 7C9786 MOTOR - U.S., all other long life projectors 5B5894...

  • Page 13: Lamp And Cooling System

    Illustrated Parts List Figure 7 LAMP and COOLING SYSTEM A100_0005DCA A100_0005DA IP5440-1 – 11DEC03...
  • Page 14 ILLUSTRATED PARTS LIST Figure 7 LAMP and COOLING SYSTEM Item Part No. Description Quantity Notes 254443 SCREW - 4200-KK and 5600 projectors 227400 RESISTOR - dropping 236078 COVER AY - blower 254758 CLIP - retainer 236070 FAN AY 236541 SCREW 2J6630 BELT - fan drive 221285...

  • Page 15: Lens Mount Ay For The Non-Auto Focus Projectors

    Illustrated Parts List Figure 8 LENS MOUNT AY for the NON-AUTO FOCUS PROJECTORS A091_0003DCA A091_0003DA Figure 8 LENS MOUNT AY for the NON-AUTO FOCUS PROJECTORS Item Part No. Description Quantity Notes 231788 SPRING - focus shaft 226702 SPRING - lens mount 231787 BRACKET - lens support 231783...
  • Page 16 ILLUSTRATED PARTS LIST Item Part No. Description Quantity Notes 128527 E-RING 543384 SPACER 961758 BRACKET - focus motor 226061 SHAFT AY - worm 961848 SCREW 961757 MOTOR - focus 961759 COVER - focus motor 231792 SHAFT AY - focus 236541 SCREW 988302 MOUNT AY - lens, 4200, 4200-J, 4200-KK projectors...

  • Page 17: Lens Mount Ay For The Auto Focus Projectors

    Illustrated Parts List Figure 9 LENS MOUNT AY for the AUTO FOCUS PROJECTORS A091_4020DCA A091_4020DA IP5440-1 – 11DEC03...
  • Page 18 ILLUSTRATED PARTS LIST Figure 9 LENS MOUNT AY for the AUTO FOCUS PROJECTORS Item Part No. Description Quantity Notes 231788 SPRING - focus shaft 226702 SPRING - lens mount 231787 BRACKET - lens support 231783 PAD - lens mount 207279 BRACKET 6C1825 SCREW...

  • Page 19: Photocell And Clamp Pad Ay For The 5600, 5600-J, 5600-Kk Projectors

    Illustrated Parts List Figure 10 PHOTOCELL and CLAMP PAD AY for the 5600, 5600-J, 5600-KK PROJECTORS A091_4019DCA A091_4019DA Figure 10 PHOTOCELL and CLAMP PAD AY for the 5600, 5600-J, 5600-KK PROJECTORS Item Part No. Description Quantity Notes 221051 SCREW - 5600, 5600-J, 5600-KK projectors 2B5163 RACK AY - solenoid, 5600, 5600-J, 5600-KK projectors 221395...
  • Page 20 ILLUSTRATED PARTS LIST Item Part No. Description Quantity Notes 176252 SCREW 221392 PAD AY - clamp 221099 SPRING - photocell rack, all projectors 221022 RACK - photocell, all projectors 253789 SCREW - 5600, 5600-J, 5600-KK projectors 221394 CLAMP - 5600, 5600-J, 5600-KK projectors 221096 SPRING - clamp lever, 5600, 5600-J, 5600-KK projectors 166072...

  • Page 21: Viewer Focus Ay For The 5600, 5600-J, 5600-Kk Projectors

    Illustrated Parts List Figure 11 VIEWER FOCUS AY for the 5600, 5600-J, 5600-KK PROJECTORS A100_0021DCA A100_0021DA Figure 11 VIEWER FOCUS AY for the 5600, 5600-J, 5600-KK PROJECTORS Item Part No. Description Quantity Notes 221319 RETAINER - viewfinder rack, 5600, 5600-KK, 5600-J, projectors 227181 SPRING - viewfinder lens...

  • Page 22: Mechanism Ay And Top Housing Ay

    ILLUSTRATED PARTS LIST Figure 12 MECHANISM AY and TOP HOUSING AY A091_4045DCA A091_4045DA 11DEC03 – IP5440-1...
  • Page 23 Illustrated Parts List Figure 12 MECHANISM AY and TOP HOUSING AY Item Part No. Description Quantity Notes 236541 SCREW 784335 SCREW - long repair 217022 SWITCH - power 223454 BUTTON - select 259735 MECHANISM AY - non-auto focus, 4200, 4400 projectors 259736 MECHANISM AY - auto focus, 4600, 5600 projectors 250739...

  • Page 24: Mechanism Ay And Top Plate Ay

    ILLUSTRATED PARTS LIST Figure 13 MECHANISM AY and TOP PLATE AY A100_0007DCA A100_0007DA Figure 13 MECHANISM AY and TOP PLATE AY Item Part No. Description Quantity Notes 221215 LEVER AY - indexer 785130 SCREW 784239 PLATE AY - top 785130 SCREW 11DEC03 –...
  • Page 25 Illustrated Parts List Item Part No. Description Quantity Notes 221218 PULLEY AY - worm 221254 BELT - mechanism 231316 LINK 232456 LEVER - direction 231098 BUMPER - direction lever 232458 SPRING - direction lever 222355 SPRING 250566 BUSHING 128527 E-RING 5B4634 SPRING - worm pulley 221374...

  • Page 26: Mechanism Ay And Shutter And Gate Ay

    ILLUSTRATED PARTS LIST Figure 14 MECHANISM AY and SHUTTER AND GATE AY A100_0006DCA A100_0006DA 11DEC03 – IP5440-1...
  • Page 27 Illustrated Parts List Figure 14 MECHANISM AY and SHUTTER AND GATE AY Item Part No. Description Quantity Notes 6C1965 LIGHT - frame 221106 SPRING - pressure pad 188332 PIN - shutter 221237 SWITCH AY - select 785136 SCREW - select switch 232115 SPRING - coil 231702...

  • Page 28: Mechanism Ay And Camstack Ay

    ILLUSTRATED PARTS LIST Figure 15 MECHANISM AY and CAMSTACK AY (not shown) A100_0025DCA A100_0025DA Figure 15 MECHANISM AY and CAMSTACK AY Item Part No. Description Quantity Notes 221373 BEARING - cam shaft 128527 E-RING 166120 257411 SHAFT AY - cam 231700 SPRING - ratchet 961672...

  • Page 29: Mechanism Ay And Levers

    Illustrated Parts List Figure 16 MECHANISM AY and LEVERS A091_4046DCA A091_4046DA IP5440-1 – 11DEC03...
  • Page 30 ILLUSTRATED PARTS LIST Figure 16 MECHANISM AY and LEVERS Item Part No. Description Quantity Notes 221259 LOCATOR - locator lever ay 221065 SPRING 232123 LEVER AY - locator 213526 E-RING 232127 BRACKET AY - auto-focus, 4600, 5600 projectors 250634 SCREW 5B5146 SOLENOID AY - cycle 226047...

  • Page 31: Remote Control Ec2 For The 4400 Projector

    Illustrated Parts List Figure 17 REMOTE CONTROL EC3 for the 5600, 5600-J, 5600-KK PROJECTORS REMOTE CONTROL EC2 for the 4400 PROJECTOR A100_0009DCA A100_0009DA IP5440-1 – 11DEC03...
  • Page 32 SCREW 170749 CORD - remote, EC2 184927 CORD - remote, EC3, 5600-KK, 5600-J projectors 185636 LABEL - remote, EC3 Not visible in graphic. REMOTE AY - complete Listed in the Kodak Price Catalog. 221478 DIODE - formed 11DEC03 – IP5440-1...

  • Page 33: Remote Control Ec1 For The 4200, 4200-J, 4200-Kk, 4600, 4600-Kk Projectors

    Illustrated Parts List Figure 18 REMOTE CONTROL EC1 for the 4200, 4200-J, 4200-KK, 4600, 4600-KK PROJECTORS A100_0010DCA A100_0010DA Figure 18 REMOTE CONTROL EC1 for the 4200, 4200-J, 4200-KK, 4600, 4600-KK PROJECTORS Item Part No. Description Quantity Notes 2J4084 HOUSING - top remote, EC1 3H7235 BUTTON - forward/reverse 171055...

  • Page 34: Component Board Ay For The 4200, 4200-J, 4200-Kk, 4400 Projectors

    ILLUSTRATED PARTS LIST Figure 19 COMPONENT BOARD AY for the 4200, 4200-J, 4200-KK, 4400 PROJECTORS W K R A V V O B Y SLIDE PROJECTOR BOARD A091_0025DCA A091_0025DC Figure 19 COMPONENT BOARD AY for the 4200, 4200-J, 4200-KK, 4400 PROJECTORS Item Part No.

  • Page 35: Component Board Ay For The 4600, 4600-K, 4600-Kk Projectors

    Illustrated Parts List Figure 20 COMPONENT BOARD AY for the 4600, 4600-K, 4600-KK PROJECTORS SLIDE PROJECTOR BOARD A100_0011HC Figure 20 COMPONENT BOARD AY for the 4600, 4600-K, 4600-KK PROJECTORS Item Part No. Description Quantity Notes 256807 BOARD AY - component, 4600, 4600-K, 4600-KK projectors 215888 CAPACITOR - metalized, 0.1 mF, W±10%, 100 V dc...
  • Page 36 ILLUSTRATED PARTS LIST Item Part No. Description Quantity Notes 256815 RECTIFIER - bridge, 1 AMP, 100 PIV, slow-blow 256815 RECTIFIER - bridge, 1 AMP, 100 PIV, slow-blow 256812 FUSE - 2 AG, 1 AMP, slow-blow 256819 SOCKET - 9-line 273500 TRANSISTOR - NPN, EBC, PN100 222102 224791...

  • Page 37: Component Board Ay For The 5600, 5600-J, 5600-Kk Projectors

    Illustrated Parts List Figure 21 COMPONENT BOARD AY for the 5600, 5600-J, 5600-KK PROJECTORS W K R A V V O B Y SLIDE PROJECTOR BOARD A091_4034DC Figure 21 COMPONENT BOARD AY for the 5600, 5600-J. 5600-KK PROJECTORS Item Part No. Description Quantity Notes...
  • Page 38 ILLUSTRATED PARTS LIST Item Part No. Description Quantity Notes 256819 SOCKET - 9-line 256817 SOCKET - 7-line 273500 TRANSISTOR - NPN, EBC, PN100 222102 236751 SCR - 5600, 5600-J, 5600-KK projectors 220137 TRANSISTOR - 2N6027 - 5400 and 5600 projectors 220045 RESISTOR - 18 k W, W±5%, 1/4 W 220051...

  • Page 39: Numerical Index

    Numerical Index Section 2: Numerical Index Numerical Index Part No. Description Figure No. CAPACITOR LAMP - ANSI code, FHS REMOTE AY - complete 128527 E-RING 13, 15, 16, 8, 9 129795 E-RING 145051 FUSE - 4200-KK, 4600-KK, 5600-KK projectors 166072 NUT - clamp lever, 5600, 5600-J, 5600-KK projectors 166120 166985...
  • Page 40 ILLUSTRATED PARTS LIST Numerical Index Part No. Description Figure No. 221051 SCREW - 5600, 5600-J, 5600-KK projectors 221053 SPRING 221054 SPRING 221065 SPRING 221068 SPRING 221075 MOTOR - U.S., all other standard projectors 221096 SPRING - clamp lever, 5600, 5600-J, 5600-KK projectors 221097 SPRING - photocell bracket 10, 9...
  • Page 41 Numerical Index Numerical Index Part No. Description Figure No. 226061 SHAFT AY - worm 8, 9 226075 FUSE - thermal 226079 LEVELING AY 226082 KNOB - focus 226084 RAIL - lens support 8, 9 226597 RESISTOR - 47 W, 1/4 W, W±5% 226597 RESISTOR - 47 W, 1/4 W, W±5% 19, 20...
  • Page 42 ILLUSTRATED PARTS LIST Numerical Index Part No. Description Figure No. 236751 SCR - 5600, 5600-J, 5600-KK projectors 236908 BUTTON - top/select 239313 SPRING - door latch 239314 LATCH - door 239813 SPRING - door latch 239814 SWITCH AY - cycle, with power switch 12, 4 243858 CAPACITOR - metalized, 0.22 mF, W±10%, 100 V dc...
  • Page 43 Numerical Index Numerical Index Part No. Description Figure No. 3B0161 BUTTON - forward 3B0162 BUTTON - reverse 3H6864 LABEL - data, U.S. projectors 3H7235 BUTTON - forward/reverse 17, 18 443451 CAPACITOR - ceramic, 0.1 mF, ±10%, 100 V dc - 5600, 5600-KK, 5600-J, medalist projectors 488303 MOUNT AY - lens, 4400 projectors...
  • Page 44 ILLUSTRATED PARTS LIST Numerical Index Part No. Description Figure No. 6C1965 LIGHT - frame 784053 GATE - mechanical frame 784230 LEVER AY - slide lift 784239 PLATE AY - top 784335 SCREW - long repair 785004 LABEL - serial number, 4200-J, 5600-J projectors 785130 SCREW 13, 5...

  • Page 45: Alphabetical Index

    Alphabetical Index Section 3: Alphabetical Index Alphabetical Index Part No. Description Figure No. 5B5148 ARM/LINK AY - solenoid plunger ay 250081 BAFFLE 221285 BAFFLE - upper light 221373 BEARING - cam shaft 221032 BEARING - lens support, all projectors 2J6630 BELT - fan drive 6, 7 221254...
  • Page 46 ILLUSTRATED PARTS LIST Alphabetical Index Part No. Description Figure No. 7C3470 CORD - power, U.S. projectors 171054 CORD - remote 170749 CORD - remote, EC2 184927 CORD - remote, EC3, 5600-KK, 5600-J projectors 961759 COVER - focus motor 8, 9 7C3585 COVER - viewer screen, 5600 projector only 236078...
  • Page 47 Alphabetical Index Alphabetical Index Part No. Description Figure No. 251699 INSULATOR - 4200-KK, 4600-KK, 5600-KK projectors 3B0160 INTERFACE - power/timer 250739 KEY - spindle 221160 KNOB - elevation 226082 KNOB - focus 5B5621 LABEL - 4200-KK, 4600-KK, 5600-KK projectors 3H6864 LABEL - data, U.S.
  • Page 48 ILLUSTRATED PARTS LIST Alphabetical Index Part No. Description Figure No. 989237 MODULE - voltage, 4200-KK, 4600-KK, 5600-KK projectors 5B5831 MODULE AY - extra bright, lamp 4, 5 7C9785 MOTOR - 4200-J, 5600-J, long life projectors 7C9783 MOTOR - 4200-J, 5600-J, standard projectors 961757 MOTOR - focus 5B5894...
  • Page 49 Alphabetical Index Alphabetical Index Part No. Description Figure No. 224791 RESISTOR - 39 k W, W±5%, 1/4 W 221760 RESISTOR - 4.7 M W, W±5%, 1/4 W - 5400 and 5600 projectors 226597 RESISTOR - 47 W, 1/4 W, W±5% 226597 RESISTOR - 47 W, 1/4 W, W±5% 19, 20...
  • Page 50 ILLUSTRATED PARTS LIST Alphabetical Index Part No. Description Figure No. 221096 SPRING - clamp lever, 5600, 5600-J, 5600-KK projectors 232115 SPRING - coil 14, 16 232458 SPRING - direction lever 239313 SPRING - door latch 239813 SPRING - door latch 221133 SPRING - elevation 231788...
  • Page 51 Alphabetical Index This page is intentionally blank. IP5440-1 – 11DEC03...
  • Page 52 Kodak and Carousel are trademarks. Printed in U.S.A. • ip5440_1.fm EASTMAN KODAK COMPANY Rochester, NY 14650...
