PointDraw3.0 Pen

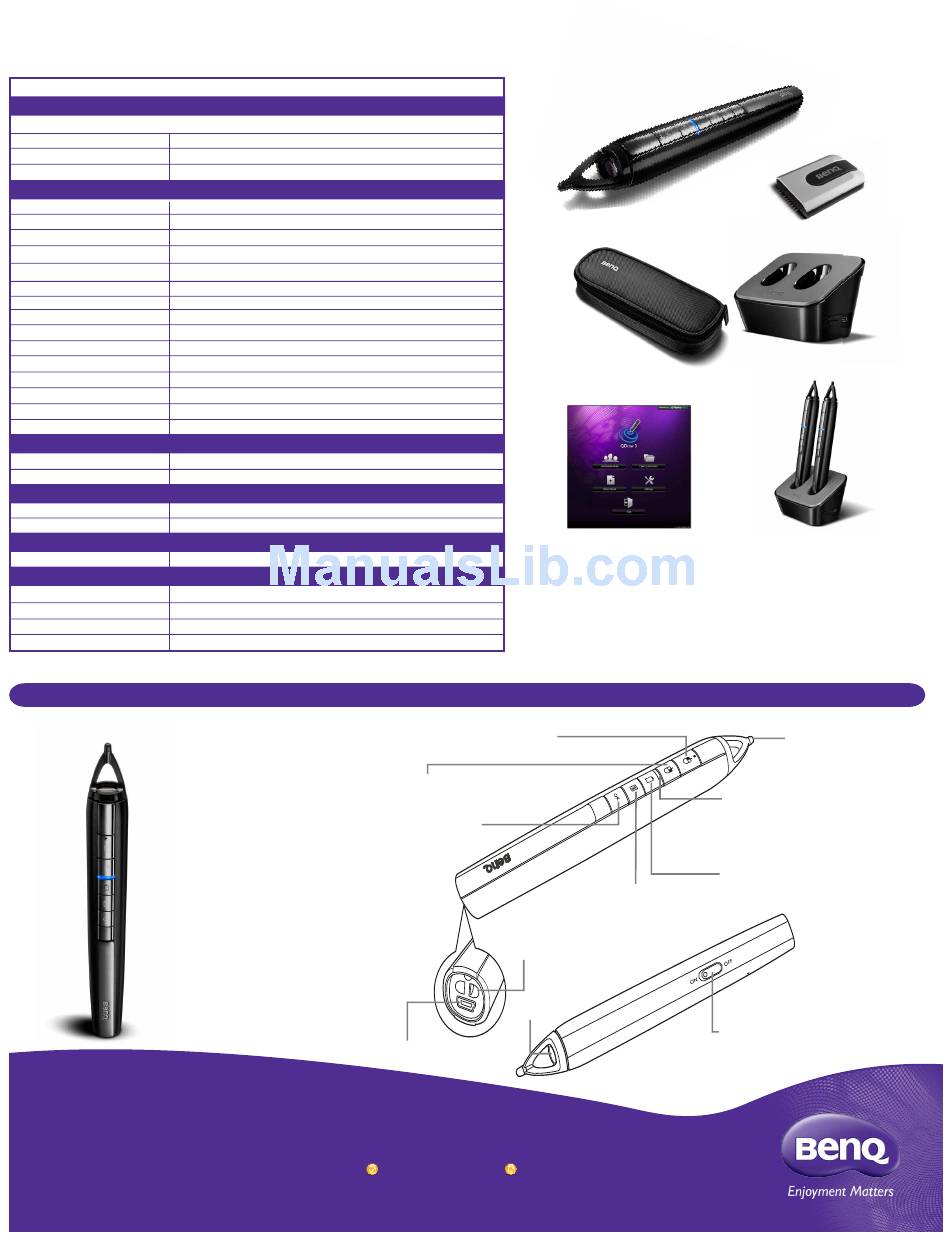

Specifications

Product Information
PointDraw 3.0 Pen Package
Model name PD03 Pen Package
P/N 5J.J8E26.A01
UPC code 8400460-2661-5
Pen (PD03)
PointDraw 3.0 Pen*
Model name PD03 Pen
P/N
5J.J8E26.A11
UPC code 8400460-2689-9
Operation frequency 2.4 GHz ISM Band
Rechargeable battery 1 pcs
Model name UR14500P
Normal voltage 3.7V
Normal capacity 800 mAh
Storage temperature -10ºC -60ºC
Operation temperature 0ºC -40ºC
Operation humidity
20%-85% (ambient temperature < 40ºC)
Power consumption
DC 3.7V, 35 mA (operation)
Dimensions Length*Diameter = 186*26 (mm)
Weight .158 lbs
QDraw 3 Software License Card
Operating System Windows and MAC compatible
License Usage
100 PC license support per projector
Power Adaptor
AC input 100~240V AC, 50~60 Hz, 0.3 A max.
DC input 5V DC, 2 A
Charging cradle
Power on/off 5V USB power on/off switch
RF dongle
Working voltage 5V. Over low voltage will possibly cause communication error
Working temperature -20ºC-80ºC
Working humidity 10%-90% Without condensation
Dimension LxWxH 1.67" x 1.2" x .23"; dimension tolerance meets GB/T1804-m
*PointDraw 3.0 Pen may be purchased separately from PointDraw 3.0 Pen Package
PointDraw 3.0 Pen Features
BenQ America Corp.
15375 Barranca Parkway. Suite A-205. Irvine, CA 92618
BenQ is a registered trademark of BenQ Corp. All rights reserved.
® ® ®
Apple , iPhone , and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. Specifications subject to change without notice.
English
PointDraw 3.0 pen features
Left mouse button/Used as an up key
when the PointDraw OSD is activated
Right mouse button/Used as a down key
when the PointDraw OSD is activated
Activates the selected
OSD menu item
Wrist strap hole
Sensor
USB connector
4
Tel: (949) 255-9500 www.BenQ.us
Compatible Projector Models:
• MW821ST
• MW870UST *
• MX822ST
• MP780ST+ *
• MW860USTi *
*PointDraw 3.0 Pen Menu key will not function with selected models
Connection indicator
Solid Blue: Paired with BenQ
projector
Blinking: Attempt to pair with
the projector
Battery status indicator
Activates the PointDraw
Solid Red: Battery charging
On-Screen Display Blinking: Low battery
(OSD) menu
Power On/Off switch
Changeable
pen tip
