Thank you for purchasing an Audioaccess
will help you with a basic main-room system installation. For detailed informa-
tion on any step and for multiroom setup, please refer to the Audioaccess
W.H.E.N.
Installation Instructions Manual. We strongly recommend that you
read that manual for complete details on how to install, configure and operate
the AVR21EN, as well as for the important safety information it contains.

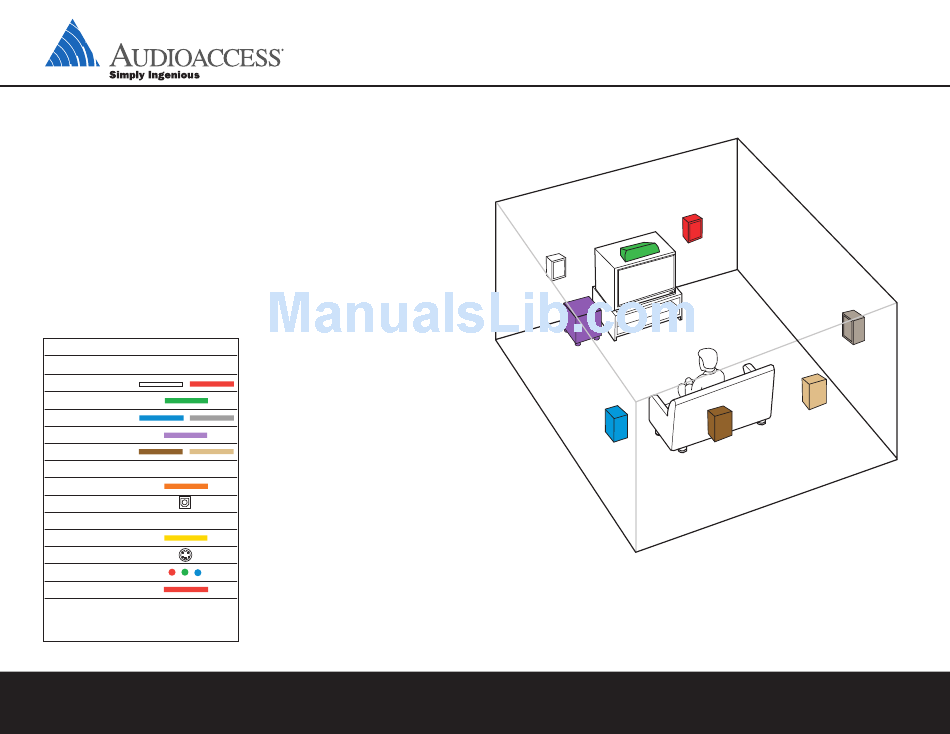

Figure 1 – Speaker Placement
The colors shown for each speaker correspond to the matching
output terminal connection on the back of the AVR21EN.
NOTE:
If only using 5.1, connect the surround speakers
to the left side surround (S. SURR. LEFT) and right side
surround (S. SURR. RIGHT), regardless of physical position.
Connections Color Guide
Audio Connections
Left
Right
Front
Center
(Side) Surround
Subwoofer
Back Surround
Digital Audio Connections
Coaxial
Optical
Video Connections
Composite
S-Video
Component Video
HDMI
Video
Match the colored jacks on the AVR21EN to the appropriate
jacks on your source equipment or speakers. The colors are
standardized, but not all equipment or connectors use them.
®
AVR21EN. This Quick-Start Guide
AVR21EN QUICK-START GUIDE
FRONT
RIGHT
SPEAKER
CENTER
SPEAKER
(Green)
FRONT
LEFT
SPEAKER
(Red)
(White)
SUBWOOFER
(Purple)
(SIDE)
SURROUND
LEFT
SPEAKER
(Blue)
BACK
SURROUND
LEFT
SPEAKER*
(Brown)
(SIDE)
SURROUND
RIGHT
SPEAKER
(Gray)
BACK
SURROUND
RIGHT
SPEAKER*
(Tan)
Step 1. Place your speakers in
the listening room.
7.1 or 7.0 speaker setup only
*
SPEAKER PLACEMENT

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVR21EN and is the answer not in the manual?

Questions and answers

Summary of Contents for Audioaccess AVR21EN

  • Page 1 ® AVR21EN. This Quick-Start Guide will help you with a basic main-room system installation. For detailed informa- tion on any step and for multiroom setup, please refer to the Audioaccess W.H.E.N. ™ Installation Instructions Manual. We strongly recommend that you...
  • Page 2 AVR21EN QUICK-START GUIDE SOURCE CONTROL 2-WAY INTERFACE RADIO 2 DISC 1 DISC 2/SAT RADIO DISC 3/MP3 CABLE/SAT DISC 2/SAT RADIO DISC 3/MP3 KP A/V MONITOR DISC 2/SAT RADIO DISC 3/MP3 DISC2/SAT RADIO DISC 3/MP3 RADIO 1 DISC 3/MP3 DISC2/SAT RADIO DISC 2/ DISC 3/ DISC 1...
  • Page 3 FM ANTENNA (1) AM ANTENNA (1) CD/DVD PLAYER FM ANTENNA (2) Optical Coax AM ANTENNA (2) Figure 4 – Audio Connections SOURCE CONTROL 2-WAY INTERFACE Dashed lines (– – – –) indicate coaxial and optical RADIO 2 DISC 1 DISC 2/SAT RADIO DISC 3/MP3 CABLE/SAT DISC 2/SAT RADIO DISC 3/MP3 digital audio connections.
  • Page 4 DVD/Disc 1 TV or Video Display Video S-Video Component Video Video S-Video Component Video HDMI Figure 6 – Video Connections Dotted lines (••••) indicate component, composite or S-video connections from your video source equipment to the AVR21EN. Component video is the preferred connection from your sources when SOURCE CONTROL 2-WAY INTERFACE available, but you may use any of the three types.
