■Precautions for Installation

●When installing this product, do not use any electro-taps
Using the electro-tap makes the electrical contact status unstable. This contact defect
may cause a malfunction in the product and damage this product and the vehicle.
Be sure to use the attached splice and dedicated tools such as cutting pliers for electric
work to install this product securely and properly.
●Insulate the metallic portion of the harness securely with electrical
tape.

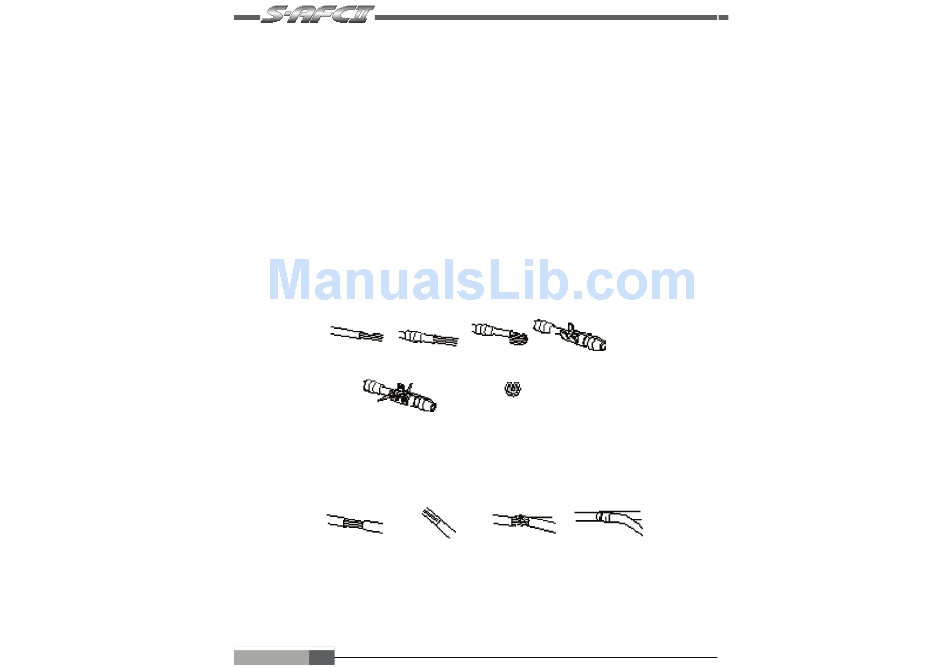

●Caulking the plug
(1) Peel off the coating of
(2) Cover with a sleeve
the wires about 8 mm
※Check if caulking has been performed securely by referring to the following figure
Caulk the conductors by these portions
Caulk the coating by these portions
●Caulking the splice
(1) Peel off the coating of the wires to (2) Peel off the wires to be
branched about 10 mm
be connected about 5 mm
※Insulate the caulked portion securely with a vinyl tape
4
(4) Caulk securely
(3) Fold the wires
Make the caulking thrust into the wire
(3) Entwine the wires (4) Caulk securely
