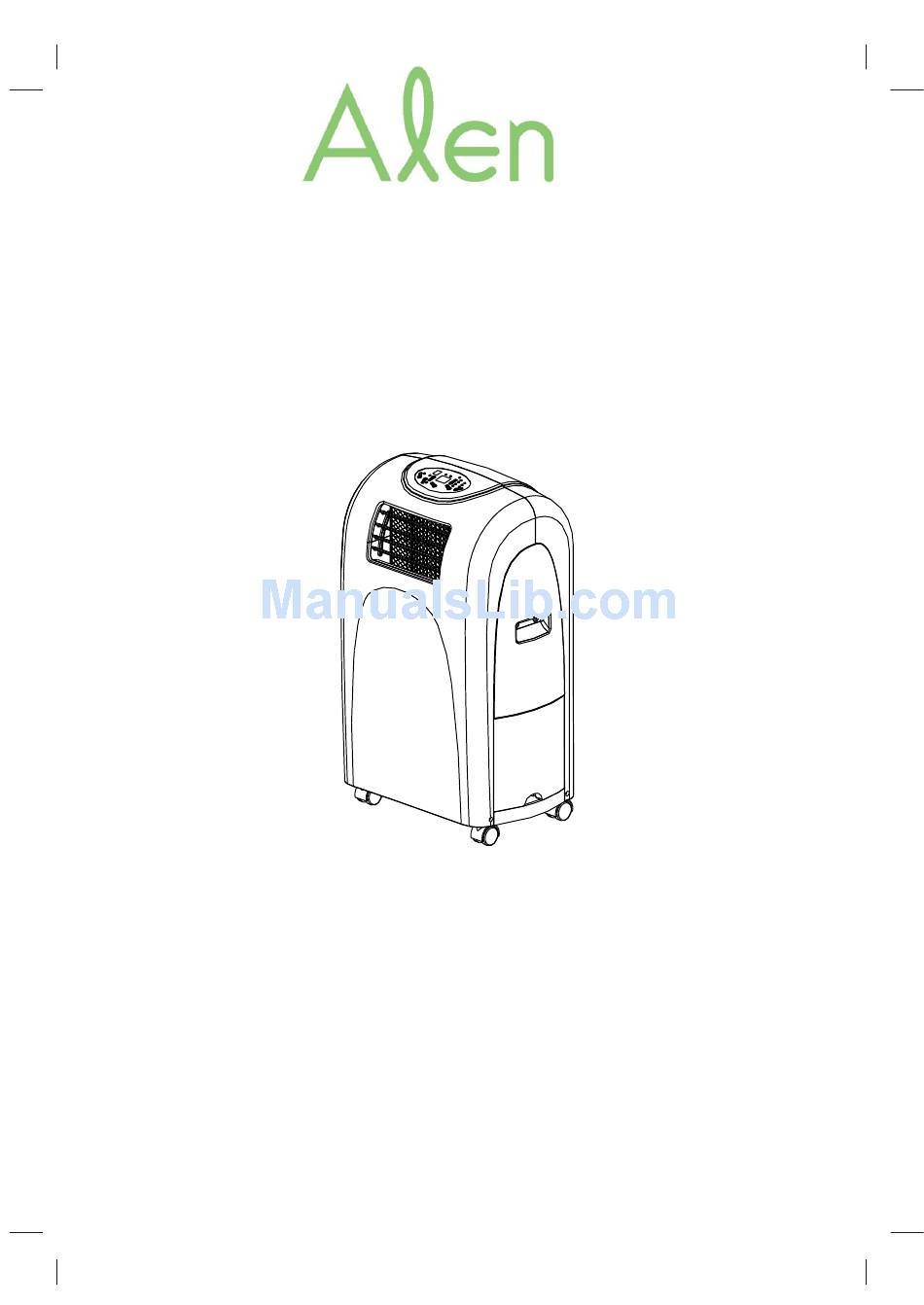

PORTABLE AIR CONDITIONER
INSTRUCTION MANUAL
This Manual explains the proper use of the air conditioner. Please read Rules for Safe
Operation and Instructions Carefully before installing or operating your air conditioner.
Improper handling can cause serious damage to the appliance. T
he Manual should be
kept in a safe place for handy reference.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Alen PORTABLE AIR CONDITIONER
Summary of Contents for Alen PORTABLE AIR CONDITIONER
- Page 1 PORTABLE AIR CONDITIONER INSTRUCTION MANUAL This Manual explains the proper use of the air conditioner. Please read Rules for Safe Operation and Instructions Carefully before installing or operating your air conditioner. Improper handling can cause serious damage to the appliance. T he Manual should be kept in a safe place for handy reference.
-
Page 2: Table Of Contents
CONTENTS 1.SAFETY PRECAUTIONS .............. 2.IDENTIFICATION OF PARTS............3.ACCESSORIES................4.OPERATION PANEL OF THE AIR CONDITIONER......5.OPERATING INSTRUCTIONS FOR THE AIR CONDITIONER ..6.INSTALLATION................7.MAINTENANCE................8.TROUBLE SHOOTING..............NOTE The rating data indicated on the energy label is based on the testing condition of installing the un-extended air exhaust duct without adaptor A &... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS 1. Do not wet the housing or control panel. 2. Do not use in the following locations: next to source of fire. an area where oil is likely to splash. an area exposed to direct sunlight. an area where water is likely to splash. near a bath, a shower or a swimming pool in the green house 3. -
Page 4: Identification Of Parts
IDENTIFICATION OF PARTS Operation Panel Horizontal Louver Blades Carrying Handle (both sides) Water Tank Caster Fig.1 Air intake (Evaporator) Power Cord cover (on some models) Air Outlet (Press the top locking lever Heat Exchanger downwards to open the cover, the power cord and plug are behind the cover ) Air intake Condenser... -
Page 5: Accessories
ACCESSORIES PARTS : PARTS NAME : QUANTITY : Duct Adaptor A (for permanent duct mounting) Adaptor B (for temporary duct mounting) Expansion plug Window Slider Kit Check all the accessories are included in the package and please refer to the installation instructions for their usage. - Page 6 Key Pad Functions Fig.3 TIMER ON Button: Used to initiate the AUTO ON start time program, and used to adjust Auto-Timer settings. TIMER OFF Button: Used to initiate the AUTO OFF stop time program, and used to adjust Auto-Timer settings. Used to adjust (increasing) temperature settings(1 C/2 F increments).
-
Page 7: Operating Instructions For The Air Conditioner
OPERATING INSTRUCTIONS FOR THE AIR CONDITIONER Before Starting This Unit 1) Select a suitable location, make sure you have easy access to an electrical outlet. 2) Install the Flexible Exhaust Hose and the Adjustable Window Slider Kit as depicted in Fig.4 & Fig.4a Fig.4a Fig.4... - Page 8 Operating Instructions COOLING OPERATION (Operating room temperature range: 17 C-32 C/62 F-92 F ) Press the POWER button to turn on the unit. Press the "MODE" button to select the Cool mode, the "COOL" indicator light will be turned on. Press the "TEMP SETTING"...
- Page 9 WATER TANK DRAINAGE A) During Cooling Mode: When the water level inside the internal tank reaches a predetermined level, the unit will stop all operations automatically and the digital display area shows P1 . Carefully remove the water tank from the cabinet and dispose of the water. Replace the water tank back to its original position.
-
Page 10: Installation
INSTALLATION 1. Window Kit Installation Your window kit has been designed to fit most standard Vertical and horizontal window applications, However, it may be necessary for you to improvise/modify some aspects of the installation procedures for certain types of window. Please refer to Fig. 7 & Fig. 7a for minimum and maximum window openings. - Page 11 A) TEMPORARY- 1. Attach one end of the duct to the exhaust air outlet of the Expansion plug position mobile air condition, push it as depicted in Fig.9, be sure to fix thoroughly. (See Fig.10) 2. Attach the other end of the duct to adaptor B. Adaptor A 3.
-
Page 12: Maintenance
MAINTENANCE IMPORTANT: 1) Turn off the appliance first before disconnecting from power supply. 2) Be sure to unplug the unit before cleaning or servicing. 3) Do not use gasoline, thinner or other chemicals to clean the unit. 4) Do not wash the unit directly under a tap or using a hose. The electrical cause danger. 5) If the power cord is damaged, it should be repaired by manufacture or its agency. -
Page 13: Trouble Shooting
TROUBLE SHOOTING TROUBLES POSSIBLE CAUSES SOLUTIONS 1. UNIT DOES NOT - Water full indicator blinks, water tank Dispose the water from the water tank. START WHEN is full. PRESSING BUTTON - The plug has not been plugged in Plug in again. properly.
