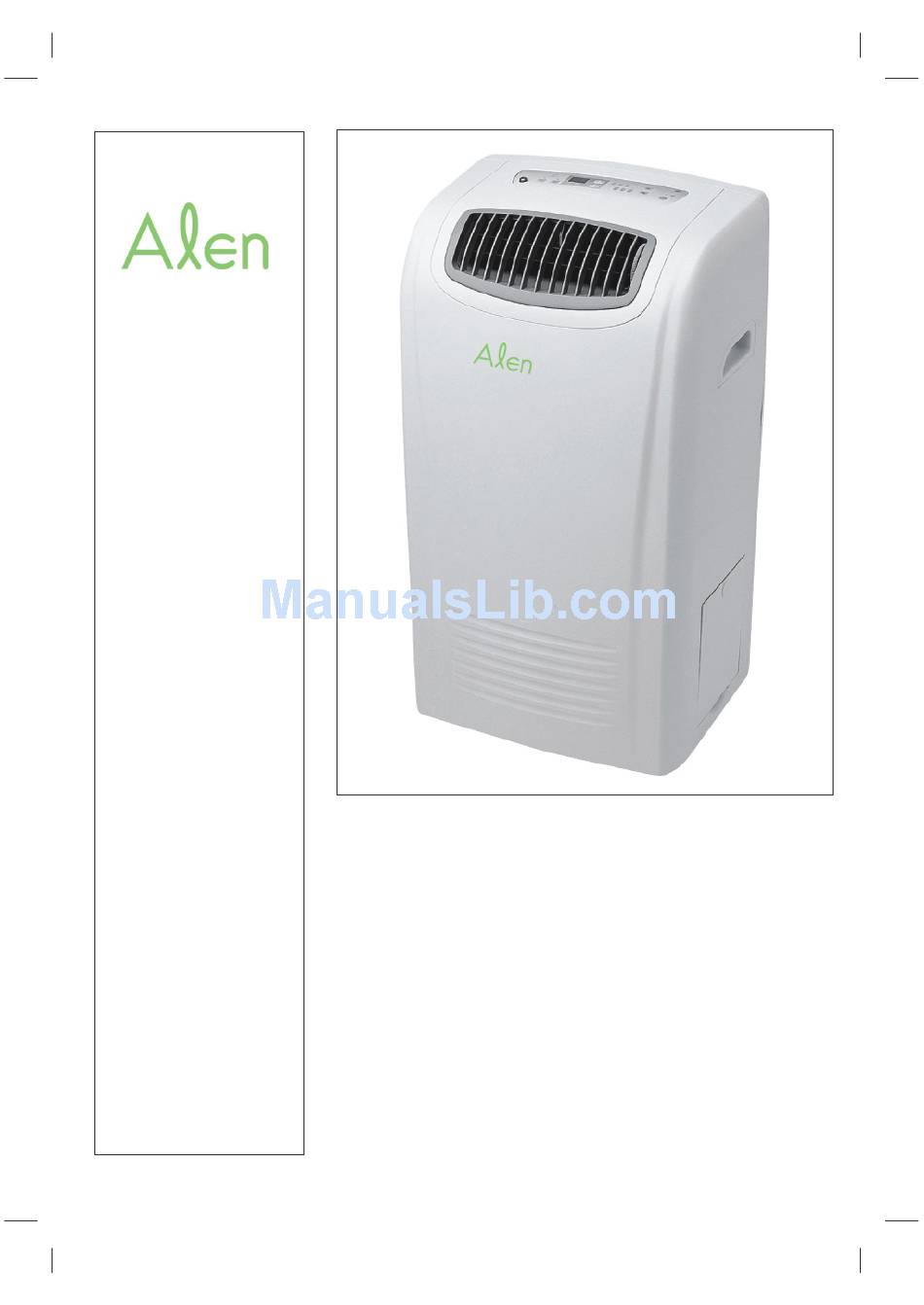

PORTABLE
AIR CONDITIONER
'
OWNER S MANUAL
Models
C425
C535
Thank you for
purchasing this
product.
Please read this
Owner's Manual
carefully before
operating.
Table of Contents.................................. ......................1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C425 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alen C425

Summary of Contents for Alen C425

  • Page 1 PORTABLE AIR CONDITIONER OWNER S MANUAL Models C425 C535 Table of Contents..1 Thank you for purchasing this product. Please read this Owner's Manual carefully before operating.

  • Page 2: Table Of Contents

    1.SAFETY RULES... 2.NAMES OF PARTS... 3.ACCESSORIES... 4.OPERATION PANEL OF THE AIR CONDITIONER... 5.OPERATING INSTRUCTION FOR THE AIR CONDITIONER ... 6.INSTALLATION... 7.MAINTENANCE... 8.TROUBLE SHOOTING... CONTENTS...

  • Page 3: Safety Rules

    1. Do not connect unit to any AC socket in disrepair. 2. Do not use in the following locations: A: Next to source of fire B: An area where oil is likely to splash. C: An area exposed to direct sunlight. D: An area where water is likely to splash.

  • Page 4: Names Of Parts

    NAMES OF PARTS Operation Panel Horizontal Louver Vertical Louver Blades Carrying Handle (both side) Water Tank Caster Fig.1 Air Inlet (indoor) Power Cord Fixing Strap Drain Plug (insert) Air Outlet outdoor Power Cord and Plug Air inlet outdoor Bottom Drain Plug Fig.2...

  • Page 5: Accessories

    ACCESSORIES PARTS : PARTS NAME : Duct Adaptor A (for permanent duct mounting) Adaptor B (for temporary duct mounting) Expansion plug Power Cord Fixing Strap (for bundling the power cord) Drain Hose(Continuous drainage) Drain Hose(Connected with water tank) Window Slider Kit Check all the accessories are included in the package and please refer to the installation instructions for their usage.
  • Page 6 Key Pad Functions Fig.3 TIMER ON Button: Used to initiate the AUTO ON start time program, and used to adjust Auto-Timer settings. TIMER OFF Button: Used to initiate the AUTO OFF stop time program, and used to adjust Auto-Timer settings. Used to adjust (forward) temperature settings(1 C/2 F increments).

  • Page 7: Operating Instruction For The Air Conditioner

    OPERATING INSTRUCTING FOR THE AIR CONDITIONER Before Starting This Unit 1) Select a suitable location, make sure you have easy access to an electrical outlet. 2) Install the Flexible Exhaust Hose and the Adjustable Window Slider Kit as depicted in Fig.4 & Fig.4a NOTE: Step 2 is required only while using the 3) Plug the unit into a 220-240V~50Hz/ or 115V~ 60Hz (Refer to the nameplate located on...

  • Page 8: Fan Operation

    Operating Instructions COOLING OPERATION (Operating temperature range: 17 C-32 C/62 F-92 F ) Press the "MODE" button several times until the "COOL" indicator light comes on. Press the "TEMP SETTING" buttons " " or " The temperature can be set within a range of 17 C-30 C/62 F-88 F. Press the "FAN SPEED"...
  • Page 9 WATER TANK DRAINAGE A) During Cooling Mode: Install the Flexible Exhaust Hose and the Adjustable Window Slider Kit . When the water level inside the internal tank reaches a predetermined level, the unit stop operation automatically. The fan motor will continue to operate. Carefully remove the water tank from the cabinet and dispose of the water.

  • Page 10: Duct Mount Installation

    1. Window Kit Installation Your window kit has been designed to fit most standard Vertical and horizontal window applications, However, it may be necessary for you to improvise/modify some aspects of the installation procedures for certain types of window. Please refer to Fig. 7 & Fig. 7a for minimum and maximum window openings.
  • Page 11 A) TEMPORARY- 1. Attach one end of the duct to the exhaust air outlet of the mobile air condition, push it downwards, be sure to fix thoroughly. (See Fig.9) 2. Attach the other end of the duct to adaptor B. 3.

  • Page 12: Maintenance

    IMPORTANT: 1) BE SURE TO UNPLUG THE UNIT BEFORE CLEANING OR SERVICING. 2) DO NOT USE GASOLINE, THINNER OR OTHER CHEMICALS TO CLEAN THE UNIT. 3) DO NOT WASH THE UNIT DIRECTLY UNDER A TAP OR USING A HOSE. THE ELECTRICAL CAUSE DANGER.

  • Page 13: Trouble Shooting

    TROUBLES POSSIBLE CAUSES 1. UNIT DOES NOT - Water full indicator blinks, water tank START WHEN is full. PRESSING BUTTON - Room temperature is higher than the set temperature.(Heating mode) - Room temperature is lower than the set temperature.(Cooling mode) 2.
  • Page 14 Replacement parts or units will be either new or refurbished. Alen’s sole obligation under this warranty is to replace, or at Alen’s discretion, to repair, free of charge, all defective parts, for a period of one (1) year from date of original purchase.

This manual is also suitable for:

C535

Table of Contents
