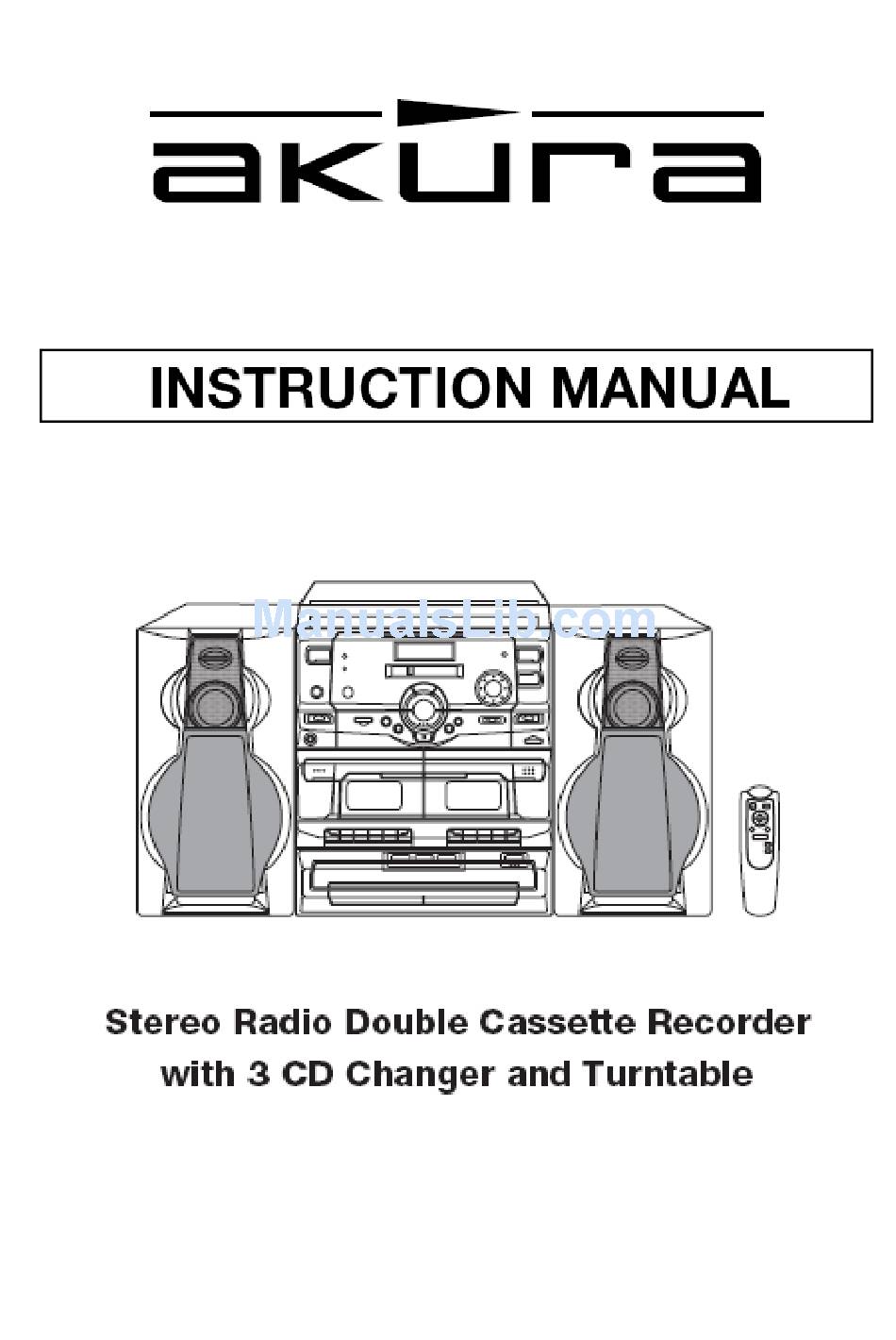

- Page 1 APTCDC9903AR Customer Help Line: 01422 263313 Opening Hours: Mon-Fri 8am-8pm, Sat 9am-4pm, Sun 11am-4pm Or visit our website at www.ekey.co.uk...
-
Page 2: Troubleshooting
TROUBLE SHOOTING Power switch on, but no power Record button cannot be pressed in • Check power to wall plug. • Cassette erase-protection tab is removed. • Check AC cord connection to wall plug. Use another cassette or apply adhesive tape over tab hole. - Page 3 CONTROLS 19) Volume Down button 1) Pick-up Holder 2) Speed Selector 20) Tuning button 3) Spindle Adapter 21) CD PLAY/PAUSE button 22) Band Selector 4) CD Skip Forward button 23) Dubbing Speed Selector 5) CD Skip Backward button 6) Power button 24) FM Mode Selector 7) Remote Sensor 25) Random button...
- Page 4 REMOTE CONTROL This unit comes with a Remote Control which allows the user to control certain REMOTE CONTROL RANGE system functions from a distance of up to 20 feet. The Remote Control requires two AAA Remote Control Sensor batteries (not included). NOTE : The Remote Control should always be aimed at the Remote Control Sensor on the...
-
Page 5: Remote Control
CONNECTIONS POWER CONNECTION HEADPHONE JACK (PHONES) REMOTE CONTROL Connect the power cord to AC outlet only. This unit will accept stereo headphones (not included) with a 3.5mm socket. SPEAKER JACKS The speakers are automatically Connect the SPEAKER PLUGS to the disconnected when headphones are SPEAKER JACKS located on the rear of the connected to the PHONES jack. -
Page 6: Cassette Tapes
PHONO Note : 6. Place the phono arm to the desired position. Remove the stylus protector. 7. Adjust VOLUME & EXTRA BASS Be sure that the phono arm is detached from the controls to the desired sound level and sound tone arm rest before operation and re-secured equalization. -
Page 7: Recording (Deck A)
CASSETTE PLAYBACK (DECK B) (DECK A) The TAPE B is used for playback only. The Fast-Forward and Rewind TAPE A is used both for recording and For fast winding or rewinding the tape, press playback. the F.Fwd or REW button. Press the STOP/ Do not turn the unit off while the tape is EJECT button when the desired location has running. - Page 8 DUBBING (DECK B) TO (DECK A) This unit enables you to duplicate a pre- Dubbing at High Speed recorded tape to another tape by using the This unit is equipped with a HIGH SPEED unit-in double deck mechanisms. It is DUBBING system which allows duplicating performed only one way, from the DECK B a pre-recorded tape at approximately two-...
-
Page 9: Handling Compact Discs
HANDLING COMPACT DISCS To remove a disc from its storage case, press down on the centre of the case and lift the disc out, holding it carefully by the edges. Fingerprints and dust should be carefully wiped off the disc's recorded surface with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and microscopic debris so gently wiping with a soft cloth should remove most particles. -
Page 10: Loading Cds
CAUTION Do not put anything except a compact disc into the compartment. Foreign objects can damage the mechanism. Do not force the compartment by hand during the opening and closing operations. Keep the disc compartment closed when not in use to prevent dirt and dust from entering the mechanism. -
Page 11: Programmed Disc Play
PROGRAMMED DISC PLAY It is possible to program the tracks you wish to play in a sequence of your choice. It is not possible to enter programs during disc play. Press the STOP button first, then follow the instructions below. PROGRAMMING THE TRACK FROM 1 DISC 1.
