Akura APTK1103 User Manual

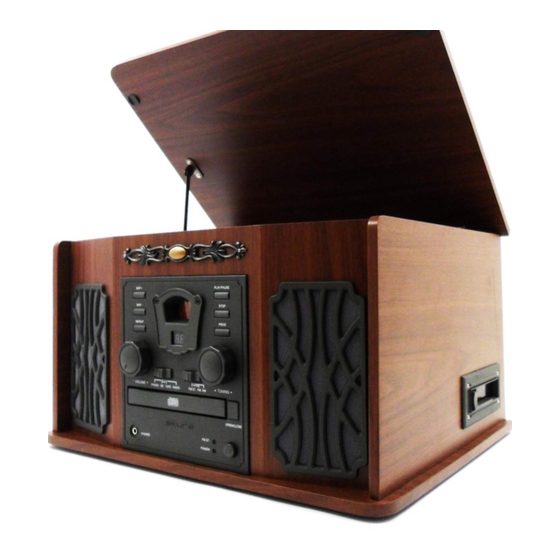

Retro music centre; radio, cd, tape, record player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Model : APTK1103
Retro Music Centre
Radio, CD, Tape, Record player.
Customer Help Line : 0845 293 7698
Website : www.ekey.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APTK1103 and is the answer not in the manual?

Questions and answers

Related Manuals for Akura APTK1103

Summary of Contents for Akura APTK1103

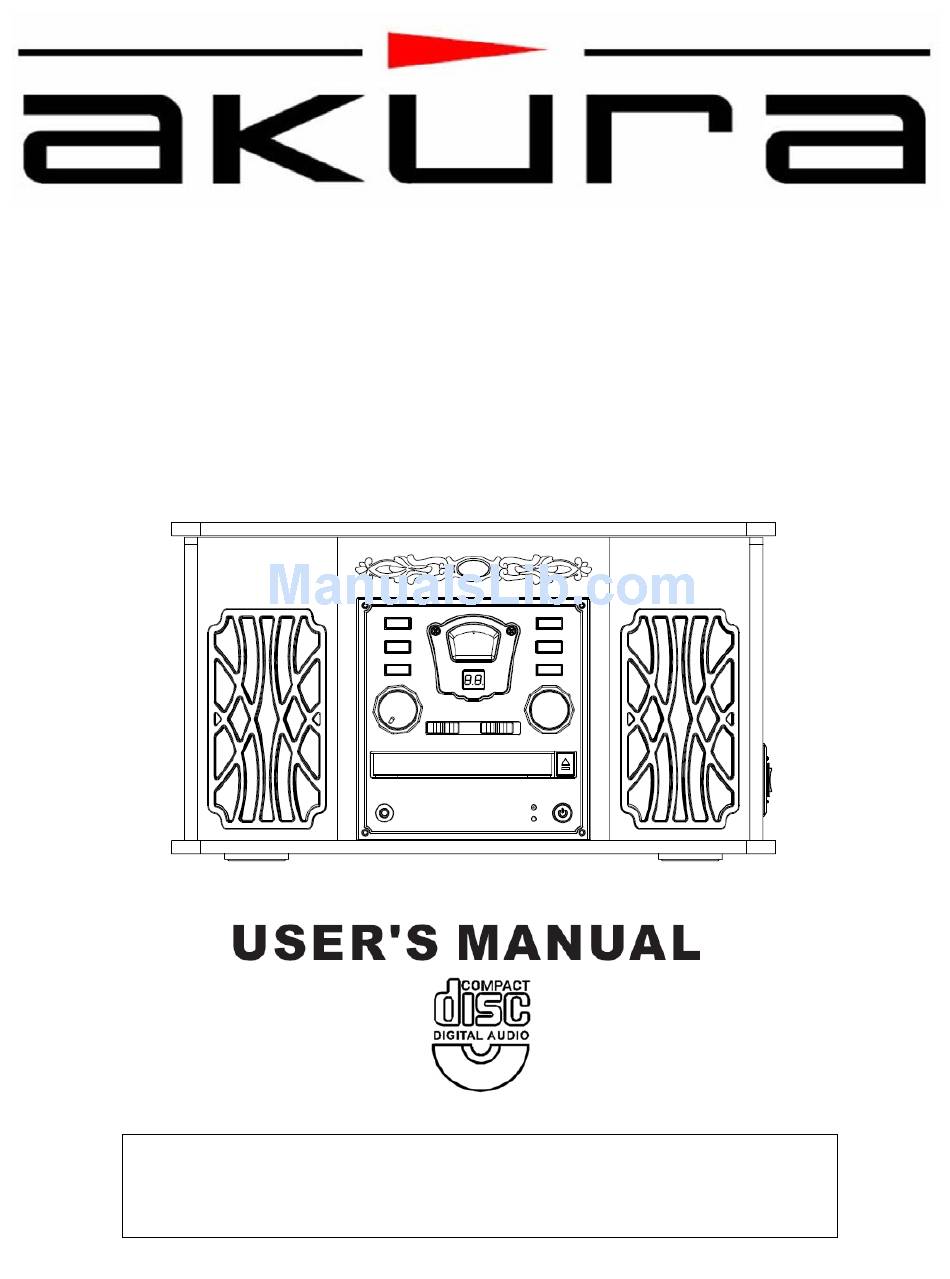

  • Page 1 Model : APTK1103 Retro Music Centre Radio, CD, Tape, Record player. Customer Help Line : 0845 293 7698 Website : www.ekey.co.uk...

  • Page 2: Table Of Contents

    Contents Safety Information Safety Instructions User Controls General Operation Trouble Shooting Guide Disc Care Specifications Mains Plug Wiring...

  • Page 3: Safety Information

    1. Safety Information The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 4: Safety Instructions

    2. Safety Instructions CAUTION. PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS USER MANUAL AND MARKED ON THE APPLIANCE. RETAIN THIS BOOKLET FOR FUTURE USE. This player has been designed and manufactured to assure your personal safety. Improper use can result in Electric shock or Fire hazard.

  • Page 5: User Controls

    3. User Controls. Front View Band Selector. Selects AM , FM Mono, FM Stereo Skip +. Selects the Next track on the CD Play/Pause. Plays or Pauses CD playing. Skip -. Returns to the start of the track playing. Holding down selects the previous track. Stop.
  • Page 6 3. User Controls. Side View Turntable Platter. Supports Vinyl disc. Speed Selector. Selects disc speed. 78 Rpm, 45 Rpm, 33 Rpm. Cartridge and Stylus.

  • Page 7: General Operation

    4. General Operation. Power Connection. Insert the Mains Plug into a suitable 240V AC socket and switch on the socket. The Power Indicator will light Red, to indicate power is applied. (Note :- To fully remove the power you must switch Off at the supply socket).

  • Page 8: Trouble Shooting Guide

    5. Trouble shooting guide. Should you experience difficulties operating this product please consult the guide below before calling the Customer Help Line. SYMPTOM POSSIBLE CAUSE REMEDY Dead No led lit Power not connected to player Check power lead connections and mains switch is turned on No operation.

  • Page 9: Disc Care

    6. Media Care CD Disc Handling. CD discs require careful handling and storage. Hold the disc with your fingers as shown carefully gripping the outer edges or using a finger in the centre hole. Do NOT touch the playing surface. Do NOT bend the disc.

  • Page 10: Specifications

    7. Specifications. ITEM DESCRIPTION Power Requirements 230V AC 50 Hz (11W)max Standby Power < 1W Case dimensions 420mm x 355mm x 235mm Weight 6.68Kg’s Audio Output 2 x 2W @ 10% THD Tuning FM 88 – 108 Mzh 540 – 1600 Khz CD Discs 8 CM ,12 CM.
