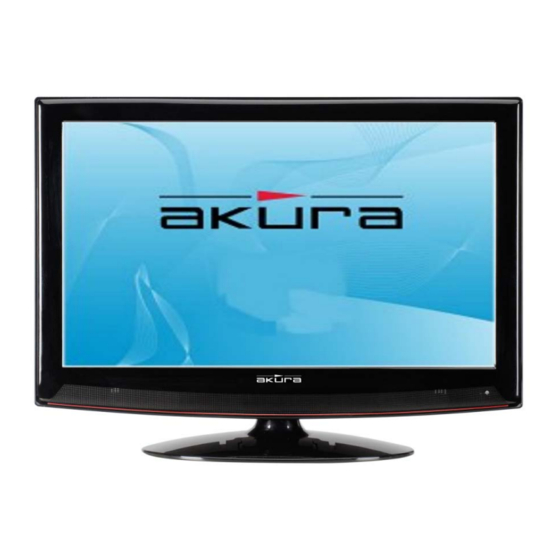

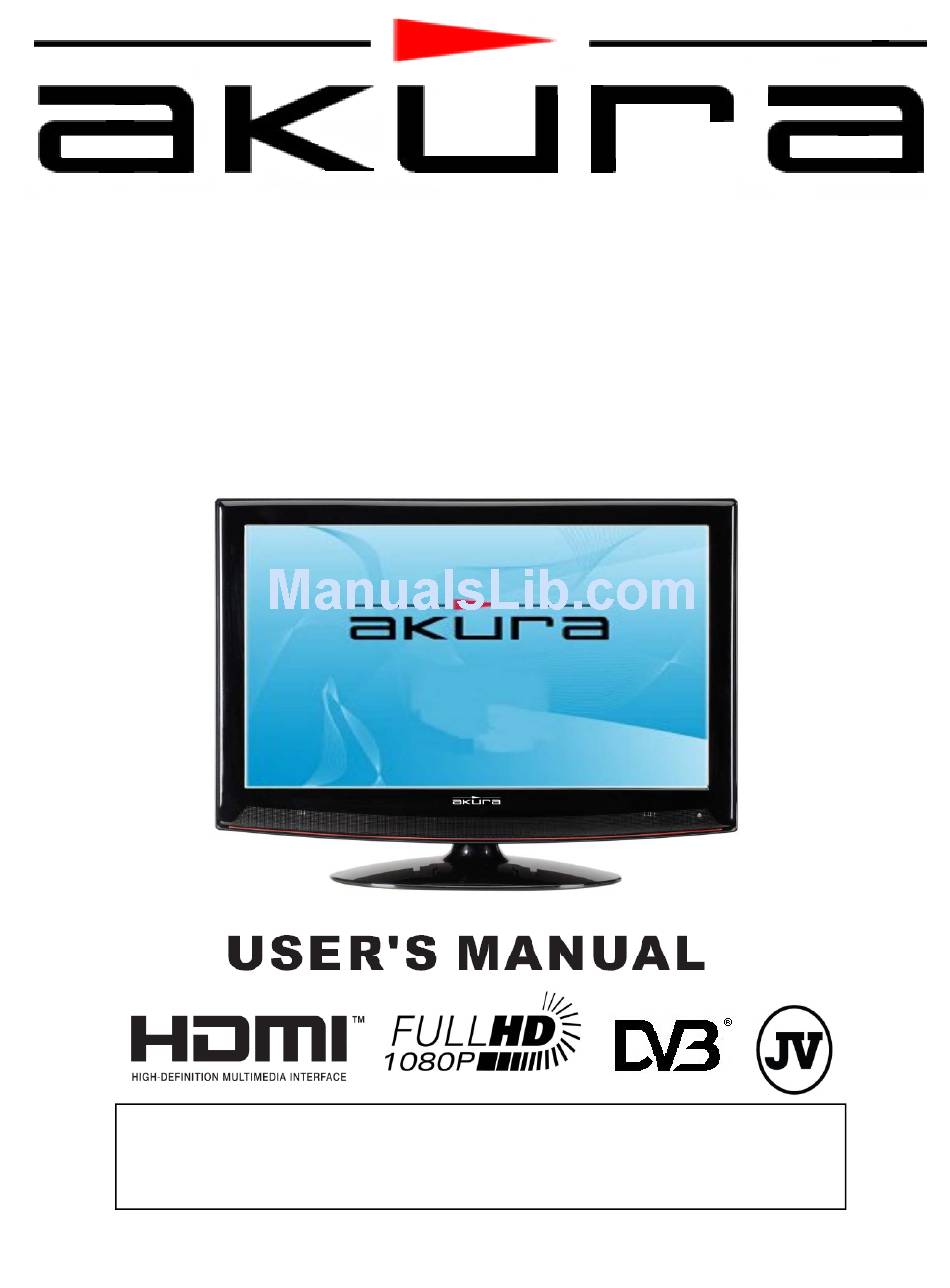

- Page 1 APL2YR2668FD2U MSD109 Digital LCD TV with DVBt “Freeview” 2xHDMI USB Record via USB stick (not supplied). Customer Help Line : 0845 293 7698 Website : www.ekey.co.uk...
-
Page 2: Table Of Contents
Contents Safety Information Safety Instructions Digital Switch over Accessories User Controls Remote Control Connections Menu Operation Basic Tuning OSD Menu TV setting DTV Manual Tuning ATV Manual Tuning Programme edit Cam Module Teletext (Analog) Teletext (Digital) EPG (Electronic Programme Guide ). Media (PVR Hard drive recorder). -
Page 3: Safety Information
1. Safety Information The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Digital Switchover
2. Safety Instructions CAUTION. PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS USER MANUAL AND MARKED ON THE APPLIANCE. RETAIN THIS BOOKLET FOR FUTURE USE. This set has been designed and manufactured to assure your personal safety. Improper use can result in Electric shock or Fire hazard. -
Page 5: Accessories
Remote Control 4. Accessories Please check the contents of the TV before you continue. If any item is missing please contact your point of purchase. User Manual Mains lead 5. User Controls. Rear Panel Side View 1. Vol + Increases Volume level. In menu mode, will shift the selection to the right, or increase level being adjusted.. -
Page 6: Remote Control
6. Remote Control. 2. MUTE. Press to mute sound, press 1. POWER. Switches TV to again to restore sound. Standby and Operation. 4. INFO. Displays TV settings and 3. P MODE. Selects picture modes. channel being viewed. 5. S MODE. Selects sound modes. 6. - Page 7 6. Remote Control. Battery Fitting and Disposal Open the battery cover Fit two “AAA” batteries. Ensure the battery polarities are correct i.e + to + and – to -. Replace the battery cover To prevent injury, do NOT break open or throw exhausted batteries in a fire. Do not mix batteries, old and new, Carbon or Alkaline.
-
Page 8: Connections
7. Connections. IMPORTANT. When making connections ensure the TV is disconnected from the MAINS supply input, and that the appliance being connected is also disconnected from the mains supply. POWER INPUT. 110-240V AC 50/60 hz USB. Connection to a USB Hard drive or Memory Stick for Media Record/Replay. HDMI 1 AND 2. - Page 9 7. Connections. Y,Pb,Pr (Component) PC connections. Disconnect TV from mains Disconnect TV from supply. mains supply. Connect Y,Pb,Pr leads and Connect VGA (15 pin) audio leads (Audio 1 L/R) to plug to TV and PC. TV and appliance. Connect stereo audio It is wise to use dedicated lead.
-
Page 10: Menu Operation
7. Connections. Source/ Input Menu. To access the Source menu, press the SOURCE button on the Remote Control or the INPUT button on the TV. Using the ▲/▼ buttons select the Source / Input required and press OK to select. 8. -
Page 11: Osd Menu
8. Menu Operation Fig 3 OSD Menu. Press the LCD MENU button to display the main menu, Fig 4 will be displayed. To select the other menu’s press the ► button and the menu’s will rotate in the sequence :- Picture, Sound, Time, Setup, Lock, TV Setting. To enter each menu press the ▼... - Page 12 8. Menu Operation Time. (Fig 7). Fig 7 Clock. Once the TV is tuned to a DVBt signal the clock time is automatically set. Off Time. To turn the TV Off at a specially selected time. On Time. To turn the TV On at a specially selected time. Sleep Time.
-
Page 13: Dtv Manual Tuning
8. Menu Operation Fig 11 DTV Manual Tuning. (Fig 12). It may be necessary to add more digital channels as they are provided by the programme providers or manually tune stations for reasons (above). Select DTV Manual Tuning and press Ok. Using the ►/◄ buttons select the channel number of the multiplex (channel) required. -
Page 14: Cam Module
8. Menu Operation Programme Edit. (Digital) (Fig 15). All the operations are identical to the (Analog) features (see page 12) Fig 15 Fig 16 Using a CAM (Conditional Access Module) (CI Slot). This feature allows the user to access digital terrestrial “pay per view” channels. -
Page 15: Teletext (Analog)
9. Teletext (Analog TV) Teletext is an information system broadcast by certain programme providers. It can provide Subtitles for viewers hard of hearing. Weather, Travel information, games and many other services. Below is a description of the buttons associated with Teletext. TEXT. -
Page 16: Epg (Electronic Programme Guide )
ALL previous data on the device will be LOST. Do NOT use a HDD or Memory stick with valuable data stored. AKURA accepts NO responciblity for any data lost from any media device plugged into this TV under ANY circumstances. -
Page 17: Recording
12. Media The HDD will now be “Formatted” and “Fig 24” will be shown, then “Fig 25”. When completed “Fig 26” will be displayed. Set the amount of the HDD to allow for “Time Shifting” and press OK. Each press of the ►/◄ buttons will change the allowable time of Time shifting, press “OK”... -
Page 18: Time Shifting
12. Media Programme. Displays the name of the programme selected. Fig 31 Mode. Sets the number of times the recording will be made. Select from Auto, Once, Everyday, and Weekly. AUTO. This selection automatically sets the recording timer from the EPG and cannot be changed. Once, Everyday and Weekly, opens the menu as in Fig 30 and allows changes to be made. -
Page 19: Media Playback
12. Media Fig 34 Media Playback DTV. Press the “INDEX” button on the Remote control. A list of programmes stored on your HDD or Memory stick will be displayed. “Fig 34”. Move up and down the list using the ▲/▼ buttons. To see the details of the item listed, press the ►... -
Page 20: Playback
12. Media Media Playback. MUSIC. (Fig 38) A list of the music titles will then be displayed, Use the ▲/▼ buttons to select the required track and press “OK”. The track will start to play and its details will be displayed in the box on the right if it has been authored correctly. To pause the music press the “Play/Pause”... -
Page 21: Specifications
13. Specifications. ITEM DESCRIPTION 100-240V AC 50/60 Hz (95W) (112W Power Requirements TV Max) Standby Power <1W Screen Size 26" (66cm) diagonal Case dimensions 671 x 250 x 514 mm inc base Weight 9.34 Kg’s Screen resolution 1920x 1080 pixels Viewing angle V 176º... -
Page 22: Trouble Shooting Guide
14. Trouble shooting guide. Should you experience difficulties operating this product please consult the guide below before calling the Customer Help Line. SYMPTOM POSSIBLE CAUSE REMEDY Check power lead and mains supply connections Power not connected to TV Dead. No led lit and supply to the TV is turned On Press Power button on TV or Power button on No Picture. -
Page 23: Wall Mounting Guide
Mount the TV to the wall bracket using 4 x 5 mm x 10 mm set screws. (Do NOT use longer screws as the internal parts of the TV may be damaged). AKURA Ltd accepts no responsibility for any damage, caused to or by, incorrect mounting of the wall bracket.
