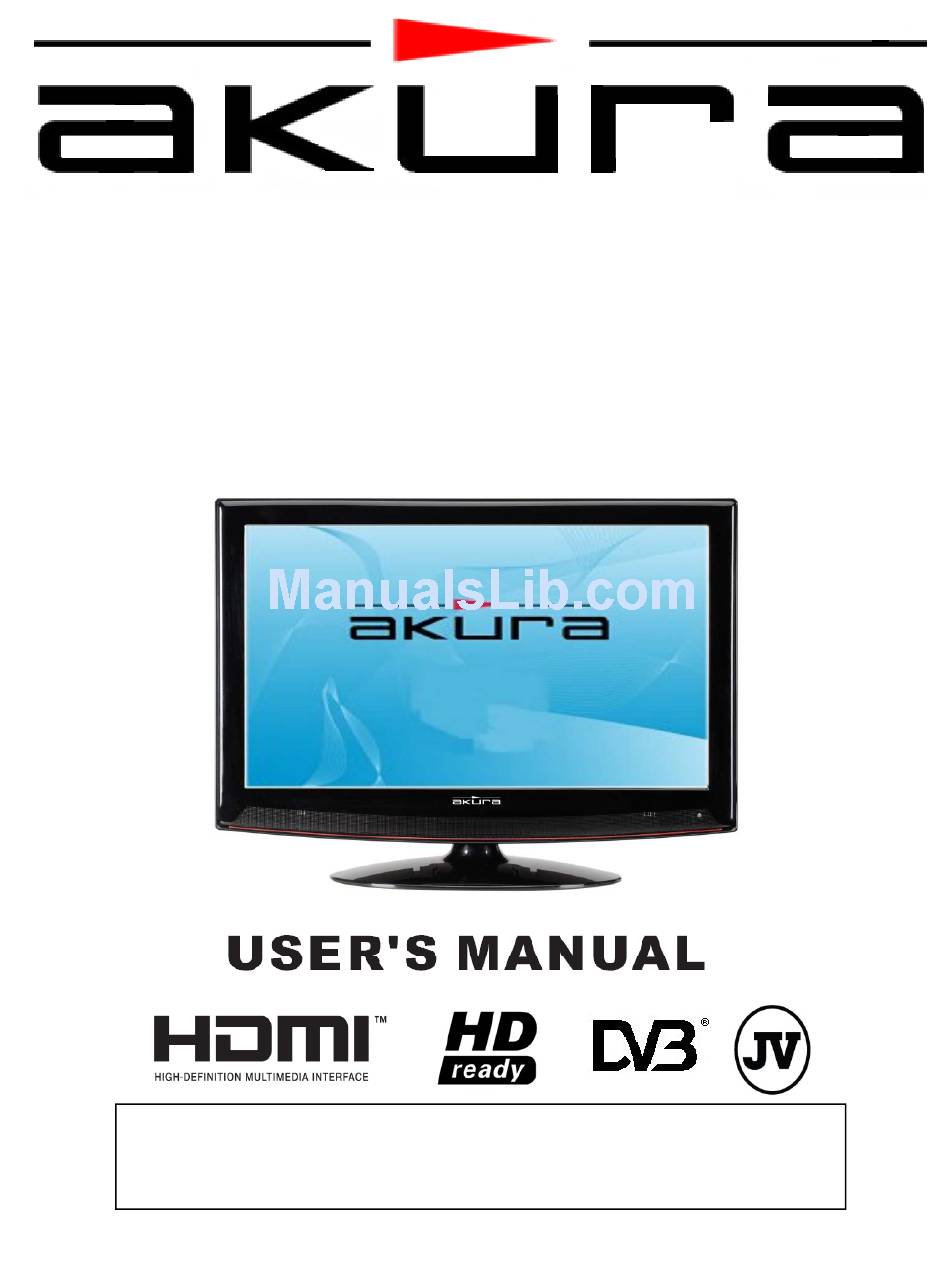

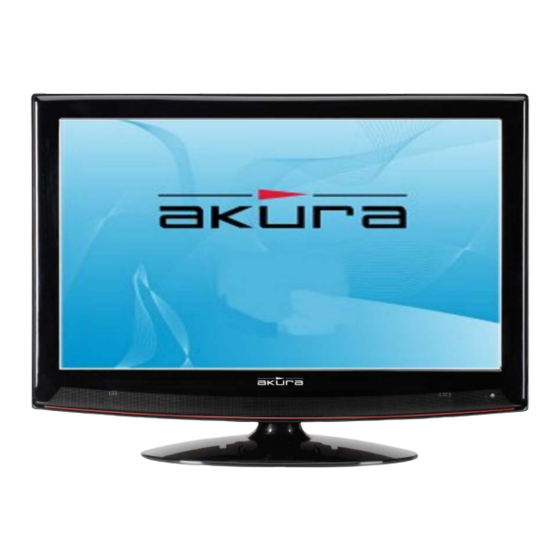

- Page 1 APL2YR2068U Digital LCD TV with DVBt “Freeview”, PVR Record via USB (memory stick not supplied). Customer Help Line : 0845 293 7698 Website : www.ekey.co.uk...
-
Page 2: Table Of Contents
Contents Safety Information Safety Instructions Digital Switch over Accessories User Controls Remote Control Connections Menu Operation Menu Operation Digital Menu Operation Analog EPG (Electronic Programme Guide ). CAM (Conditional Access Module) Teletext (Analog) Teletext (Digital) Digital Radio Media (PVR Hard drive recorder). Playback Recording Timer Recording... -
Page 3: Safety Information
1. Safety Information The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Digital Switchover
2. Safety Instructions Unpacking and Handling. Open the carton carefully and remove the polyfoam packing. Carefully lift the TV and place onto a firm stable surface, this will need two persons. Lift off the Poly bag and retain all packaging for future use. Keep all packaging away from small children and animals. Placing TV. -
Page 5: Accessories
4. Accessories Please check the contents of the TV before Remote Control you continue. If any item is missing please contact your point of purchase. User Manual Mains lead 4 x 15mm Spacers for wall mounting bracket. (See page 24 for use) 5. -
Page 6: Remote Control
6. Remote Control. 2. MUTE. Press to mute sound, press 1. POWER. Switches TV to again to restore sound. Standby and Operation. 4. INFO. Displays TV settings and 3. P MODE. Selects picture modes. channel being viewed. 5. S MODE. Selects sound modes. 6. - Page 7 6. Remote Control. Battery Fitting and Disposal Open the battery cover Fit two “AAA” batteries. Ensure the battery polarities are correct i.e + to + and – to -. Replace the battery cover To prevent injury, do NOT break open or throw exhausted batteries in a fire. Do not mix batteries, old and new, Carbon or Alkaline.
-
Page 8: Connections
7. Connections. IMPORTANT. When making connections ensure the TV is disconnected from the MAINS supply input, and that the appliance being connected is also disconnected from the mains supply. HEAD PHONES. Stereo output to headphones only. TV TUNER. RF input from TV aerial or cable source.( 1 m/V @ 75 Ω) typical. USB. - Page 9 7. Connections. PC connections. Disconnect TV from mains supply. Connect VGA (15 pin) plug to TV and PC. Antenna Connect stereo audio or cable lead. Re connect mains supply to TV and PC. Use SOURCE button to select VGA. SCART. Disconnect TV from mains supply.
-
Page 10: Menu Operation
7. Connections. Source/ Input Menu. To access the Source menu, press the SOURCE button on the Remote Control or the INPUT button on the TV. Using the ▲/▼ buttons select the Source / Input required and press OK to select. 8. - Page 11 8. Menu Operation. Basic Tuning Fig 1 Press the LCD MENU button on the Remote Control. The menu as in Fig 1 will be shown. Using the ▲/▼ buttons select “YES”. If you are in a different country, select “COUNTRY” use the ►/◄ buttons to select your country of choice.
- Page 12 8. Menu Operation. LCD Menu. Press the LCD MENU button to display the PICTURE menu, Fig 4 will Fig 4 be displayed. To select the other menu’s press the ▲/▼ button and the Highlight bar at the left of the menu will move Upwards or Downwards To enter each menu press the ►...
- Page 13 8. Menu Operation. Fig 7 Sound. (Fig 7) Sound Mode. Select from :- Standard, Music, Voice, Theatre and Personal. Standard. Used for general viewing. Music. Selected for enhanced music appreciation. Voice. Selected for News and voice based programmes Theatre. Suitable for Films and large productions Personal.
-
Page 14: Menu Operation Digital
9. Menu Operation. Digital Digital Installation. Fig 12 Should you move to another location you may need to re install the DTV channels. Select Installation and you will see the menu as in FIG 1. A full retuning will now take place. DTV Auto Tuning. - Page 15 9. Menu Operation. Digital Fig 18 FAV. To select Stations that you wish to have as “Favourites” select the station required by using the ▲/▼ buttons. Press the RED button. This will place a Red Heart into the FAV column. To de select press the RED button again.
-
Page 16: Menu Operation Analog
9. Menu Operation. Digital Delete All RADIO stations. (Fig 16). Fig 20 Should you need to Re install the Digital RADIO stations first you must Delete all the stored stations. Select DEL RADIO CH. Press OK and you will be asked to select YES or NO. If you chose YES all the RADIO channels will be deleted. - Page 17 10. Menu Operation. Analog ATV Manual Tuning. (Fig 24). It may be necessary to add a channel for a TV game or similar without fully retuning the TV. Fig 24 If you are adding a TV game to be used on the aerial, unplug the TV aerial and insert the game.
-
Page 18: Epg (Electronic Programme Guide)
10. Menu Operation. Analog. Move Fig 26 If one of the stations has been incorrectly placed in the station listing, you may move it to the correct position, i.e, BBC1, BBC2, ITV, Channel 4, Channel 5. Using the cursor select the channel to be moved, press ►, a >... -
Page 19: Cam (Conditional Access Module)
12. CAM Module Fig 30 Using a CAM (Conditional Access Module) (CI Slot). This feature allows the user to access digital terrestrial “pay per view” channels. To use this facility a conditional access module (CAM) and viewing card need to be obtained by subscribing to a pay channel company. -
Page 20: Teletext (Analog)
13. Teletext. (Analog) TV Teletext is an information system broadcast by certain programme providers. It can provide Subtitles for viewers hard of hearing. Weather, Travel information, games and many other services. Below is a description of the buttons associated with Teletext. TEXT. -
Page 21: Media (Pvr Hard Drive Recorder)
FAT32 is the required formatt. Both HDD and USB Memory stick must be formatted. Note :- It is wise to used “Dedicated” media memory for the PVR. AKURA accepts NO responsiblity for any data lost from any media device plugged into this TV under ANY circumstances. -
Page 22: Recording
16. Media Fig 44 Music Playback. Refer to Fig 40, and 41 but select Music, fig 44 will be displayed. Use the ▲/▼ buttons to select the track required and press OK. The track will now start playing “ Fig 45”. To control the playing see the buttons at the bottom of the display. -
Page 23: Timer Recording
16. Media Timer Recording In DVB mode “only”, press the “Record” button , the Fig 48 “Record Menu” fig 48 will be shown. Use the ▲/▼ buttons to select “Set Timers” and press OK. Fig 49 will be displayed. Use the ▲/▼... -
Page 24: Trouble Shooting Guide
17. Trouble shooting guide. Should you experience difficulties operating this product please consult the guide below before calling the Customer Help Line. SYMPTOM POSSIBLE CAUSE REMEDY Check power lead and mains supply connections Power not connected to TV Dead. No led lit and supply to the TV is turned On Press Power button on TV or Power button on No Picture. -
Page 25: Wall Mounting
TV may be damaged). Akura accepts no responsibility for damage, caused to or by, incorrect mounting of the wall bracket. There are many variations of Wall Mounting Brackets. The “ARM” variety allow a greater movement of the TV into the viewing angle required. -
Page 26: Specifications
19. Specifications. ITEM DESCRIPTION Power Requirements TV 100-240V AC 50/60 Hz (63W) Standby Power < 1W Screen Size 20” ( 50.8cm) Diagonal Case dimensions 354 x 399 x 196 mm inc base Weight 4.51 Kg's Screen resolution 1366x 768 pixels Colour Systems PAL, SECAM Sound Systems...
