Summary of Contents for Akura AVX665

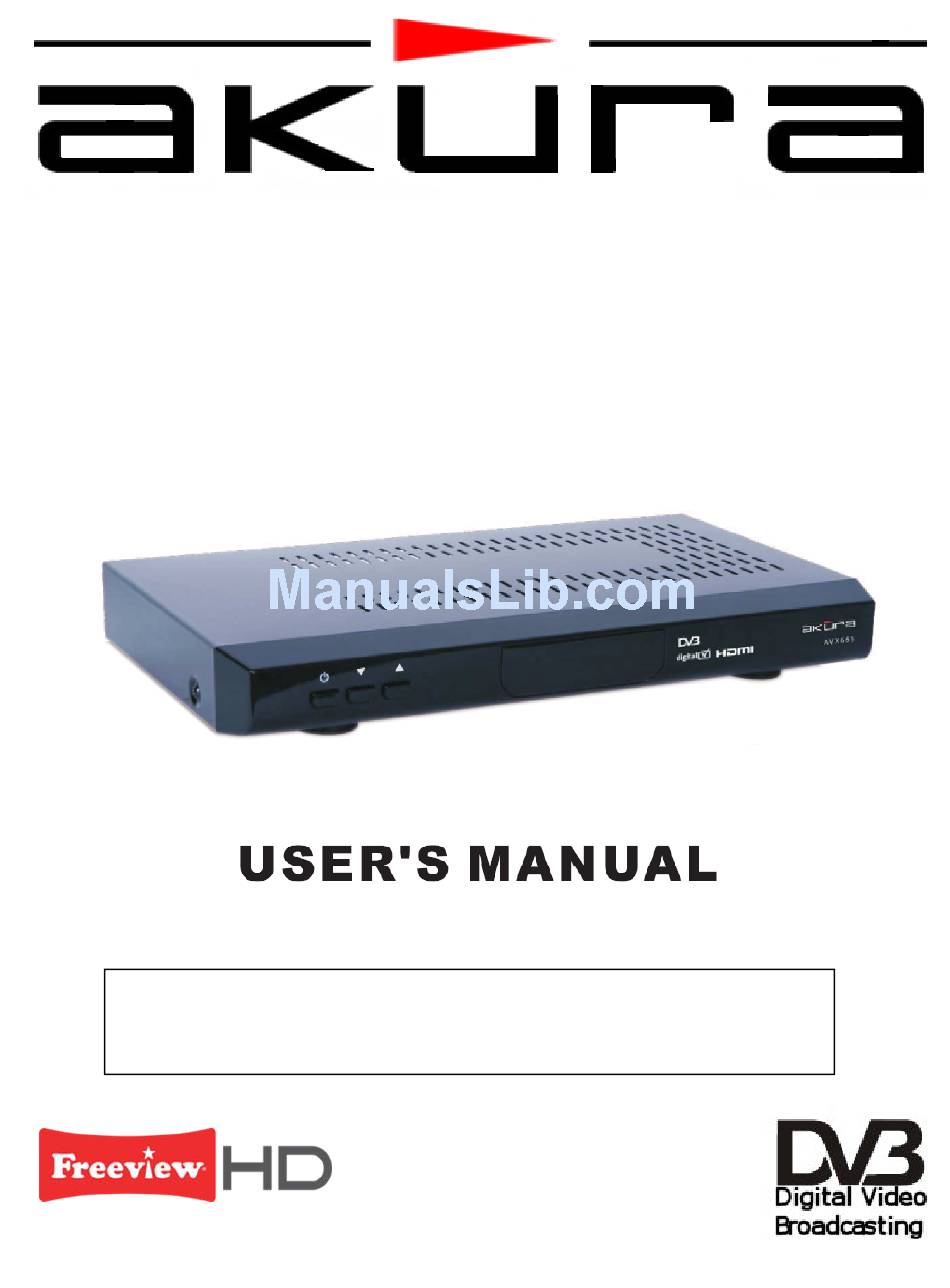

- Page 1 AVX665 High Definition Digital Set Top Box Customer Help Line : 0845 293 7698 Website : www.ekey.co.uk...
-
Page 2: Table Of Contents
Contents Preferred ............15 Safety Information ..........2 Current (*) ............. 15 Safety Instructions ..........3 IP Settings ............15 Digital Switchover ........... 3 Installation............15 Accessories ............4 Automatic Channel Scan ......15 User Controls............4 Manual Channel Scan ........15 Remote Control ............ -
Page 3: Safety Information
Safety Information The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Safety Instructions
Safety Instruction s CAUTION. PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS USER MANUAL AND MARKED ON THE APPLIANCE. RETAIN THIS BOOKLET FOR FUTURE USE. This set has been designed and manufactured to assure your personal safety. Improper use can result in Electric shock or Fire hazard. -
Page 5: Accessories
Accessories Please check the contents of the TV before Remote Control you continue. If any item is missing please contact your point of purchase. User Manual HDMI Lead User Controls Power. Turns STB On from standby. Also returns STB to standby Reduces channel selection by 1 with each press. -
Page 6: Remote Control
Remote Control 2. POWER. Press to bring box out of 1. INFRA RED WINDOW. standby. Press again to return box to Transmits optical signal to receiver standby 4. REC. Selects display screen size. 3. COLOURED BUTTONS. Access Selects 16 : 9 or 4 : 3 to Interactive services. - Page 7 Battery Fitting and Disposal Open the battery cover Fit two “AAA” batteries. Ensure the battery polarities are correct i.e + to + and – to -. Replace the battery cover To prevent injury, do NOT break open or throw exhausted batteries in a fire. Do not mix batteries, old and new, Carbon or Alkaline.
-
Page 8: Connections
Connections IMPORTANT. When making connections ensure the STB is disconnected from the DC supply input, and that the appliance being connected is also disconnected from the mains supply. ANTENNA INPUT. RF input from TV aerial or cable source.( 1 m/V @ 75 ) typical. RF LOOP THROUGH. -
Page 9: Power On - Off
Ethernet Connection. This connection is used ONLY for Digital Audio TV Loop Service Technician (Optical Through. Upgrade use. Connection). Connect to DO NOT (not supplied) Aerial input of CONNECT TO Connect to a TV, Female to ANY ETHERNET suitable Audio Male lead. -
Page 10: First Time Installation
• Select Yes or No by using “ ”/“ ” button and press OK First Time Installation to continue and the following message will be displayed IMPORTANT: Ensure that the aerial is connected on the screen: before switching on the set top box for the fi rst installation. -
Page 11: On-Screen Information
Volume Up / Down • To exit from a menu screen, you can press MENU button. • You can increase or decrease the volume by using • The following items are located in the main menu V+ / V- buttons. screen: •... -
Page 12: Operating The Channel List
current character, i.e., ‘b’ character becomes ‘a’ by • If the selected channel is password protected, parental pressing “ ” and ‘c’ by pressing “ ”. lock password will be asked. If the correct code is • Pressing the numeric buttons ‘0...9’ replaces the entered, selected channel can be watched. -
Page 13: Viewing Electronic Programme Guide (Epg)
Event Options Viewing Electronic Programme In EPG menu, press the OK button to enter the Guide (EPG) “Programme Options” menu. You can view the electronic programme guide (EPG) to view information about available programmes. Select Programme Guide from the main menu by using “... -
Page 14: Active Channels
Active channels • Although the RGB format provides a better picture quality, some devices might not support it. • You can select broadcasts to be listed in the channel AC3 Audio list. To display specific types of broadcast, you should use Active channel list setting. •... -
Page 15: Parental Settings
• The STB automatically powers up at 3.00 A.M. every Audio Description day and searches for any new software that may • Audio description refers to an additional narration be broadcast. If found, the box will download new track for blind and visually impaired viewers of visual software automatically. -
Page 16: Preferred
• In order for the ethernet host to work correctly with your internet connection it needs to have a unique IP address. In most cases all of the parameters can be provided by the DHCP server in their router. In this case you should use the “Dynamic”... -
Page 17: First Time Installation
• In both manual and auto search, any existing channel in the database is not re-stored to avoid duplicates of that channel. First Time Installation • If you want to load default settings of your set-top- Displaying Text box, you can perform fi rst time installation. •... -
Page 18: Trouble Shooting Guide
Trouble Shooting Guide No Red or Blue panel light lit. Check DC Mains adaptor is connected and power If you are still having difficulty please call the is turned on. Technical help line. Ring 0845 293 7698 (Normal rates apply). TV Shows no picture or sound. -
Page 19: General Characteristics
General Characteristics Supply Voltage for set-top box: 12 V DC Supply Voltage for DC Adaptor : 220 - 240 V AC ~ 50Hz Input Frequency 470Mhz-862Mhz Maximum Power consumption 15 W Typical Power consumption Standby Low Power Consumption <1 W USB (optional) Current Limit 500mA Operating temperature... -
Page 20: Audio
Audio Output 2 Vrms, 0 dBfs / Z = 10 kohm Digital Audio Output Optical SPDIF A / V & Data In / Out Scart TV scart RGB Video Output TV scart CVBS Video Output TV scart Analog Audio Output TV scart Digital Audio Output Optical output...
