Summary of Contents for Akura AMTDT 2010C

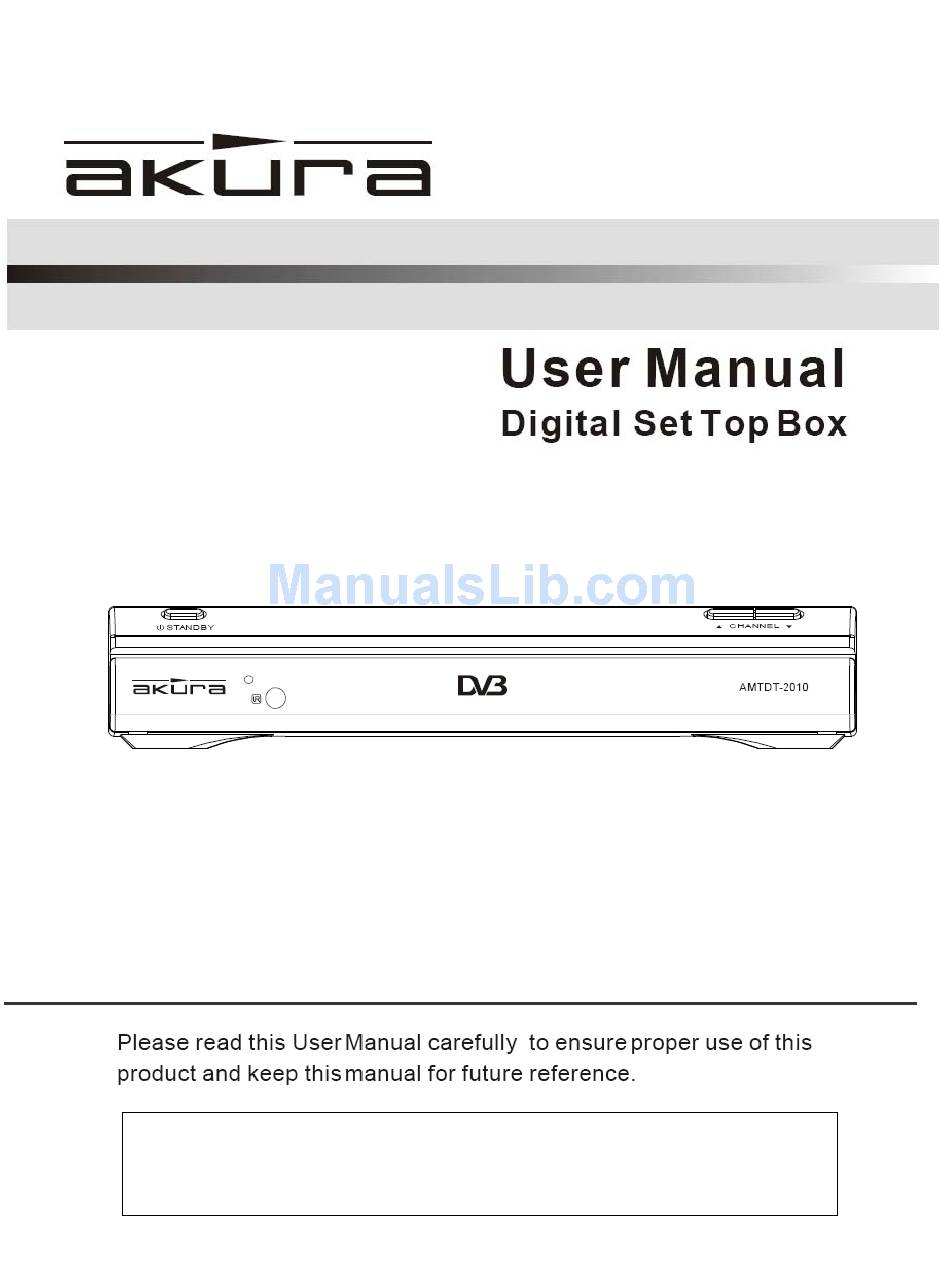

- Page 1 AMTDT 2010C Customer Help Line : 0845 293 7698 Or try our website :- www.ekey.co.uk Website : www.ekey.co.uk...
-
Page 2: Table Of Contents
Contents Safety Information Safety Instructions Remote Control User Controls and Rear panel illustration Typical connections User Instructions First Time Installation Trouble Shooting Guide Specifications Mains Plug Wiring... -
Page 3: Safety Information
1. Safety Information The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Safety Instructions
2. Safety Instructions CAUTION. PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS USER MANUAL AND MARKED ON THE APPLIANCE. RETAIN THIS BOOKLET FOR FUTURE USE. This receiver has been designed and manufactured to assure your personal safety. Improper use can result in Electric shock or Fire hazard. -
Page 5: Remote Control
3. Remote Control. 1. MUTE. Press to mute sound, press 12. DTV/VCR. Used to switch between again to restore sound. VCR Scart input and DTV output mode. 2. 0-9. Numeric buttons for direct 13. STANDBY. Switches to Standby channel selection or input numbers in and Operation. -
Page 6: User Controls And Rear Panel Illustration
4. User Controls and Rear panel illustration Standby Button. Used to turn the set top box On and Off. Standby Indicator. Led will show Green when operation, will show Red in standby. Remote Control Sensor. Receives the Infra Red signal from the remote control. Channel Up/Down. -
Page 7: Typical Connections
5. Typical connections Connection to a TV TV Aerial Set Top Box Connection to a TV / VCR / DVR and Hi Fi Amplifier TV Aerial Set Top Box VCR or DVD Optional Hi Fi recorder amplifier... -
Page 8: User Instructions
6. User Instructions... -
Page 23: First Time Installation
6. First Time Installation... -
Page 26: Troubleshooting Guide
8. Troubleshooting Guide. If you are experiencing problems please read below before calling the Customer Help Guide Symptom Possible cause Remedy Power not connected to Check STB is connected to the supply and Dead. Led not lit turned on Output of STB not No Picture on TV. -
Page 27: Specifications
9. Specifications. Item Specification Notes Tuner Frequency Range UHF 470 - 862 Mhz Input Impedance 75 Ohms unbalanced Signal Sensitivity range 100m/V to 30 uV Bandwidth 8 Mhz Demodulation Demodulator COFDM OFDM Modulation 2K,8K FFT,SFN and MFN Packet carriers 2K/8K Guard intervals 1/4,1/8,1/16,1/32. -
Page 28: Mains Plug Wiring
10. Mains Plug Wiring Diagram If it becomes necessary to replace the Mains Plug, it should be wired in accordance with the diagram as above The Brown wire (Live) should be connected to the terminal (L) The Blue wire (Neutral) should be connected to the terminal (N) This TV Mains adaptor is a “CLASS 2”...
