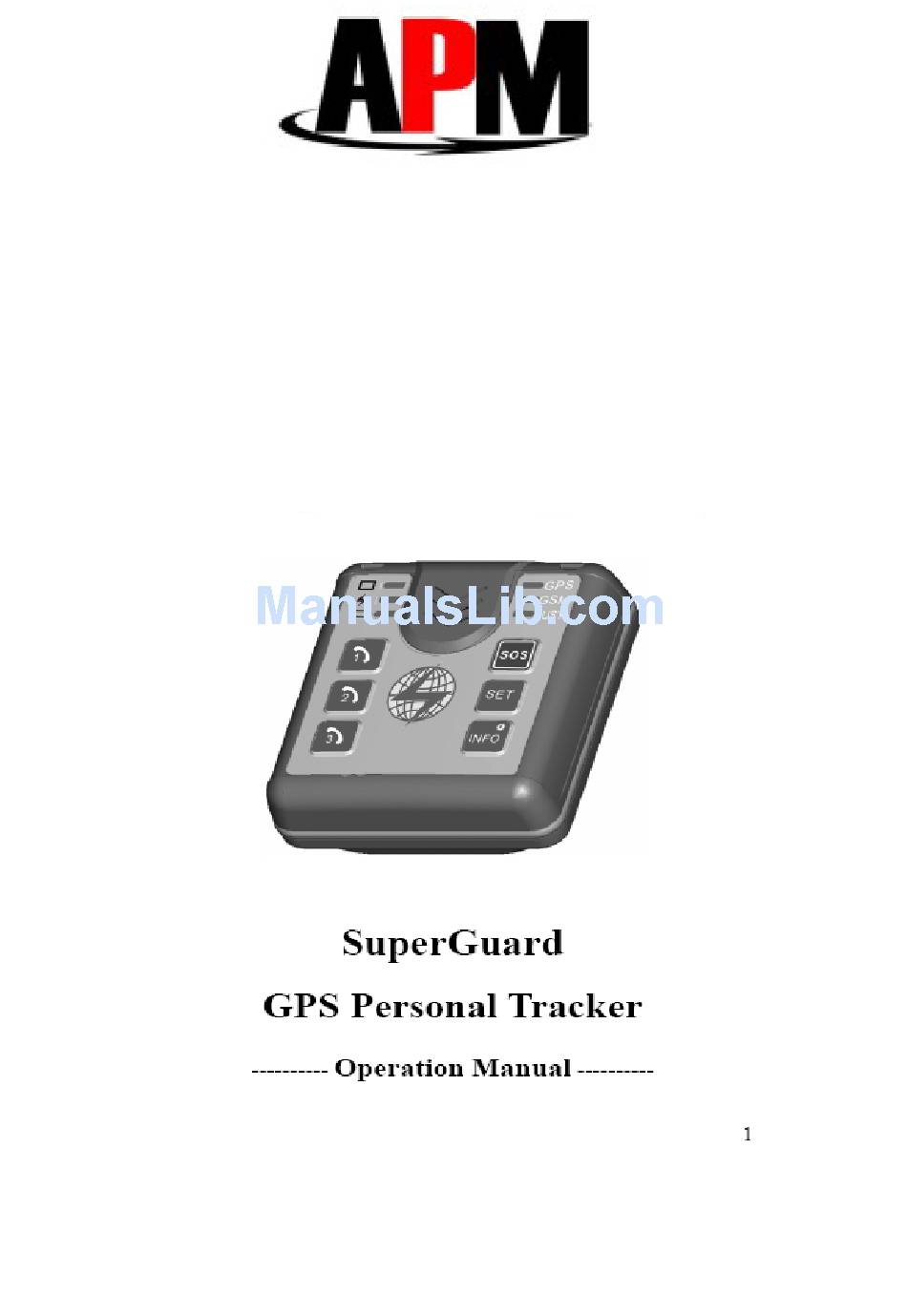

- Page 1 APM CO.,LTD 6F., No.10, Lane 65, Jiangnan St Neihu District, Taipei City 11474 Taiwan (R.O.C.) Tel:+886-2-8943-1966 FAX:+886-2-8943-4944...
- Page 2 ortable GPS/GSM/GPRS Device Model PT-3 Thank purchasing SuperGuard Personal Communication and Tracking device. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. arranty The Yield Technology Co., Ltd. (YTC) warrants to the purchaser that this product, under normal use and conditions, will be free from defects in materials and workmanship for a period of 12 months from the date of original purchase.
- Page 3 CONSEQUENT IAL DAMAGES IRRESPECTIVE OF WHETHER YTC OR THE ENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES. Notices To decrease the influence of electromagnetic interference, please use the device properly. The SAR standard value is 1.6W/Kg, and the result of testin the product is: 0.322 W/Kg.
- Page 4 and equipment such as hea ring aids or pacemakers. Follow the warnings and manufacturer's recommendations. Automobiles with Air Bags Do not place any object (including fixed or handheld wireless devices) in the effective range of air bags because huge air p ressure may result in arm.
-
Page 5: Table Of Contents
Table of Contents Parts & Accessories page 6 Personal Tracker - Features page 8 Introducing GPS Preparations page 10 LED Status Description page 11 Getting Started page 12 Phone Operation page 13 Make a Phone Call Receive Incoming Calls Sending a Location Update page 14 Power On/ Off Active SOS and A911 Call... -
Page 6: Parts & Accessories
. Parts & Accessories On receipt of your Personal Tracker package, please check that all ontents are complete and correct. 1. SuperGuard Personal T racker PT-3 Unit 2. Rechargeable Batter... - Page 7 3. Mini USB Charger This manual covers SuperGuard Personal Tracker model PT-3. The PT-3 combines Global Positioning System (GPS) technology and GSM/GPRS mobile commu nication with online tracking and remote setup features. All SuperGuard products can be managed and monitored over Control Base and Tracking System Server software or online over Inte rnet Websites provided by professional service centers.
-
Page 8: Personal Tracker - Features
he following chapters describe the Personal Tracker in detail and elp you familiarize yourself with functions and featu res. Read the anual carefully before you use the Personal Tracker. 2. Personal Tracker – Features The Personal Tracker is designed as a compact, mo bile GPS tracking device with cellular phone features. -
Page 9: Introducing Gps
Users can define and load up to 4 restricted areas (Geo-Fence areas) to the device and setup maxi mum speed limit alerts. Introducing GPS: The SuperGuard Personal T racker is working in combination with an advanced GPS tracking system. It helps you determine your location, enable preset contacts to track your position any time, and place SOS calls in case of emergency. -
Page 10: Preparations
. Narrow alley between tall buil dings in built up area. . Indoors Bad weather . Under shelter 5. In tunnels Inside a car with metal heat insulation. (We suggest avoid use near metal heat insulation while you are using the personal tracker in the car.) 3. -
Page 11: Led Status Description
4. Replace the cover and let it snap in completely. ress the Power button to power up the device. 4. LE tatus Description Geo-Fence G-Force Sensor Battery Status Device St tus Indicators: If Geo-Fence LED flash 200m Geo-Fence has been activated If G-Force L ED flashes: G-Force alarm (fall-down or impact) has been activated... -
Page 12: Getting Started
Device is reg istered to GSM network, able to send/ receive SMS and place or receive phone calls BUSY LED: Device is dialing GPRS service. If connected, LED will flash several times if connection to Control Base was successful. Will repeat if not successful. When SOS button is pressed for 2 seconds, BUSY LED will turn on for sending data. -
Page 13: Phone Operation
Speed Limit: You can define a spee d limit to receive alarm notifications in case of exceeding. Power Saving Modes: To save battery power, you can configure your device with different power saving modes. 6. Phone Operation The Personal Tracker allows you to receiv e and accept phone calls and quick-dial to three preset phone numbers ontact numbers). -
Page 14: Sending A Location Update
OTE: The Personal Tracker’s first 8 seconds of ring time (ca. 2-4 ings) are reserved for the Single Location eq R uest function. he ring tone will only be audible from the device after this period. 7. Sending a Location Update The Personal Tracker comes with an INFO button that allows you to end your current GPS position to the Control Base and all contact ersons. -
Page 15: Power On/ Off
Power On/ Off he INFO button is also used to power the device on or off. To power off the device, press the INFO button and hold for 3 seconds. Press again to turn the device on. 8. Acti ve SOS and A911 Call (Patent pending) e Personal Tracker comes with a three-level G-Force detector that is ble to automatically register falls and high-velocity impacts. -
Page 16: A911 Emergency Response Function
The Personal Tracker will then automa tically dial a phone call to main Contact number. A911 Call: A third party, medical emergency or police can be added to the call in order to hold a 3-way conversation. To do this, the contact person wh o took the SOS call simply dials the number of the third party while the SOS call is still connected. -
Page 17: Alarm Report Feature S
Device owner falls down or presses SOS emergency button 9. Alarm Reporting Featu r You can use your Personal Tracker as an alarm reporting device. With the built-in Geo-fence function you can create a 200 meter arking Geo-fence around the device. If the device leaves the area, an alarm report will be triggered. -
Page 18: Maximum Speed Alarms
Control Base software w ill find the street name and closest intersection from a map server and send these details through SMS short messages to all Contact numbers, with the text (example): Robert is in Madison Ave, near intersection Brixton Rd.;... -
Page 19: Sos Emergency Calls
The Personal Tracker will send an a larm message and GPS coordinates to the Control Base. The Control Base software will find the street name and closest intersection from a map server and send these details through SMS short messages to all Contact numbers, with the text: Robert is in Highway 166, near intersection Gle... -
Page 20: Locating And Tracking
A third party, medical emergency or police c an be added to the call in order to hold a 3-way conversation. To do this, the contact person who took the SOS call simply dials the number of the third party while the SOS call is still connected. The device will dial to the thir d party instantly. -
Page 21: Online Tracking
name and closest intersection from a map server and send these details through SMS text message to you. an option, if the device’s first attempt to dial GP RS failed any reason, the GPS data wil l be sent to the Control Base through SMS instead. -
Page 22: Technical Specifications
12. Technical Specifications General The unit utilizes GPS to receive time, date, longitude, latitude, speed, direction data; GPR S for data exchange with Control Base and GSM for communication and short messaging. GSM/GPRS module Sim340 module GSM 850 MHZ GSM 900 MHz (2 watt) Class 4 GSM 1800 MHz (1 watt) Class 1 GSM 1900 MHZ GSM Antenna... - Page 23 Start time Cold start: 44sec Hot start: 3sec (Open Sky) Speed/Accuracy 0.2 M/sec. (50%) Acceleration Max: 4g Max Height 18,000 M Sensitivity -158 dBW Datum Coordinate WGS-84 Electrical Operating Voltage 3.6V Charge Voltage 6-8V Stand by Pico Power Operating 80mA Talk 100mA Battery...
