Summary of Contents for APM SuperGuard PT-3
- Page 2 Notices Thank purchasing SuperGuard Personal Communication To decrease the influence of electromagnetic interference, please use the and Tracking device. Please read all device properly. The SAR standard value is 1.6W/Kg, and the result of testing the product is: 0.322 W/Kg. (Note: Mobile phone modules are free from testing instructions carefully before...
-
Page 3: Table Of Contents
Automobiles with Air Bags Table of Contents Do not place any object (including fixed or handheld wireless devices) in the effective range of air bags because huge air pressure may result in Parts & Accessories page 6 harm. If the wireless device is not properly installed, it may cause serious damage or injury when the air bags are inflated. -
Page 4: Parts & Accessories

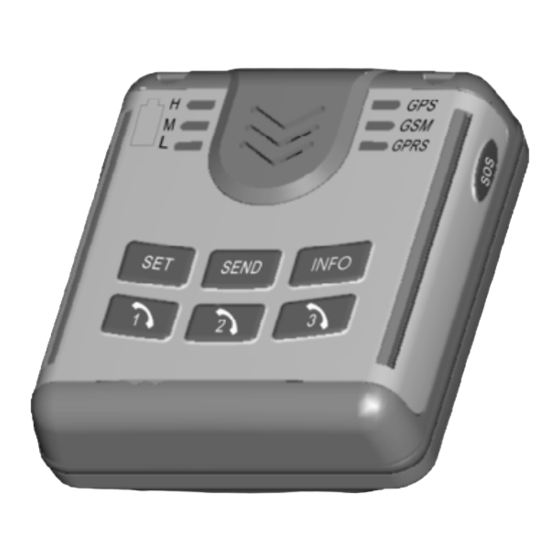

1. Parts & Accessories This manual covers SuperGuard Personal Tracker model PT-3. The PT-3 combines Global Positioning System (GPS) technology and GSM/GPRS mobile communication with On receipt of your Personal Tracker package, please check that all online tracking and remote setup features. contents are complete and correct. -
Page 5: Personal Tracker - Features
2. Personal Tracker – Features Introducing GPS: The SuperGuard Personal Tracker is working in combination with an advanced GPS tracking system. It helps you determine your location, enable preset contacts to track your position any time, and place SOS calls in case of emergency. The Personal Tracker is easy to configure through GPRS and SMS over Internet or GPRS and 3G enabled cell phones, user-friendly, and especially convenient for monitoring children, elderly and business... -
Page 6: Preparations
3. Preparations 4. LED Status Description In order to use the Personal Tracker, the following preparations should be carried out: Prepare one operational GSM SIM card. Make sure that the SIM card can operate without PIN protection and has GPRS with unrestricted Internet access enabled (ask your GSM operator for APN and GPRS dial up requirements). -
Page 7: Getting Started
5. Getting Started 6. Phone Operation The Personal Tracker allows you to receive and accept phone calls and After closing the battery cover, the Personal Tracker will power up and quick-dial to three preset phone numbers (contact numbers). automatically attempt to register to GSM network. Provided that your device is positioned in an area with clear un-obstructed Make a Phone Call view of the sky, the device will start scanning for GPS satellites to obtain its... -
Page 8: Sending A Location Update
7. Sending a Location Update 8. Active SOS and A911 Call (Patent pending) The Personal Tracker comes with an INFO button that allows you to The Personal Tracker comes with a three-level G-Force detector that send your current GPS position to the Control Base and all contact is able to automatically register falls and high-velocity impacts. -
Page 9: A911 Emergency Response Function
9. SOS Emergency Calls A911 Emergency Response Function: The Personal Tracker comes with two SOS emergency buttons, which shall be pressed simultaneously to notify contact persons about current location and place an emergency call. During the call, Press both SOS buttons simul- taneously to trigger emergency call Contact dials Press the dual SOS button to trigger... -
Page 10: Alarm Report Features
10. Alarm Report Features Geo-Fence Alarms If the device has been configured with a set of restricted geographic areas (Fixed Geo-Fences), the following activities will You can use your Personal Tracker as an alarm reporting device. be triggered when a Geo-Fence violation occurs: With the built-in Geo-fence function you can create a 200 meter Parking Geo-fence around the device. -
Page 11: Locating And Tracking
11. Locating and Tracking To poll the distance and direction of the device from a preset reference point, use the GSM cell phone to send SMS text message (example for reference point number 1): NOTE: Only the Contact Numbers and Control $GET,1 Base will be able to send location and tracking Enter Vehicle Unit Number... -
Page 12: Online Tracking
10. Technical Specifications NOTE: To send location requests from authorized Contact numbers, you will need to enable Caller General ID features on your cell phone. The unit utilizes GPS to receive time, date, longitude, latitude, speed, direction data; GPRS for data exchange with Control Base and GSM for communication and short messaging. - Page 13 Max Height 18,000 M Sensitivity -158 dBW Datum Coordinate WGS-84 Electrical Operating Voltage 3.6V Charge Voltage 6-8V Stand by Pico Power Operating 80mA Talk 100mA Battery Motorola 998 1500 mAh Operating time: >8h, Talk time: 3h, Standby time: 100h Others Operating temperature -10℃...
