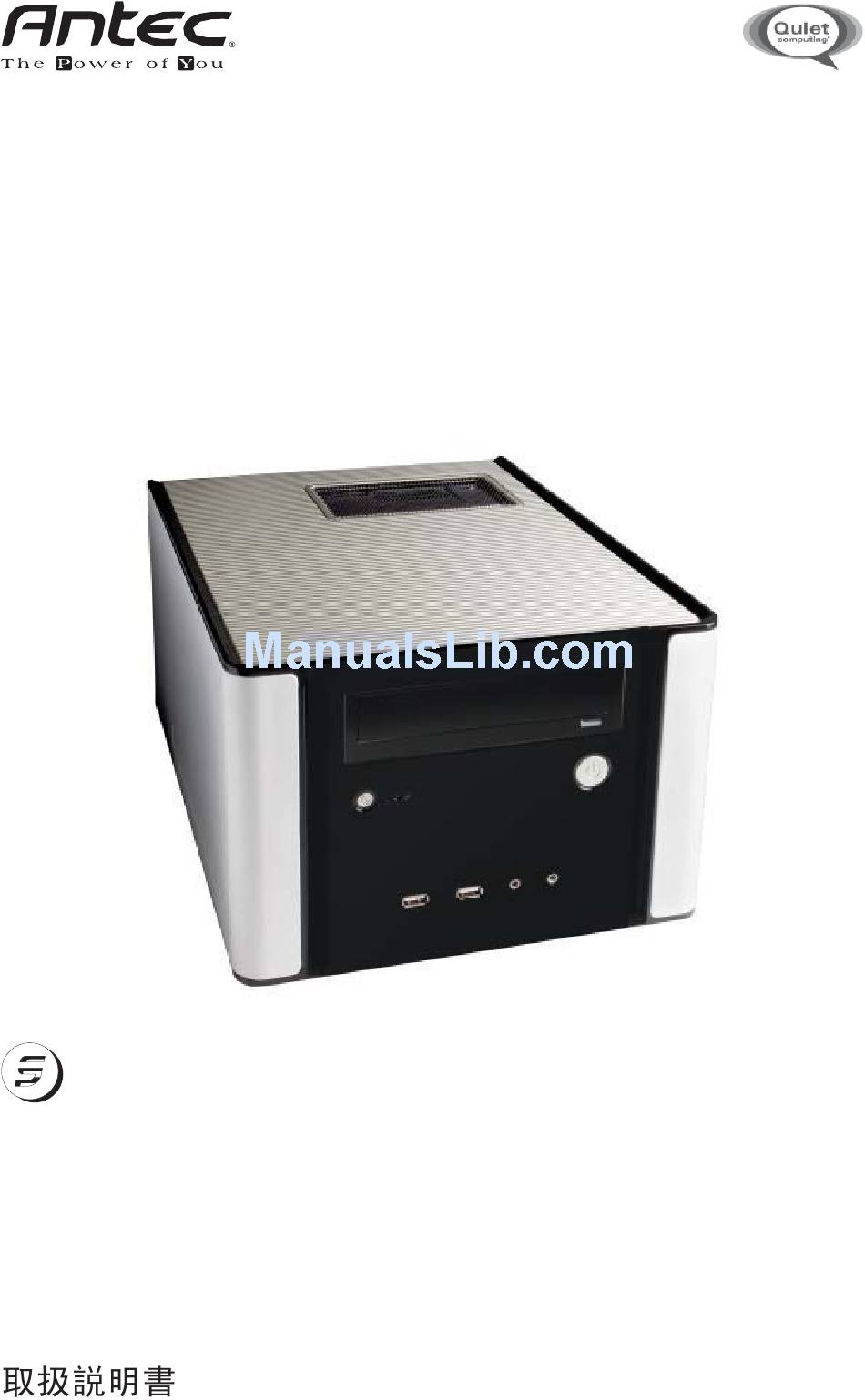

- Page 1 New Solution Series NSK 1380 User’s Manual Manuel de l’utilisateur Anwenderhandbuch Manuale per l’operatore Manual del usuario...
-
Page 2: Installing The Motherboard
Disclaimer This manual is intended only as a guide for Antec’s Computer Enclosures. For more comprehensive instructions on installing the motherboard and peripherals, please refer to the user’s manuals that come with those components. - Page 3 This case comes with three brass standoffs and three clip-on standoffs preinstalled for easy installation. Line up the holes on your motherboard with the standoffs, to install the motherboard slide the board towards the rear of the case until the hook on each of the clip-on standoffs “clipped” the holes on the motherboard.
- Page 4 Motherboard Pin Layout Signal Names Signal Names USB Power 1 USB Power 2 Negative Signal 1 Negative Signal 2 Positive Signal 1 Positive Signal 2 Ground 1 Ground 2 Key (No Connection) Empty Pin Connecting the Audio Ports (AC’97 and HDA) There is an Intel standard 10-pin AC’97 connector and an Intel 10-pin HDA (High Definition Audio) connector.
- Page 5 More than 80% efficient at 20%, 50% & 100% load www.80PLUS.org ® System Integrators / VAR’s for more information on 80 PLUS® financial and marketing advantages in North America go to www.80PLUS.org www.antec.com/us/80Plus.html. More than 80% efficient at 20%, 50% & 100% load...
-
Page 6: Customer Support
1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2007 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China.
