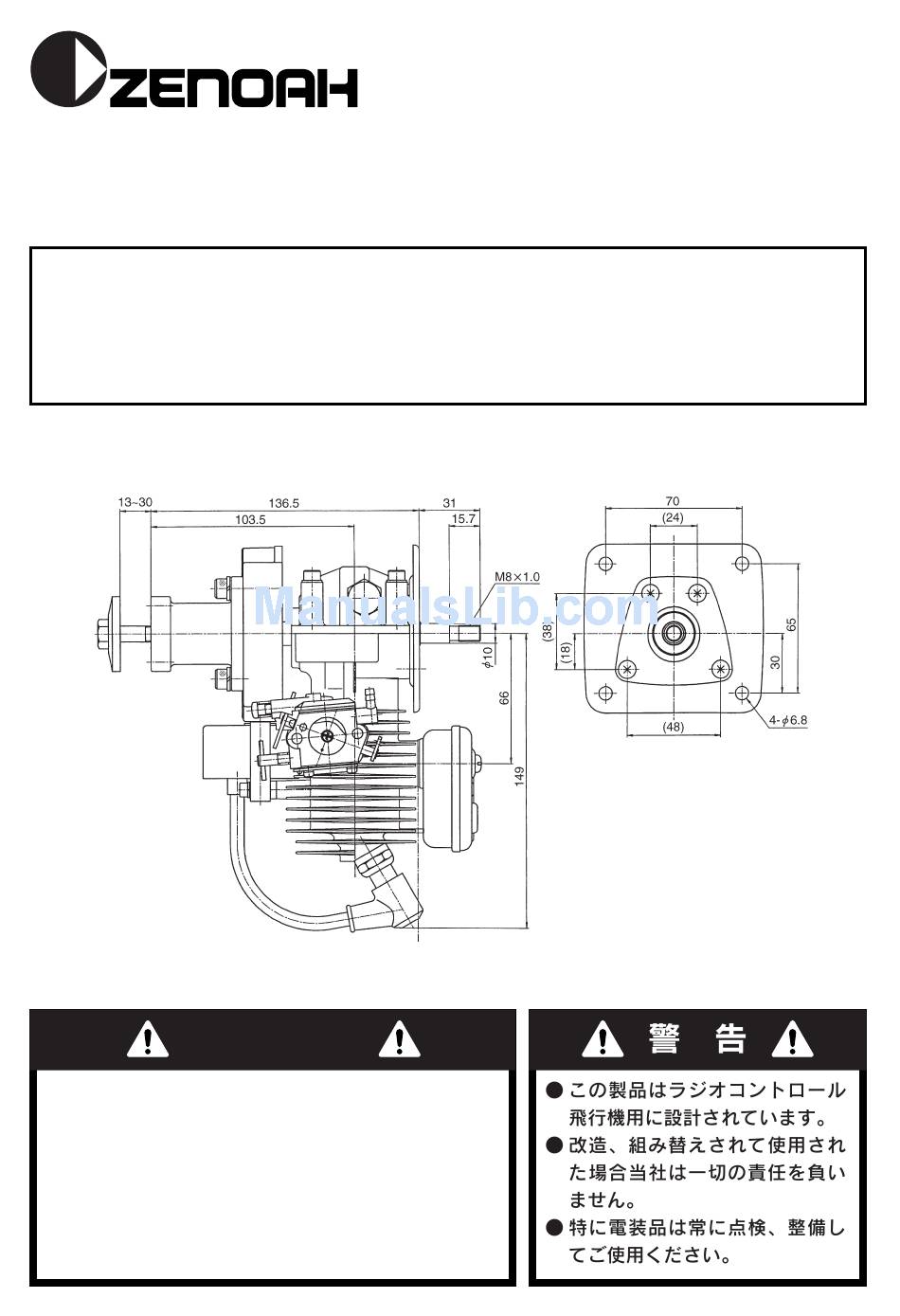

OWNER'S MANUAL
MODEL:
WARNING
• Do not modify any parts of the engine.
• This engine is designed to be used to Radio
controlled products.
• In case any modification by customer,
ZENOAH shall not bear any responsibility from
the damage caused by such modification.
• Keep ignition system well maintained.
G380PU
G380PU-1
2609-93112 (811)
November 2008
Advertisement
Table of Contents
Related Manuals for Zenoah G380PU
Summary of Contents for Zenoah G380PU
- Page 1 • This engine is designed to be used to Radio controlled products. • In case any modification by customer, ZENOAH shall not bear any responsibility from the damage caused by such modification. • Keep ignition system well maintained. November 2008...
- Page 2 1. Safety Precautions • This engine is designed for the model aircraft use. ZENOAH assumes no responsibility for those engines that are modified or used for any other applications. • This Manual describes the engine part only. For its mounting to the aircraft and its control, see instructions described in the manual of the aircraft.
- Page 3 4. When engine first fires, open the choke and turn the propeller again in the same manner. 5. When the engine is started,warm it up for 2 to 3 minutes at low speed. Stopping Engine Ground the black wire from the source coil to the engine, and the engine will stop. 4.
- Page 4 5. Daily Inspection • Check if screws and bolts are firmly tightened. • Check if there is any fuel leakage. • Check if there is any damage (crack or deformation). • Check if the fuel line is clogged. • Check if the spark plug and the muffler are contaminated. Table of Tightening Torque Applicable positions Illustration...
- Page 5 6. Specifications Model ............G380PU · G380PU-1 Type ............Single cylinder gasoline engine, 2-stroke air cooled Displacement..........37.4cc (2.28cu. in.) Bore x Stroke..........38mm x 33mm (1.496 in. x 1.299 in.) Compression ratio ........6.8 : 1 Fuel............Gasoline mix (mixture ratio gasoline to 2-stroke oil : 25 ~ 40 : 1) Carburetor ..........WALBRO WT338 Ignition .............Flywheel magneto (contact-less type) Spark plug ..........CHAMPION RCJ7Y...
- Page 6 G380PU, G380PU-1 7. Parts List...
- Page 7 G380PU, G380PU-1 Q' ty Q' ty Index Index Parts No. Description Parts No. Description /unit /unit 2630-81120 • Cover 3378-12111 Cylinder 3310-81130 • Screw 3330-14111 Insulator 3304-81140 • Gasket 3330-14121 Gasket 1172-81150 • Diaphragm 0260-20520 Screw 3356-81310 • Valve 3330-14132 Gasket 2850-81290 •...
- Page 8 8. Warranty ● Scope of Application This warranty applies only to the engines and parts manufactured by ZENOAH and sold directly or through distributors. ● Limit of Warranty This warranty shall apply only to trouble resulting from material defects and inferior assemblies that ZENOAH acknowledges.
