Summary of Contents for Alpine CDA-7990

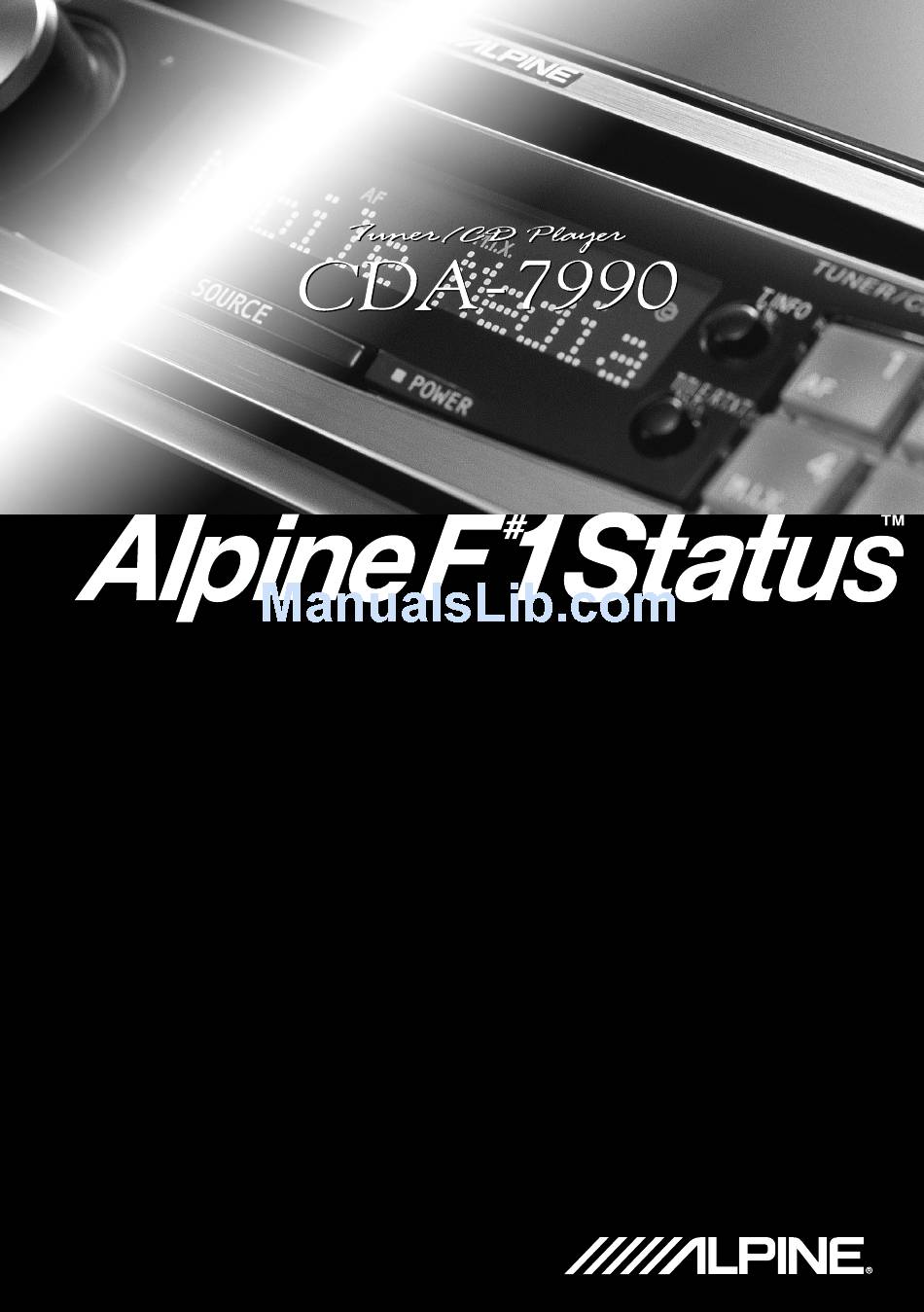

- Page 2 CDA-7990 FM/AM CD Player • OWNER'S MANUAL Please read before using this equipment. • MODE D'EMPLOI Veuillez lire avant d’utiliser cet appareil. • MANUAL DE OPERACIÓN Léalo antes de utilizar este equipo.
-
Page 3: Table Of Contents
Contents WARNING Radio Operation WARNING ..........2 Manual Tuning .......... 32 CAUTION ..........3 Automatic Seek Tuning ......33 PRECAUTIONS ........3 Manual Storing of Station Presets ..... 34 Basic Operation Automatic Memory of Station Presets ........35 Detaching the Front Panel ......6 Storing into Direct Access Preset Attaching the Front Panel ...... -
Page 4: Warning
WARNING USE THE CORRECT AMPERE RATING WHEN WARNING REPLACING FUSES. Failure to do so may result in fire or electric This symbol means important instruc- shock. tions. Failure to heed them can result in USE ONLY IN CARS WITH A 12 VOLT serious injury or death. -
Page 5: Caution
Do not attempt to play cracked, warped, or damaged discs. Playing a bad disc could severely damage the playback mechanism. Maintenance If you have problems, do not attempt to repair the unit yourself. Return it to your Alpine dealer or the nearest Alpine Service Station for servicing. - Page 6 Never Attempt the Following New Discs Do not grip or pull out the disc while it is being As a protective measure to prevent the CD pulled back into the player by the automatic from jamming, the CD player will automati- reloading mechanism.
- Page 7 Using such accessories can cause the disc to be out of standard specifications and may create operational problems. We recommend not using these accessories on discs played in CORRECT INCORRECT Alpine CD players. Disc Stabilizer Transparent Sheet...
-
Page 8: Basic Operation
Basic Operation POWER Detaching the Front Panel Press the POWER button for more than 3 seconds to turn off the power. • The front panel may become hot Press the RLS (Release) button at lower left in normal usage (especially the corner until the front panel pops out. -
Page 9: Attaching The Front Panel
Attaching the Front Panel First, insert the right side of the front panel into the main unit. Align the groove on the front panel with the projections on the main unit. • Before attaching the front panel, Push the left side of the front panel until it locks make sure that there is no dirt or firmly into the main unit. -
Page 10: Turning Power On And Off
Press the POWER button to turn on the unit. • Controllable with Remote Control This unit can be controlled with an optional Alpine remote The volume level gradually increases to the control. For details, consult your previous level you were listening to before the unit Alpine dealer. -
Page 11: Adjusting Volume/Subwoofer/Bass/Treble
Adjusting Volume/Subwoofer/ Bass/Treble/Balance (Between Left and Right)/Fader (Between Front and Rear) Press the MODE (Audio Control) knob repeatedly • * Not displayed when setting the SUB-W mode to OFF. to choose the desired mode. (For the setting of the SUB- Each press changes the modes as follows: W mode, refer to page 19.) •... -
Page 12: Displaying Time
Basic Operation MODE(Audio Control) Displaying Time Press the CLK (clock) button repeatedly until the • Selecting any tuner or CD time is displayed. function while in the clock priority mode will interrupt the Each press changes the modes as follows: time display momentarily. -
Page 13: Setting Time
Setting Time Press and hold the CLK (Clock) button for at least 3 seconds while the time is displayed until the time indication blinks. Rotate the MODE (Audio Control) knob to adjust the hours while the time indication is blinking. When the hours has been adjusted, press the MODE (Audio Control) knob. -
Page 14: Adjusting The Bass/Treble Center Frequencies
Basic Operation SETUP TUNE Adjusting the Bass/Treble Center Frequencies You can change the Bass/Treble center frequencies on this unit. This gives you flexibility in creating your ideal sound field. Press the hold the SETUP button for at least 3 seconds. Press the UP button to select the BASS/TRE •... - Page 15 Press the TUNE button to select the desired setting. 1. BC (Setting the Bass Center Frequency): BC 60Hz BC 70Hz BC 80Hz BC 90Hz BC 200Hz BC 150Hz BC 130Hz BC 100Hz Emphasizes the displayed Bass frequency ranges. 2. BW (Setting the Bass Band Width): (Q-Factor) BW WIDE1 BW WIDE2...
-
Page 16: Setting When Using The Remote Control
Basic Operation SETUP TUNE Setting when Using the Remote Control Press and hold the SETUP button for at least 3 seconds. Press UP or DN button to select REM • If you press the DN button the display scrolls in reverse CONT mode. -
Page 17: Switching The Tuner Mode
Switching the Tuner Mode The CDA-7990 incorporates the MAX TUNE SQ for the highest quality tuner audio. Moreover, you can choose between two settings to suit your own personal sound preferences and usage. Press and hold the SETUP button for at least 3 seconds. -
Page 18: Changing Lighting Color
Basic Operation SETUP TUNE Changing Lighting Color Press and hold the SETUP button for at least 3 seconds. Press the UP button repeatedly to select • If you press the DN button the display scrolls in reverse “ILLUMI”. sequence. Each press of the UP button changes the modes as shown: BASS/TRE... - Page 19 Press the TUNE button to toggle the mode • The initial setting at the factory between Blue and Green. is “ILLUMI BLUE”. ILLUMI BLUE ILLUMI GREEN <Display of “ILLUMI BLUE”> I L L UM I Press the SETUP button to set the selected mode.
-
Page 20: Cd Text Scroll Setting
Basic Operation SETUP TUNE MODE(Audio Control) CD Text Scroll Setting This CD player has the ability to scroll the disc and track name recorded on CD-Text discs. The scrolling feature will work with names greater than 12 characters. This feature will not work for the 12 character titles that were input manually. -
Page 21: Subwoofer On And Off
Subwoofer On and Off Press and hold the SETUP button for more than 3 seconds. Press the UP button repeatedly to select • If you press the DN button “SUB-W”. the display scrolls in reverse sequence. Each press of the UP button changes the modes as shown: BASS/TRE... -
Page 22: Digital Optical Output On And Off
Basic Operation SETUP TUNE SOURCE Digital Optical Output On and When connecting to the Multimedia Manager (PXA-H900), set the D-OUT mode to ON. Set to OFF when not connecting PXA-H900. Press and hold the SETUP button for at least 3 seconds. -
Page 23: Setting The Aux Mode
Setting the AUX Mode You can input TV/video sound by connecting an optional Ai- NET/RCA Interface cable (KCA-121B) to this component. Press and hold the SETUP button for more than 3 seconds. • If you press the DN button Press the UP button repeatedly to select the display scrolls in reverse “AUX-IN”... -
Page 24: Turning Mute Mode On/Off
Basic Operation B. OUT indicator SETUP TUNE B.OUT (Black out) Turning Mute Mode On/Off If a device having the interrupt feature is connected, audio will be automatically muted whenever the interrupt signal is received from the device. This function can be turned ON or OFF from the head unit by following procedure below. -
Page 25: Blackout Mode On And Off
Blackout Mode On and Off Turning off the back light of front panel can resist the inference from the noise caused by the back light and provide you a much higher quality sound. Press and hold the B. OUT (Black out) button for •... -
Page 26: Displaying The Title/Text
Basic Operation TITLE Displaying the Title/Text It is possible to display the CD/Station title if the title has been previously inputted. For details, see Titling Discs/Stations (pages 26, 27). Text information, such as the disc name and the track name, will be displayed if playing a CD text compatible disc. Press the TITLE button. - Page 27 CD/Changer mode: ELAPSED TIME DISPLAY CLOCK DISPLAY TEXT DISPLAY (DISC NAME)* TEXT DISPLAY(TRACK NAME)* TITLE DISPLAY* *1 Displayed during playback of a text compatible • Some characters used for CD Text, may not be compatible with CD. “NO TEXT” will be displayed when the CD is this device.
-
Page 28: Titling Discs/Stations
Basic Operation BAND MODE(Audio Control) TITLE Titling Discs/Stations It is possible to title your favorite CD’s or radio stations. Press the TITLE button and select the title display mode. For details, see “Displaying the Title/Text” (pages 24, 25). Press and hold the TITLE button for at least 3 seconds. - Page 29 Press the MODE (Audio Control) button to store the first character. The first character will stop blinking and the display will automatically ad- vance to the next character. When that character begins to blink, you may choose the next letter or symbol of your title.
-
Page 30: Searching For Titled Stations
Basic Operation T.S.M. Searching for Titled Stations If a Station is titled, you can do a search for it. (To title Stations, refer to “Titling Discs/Stations” on pages 26, 27.) • If no title is entered, the display Press and hold the T.S.M. button for at least 2 will show “No DATA”. -
Page 31: Searching For Titled Discs/Cd-Text
Searching for Titled Discs/CD- TEXT If a CD is titled or contains CD-TEXT, you can do a search for it. (To title CDs, refer to “Titling Discs/Stations” on pages 26, 27.) Press and hold the T.S.M. button for at least 2 seconds. -
Page 32: Erasing Disc Title (Cd/Cd Changer Only)
Basic Operation BAND TITLE Erasing Disc Title (CD/CD Changer only) Press the TITLE button to select the disc titling mode. Then, press and hold for at least 3 sec- onds. Press and hold the button for at least 2 seconds to activate the title scanning mode. The title in the display will blink. -
Page 33: Recalling The Stored Settings
Recalling the Stored Settings Settings stored in the Alpine Multimedia Manager (PXA-H900) using the optional Remote Control, can be recalled at any time. Press the A. PROC button on the Remote control. • Refer to the Owner’s manual of the optional Remote Control. -
Page 34: Radio Operation
Radio Operation TUNE BAND SOURCE Manual Tuning Press the SOURCE button until a radio frequency appears in the display. Press the BAND button repeatedly until the desired radio band is displayed. Each press changes the band: F1(FM1) F2(FM2) Press the TUNE button repeatedly until “DX •... -
Page 35: Automatic Seek Tuning
Automatic Seek Tuning Press the SOURCE button until a radio frequency appears in the display. Press the BAND button repeatedly until the desired radio band is displayed. Each press changes the band: F1(FM1) F2(FM2) Press the TUNE button to illuminate the DX and SEEK indicators in the display. -
Page 36: Manual Storing Of Station Presets
Radio Operation Preset buttons A. ME BAND SOURCE Manual Storing of Station Presets Select the radio band and tune in a desired radio station you wish to store in the preset memory. Press and hold any one of the Preset buttons (1 through 6) for at least 2 seconds until the “... -
Page 37: Automatic Memory Of Station Presets
• If you store a station in a preset Repeat the procedure to store up to 5 other memory which already has a stations onto the same band. station, the current station will be To use this procedure for other bands, simply cleared and replaced with the select the band desired and repeat the proce- new station. -
Page 38: Storing Into Direct Access Preset (D.a.p.) Band
Radio Operation D.A.P. Preset BAND SOURCE Storing into Direct Access Preset (D.A.P.) Band A combination of radio stations in any band (up to 6 stations) can be manually preset into the D.A.P. band. Press the D.A.P. button to toggle the D.A.P. •... -
Page 39: Tuning To Preset Stations
Tuning to Preset Stations Press the SOURCE button to select the radio mode. Press the BAND button repeatedly until the desired band is displayed. To select the D.A.P. band, press the D.A.P. button to set the D.A.P. to ON. Press the station Preset button that has your desired radio station in memory. -
Page 40: Cd Player Operation
CD Player Operation SOURCE Function indicator Playback Insert a disc with the label side facing up. Insert a disc with the label side facing up. • Three-inch (8 cm) CD’s can be used. The disc will be pulled into the unit automatically. •... -
Page 41: Music Sensor (Skip)
To pause playback, press the button. Press- ing the button again will resume playback. To eject the disc, press the button. Music Sensor (Skip) • The music sensor feature is Momentarily press the DN button once during functional in the play or pause CD play to return to the beginning of the current mode. -
Page 42: Repeat Play
CD Player Operation REPEAT SCAN FUNC M.I.X. Function indicator Repeat Play Press the REPEAT button to play back repeatedly • If a CD Changer is connected the track being played. and the RPT ALL mode is selected, the unit repeatedly The RPT indicator appears and the track will be plays back all tracks on the disc played repeatedly. -
Page 43: Random Play)
M.I.X. (Random Play) Press the M.I.X. button in the play or pause mode. • If a CD Changer equipped with the ALL M.I.X. function is The M.I.X. indicator will illuminate and the tracks connected, ALL M.I.X. will also on the disc will be played back in a random be selectable. -
Page 44: Controlling Cd Changer (Optional)
CD Player Operation Disc Select buttons BAND FUNC SOURCE Function indicator Controlling CD Changer (Optional) • The controls on the CDA-7990 An optional 6-disc or 12-disc CD Changer may be connected to for CD Changer operation are the CDA-7990 if it is Ai-NET compatible. With a CD Changer operative only when a CD connected to the Ai-NET input of the CDA-7990, the CD Changer Changer is connected. -
Page 45: Multi-Changer Selection
1 to 6 will represent discs 7 to 12 respec- tively. Multi-Changer Selection Alpine’s Ai-NET system will support up to 6 CD Changers. When operating two or more changers, the KCA-400C (Multi-Changer Switching device) must be used. If you use 1 Switching device, you can connect up to 4 CD Changers. -
Page 46: Information
Otherwise, make sure the rest area, the antenna may not be grounded and of your system is properly connected or connected properly. consult your authorized Alpine dealer. - Check your antenna connections; make sure the antenna is properly grounded at its mounting location. - Page 47 • Disc has scratches. • Malfunction in the CD Changer. - Change the disc. - Consult your Alpine dealer. Press the • Pick-up lens is dirty magazine eject button and pull out the - Do not use the lens cleaner disc on the magazine.
-
Page 48: Specifications
Specifications FM TUNER SECTION Tuning Range 87.7 – 107.9 MHz Mono Usable Sensitivity 9.3 dBf (0.8 V/75 ohms) 50 dB Quieting Sensitivity 13.5 dBf (1.3 V/75 ohms) Alternate Channel Selectivity 80 dB Signal-to-Noise Ratio 80 dB Stereo Separation 50 dB Capture Ratio 2.0 dB AM TUNER SECTION... -
Page 49: Limited Warranty
Warranty. We suggest that you read it thoroughly. Should you have any questions, please contact your Dealer or Alpine at one of the telephone numbers listed below. 2 You should provide a detailed description of the PRODUCTS COVERED: problem(s) for which service is required. - Page 52 Tel.: 1-800-ALPINE-1 (1-800-257-4631) ALPINE ELECTRONICS OF CANADA, INC. Suite 203, 7300 Warden Ave. Markham, Ontario L3R 9Z6, Canada Tel.: 1-800-ALPINE-1 (1-800-257-4631) ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD. 6-8 Fiveways Boulevarde Keysborough, Victoria 3173, Australia Tel.: (03) 9769-0000 ALPINE ELECTRONICS GmbH...
