Airlink101 ATVC102 User Manual

Digital to analog tv converter box with analog pass through
Hide thumbs
Table of Contents

Advertisement

Quick Links

Digital to Analog TV Converter Box
with Analog Pass Through
Model # ATVC102
User's Manual
Ver. 1C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATVC102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Airlink101 ATVC102

Summary of Contents for Airlink101 ATVC102

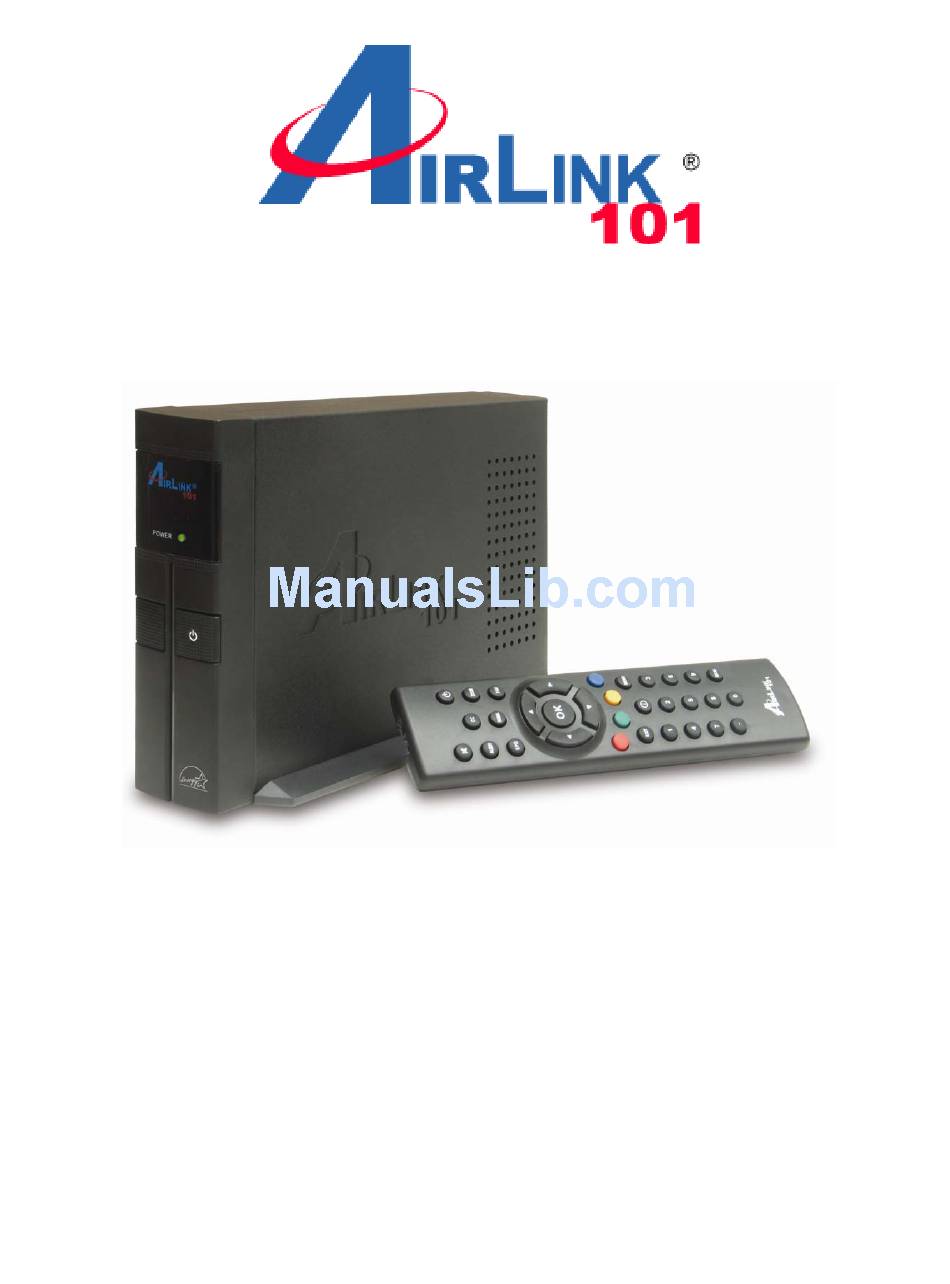

  • Page 1 Digital to Analog TV Converter Box with Analog Pass Through Model # ATVC102 User’s Manual Ver. 1C...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. IMPORTANT INFORMATION ................3 2. ACCESSORIES....................5 3. FRONT PANEL....................5 4. REAR PANEL....................6 5. REMOTE CONTROL..................6 6. SETUP ......................7 6-1. R ....................7 EMOTE ONTROL 6-2. B .................... 8 ASIC ONNECTION 6-3. S ......................9 TART UP 6-4. I ...................
  • Page 3 (For more details, please go to www.dtv2009.gov.) To continue enjoying both analog and digital channels with greater video/audio quality on your current analog TV, Airlink101® ATVC102 is your best solution. This product connects to your analog TV and allows it to receive and display over-the-air digital and analog broadcasts to your TV set.

  • Page 4: Important Information

    1. IMPORTANT INFORMATION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: HIGH VOLTAGE INSIDE. TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER OR SCREWS. REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL. DO NOT ALLOW THIS PRODUCT TO BE EXPOSED TO RAIN OR MOISTURE. DISCONNECT THE MAIN PLUG FROM THE SUPPLY SOCKET WHEN NOT IN USE.
  • Page 5 Never put objects of any kind into this unit through openings, as they Object and Liquid Entry: may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never pour or spill any liquid on the unit. Moisture may be formed on the power indicator lens under the following conditions: Note: when the unit is suddenly moved from a cold environment or an...

  • Page 6: Accessories

    2. ACCESSORIES • Remote Control with 2 AAA Batteries • Power Adapter: AC Input 110V~120V, DC Output 12V/1A • 1x RF/Coaxial Cable • 1x Mini-to-RCA Cable • User’s Manual 3. FRONT PANEL 1. Power Indicator Green light: ON light: STANDBY 2.

  • Page 7: Rear Panel

    4. REAR PANEL 1. ANT IN - Antenna RF input 2. RF OUT – RF/Coaxial cable connection to the TV 3. CH3/CH4 Switch - Switch RF OUT channel 4. AV - Audio/Video (RCA) connection to the TV 5. DC 12V 1A - Power adapter 5.

  • Page 8: Setup

    directly : Used to enter a dash “-“ in the chanel number POWER on/off: Turns the receiver ON/OFF 12. ZOOM: Switches the screen format (Full/Letter/Center) 13. SIGNAL: Activates the signal meter 14. FAV: Shows the current list of favorite channels Press multiple times to scroll through lists 15.

  • Page 9: Basic Connection

    6-2. Basic Connection Please perform the following steps to connect your device. 1. Outdoor Antenna Connection Connect a cable from your antenna (outdoor or rabbit-ears) to the F-Type “ANT IN” connector. 2. Make a connection to the TV using either step 2.1 or step 2.2 2.1 RF AV Cable Connection Use the supplied RF cable to plug into the “RF OUT”...

  • Page 10: Start Up

    3. Power Adapter Connection Plug the power adapter into a wall outlet. Connect the other end to the “DC IN” Jack on the device. 4. Analog Pass Through Analog pass-through is enabled when you connect your TV following Section 6-2 (RF Cable). This device will pass through analog TV signals from ‘‘ANT IN’’...
  • Page 11 Press OK to go the next page or press EXIT to go to the previous page. 2. Select the Time Zone Press the Left/Right button to select your time zone. The unit will automatically display the correct time for your selected time zone. 3.
  • Page 12 The default setting for the Audio Language is English. Press the Left/Right button to change Audio Language: English, Spanish, French. Press OK to go to the next page. 5. Set the Screen Format. The default setting for the Screen Format is Full mode. Press Left/Right to change the Screen Format: Full, Letter, Center.

  • Page 13: Manual Installation

    6-5. Manual Installation If you do not see the Installation Guide above, you need to do channel scan by pressing Menu button, then go to Scan > Auto Scan, and press OK to start channel scan. Channel scanning will take several minutes. Please wait until the “Finish”...
  • Page 14 D. RECALL: Recall the last channel. UP/Down: Press to change the channel. Left/Right: Press to decrease /increase the Volume. G. OK: Press OK to activate the Quick Channel List. Press the Red key to go to the previous page. Press the Green key to go to the next page. Press the UP/Down key to move the cursor.
  • Page 15 I. Signal: Press Signal to activate the Signal Bar. Channel name Date and Time Signal Indication J. Audio: Press Audio to change the Audio language. K. Zoom: Change the screen format. L. FAV: Press FAV to activate the favorite Channel list. To setup favorite channel list, please go to 8.1, Menu >...
  • Page 16 Press the Red key to return to the previous page. Press the Green key to go to the next page. Press to move the cursor. Press OK to view the selected channel. Press to change the favorite group. M. CC: Press CC to toggle the Closed Caption service: OFF Service1 Service2 Service3 Service4 Service5 Service6 CC1 CC2 CC3 CC4 TT1 TT2 TT3 TT4 OFF...

  • Page 17: Menus

    8. Menus Press the Menu button on the remote control to display the On Screen Menu (OSM) on your TV screen. 8-1. Menu > Channel > Favorite List Editor: In this menu, you can edit the favorite group. You can also see the current channel list.

  • Page 18: Menu > Scan > Manual Scan

    Press OK to start and stop the Auto Scan at any time. 8-3. Menu > Scan > Manual Scan From this menu, you can scan for channels one at a time without removing the previously auto scanned channels. If during the auto scan, some of the channels that you like to watch were not found, you can attempt to find additional channels by changing the position of your antenna and performing a ‘‘Manual Scan’’...

  • Page 19: Menu > Setup > Screen Setting

    You can adjust the position of the antenna during the scan in order to find the optimal antenna position for the selected channel/frequency. ‘No Signal’ will be displayed if the signal is too weak; otherwise, the newly scanned channel will be added to the channel list. 8-4.

  • Page 20: Menu > Setup > Parental Control (V-Chip)

    1. OSD Language: Press the key to select either: English, Spanish, or French. 2. Audio Language: Press the key to select either: English, Spanish, or French. 3. Sound Output: Select one of 4 settings: Normal, Left, Right, Mixed. 4. Auto Sleep: There are several settings: OFF, 15 Minutes, 30 Minutes, 1 Hour, 2 Hours, and 4 Hours.
  • Page 21 1. Lock System: You can set ON/OFF to enable / disable the Parental Control lock system. 2. County: You can set the country of the ratting (USA/Canada). 3. Rating Control: (V-Chip) You can set the Rating Controls. The TV Rating/MPAA Rating is for USA. The English Rating/ French Rating is for Canada.
  • Page 22 To control or change blocking for any specific setting, Press the keys to move to any box and Press OK to confirm the selection. 3.2 MPAA Rating MPAA Ratings are for motion pictures. Press the keys to move focus. Press OK to confirm the selection. TV Parental Guidelines TV-Y All children...
  • Page 23 MPAA RATING General All ages admitted audiences Parental guidance Some material may not be suggested suitable for children PG-13 PARENTS SOME MATERIAL MAY NOT BE STRONGLY SUITABLE FOR CHILDREN CAUTIONED UNDER 13 RESTRICTED UNDER 17 REQUIRES ACCOMPANYING PARENT OR ADULT GUARDIAN NC-17 NO ONE 17 AND UNDER ADMITTED...
  • Page 24 3.4 French Rating The rating system used by French-language programming services has six levels. Press to move focus. Press OK to confirm the selection. English Rating Exempt Exempt programming Children For younger children under the age of 8 years C8+ CHILDREN EIGHT FOR YOUNGSTERS 8 YEARS YEARS AND OLDER AND OVER.
  • Page 25 French Rating Exempt Exempt programming General Appropriate viewing for the entire family. 8+ CHILDREN EIGHT FOR YOUNGSTERS 8 YEARS YEARS AND OLDER AND OVER. 13+ GENERAL FOR YOUNGSTERS 13 YEARS PROGRAMMING, AND OVER. SUITABLE FOR ALL AUDIENCES 16+ PARENTAL GUIDANCE FOR YOUNGSTERS 16 YEARS AND OVER.

  • Page 26: Menu > Setup > Closed Caption

    8-7. Menu > Setup > Closed Caption From this menu, you can select the Caption Type, and customize features such as the Caption size, Foreground Color, Foreground Opacity, Background Color and Background Opacity. 1. Caption Type: The caption services include: OFF, Service1-6, CC1-4, TT1-4.

  • Page 27: Menu > Setup > Time Zone

    8-8. Menu > Setup > Time Zone In this menu, you can set the Time Zone, and Auto Daylight Savings feature. 1. Time Zone: You can select from six time zones: Hawaii, Alaska, Pacific, Mountain, Central, or Eastern. 2. Auto Daylight Saving: Enable/disable the Auto Daylight Savings feature.

  • Page 28: Menu>Setup>Info>System Information

    8-10 Menu>Setup>Info>System Information This menu displays the product name, software version, hardware version, and loader version.

  • Page 29: Specifications

    9. Specifications 1 Tuner and Channel Input Connector: F-type, IEC169-24, Female Frequency: 54 MHz ~ 806 MHz Input Impedance: 75ohm unbalanced Signal Level: -5 to -83 dBm Demodulation: 8VSB 2 System & Memory Main Processor: RTK 2881S Flash Memory: 2 Mbytes DDR: 32 Mbytes Channel Memory:...

  • Page 30: Technical Support

    AirLink101®. All other product or service names are the property of their respective holders. AirLink101® products are protected under numerous...
