Summary of Contents for Airlink101 ATVC101

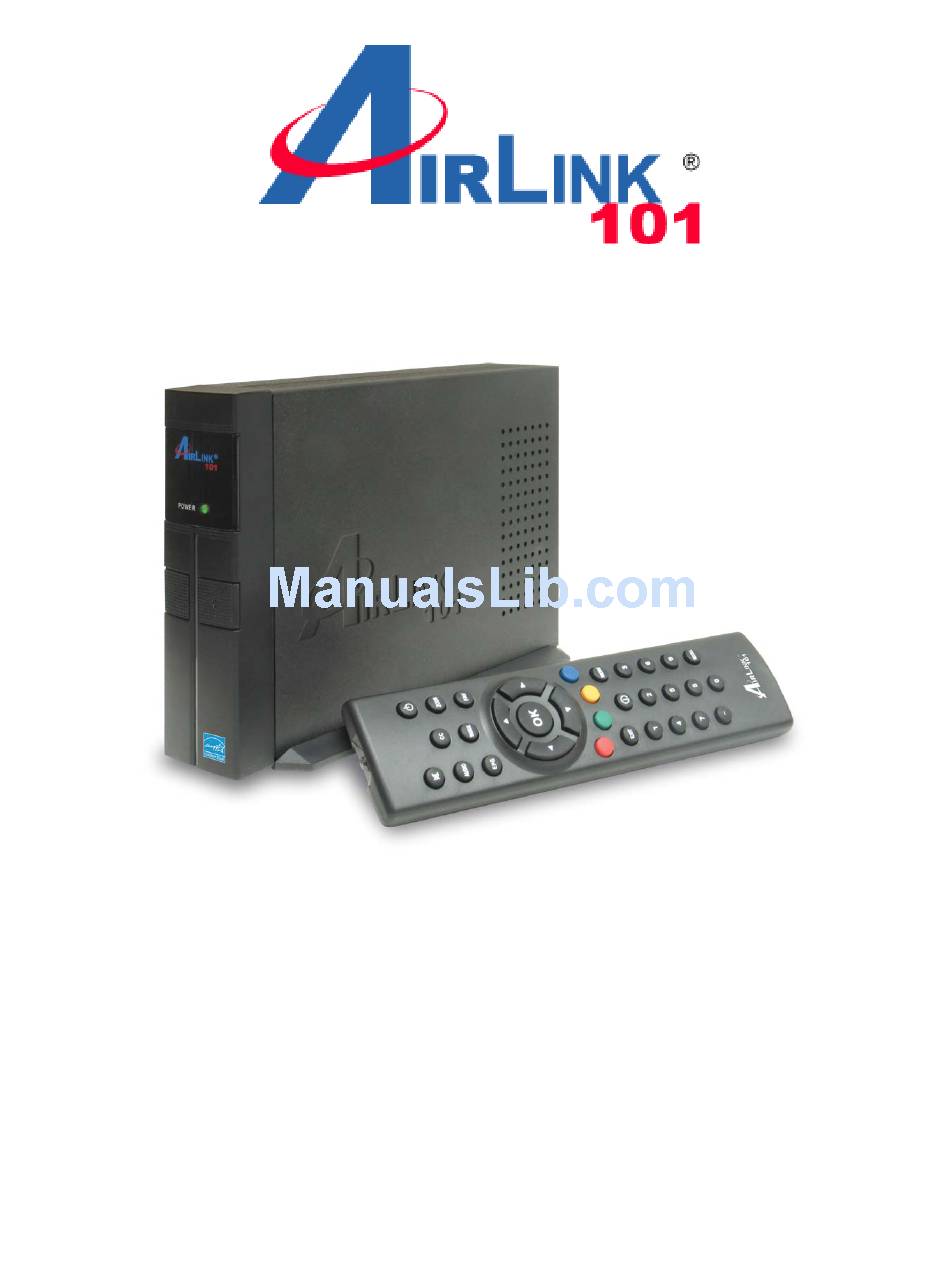

- Page 1 Digital to Analog TV Converter Box Model # ATVC101 User’s Manual Ver. 1A...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. IMPORTANT INFORMATION ...3 2. ACCESSORIES...5 3. FRONT PANEL...5 5. REMOTE CONTROL...6 5-1. B UTTON ESCRIPTIONS 6. SETUP ...7 6-1. R ... 7 EMOTE ONTROL 6-2. B ... 8 ASIC ONNECTION 6-3. S ... 9 TART UP 6-4 I ... - Page 3 100% digital broadcasting. (For more details, please go to www.dtv2009.gov.) To continue enjoying the great video/audio quality of digital broadcast with your current analog TV, Airlink101 Digital to Analog TV Converter Box is your best solution. This product connects to your analog TV and allows it to receive and display over-the-air digital broadcasts.
-
Page 4: Important Information
1. IMPORTANT INFORMATION RISK OF ELECTRIC SHOCK WARNING: HIGH VOLTAGE INSIDE. TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER OR SCREWS. REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL. DO NOT ALLOW THIS PRODUCT TO BE EXPOSED TO RAIN OR MOISTURE. DISCONNECT THE MAIN PLUG FROM THE SUPPLY SOCKET WHEN NOT IN USE. - Page 5 Never put objects of any kind into this unit through openings, as they Object and Liquid Entry: may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never pour or spill any liquid on the unit. Moisture may be formed on the power indicator lens under the following conditions: Note: when the unit is suddenly moved from a cold environment or an...
-
Page 6: Accessories
2. ACCESSORIES • Remote Control and two Batteries • AC Adapter 110V~120V • 1x RF Cable • 1x Mini-to-RCA Cable • User Manual 3. FRONT PANEL 1: Power Indicator Green light: ON Red light: STANDBY 2: Power button Press Press... -
Page 7: Remote Control
4. REAR PANEL 1. ANT IN - Antenna RF input 2. RF OUT – RF/Coaxial cable connection to the TV 3. CH3/CH4 Switch - Switch RF OUT channel 4. AV - Audio/Video (RCA) connection to the TV 5. DC 12V 1A - AC adapter input 5. -
Page 8: Setup
operations and used to change channels directly : Used to enter a dash “-“ in the chanel number POWER on/off: Turns the receiver ON/OFF 12. ZOOM: Switches the screen format (Full/Letter/Center) 13. SIGNAL: Activates the signal meter 14. FAV: Shows the current list of favorite channels Press multiple times to scroll through lists 15. -
Page 9: Basic Connection
6-2. Basic Connection Please perform the following steps to connect your device. 1. Outdoor Antenna Connection Connect a cable from your antenna (outdoor or rabbit-ears) to the F-Type “ANT IN” connector. 2. Make a connection to the TV using • 2.1 RF AV Cable Connection Use the supplied RF cable to plug into the “RF OUT”... -
Page 10: Start Up
3. Power Adapter Connection Plug the power adapter into a wall outlet. Connect the other end to the “DC IN” Jack on the device. 6-3. Start up Ensure that your device is properly connected to your television as described in 6.2 above, that you have inserted the batteries into the remote and that the signal quality is good. - Page 11 3. Set the Auto Daylight Saving. The default setting of the Auto Daylight is “YES.” Press the Left/Right button to enable/disable the Auto - Daylight saving feature. Press OK to go to the next page. 4. Select the first Audio Language. The default setting for the Audio Language is English.
-
Page 12: Basic Operation (Non Menu Mode)
7. Basic Operation (non Menu mode) While viewing TV or Radio channels, various functions can be performed using your remote control. Following is an explanation of the buttons on your Remote Control and the corresponding functions: A. Power: Turns the receiver ON/OFF. B. - Page 13 H. INFO: Press INFO to activate the Info Bar. DRRT Info Channel name Audio Language I. Signal: Press Signal to activate the Signal Bar. Channel name J. Audio: Press Audio to change the Audio language. K. Zoom: Change the screen format. L.
- Page 14 Entertainment, Sports, etc… Press the Red key to return to the previous page. Press the Green key to go to the next page. Press to move the cursor. Press OK to view the selected channel. Press to change the favorite group. M.
-
Page 15: Menus
8. Menus Press the Menu button on the remote control to display the Menu on your TV screen. 8-1. Menu/Channel/TV CH List: In this menu, you can edit the favorite group. You can also see the current channel list. Channel list Press the Red key to return to the previous page. -
Page 16: Menu/Scan/Manual Scan
8-3. Menu/Scan/Manual Scan In this menu, you can scan available channels in specific frequency channel. Quality indicator Press OK to start the Manual Scan. Press to select specific frequency channel. If there is any problem at the specific channel, it will show ‘Playing’ Within in few seconds. -
Page 17: Menu/Setup/Screen Setting
8-4. Menu/Setup/Screen Setting In this menu, you can select the screen format: FULL, Letter, Center. Press the key to switch Screen Formats. Press OK to confirm the selection. 8-5. Menu/Setup/System Setting In this menu, you can change the OSD (On-Screen Display) Language, OSD Opacity, Audio Language, Auto Sleep, etc…... -
Page 18: Menu/Setup/Parental Control (Vchip)
8-6. Menu/Setup/Parental Control (VCHIP) From this menu, you can select: Lock System, Country, Rating Control, and Change Password. 1. Lock System: You can set ON/OFF to enable / disable the Parental Control lock system. 2. County: You can set the country of the ratting (USA/Canada). - Page 19 TV Parental Guidelines TV-Y All children TV-Y7 Direct to older children TV-G GENERAL AUDIENCE TV-PG PARENTAL GUIDANCE Based SUGGESTED TV-14 PARENTS STRONGLY CAUTIONED TV-MA MATURE AUDIENCE ONLY FANTASY VIOLENCE SCENE VIOLENCE SCENE Content SEXUAL SITUATION Based ADULT LANGUAGE SEXUALLY SUGGESTIVE DIALOG MPAA RATING General audiences...
- Page 20 3.3 English Rating The rating system used by English-language programming services has six levels. Press to move focus. Press OK to confirm the selection. 3.3 French Rating The rating system used by French-language programming services has six levels. Press to move focus. Press OK to confirm the selection.
- Page 21 Exempt General 8+ CHILDREN EIGHT YEARS AND OLDER 13+ GENERAL PROGRAMMING, SUITABLE FOR ALL AUDIENCES 16+ PARENTAL GUIDANCE 18+ ADULT PROGRAMMING INTENDED FOR VIEWERS 18 3.4 Digital Rating Press to move focus. Press to switch selection. Press OK to confirm the selection. 4.
-
Page 22: Menu/Setup/Time Zone
8-7. Menu/Setup/Closed Caption From this menu, you can select the Caption Type, and customize features such as the Caption size, Foreground Color, Foreground Opacity, Background Color and Background Opacity. 1. Caption Type: The caption services include: OFF, Service1-6, CC1-4, TT1-4. 2. -
Page 23: Menu/Setup/Factory Default
8-9. Menu/Setup/Factory Default You can load the default factory settings from this menu. 8-10 Menu/Setup/Info/System Information This menu displays the product name, software version, hardware version, and loader version. -
Page 24: Specifications
9. Specifications 1. Tuner and Channel Input Connector: Frequency: Input Impedance: Signal Level: Demodulation: 2. System & Memory Main Processor: Flash Memory: DDR: Channel Memory: Multi Language Menu: Front Panel: Led indicator: Remote Control: 3. MPEG Transport Stream & A/V Decoding Transport Stream: Profile Level Aspect Ratio:... -
Page 25: Technical Support
AirLink101®. All other product or service names are the property of their respective holders. AirLink101® products are protected under numerous...
