The JF-DVF-HID is a JF-series color video door station and an HID ProxPoint Plus Card Reader,
built onto the same stainless steel faceplate. The card reader provides electronic access to a
building through a separate Access Control System, which is not supplied by Aiphone.
JF-DVF-HID

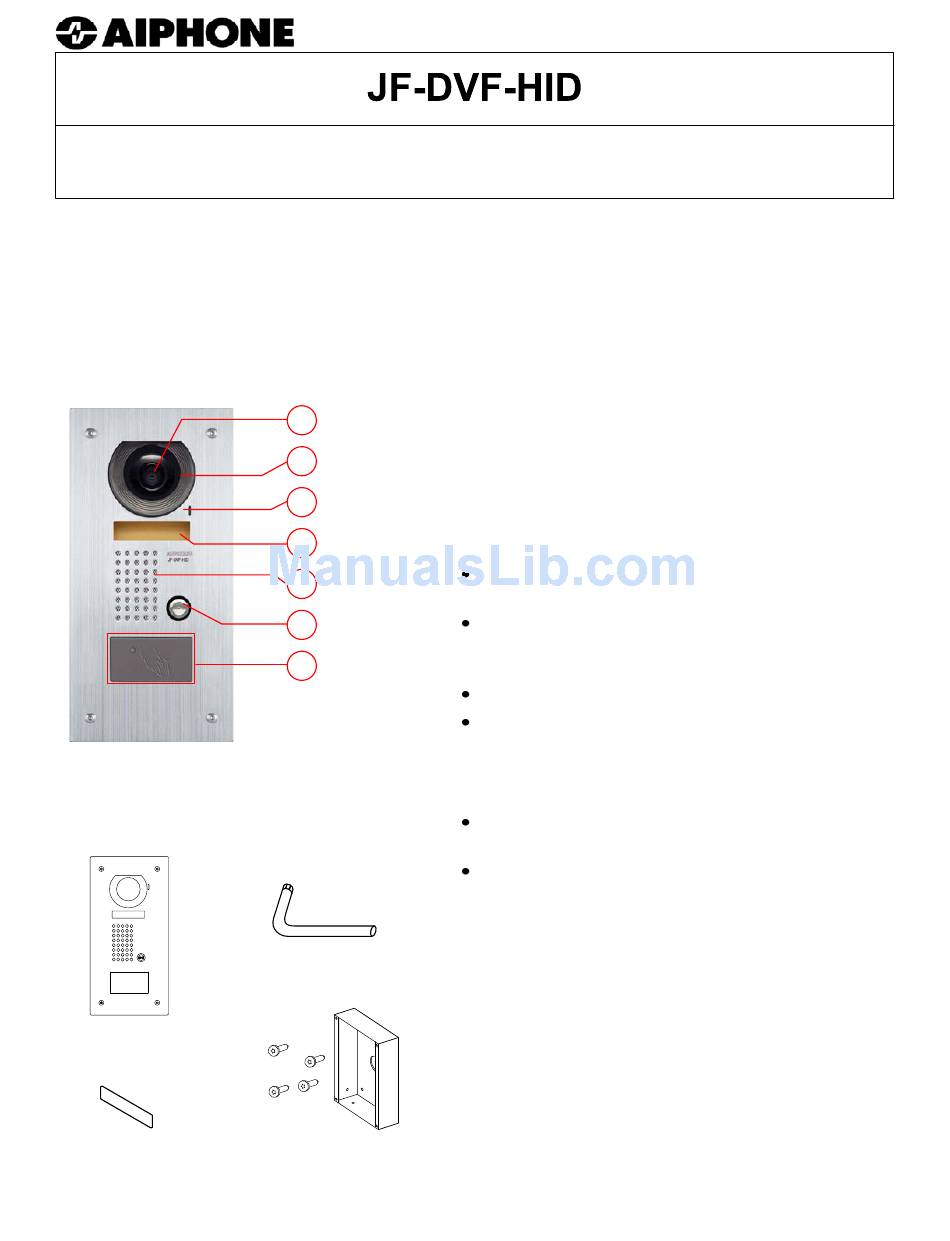

PACKAGE CONTENTS:

JF-DVF-HID
Vandal-resistant Door Station
Blank name
placard
Vandal Resistant Color Video Door Station
With Built in Proximity Card Reader
- INSTRUCTIONS-
1
2
3
4
5
6
7
Security Driver
Semi-flush backbox &
tamper-resistant bolts
NAMES & FUNCTIONS:
2. LED Light
3. Microphone
4. Name Placard

FEATURES:

All-in-one solution-Communication product &
If a card is missing or malfunctioning, audio/
video communication can provide user
verification
Standard Wiegand output to access panel
Convenience of installing combined components

OPTIONAL ACCESSORIES:

SBX-DVF-P - Surface-mount stainless steel
backbox
Stainless steel security lock
SBX-LSP -
box

INSTALLATION:

1. For flush mounting, cut hole in wall and use
supplied back box.
Box dimensions are 4-½"W x 10-⅜"H x 1-¾"D.
2. For surface mounting, use the SBX-DVF-P
surface mount box.
This box can mount to a standard 1- gang box or
to any flat surface.
5. Speaker
6. Call button
7. Prox Reader
Pg. 1
