The JF-DVF-HID-I is a JF-series color video door station and an HID iClass
onto the same stainless steel faceplate. The card reader provides electronic access to a building
through a separate Access Control System, which is not supplied by Aiphone.
INSTALLATION:
1. For flush mounting, cut hole in wall and use supplied back box.
Box dimensions are 4-½"W x 10-⅜H x 1-¾"D.
2. For surface mounting, use the SBX-DVF-P surface mount box.
This box can mount to a standard 1-gang box or to any flat surface.

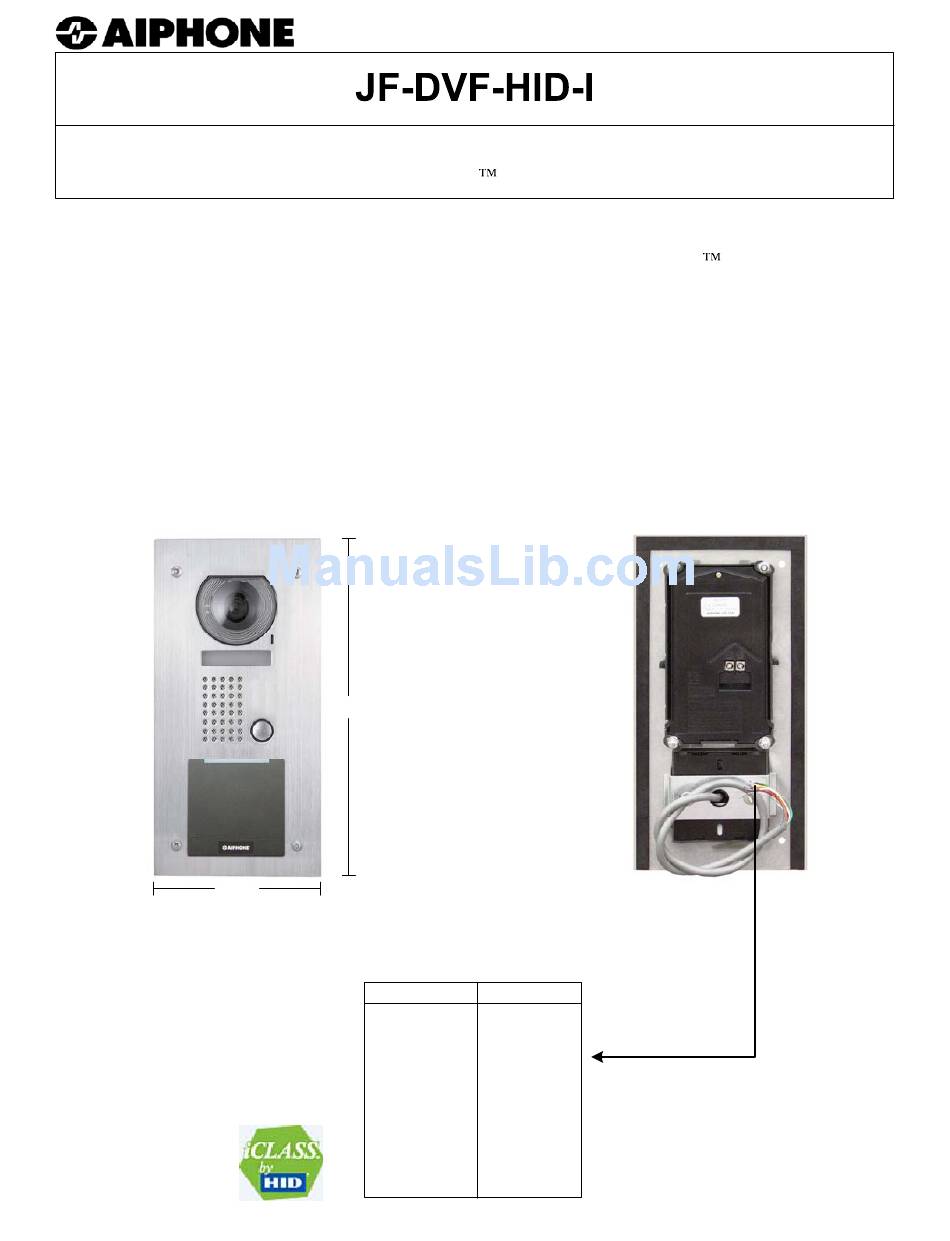

JF-DVF-HID-I
(front view)
5-¾"
Vandal Resistant Color Video Door Station
With Built in HID iClass Smart Card Reader
- INSTRUCTIONS-
11-⅝"
Connecting the Reader to the Host:
Connect the reader to the host according to the
wiring table below and the host installation guide.
Wiegand
+ DC (10-16V) Red
Ground
Data0
Data1
Shield Ground Drain
Green LED
Red LED
Beeper
Hold
---
JF-DVF-HID-I
Wire Color
Black
20" pigtail cable
Green
White
Orange
Brown
Yellow
Blue
Violet
Card Reader, built
(back view)
Pg. 1
