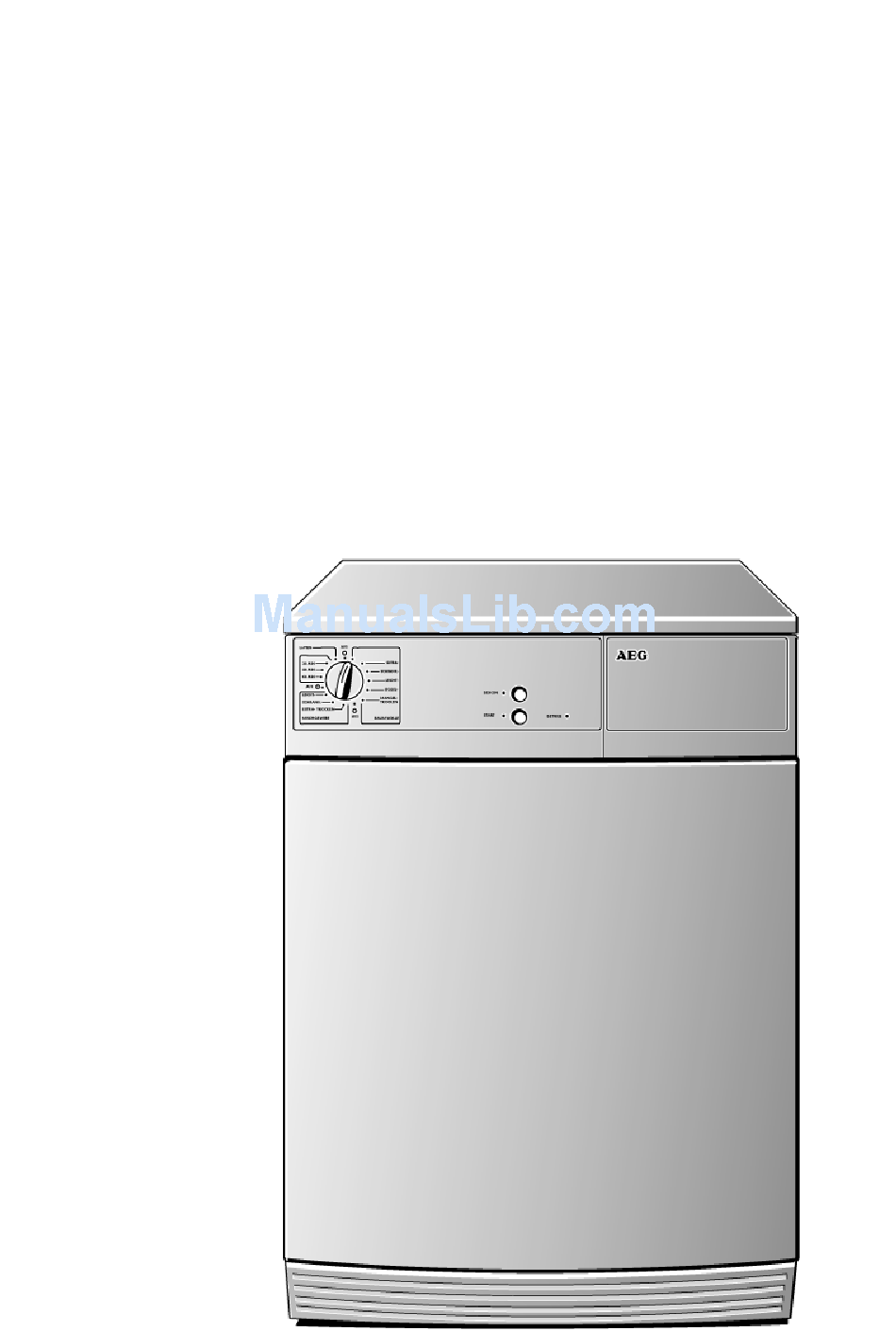

- Page 1 LAVATHERM T300 Vented Tumble Dryer Operating Instructions...
-
Page 2: Dear Customer
Dear customer, Please read these operating instructions through carefully, before using the appliance. Please ensure you fully understand the safety instructions on the first pages of these operating instructions! Retain this instruction book for future reference, and pass on to any future owners. The warning triangle and/or the key words (Warning!, Caution!, Important!), emphasize information which is important for your safety or the correct functioning of the appliance. -
Page 3: Table Of Contents
Content Important Safety Information ........5 General Information . - Page 4 Content Something not working? ........24 Door Reversal Instructions .
-
Page 5: Important Safety Information
Important Safety Information 1 Important Safety Information The safety of AEG electrical appliances complies with the established technical principles and statutory equipment safety regulations. Never- theless, as manufacturer we have to draw your attention to the follow- ing safety instructions. - Page 6 Important Safety Information Safety of children and infirm persons • The appliance is not intended for use by young children or infirm persons without supervision. • Children are often not aware of the dangers involved when handling electrical equipment. Therefore provide the necessary supervision of children when operating the appliance and do not let children play with the dryer –...
-
Page 7: Installation And Connection
Important Safety Information • Washing with rigid components (foot mats) will cover the air slots; the slots will also be covered if the drum is overfilled. Observe the maximum load of 5 kg. There is a risk of overheating which could cause a fire! •... -
Page 8: General Information
General Information • Provide sufficient ventilation to avoid underpressure from forming. • In accordance with the technical connection conditions of the power utilities, a permanent connection to the power supply may only be made by an authorised electrician. • The dryer sucks in air. You should therefore keep the area around the appliance clean and also not store any flammable items that may be sucked into the appliance (e.g. -
Page 9: Disposal
Disposal 2 Disposal Packaging Dispose of the packaging material! Dispose of the packaging material of your tumble dryer correctly. All the packaging materials used are harmless to the environment and can be recycled. • Plastic parts are marked with standard international abbreviations: –... -
Page 10: Environmental Protection Tips
Environmental protection tips 2 Environmental protection tips • Your laundry will become light and soft in the tumble dryer even with- out a fabric softening agent. • Loosen your laundry before loading it into the dryer. This helps to pre- vent lengthy running times and creasing. - Page 11 Environmental protection tips • Select the appropriate drying program for the type and quantity of laundry. The dryer will then operate as economically as possible. Some typical consumption values: Power Fill weight Duration in Drying program consumption in kg Minutes in kWh COTTONS CUPBOARD DRY COTTONS HAND IRON...
-
Page 12: Description Of The Appliance
Description of the appliance Description of the appliance Front view Control panel Fluff filter Rating plate Reversible door Removable Plinth Feet (all height-adjustable) -
Page 13: Control Panel
Description of the appliance Control panel A Program selector: for setting the drying program B Pushbutton block – SPECIAL CARE button: For sensitive fabrics – START button: Starts the program. C Display block: – OPERATING indicator: Is lit when the appliance is switched on. -
Page 14: The Program Selector Positions
Before using the appliance for the first time The program selector positions • OFF: The tumble dryer is switched off. • Program group COTTON: Programs for drying cotton and linen fabrics; maximum load 5 kg. • Program group EASY CARES: Programs for drying mixed fabrics and synthetics;... -
Page 15: Brief Operating Instructions
Brief operating instructions Brief operating instructions • Ensure the laundry is well spun before tumble drying. • Prepare the laundry. • Load the laundry. • Select the drying program – on the program selector. – If required press the buttons SPECIAL CARE. •... -
Page 16: Drying
Drying Drying Prepare the laundry • To prevent tangled bundles of laundry: Close zip fasteners; button-up bed linen and pillow cases; tie-together loose tapes, e.g. aprons. • Empty all pockets. • Remove all metal objects (paper clips, pins, etc.). • Turn clothing consisting of double-layer fabric inside out (such as cotton-lined anoraks with the cotton layer facing outwards). -
Page 17: Start The Drying Program
Drying • SPECIAL CARE button This program operates with reduced heat. Press the SPECIAL CARE button for fabrics bearing the care symbol S. Gentle drying is advisable for heat-sensitive fabrics (such as acrylic and viscose). Start the drying program 0 Press the button START. The drying program starts. -
Page 18: Removing Laundry Or Loading Laundry When Necessary
Drying Removing laundry or loading laundry when necessary You can interrupt the drying process at any time to remove some of the laundry or to add more laundry. 0 Open the door. Caution! The laundry and the drum may be hot. -
Page 19: Clean The Fluff Filter
Drying Clean the fluff filter To ensure efficient operation of the tumble dryer, clean the fluff filter after each drying program. Also check whether there are any remnants or fluff from the washing in the drum; remove immediately. 0 Press the catch of the filter lid down- wards. -
Page 20: Program Tables
Program tables Program tables Program group COTTONS care symbols R, Q; maximum load 5 kg Program Laundry Type Examples for Heavy weight or mult-layered EXTRA DRY Towelling material, bath robes fabrics Fabrics of medium weight, CUPBOARD DRY articles not made up of mult- Towel laundry, hand towels layers Lightweight materials... -
Page 21: Time Programs
Program tables TIME programs care symbols R, S , Q; loads less than 1kg You can select 20, 40 and 60 minutes program duration for additional drying of individual pieces of laundry or to dry small quantities. 1) Press the SPECIAL CARE button! COOL AIR Program The laundry is treated for 10 minutes in cold air;... -
Page 22: A Small Glossary Of Textile Information
A small glossary of textile information A small glossary of textile information Care symbols Ensure articles to be dried are suitable for tumble drying. If they are one of the following symbols should be present on the care label: This fabric can be tumble dried. The fabric manufacturer does not stip- ulate if the piece of laundry should be dried on a normal or gentle pro- gram. -
Page 23: Cleaning And Maintenance
Cleaning and maintenance Cleaning and maintenance Cleaning the filter area Important! A small amount of fluff may reach the area around the fil- ter in spite of the fluff filter. Therefore you should clean the entire filter area from time to time, or at least every three months. 0 Remove the fluff filter. -
Page 24: Something Not Working
Something not working? Something not working? If the tumble dryer is not working correctly please carry out the follow- ing checks before calling an engineer. Symptom Possible cause Solution The appliance is not Plug in the appliance plugged in The fuse has blown Check the fuse The START button has not Press the START button... -
Page 25: Door Reversal Instructions
Door Reversal Instructions Door Reversal Instructions The door opening direction can be changed if required. Warning! Before reversing the door, isolate the appliance from the mains supply. Proceed as follows to reverse the door opening direction: A C B A C B 0 Un-screw the screws A on the front panel of the appliance. - Page 26 Door Reversal Instructions 0 Take-out the latched catch covering J. 0 Connect the door catch H and the catch covering J on the respective opposite side to the plug, insert into the break-out and screw-down or latch into position. 0 Push the door with the hinges into the breakouts provided for them in the front panel of the appliance and firmly attach it with the screws.
-
Page 27: Technical Data
Technical data Technical data Height x Width x Depth 85x60x60cm Depth with the door open 117cm Height adjustable from 1.0/–0.4cm Empty weight approx. 40 kg Load (depending on the program) max. 5kg (Different loads in some countries are due to different measuring methods) Power consumption in acc. -
Page 28: Special Accessories
Vent hose To conduct exhaust fumes, a flexible spiral conduit with a diameter of 105 mm can be obtained through your AEG Service Force Centre or at a specialised electrical shop. This spiral conduit is easy to fit and is easily attached to the vented tumble dryer using the adapter that comes with the appliance (see enclosed booklet „Installation Instructions for... -
Page 29: Index
Index Acrylate ......17 Safety Information ....5 Acrylic . -
Page 31: Service
Service In the chapter "Something not working?" some disturbances have been summarised, which you can solve yourself. If you do not find any helpful information there, please contact your local customer service centre. It is nearby and if necessary can reach you quickly. (Addresses and phone numbers can be found in the Warranty Conditions/Service Departments) Be well prepared before you phone. - Page 32 USD 14 billion in more than 150 countries around the world. AEG Hausgeräte GmbH Postfach 1036 D-90327 Nürnberg http://www.aeg.hausgeraete.de © Copyright by AEG H 245 219 240 –00- 0203/PRO Subject to change without notice...
