Addonics
T E C H N O L O G I E S
SATA/IDE RAID PCI-E Controller
Model: ADI2S3GPX1-2E
User's Guide
FCC Warning Statement
This equipment has been tested and found to comply with the limits for a class B digital
device pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy. If not installed and
used in accordance with the instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If the equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment on and off, the user
is encouraged to try and correct the interference by one or more of the following
suggestions.
Reorient or relocate the receiving antenna
Increase the distance between the equipment and the receiver
Connect the equipment to a different power outlet other than the one where receiver is
connected
Consult a certified television or radio technician
Version 1.0

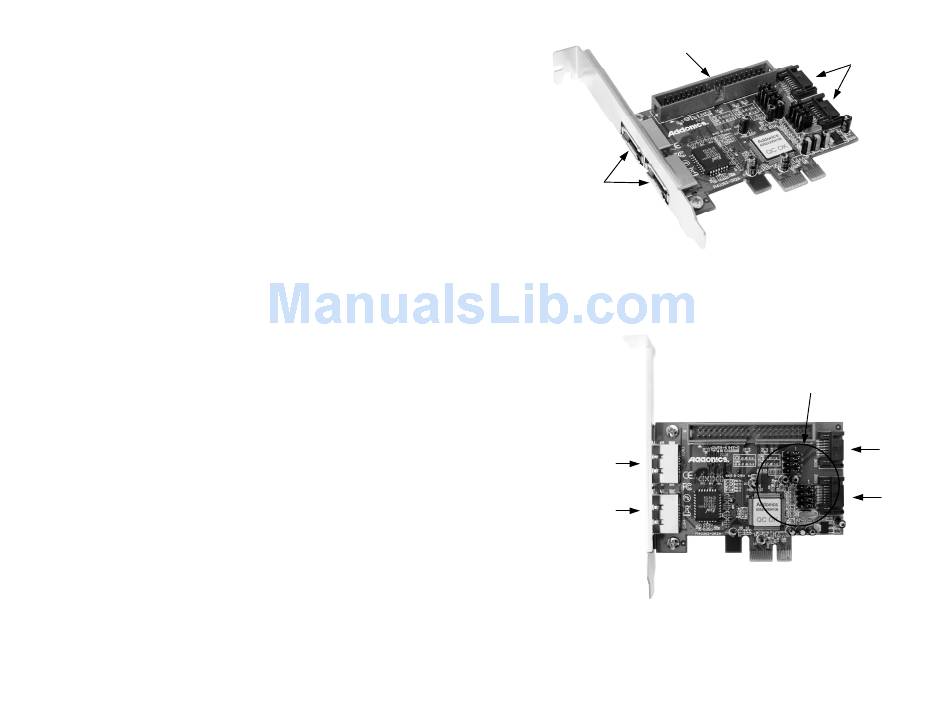

Overview
IDE Channel
eSATA
Ports
Note:
The IDE devices attach to the IDE channel must be set as a master and
slave pair.
CON3
CON4
Note:
There are four SATA ports in
These ports are named CON1 to CON4. Ports CON3 & CON4 are
eSATA ports and CON1 & CON2 are internal SATA ports. Changing the
SATA/IDE RAID PCI-E Controller
jumper setting on the
you to select between eSATA and internal SATA ports. By default, ports
CON1 & CON2 are enabled.
Internal
SATA ports
Jumper Pins
CON1
CON2
SATA/IDE RAID PCI-E controller card
card allows
.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Addonics Technologies ADI2S3GPX1-2E
Summary of Contents for Addonics Technologies ADI2S3GPX1-2E
- Page 1 Overview IDE Channel Internal SATA ports Addonics T E C H N O L O G I E S eSATA Ports SATA/IDE RAID PCI-E Controller Model: ADI2S3GPX1-2E Note: The IDE devices attach to the IDE channel must be set as a master and slave pair.
- Page 2 Detailed View of Jumper Pins Use arrow keys • and • to select chunk size from 4K, 8K, 16K, 32K, 64K Pin 1 or 128K, then press Enter. Input the RAID size, press Enter. When asked Create RAID on the select HDD (Y/N)?, press Y to accept. At the next screen select Save And Exit Setup, press Enter.
- Page 3 DELETE (Y/N), press Y to accept. Turn computer ON. Insert Host Controller Driver Disk into CDROM. The Addonics Technologies Driver Disk window pops up. Solve Mirror Conflict Select Other Controllers. Click the ADI2S3GPX1-2E. Extract the files into your system.
- Page 4 Select (Windows 2000) RAID Driver for JMicron JMB363 Controller or (Windows XP/2003) RAID/AHCI Driver for JMicron JMB36X Controller, FREE Software Drivers for all Addonics Technologies then press Enter. Products are available 24 hours per day at the Press Enter to finish driver installation, then follow the on-screen instructions World Wide Web Site: www.addonics.com.
