GTDS820/825GD
GE
7.8 cu. ft. capacity gas dryer with stainless steel drum and steam
®

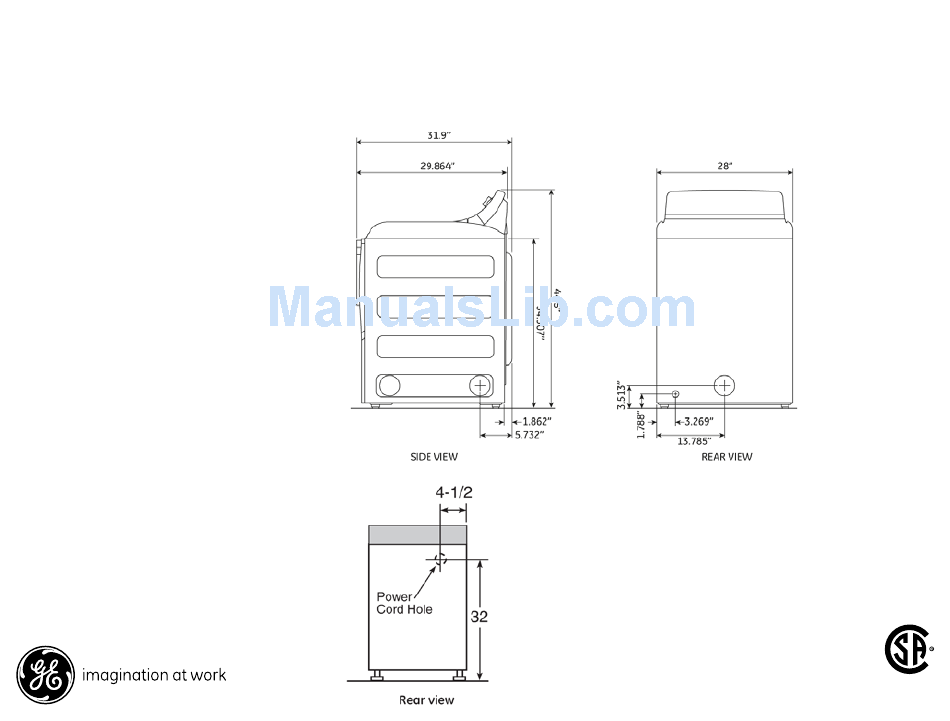

Dimensions and Installation Information (in inches)
Power Cord Locations 7.8 cu. ft. dryers
Exhaust Option: When viewed from the front
of the unit, exhaust 3-way via rear, left and
bottom. Dryer is shipped exhausted to the
rear. Alternate exhausting knockouts are
supplied.
Gas: An individual, properly-grounded
branch circuit, with a three-prong grounding-
type receptacle, protected by a 15 or 20
amp circuit breaker or a time-delay fuse is
required.
Gas Dryer Electric Rating: 120V, 60Hz, 9A
Gas (BTU/HR): 16,000. Factory-equipped for
natural gas. Tested for LP gas. LP gas supply
requires a conversion kit. Check installation
instructions for correct kit and have a
qualified gas technician install a conversion
kit. See dryer ducting information for proper
installation.
Note: Dryer wall outlet must be located within
36" of service cord entry and accessible when
dryer is mounted in position.
Installation Information: For complete
information, see installation instructions
packed with your dryer.
For answers to your Monogram,
GE Profile
or
®
GE
appliance questions, visit our website at
®
geappliances.com or call GE Answer Center
®
service, 800.626.2000.
Specification Created 7/12
370174
