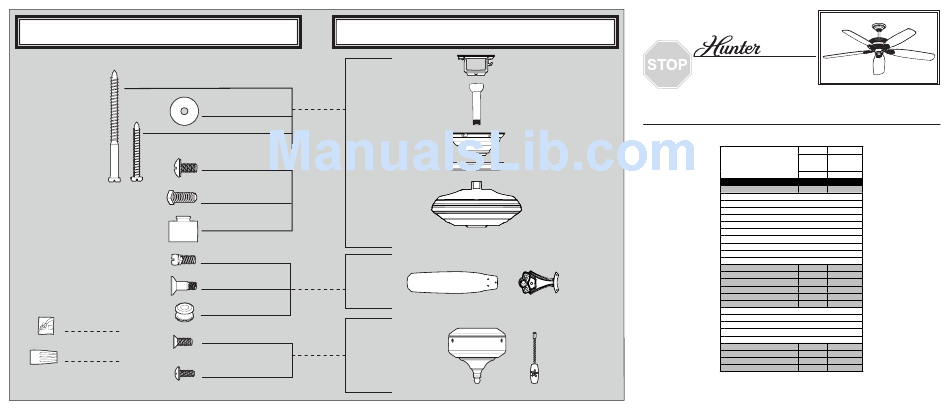

Hunter 28790 Parts Manual

Hardware
(Drawn to Scale)
x 2
x 4
x 2
x 4
x 1
x 4
x 11
x 16
x 16
Balancing
x 1
Kit
x 3
Wire
x 4
Connector
x 3
3" Wood Screw
Flat Washer
Hanger
Bracket
Assembly
1.5" Wood Screw
Canopy Screw
Setscrew
Mounting Isolator
Screw, Blade
Iron Armature
Screw, Blade
Blade
Assembly
Assembly
Blade
Grommet
Screw, Switch
Housing Assembly
Switch
Housing
Assembly
Screw,
Machine, 6-32
Fan Parts
(Not Drawn to Scale)
PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model #

Parts List

Asm. Dwg. #
Finish
Item Name Qnty
Hanging System Kit 1
Ceiling Plate
Canopy
Canopy Trim Ring
Hanger Ball / Downrod Assembly
Setscrew
Canopy Screw
Wood Screw 1.5"
Wood Screw 3"
Flat Washer
Mounting Isolator
Extension Pipe / 6" Downrod 1
Switch Housing Assembly 1
Blade Iron Set 1
Blade Set 1
Screw, Blade Iron Armature 11
Hardware Kit 1
Blade Grommet
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Screw, Switch Housing Assembly
Bottom Cap 1
Finial 1
Fan Pull Chain Pendant 1
Balancing Kit 1
Hunter Fan Company • 7130 Goodlett Farms Pkwy. #400 • Memphis, TN 38016 • www.hunterfan.com • 98000-02-112 10-11-2011 •
28790
G2117-01
PA Cocoa
Part #
98026-67
87942-09
G2139-67
G0118-05
G1880-32
63755-05
G2117-00-860
74906-01
64350-01
G0090-01
65666-01
