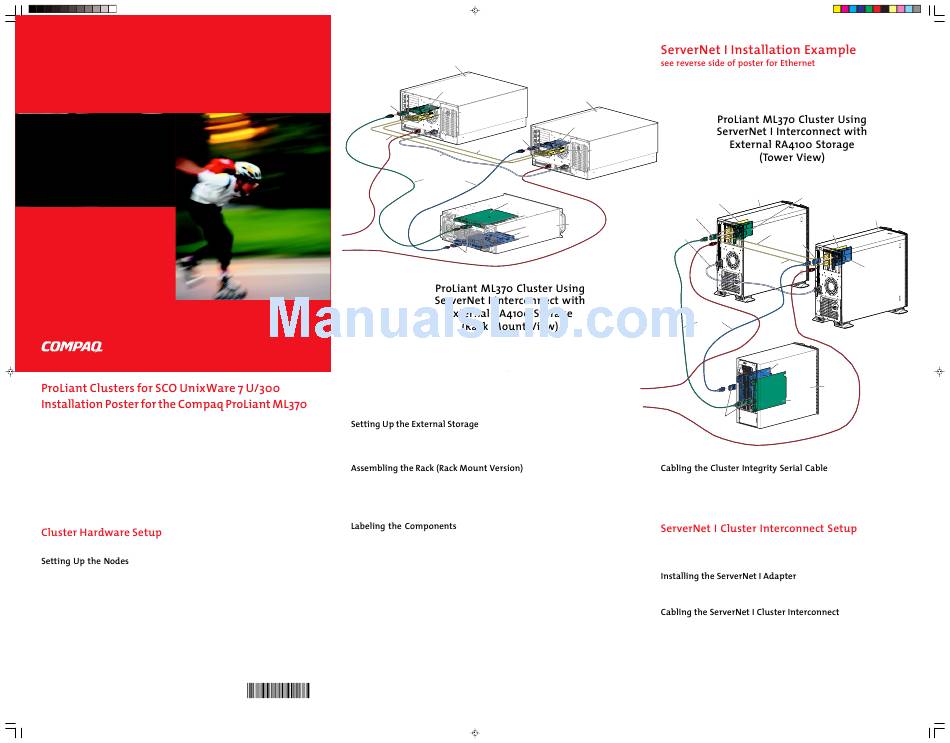

Compaq 195294-001 - ProLiant - ML370R Installation Poster

Compaq ProLiant Clusters for
SCO UnixWare 7 U/300
Installation Poster for the Compaq ProLiant ML370
This poster illustrates the setup and configuration of Compaq ProLiant
Clusters for SCO UnixWare 7 using the U/300 kit.
This two-sided poster lists the general cluster hardware assembly steps
and is to be used with the more detailed steps listed in the Compaq ProLiant
Clusters for SCO UnixWare 7 U/300 Quick Install Guide for the Compaq
ProLiant ML370. The U/300 kit contains Quick Install images for more
than one ProLiant cluster configuration; however, only the Quick Install
image for the ML370 is used with Compaq ProLiant ML370 cluster
configuration.
Use the following instructions to set up the hardware cluster components:
Install the cluster interconnect.
n
Ensure that each node contains a 9.1-GB or larger boot drive.
n
Install the FC-AL Host Bus Adapter (HBA) into slot 3 of each node.
n
©2001 Compaq Computer Corporation
Compaq, ProLiant, SmartStart, ServerNet and ROMpaq
Reg. U.S. Pat. & Tm. Off. SoftPaq is a trademark of Compaq Information
Technologies Group, L.P. in the United States and other countries. All other product
names mentioned herein may be trademarks of their respective companies.
Compaq shall not be liable for technical or editorial errors or omissions contained
herein. The information in this document is provided "as is" without warranty of
any kind and is subject to change without notice. The warranties for Compaq
products are set forth in the express limited warranty statements accompanying such
products. Nothing herein should be construed as constituting an additional warranty.
Compaq ProLiant Clusters for SCO UnixWare 7 U/300 Installation Poster for the
Compaq ProLiant ML370
First Edition (January 2001)
Part Number 221539-001
221539.001.p65 1
GBIC-SW
ServerNet I
Cable X
Cluster Integrity
Serial Cable
Fibre Channel
Public
Network
Install one Gigabit Interface Converter-Shortwave (GBIC-SW)
n
module in each FC-AL HBA in each server.
Install other approved devices.
n
TM
Install an RA4000 Redundant Controller.
n
Install one GBIC-SW module in each RAID controller.
n
For detailed instructions regarding rack assembly, see the Compaq
ProLiant Clusters for SCO UnixWare 7 U/300 Quick Install Guide for the
Compaq ProLiant ML370.
Labeling the cables can prevent improper connections and other
problems and simplify cluster assembly and service. Label each server
with the correct node labels that are provided.
Also label the ends of the following cables:
ServerNet TM I or Ethernet cluster interconnect cables
n
Power cables
n
Keyboard, monitor, and mouse cables
n
Fibre Channel cables
n
Cluster Integrity (CI) serial cable
n
221539- 001
Node 1
(ML370 server)
FC-AL
Node 2
Host Bus
(ML370 server)
Adapter
ServerNet I
Adapter FC-AL
Host Bus
Adapter
GBIC-SW
ServerNet
ServerNet I
Cable X ServerNet I
Cable Y
Adapter
Cables
Redundant RAID Redundant RAID
Controller Controller
RA4100
RAID
Controller
GBIC-SW
12/11/2000, 9:05 AM
FC-AL
Node 1
Host Bus
ServerNet I (ML370 server)
Adapter
Adapter
GBIC-SW
ServerNet I
ServerNet I
Adapter
Cluster Integrity
Cable X
Serial Cable
GBIC-SW
ServerNet I
Cable Y
Fibre Channel
Cables
RAID RAID
Controller Controller
Public
Network
Redundant RAID Redundant RAID
Controller Controller
GBIC-SW
Connect the CI serial cable to serial port connector B on each
node. The CI serial cable is required for Ethernet and ServerNet I
interconnect cluster configurations.
Use the following instructions to set up a ServerNet I cluster
interconnect:
Install the ServerNet I adapter into slot 1 of each server.
To connect the ServerNet I cables:
1. Connect one end of the first cable to the X port of the
ServerNet I adapter in each node.
2. Connect one end of the second cable to the Y port of the
ServerNet I adapter in each node.
Continued on reverse side
Node 2
(ML370 server)
FC-AL
Host Bus
Adapter
RA4100
