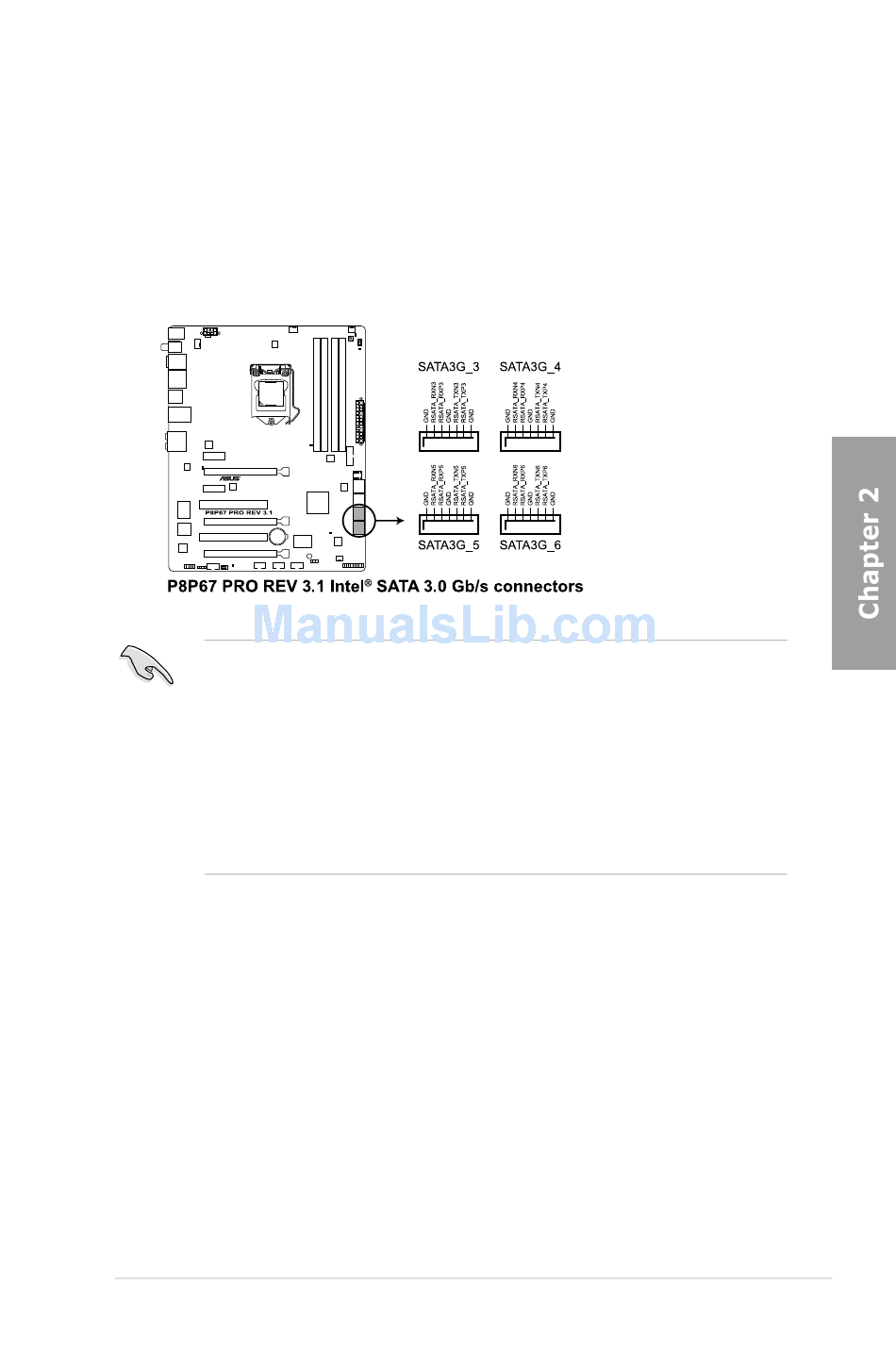

2. Intel P67 Serial ATA 3.0 Gb/s connectors (7-pin SATA3G_3–6 [blue])
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical disc
drives via Serial ATA 3.0 Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10
configuration with the Intel
chipset.
• These connectors are set to [AHCI Mode] by default. If you intend to create a Serial
ATA RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID
Mode]. Refer to section 3.5.4 SATA Configuration for details.
• Before creating a RAID set, refer to section 4.4 RAID configurations or the manual
bundled in the motherboard support DVD.
• When using NCQ, please check the SATA Mode in the BIOS is [AHCI Mode]. Refer to
section 3.5.4 SATA Configuration for details.
• You must install Windows
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows
ASUS P8P67 PRO REV 3.1
®
Rapid Storage Technology through the onboard Intel
®
XP Service Pack 3 or later versions before using Serial
®
XP SP3 or later versions.
®
