User Manual
MULTICOM PRO-XL MDX4600
Reference-Class 4-Channel Expander/Gate/Compressor/Peak Limiter with
Dynamic Enhancer and Low Contour Filter
COMPOSER PRO-XL MDX2600
Reference-Class 2-Channel Expander/Gate/Compressor/Peak Limiter with
Integrated De-Esser, Dynamic Enhancer and Tube Simulation
AUTOCOM PRO-XL MDX1600
Reference-Class 2-Channel Expander/Gate/Compressor/Peak Limiter with
Integrated Dynamic Enhancer, De-Esser and Low Contour Filter
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Behringer Composer PRO-XL MDX2600
Summary of Contents for Behringer Composer PRO-XL MDX2600

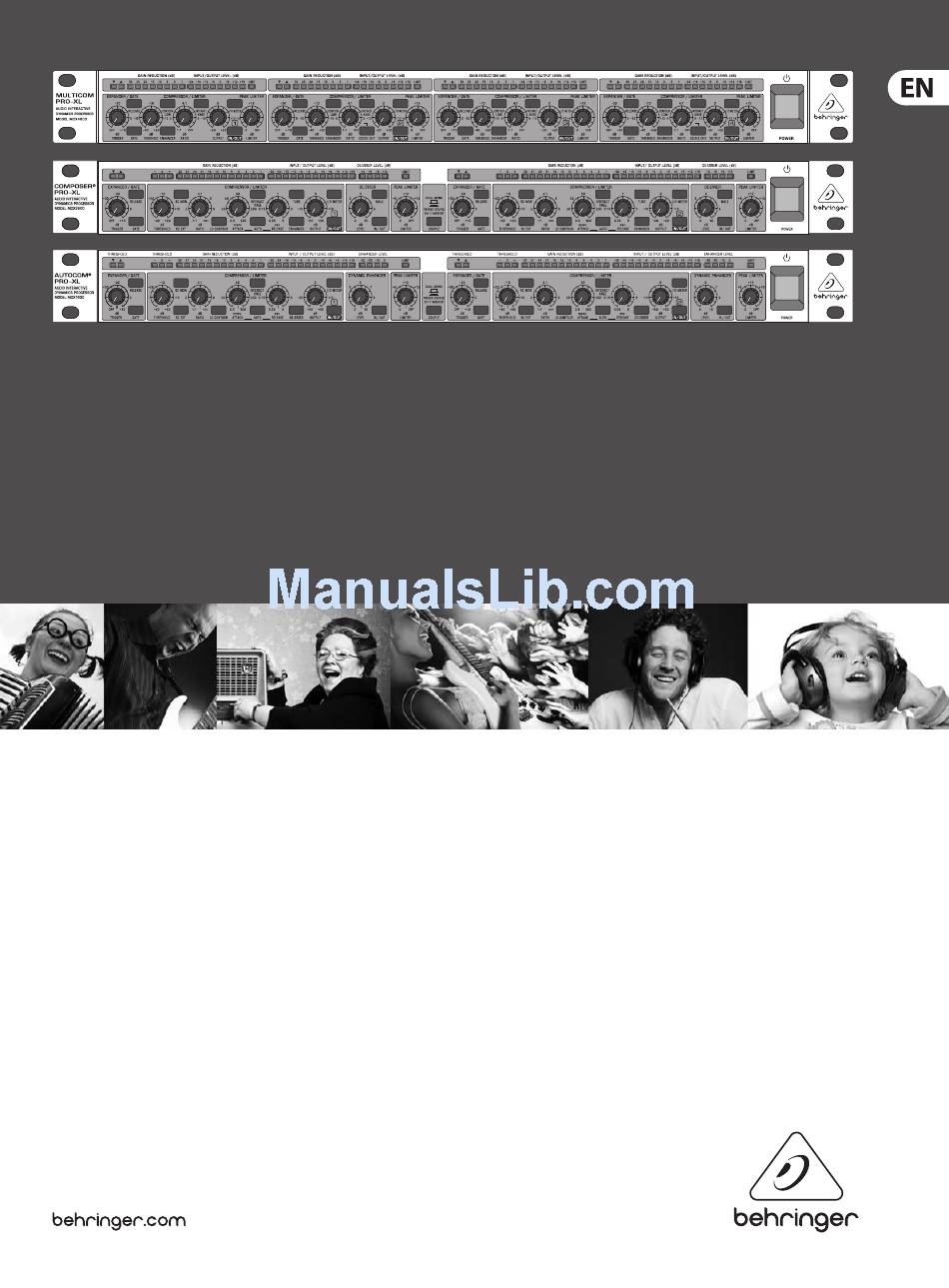

- Page 1 User Manual MULTICOM PRO-XL MDX4600 Reference-Class 4-Channel Expander/Gate/Compressor/Peak Limiter with Dynamic Enhancer and Low Contour Filter COMPOSER PRO-XL MDX2600 Reference-Class 2-Channel Expander/Gate/Compressor/Peak Limiter with Integrated De-Esser, Dynamic Enhancer and Tube Simulation AUTOCOM PRO-XL MDX1600 Reference-Class 2-Channel Expander/Gate/Compressor/Peak Limiter with Integrated Dynamic Enhancer, De-Esser and Low Contour Filter...
-
Page 2: Table Of Contents
MULTICOM PRO-XL MDX4600/PRO-XL MDX2600/AUTOCOM PRO-XL MDX1600 User Manual Table of Contents Important Safety Instructions ........3 Legal Disclaimer ............. 3 Limited Warranty ............3 1. Introduction ............... 5 1.1 Before you get started ............6 1.1.1 Shipment ................6 1.1.2 Initial operation ............. 6 1.1.3 Warranty ................ -
Page 3: Important Safety Instructions
A list of authorized resellers can dangerous voltage inside the moving the cart/apparatus be found on BEHRINGER’ s website behringer. com under enclosure - voltage that may be suffi cient to constitute a combination to avoid “Where to Buy”, or you can contact the MUSIC Group offi ce risk of shock. -
Page 4: Limitation Of Liability
MULTICOM PRO-XL MDX4600/PRO-XL MDX2600/AUTOCOM PRO-XL MDX1600 User Manual • connection or operation of the unit in any way “Support” at behringer. com. If your country is not (3) This warranty does not detract from the seller’ s listed, please check if your problem can be dealt with... -
Page 5: Introduction
Owing to state-of-the-art semi-conductor technology, there is no sound deterioration caused by tube ageing, there are The new PRO-XL dynamics processors from BEHRINGER feature several innovative no heat problems and no maintenance required at all. All that remains is the circuit designs, making them top-class dynamics processing equipment. -
Page 6: Before You Get Started
The serial a short release time (switch not pressed). The long release time is the best number is printed on the top side of the unit. Or register online at behringer.com. choice for slowly decaying or heavily reverberated signals (switch pressed). -
Page 7: The Compressor Section
MULTICOM PRO-XL MDX4600/PRO-XL MDX2600/AUTOCOM PRO-XL MDX1600 User Manual Application hints (6) Use the THRESHOLD control to adjust the compressor threshold from -40 to +20 dB. The purpose of using an expander is usually to expand the usable dynamics towards the lower end, i.e. to improve the separation between low-level signals (7) These three LEDs (AUTOCOM PRO-XL and COMPOSER PRO-XL only) indicate and the unavoidable noise floor by reducing the noise level. -
Page 8: The Dynamic Enhancer Section
MULTICOM PRO-XL MDX4600/PRO-XL MDX2600/AUTOCOM PRO-XL MDX1600 User Manual (18) The OUTPUT control allows you to raise or lower the output signal by If the compressor is being used as a limiter, the attack time should be as short as max. 20 dB, so as to make up for a gain loss caused by the compressor or possible. -
Page 9: The Peak Limiter Section
MULTICOM PRO-XL MDX4600/PRO-XL MDX2600/AUTOCOM PRO-XL MDX1600 User Manual (26) DE-ESSER LEVEL (MDX2600). The LED chain reads the current attenuation within a range from +3 to +12 dB. (27) MALE switch. This switch adapts the de-esser to the male (switch pressed) or female registers (not pressed). -
Page 10: Emphasizing Instruments
If you wish to use the dynamics processor as part of a P.A. system integrating rhythm instruments after recording. Only the expander/gate section is required, an active frequency crossover (e.g. BEHRINGER SUPER-X PRO CX2310), you can the compressor and/or peak limiter remain disabled. Insert the bass guitar track... -
Page 11: Installation
MULTICOM PRO-XL MDX4600/PRO-XL MDX2600/AUTOCOM PRO-XL MDX1600 User Manual Unbalanced ¼" TS connector MULTICOM PRO-XL MDX4600 strain relief clamp sleeve sleeve (ground/shield) SUPER-X PRO CX2310 Input Input (signal) Fig. 5.2: 1/4" TS connector Balanced ¼" TRS connector strain relief clamp sleeve Power ampli ers ring Mixer... -
Page 12: Specifications
MULTICOM PRO-XL MDX4600/PRO-XL MDX2600/AUTOCOM PRO-XL MDX1600 User Manual 6. Specifications Audio Inputs Expander/Gate Section Type XLR and 1/4" TRS connectors, Type IRC (Interactive Ratio Control) expander HF-shielded, servo-balanced Threshold variable (OFF to +10 dB) Impedance Ratio variable (1:1 to 1:8) +4 dBu 90 kW bal., 45 kW unbal. - Page 13 Shipping weight approx. 7.5 lbs / 3.4 kg BEHRINGER makes every effort to ensure the highest standard of quality. Necessary modifications are carried out without notice. Thus, the specifications and design of the device may differ from the information given in...
- Page 14 MULTICOM PRO-XL MDX4600/PRO-XL MDX2600/AUTOCOM PRO-XL MDX1600 User Manual FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION MULTICOM PRO-XL MDX4600/PRO-XL MDX2600/AUTOCOM PRO-XL MDX1600 MUSIC Group Services US Inc. Responsible Party Name: 18912 North Creek Parkway, Address: Suite 200 Bothell, WA 98011, Phone: +1 425 672 0816 Phone/Fax No.: Fax: +1 425 673 7647 MULTICOM PRO-XL MDX4600/PRO-XL MDX2600/...
- Page 15 We Hear You...
Need help?
Do you have a question about the Composer PRO-XL MDX2600 and is the answer not in the manual?
Questions and answers
how to connect the Behringer composer pro-xl MDX 2600 to a Ultragain Pro Mic 2200 in to a mixer , actual cable connection from one to another blue print
To connect the Behringer Composer Pro-XL MDX2600 to a Behringer Ultragain Pro MIC2200 and then to a mixer:
1. Microphone to MIC2200: Connect your microphone to the MIC2200 input using an XLR cable. If your mic requires phantom power, enable it on the MIC2200.
2. MIC2200 to MDX2600: Use an XLR or TRS cable to connect the MIC2200 output to the input of one channel on the MDX2600.
3. MDX2600 to Mixer: Connect the output of the MDX2600 (same channel) to a line input on the mixer using an XLR or TRS cable.
This setup allows the microphone signal to be preamplified by the MIC2200, processed by the MDX2600 (compression, gating, etc.), and then sent to the mixer.
This answer is automatically generated
