11 U-CONTROL UCA202 User Manual
Use the jack to connect a standard pair of
headphones equipped with a 1/8" TRS connector.
The VOLUME control adjusts the volume level of the
headphones output. Turn the control fully to the
left before you connect the headphones. This helps
you avoid the damage that is caused by high
volume settings.
3.2

Rear panel

[ 5 ]

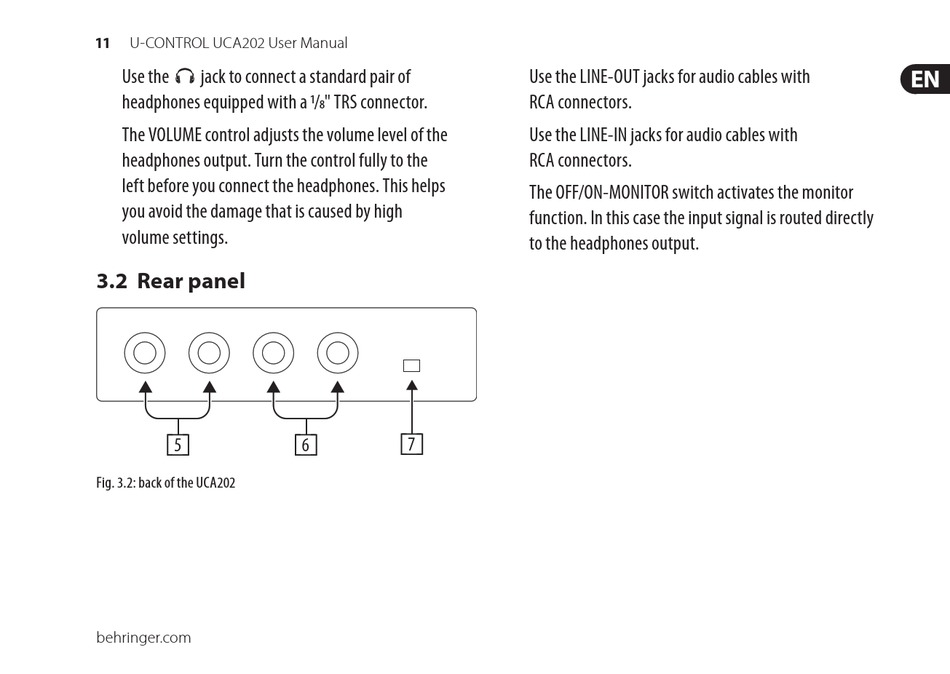

Fig. 3.2: back of the UCA202
behringer.com
[ 7 ]
[ 6 ]
Use the LINE-OUT jacks for audio cables with
RCA connectors.
Use the LINE-IN jacks for audio cables with
RCA connectors.
The OFF/ON-MONITOR switch activates the monitor
function. In this case the input signal is routed directly
to the headphones output.
