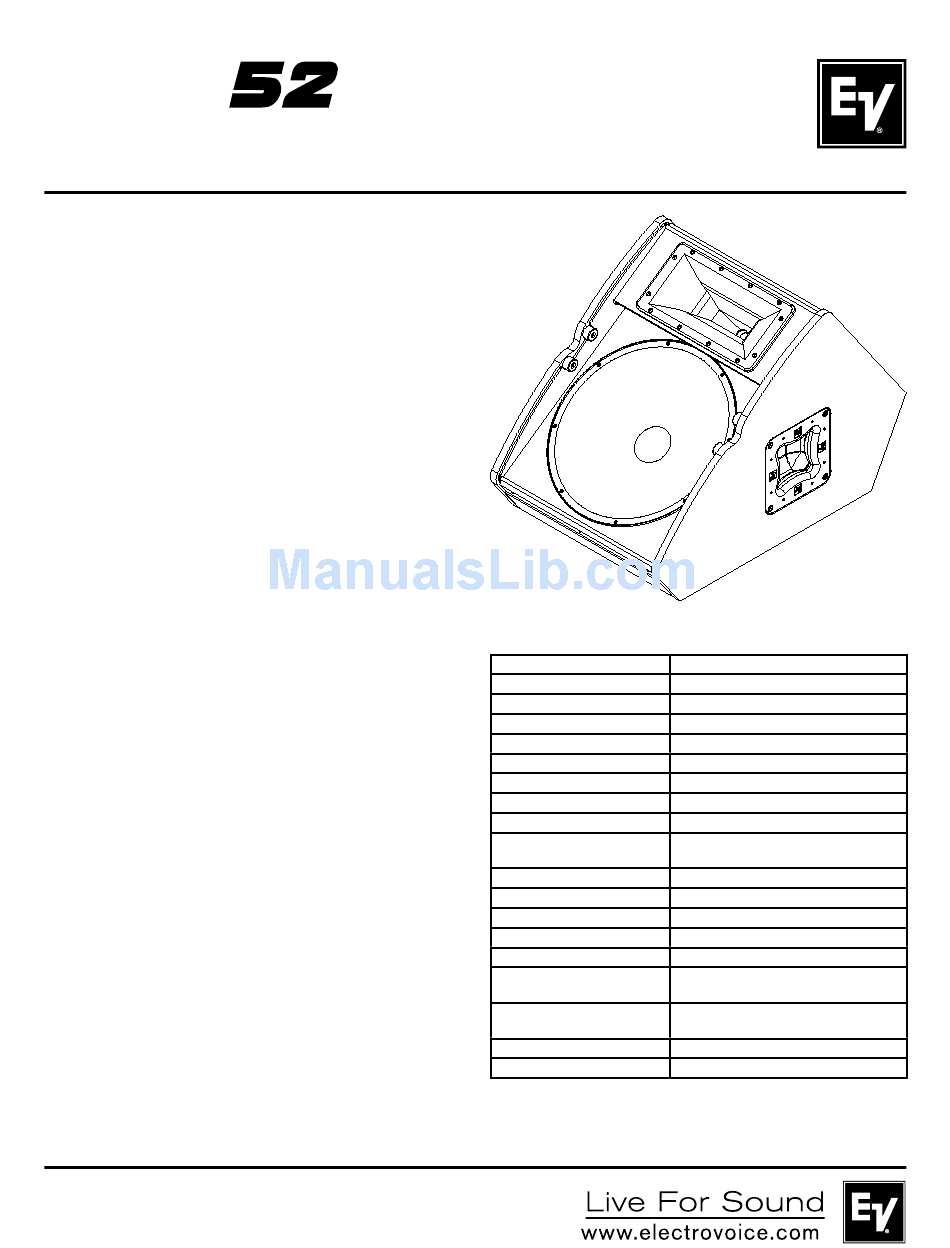

Electro-Voice TX1152FM Specification Sheet
Electro-Voice TX1152FM Specification Sheet

Electro-Voice TX1152FM Specification Sheet

Single 15" two-way, 90 x 50 full-range vertical floor monitor
Hide thumbs Also See for TX1152FM:

Advertisement

Quick Links

T
X
11

Key Features:

55° Vertical Floor Monitor with
Signal Synchronized Transducers
100 dB Sensitivity, 133 dB Maximum SPL
DH3 1.25" (32mm) Diaphragm, 1" (25mm) Exit
Pure Titanium Compression Driver
SMX2151 15" (381mm) LF Transducer with
Fully Symmetric Drive
Integrated Crossover with Steep 24 dB/
Octave Slopes and HF Protection
90° x 50° Coverage Pattern
500W Continuous (2000W Peak) Power
Handling

General Description:

The Electro-Voice® TX1152FM is a compact, high output dedicated floor
monitor for use on small to medium-sized stages where high quality vo-
cal and instrument applications are required in a lightweight package.
The TX1152FM enclosure utilizes Signal Synchronized Transducers™
(patent pending), a design that aligns the woofer and compression driver
by locating them on separate baffles, and integrates a low distortion port
between the baffles. This offers tremendous advantages over traditional
flat baffle construction: the acoustic centers of the woofer and compres-
sion driver are closer together, synchronizing arrival time; the voice coils
of the compression driver and woofer are in the same plane, achieving
linear phase response; and the size of both baffles are smaller than a
single baffle; resulting in a smaller footprint.
The TX1152FM utilizes the DH3, a high output 1.25" titanium compression
driver, coupled to a Constant Directivity™ 90° x 50° horn. The SMX2151
15" woofer has an FEA optimized magnet structure and shorting ring for
ultra low distortion. The crossover uses steep 24 dB/octave slopes with
equalization for very smooth response in vocal range, and has a built in
protection circuit for long term reliability. The combination of the trans-
ducers, enclosure, and crossover result in a compact floor monitor that is
capable of very high output levels levels before feedback.
The TX1152FM has a variety of features that make it suited as a dedi-
cated floor monitor. The internally braced, enclosure is constructed out
of a combination of plywood and MDF, and coated with EVCoat
maximum strength and durability. The unique grille design is very strong
and dent resistant, and features a rotatable logo. Four way handles allow
for gripping the TX1152FM in a variety of positions. The recessed input
panel with dual NL4 connectors is located on the rear of the enclosure,
which keeps the connectors hidden and away from the performers on
stage.
F
M
TM

Technical Specifications:

for
TM
Half Space Measurement.
1
TX1152FM
Single 15" Two-Way,
90° x 50° Full-Range
Vertical Floor Monitor
Freq. Response
(-3 dB): 65 Hz - 20 kHz
1
Freq. Range
(-10 dB): 45 Hz - 20 kHz
1
Rec. Hipass Frequency: 45 Hz
Axial Sensitivity: 100 dB (1W/1m)
Max. Calculated SPL: 133 dB
Horizontal Coverage: 90°
Vertical Coverage: 50°
Power Handling: 500W Continuous, 2000W Peak
LF Transducer: SMX2151, 15 in (381mm) Driver
HF Transducer: DH3, 1.25 in (32mm) Diaphragm
Compression Driver
Crossover Frequency: 1750 Hz
Nominal Impedance: 8 Ohms
Minimum Impedance: 6.2 Ohms
Connectors: (2) Neutrik Speakon NL4's
Enclosure Material: Plywood and MDF with EVCoat
Grille: 16 GA Steel, Black Powdercoat, with
Rotatable Logo
Dimensions (H x W x D): 18.7" x 17.3" x 25.8"
(475mm x 439mm x 655mm)
Net Weight: 51.9 lbs (23.5 kg)
Shipping Weight: 59.4 lbs (27.0 kg)
