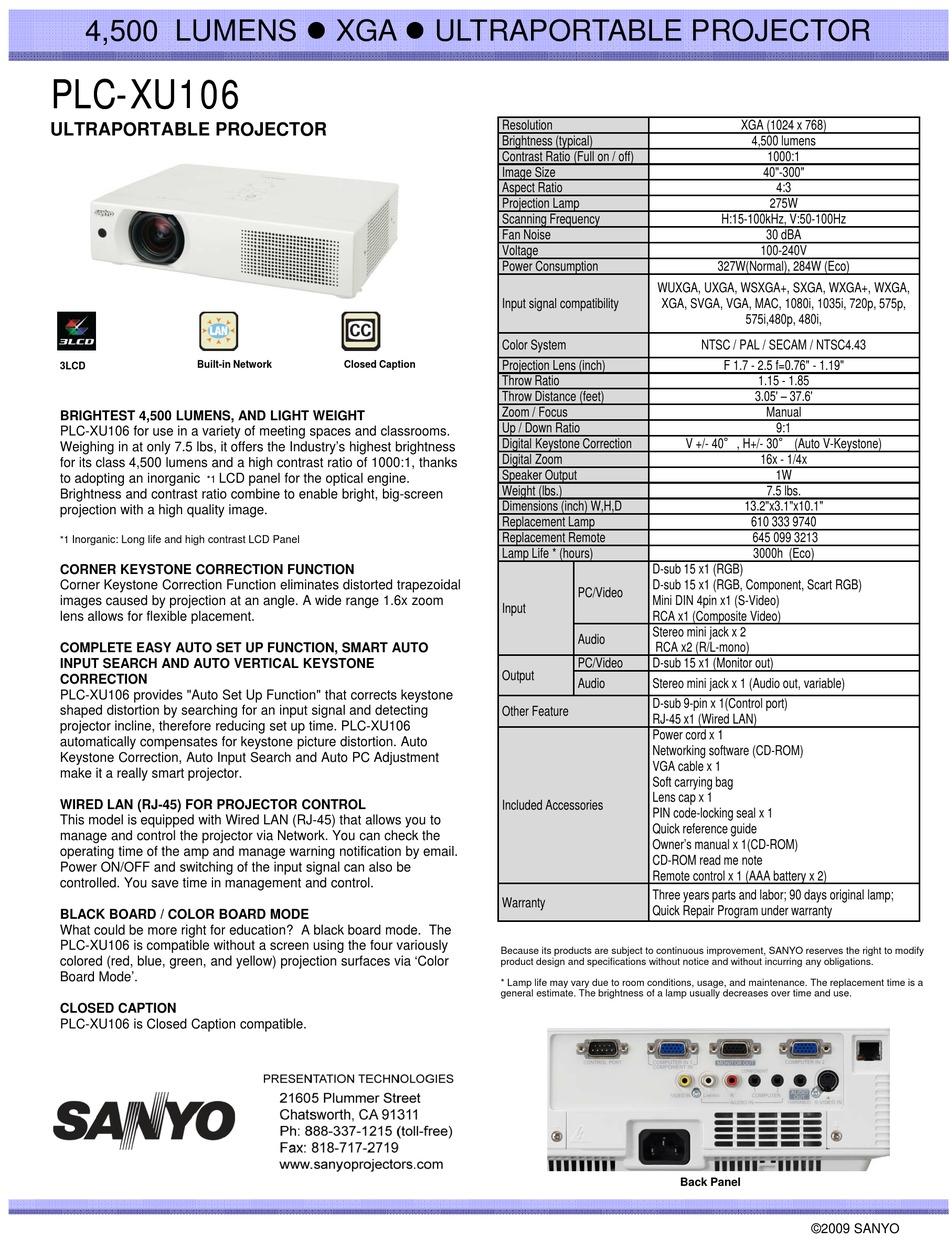

Sanyo PLC-XU106 - 4500 lm Quick Reference Manual

4,500 LUMENS
PLC- - XU106 PLC XU106
ULTRAPORTABLE PROJECTOR
Built-in Network
3LCD
BRIGHTEST 4,500 LUMENS, AND LIGHT WEIGHT
PLC-XU106 for use in a variety of meeting spaces and classrooms.
Weighing in at only 7.5 lbs, it offers the Industry's highest brightness
for its class 4,500 lumens and a high contrast ratio of 1000:1, thanks
to adopting an inorganic LCD panel for the optical engine.
*1
Brightness and contrast ratio combine to enable bright, big-screen
projection with a high quality image.
*1 Inorganic: Long life and high contrast LCD Panel
CORNER KEYSTONE CORRECTION FUNCTION
Corner Keystone Correction Function eliminates distorted trapezoidal
images caused by projection at an angle. A wide range 1.6x zoom
lens allows for flexible placement.
COMPLETE EASY AUTO SET UP FUNCTION, SMART AUTO
INPUT SEARCH AND AUTO VERTICAL KEYSTONE
CORRECTION
PLC-XU106 provides "Auto Set Up Function" that corrects keystone
shaped distortion by searching for an input signal and detecting
projector incline, therefore reducing set up time. PLC-XU106
automatically compensates for keystone picture distortion. Auto
Keystone Correction, Auto Input Search and Auto PC Adjustment
make it a really smart projector.
WIRED LAN (RJ-45) FOR PROJECTOR CONTROL
This model is equipped with Wired LAN (RJ-45) that allows you to
manage and control the projector via Network. You can check the
operating time of the amp and manage warning notification by email.
Power ON/OFF and switching of the input signal can also be
controlled. You save time in management and control.
BLACK BOARD / COLOR BOARD MODE
What could be more right for education? A black board mode. The g
PLC-XU106 is compatible without a screen using the four variously
colored (red, blue, green, and yellow) projection surfaces via 'Color
Board Mode'.
CLOSED CAPTION
PLC-XU106 is Closed Caption compatible.
XGA ULTRAPORTABLE PROJECTOR
Resolution
Brightness (typical)
Contrast Ratio (Full on / off)
Image Size
Aspect Ratio
Projection Lamp
Scanning Frequency
Fan Noise
Voltage
Power Consumption
Input signal compatibility
Color System
Projection Lens (inch)
Closed Caption
Throw Ratio
Throw Distance (feet)
Zoom / Focus
Up / Down Ratio
Digital Keystone Correction
Digital Zoom
S Speaker Output
Weight (lbs.)
Dimensions (inch) W,H,D
Replacement Lamp
Replacement Remote
Lamp Life * (hours)
Input
Output
Other Feature
Included Accessories
Warranty
Because its products are subject to continuous improvement, SANYO reserves the right to modify
product design and specifications without notice and without incurring any obligations.
* Lamp life may vary due to room conditions, usage, and maintenance. The replacement time is a
general estimate. The brightness of a lamp usually decreases over time and use.
( )
WUXGA, UXGA, WSXGA+, SXGA, WXGA+, WXGA,
XGA, SVGA, VGA, MAC, 1080i, 1035i, 720p, 575p,
NTSC / PAL / SECAM / NTSC4.43
V +/- 40°, H+/- 30° (Auto V-Keystone)
k O t t
D-sub 15 x1 (RGB)
D-sub 15 x1 (RGB, Component, Scart RGB)
PC/Video
Mini DIN 4pin x1 (S-Video)
RCA x1 (Composite Video)
Stereo mini jack x 2
Audio
RCA x2 (R/L-mono)
PC/Video D-sub 15 x1 (Monitor out)
Audio Stereo mini jack x 1 (Audio out, variable)
D-sub 9-pin x 1(Control port)
RJ-45 x1 (Wired LAN)
Power cord x 1
Networking software (CD-ROM)
VGA cable x 1
Soft carrying bag Soft carrying bag
Lens cap x 1
PIN code-locking seal x 1
Quick reference guide
Owner's manual x 1(CD-ROM)
CD-ROM read me note
Remote control x 1 (AAA battery x 2)
Three years parts and labor; 90 days original lamp;
Quick Repair Program under warranty
Back Panel
XGA (1024 x 768)
4,500 lumens
1000:1
40"-300"
4:3
275W
H:15-100kHz, V:50-100Hz
30 dBA
100-240V
327W(Normal), 284W (Eco)
575i,480p, 480i, 575i 480p 480i
F 1.7 - 2.5 f=0.76" - 1.19"
1.15 - 1.85
3.05' – 37.6'
Manual
9:1
16x - 1/4x
1W 1W
7.5 lbs.
13.2"x3.1"x10.1"
610 333 9740
645 099 3213
3000h (Eco)
©2009 SANYO
