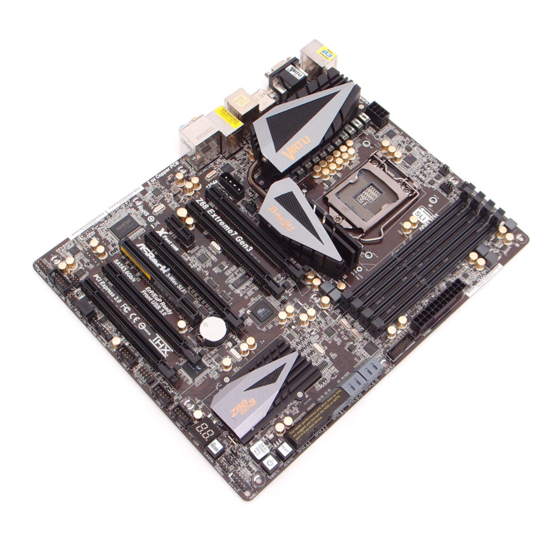

Z68 Extreme7 Gen3

User Manual

Version 1.0
Published July 2011
Copyright©2011 ASRock INC. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z68 Extreme7 Gen3 and is the answer not in the manual?

Questions and answers

Related Manuals for ASROCK Z68 Extreme7 Gen3

Summary of Contents for ASROCK Z68 Extreme7 Gen3

  • Page 1: User Manual

    Z68 Extreme7 Gen3 User Manual Version 1.0 Published July 2011 Copyright©2011 ASRock INC. All rights reserved.

  • Page 2: Copyright Notice

    fi tness for a particular purpose. In no event shall ASRock, its directors, offi cers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profi...

  • Page 3: Table Of Contents

    Quad CrossFireX Operation Guide ........30 2.9 Dual Monitor and Surround Display Features ....36 2.10 ASRock Smart Remote Installation Guide ..... 39 2.11 ASRock XFast Charger Operation Guide ...... 40 2.12 Jumpers Setup ............41 2.13 Onboard Headers and Connectors ......
  • Page 4 2.24 Teaming Function Operation Guide ......61 3 UEFI SETUP UTILITY ..........65 3.1 Introduction ..............65 3.1.1 UEFI Menu Bar ............ 65 3.1.2 Navigation Keys ........... 66 3.2 Main Screen ..............66 3.3 OC Tweaker Screen ............67 3.4 Advanced Screen ............71 3.4.1 CPU Confi...

  • Page 5: Introduction

    In case any modifi cations of this manual occur, the updated version will be available on ASRock website without further notice. You may fi nd the latest VGA cards and CPU support lists on ASRock website as well.

  • Page 6: Specifi Cations

    Specifications Platform - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors) ® - Supports 2nd Generation Intel Core i7 / i5 / i3 in LGA1155 Package - Advanced V8 + 4 Power Phase Design ®...
  • Page 7 - Supports DVI with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz - Supports DisplayPort with max. resolution up to 2560x1600 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) (see CAUTION 8) - Supports HDCP function with DVI, HDMI and DisplayPort...
  • Page 8 - CPU Core, IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; ASRock MAGIX Multimedia Suite - OEM)
  • Page 9 - FCC, CE, WHQL - ErP/EuP Ready (ErP/EuP ready power supply is required) (see CAUTION 22) * For detailed product information, please visit our website: http://www.asrock.com WARNING Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using the third-party overclocking tools.
  • Page 10 6-channel, and 8-channel modes. Please check the table on page 14 for proper connection. 10. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to fi ne-tune different system functions in a user-friendly interface, which is including Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hardware Monitor, it shows the major readings of your system.
  • Page 11 11. ASRock Instant Flash is a BIOS fl ash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update system BIOS ® without entering operating systems fi rst like MS-DOS or Windows . With this utility, you can press <F6> key during the POST or press <F2> key to BIOS setup menu to access ASRock Instant Flash.
  • Page 12 GPU and advanced media features of Intel graphics. 18. ASRock On/Off Play Technology allows users to enjoy the great audio ex- perience from the portable audio devices, such like MP3 player or mobile phone to your PC, even when the PC is turned off (or in ACPI S5 mode)! This motherboard also provides a free 3.5mm audio cable (optional) that...

  • Page 13: Motherboard Layout

    CPU_FAN1 USB 2.0 T: USB0 B: USB1 USB 3.0 Top: T: USB3 RJ-45 B: USB4 CHA_FAN3 SLI/XFIRE_PWR1 USB3_5_6 PCIE1 Z68 Extreme7 Gen3 PCIE2 PCIE3 RoHS Fast USB PCIE4 Intel 3-Way SLI CMOS Battery PCI1 ErP/EuP Ready SATA3 6Gb/s Front USB 3.0...

  • Page 14: I/O Panel

    I/O Panel LAN RJ-45 Port ** 10 Front Speaker (Lime) D-Sub Port (VGA1) Microphone (Pink) DisplayPort (HDMI_DP_1) USB 3.0 Ports (USB34) USB 2.0 Ports (USB01) IEEE 1394 Port (IEEE 1394) LAN RJ-45 Port *** 14 eSATA3 Connector Central / Bass (Orange) HDMI Port (HDMI1) Rear Speaker (Black) DVI-D Port (DVI1)
  • Page 15 To enable Multi-Streaming function, you need to connect a front panel audio cable to the front panel audio header. After restarting your computer, you will fi nd “Mixer” tool on your system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click “ok”.

  • Page 16: Installation

    Chapter 2: Installation This is an ATX form factor (12.0" x 9.6", 30.5 x 24.4 cm) motherboard. Before you install the motherboard, study the confi guration of your chassis to ensure that the motherboard fi ts into it. Make sure to unplug the power cord before installing or removing the motherboard.

  • Page 17: Cpu Installation

    2.3 CPU Installation For the installation of Intel 1155-Pin CPU, please follow the steps below. Load Plate Load Lever Socket Body Contact Array 1155-Pin Socket Overview Before you insert the 1155-Pin CPU into the socket, please check if the CPU surface is unclean or if there is any bent pin on the socket. Do not force to insert the CPU into the socket if above situation is found.
  • Page 18 Step 3. Insert the 1155-Pin CPU: Step 3-1. Hold the CPU by the edge where is marked with black line. Step 3-2. Orient the CPU with IHS (Integrated Heat Sink) up. Locate Pin1 and the two orientation key notches. orientation key notch alignment key Pin1 Pin1...

  • Page 19: Installation Of Cpu Fan And Heatsink

    Installation of CPU Fan and Heatsink This motherboard is equipped with 1155-Pin socket that supports Intel 1155-Pin CPU. Please adopt the type of heatsink and cooling fan compliant with Intel 1155- Pin CPU to dissipate heat. Before you installed the heatsink, you need to spray thermal interface material between the CPU and the heatsink to improve heat dis- sipation.

  • Page 20: Installation Of Memory Modules (Dimm)

    2.5 Installation of Memory Modules (DIMM) This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology. For dual channel confi g- uration, you always need to install identical (the same brand, speed, size and chip-type) DDR3 DIMM pair in the slots: You have to install identical DDR3 DIMM pair in Dual Channel A (DDR3_A1 and DDR3_B1;...

  • Page 21: Installing A Dimm

    Installing a DIMM Please make sure to disconnect power supply before adding or removing DIMMs or the system components. Step 1. Unlock a DIMM slot by pressing the retaining clips outward. Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot.

  • Page 22: Expansion Slots (Pci And Pci Express Slots)

    2.6 Expansion Slots (PCI and PCI Express Slots) There are 1 PCI slot and 6 PCI Express slots on this motherboard. PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI interface. PCIE slots: PCIE1/PCIE4 (PCIE 2.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
  • Page 23 Step 4. Align the card connector with the slot and press fi rmly until the card is completely seated on the slot. Step 5. Fasten the card to the chassis with screws. Step 6. Replace the system cover.

  • Page 24: Sli Tm , 3-Way Sli Tm And Quad Sli

    2.7 SLI , 3-Way SLI and Quad SLI Operation Guide ® This motherboard supports NVIDIA , 3-Way SLI and Quad SLI (Scalable Link Interface) technology that allows you to install up to three identical PCI Express ® ® x16 graphics cards. Currently, NVIDIA technology supports Windows XP / ®...
  • Page 25 Step3. Align and insert ASRock SLI_Bridge_2S Card to the goldfi ngers on each graphics card. Make sure ASRock SLI_Bridge_2S Card is fi rmly in place. ASRock SLI_Bridge_2S Card Step4. Connect a VGA cable or a DVI cable to the monitor connector or the DVI...
  • Page 26 Repeat this step on the three graphics cards. Step3. Align and insert ASRock 3-Way SLI-2S2S Bridge Card to the goldfi ngers on each graphics card. Make sure ASRock 3-Way SLI-2S2S Bridge Card is fi rmly in place.
  • Page 27 2.7.2 Driver Installation and Setup Install the graphics card drivers to your system. After that, you can enable the Multi- ® Graphics Processing Unit (GPU) feature in the NVIDIA nView system tray utility. Please follow the below procedures to enable the multi-GPU feature. ®...
  • Page 28 ® For Windows Vista / Vista 64-bit / 7 / 7 64-bit OS: (For SLI and Quad SLI mode) A. Click the Start icon on your Windows taskbar. B. From the pop-up menu, select All Programs, and then click NVIDIA Corporation.
  • Page 29 ® For Windows Vista / Vista 64-bit / 7 / 7 64-bit OS: (For 3-Way SLI mode) A. Follow step A to D on page 27. B. From the pop-up menu, select Set SLI and PhysX confi guration. In Select a hardware acceleration setting for PhysX item, please select Enabled.

  • Page 30: Crossfirex Tm Operation Guide

    CrossFireX , 3-Way CrossFireX and Quad CrossFireX Operation Guide This motherboard supports CrossFireX , 3-way CrossFireX and Quad CrossFireX feature. CrossFireX technology offers the most advantageous means available of combining multiple high performance Graphics Processing Units (GPU) in a single PC. Combining a range of different operating modes with intelligent software design and an innovative interconnect mechanism, CrossFireX enables the highest possible level of performance and image quality in any 3D ®...
  • Page 31 Step 2. Connect two Radeon graphics cards by installing CrossFire Bridge on CrossFire Bridge Interconnects on the top of Radeon graphics cards. (CrossFire Bridge is provided with the graphics card you purchase, not bundled with this motherboard. Please refer to your graphics card vendor for details.) CrossFire Bridge Step 3.
  • Page 32 2.8.1.2 Installing Three CrossFireX -Ready Graphics Cards Step 1. Install one Radeon graphics card to PCIE1 slot. For the proper installation procedures, please refer to section “Expansion Slots”. Step 2. Install one Radeon graphics card to PCIE4 slot. For the proper installation procedures, please refer to section “Expansion Slots”.
  • Page 33 CrossFire Bridge Step 5. Connect the DVI monitor cable to the DVI connector on the Radeon graph- ics card on PCIE1 slot. (You may use the DVI to D-Sub adapter to convert the DVI connector to D-Sub interface, and then connect the D-Sub monitor cable to the DVI to D-Sub adapter.)

  • Page 34: Driver Installation And Setup

    2.8.2 Driver Installation and Setup Step 1. Power on your computer and boot into OS. Step 2. Remove the AMD driver if you have any VGA driver installed in your system. The Catalyst Uninstaller is an optional download. We recommend using this utility to uninstall any previously installed Catalyst drivers prior to installation.
  • Page 35 Although you have selected the option “Enable CrossFire ”, the CrossFireX function may not work actually. Your computer will automatically reboot. After restarting your computer, please confi rm whether the option “Enable CrossFire ” in “ATI Catalyst Control Center” is selected or not; if not, please select it again, and then you are able to enjoy the benefi...

  • Page 36: Dual Monitor And Surround Display Features

    2.9 Dual Monitor and Surround Display Features Dual Monitor Feature This motherboard supports dual monitor feature. With the internal VGA output sup- port (DVI-D, D-Sub, HDMI and DisplayPort), you can easily enjoy the benefi ts of dual monitor feature without installing any add-on VGA card to this motherboard. This motherboard also provides independent display controllers for DVI-D, D-Sub, HDMI and DisplayPort to support dual VGA output so that DVI-D, D-sub, HDMI and DisplayPort can drive same or different display contents.
  • Page 37 Surround Display Feature This motherboard supports surround display upgrade. With the internal VGA output support (DVI-D, D-Sub, HDMI and DisplayPort) and external add-on PCI Express VGA cards, you can easily enjoy the benefi ts of surround display feature. Please refer to the following steps to set up a surround display environment: 1.
  • Page 38 G. Repeat steps C through E for the diaplay icon identifi ed by the number one to ten. ® For Windows 7 / 7 64-bit / Vista / Vista 64-bit OS: Right click the desktop, choose “Personalize”, and select the “Display Settings”...

  • Page 39: Asrock Smart Remote Installation Guide

    The Multi-Angle CIR Receiver does not support Hot-Plug function. Please install it before you boot the system. * ASRock Smart Remote is only supported by some of ASRock motherboards. Please refer to ASRock website for the motherboard support list: http://www.asrock.com...

  • Page 40: Asrock Xfast Charger Operation Guide

    1. USB 2.0 port (USB0) on the I/O panel see p.14 No. 4 2. USB 2.0 port (USB6) header see p.13 No. 27 With ASRock XFast Charger feature, you can freely enjoy the quick charging convenience by installing the USB cable on these two ports.

  • Page 41: Jumpers Setup

    2.12 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”...

  • Page 42: Onboard Headers And Connectors

    2.13 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! Serial ATAII Connectors These four Serial ATAII (SATAII) connectors support SATA data (SATA2_2_3: see p.13, No.
  • Page 43 USB 2.0 header can support USB_PWR two USB 2.0 ports. Please be noted that USB6 port supports (9-pin USB4_5) ASRock XFast Charger. Please (see p.13 No. 26) refer to page 40 for detaied information. (9-pin USB6_7) (see p.13 No. 27)
  • Page 44 Infrared Module Header This header supports an IRTX +5VSB optional wireless transmitting DUMMY (5-pin IR1) and receiving infrared module. (see p.13 No. 34) IRRX Consumer Infrared Module Header This header can be used to connect the remote (4-pin CIR1) IRTX IRRX controller receiver.
  • Page 45 RESET (Reset Switch): Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart. PLED (System Power LED): Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating.
  • Page 46 CPU Fan Connectors Please connect the CPU fan 4 3 2 1 cable to the connector and (4-pin CPU_FAN1) match the black wire to the (see p.13 No. 4) +12V CPU_FAN_SPEED ground pin. FAN_SPEED_CONTROL Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin CPU fan still can work successfully even without the fan speed control function.
  • Page 47 IEEE 1394 Header Besides one default IEEE 1394 RXTPAM_0 port on the I/O panel, there RXTPBM_0 (9-pin FRONT_1394) +12V is one IEEE 1394 header (see p.13 No. 32) (FRONT_1394) on this +12V RXTPBP_0 motherboard. This IEEE 1394 RXTPAP_0 header can support one IEEE 1394 port.
  • Page 48 The Installation Guide of Front USB 3.0 Panel Step 1 Step 2 Screw the 2.5” HDD/SSD to the Front Prepare the bundled Front USB 3.0 Panel, four USB 3.0 Panel with four HDD screws. HDD screws, and six chassis screws. Step 3 Step 4 Screw the Front USB 3.0 Panel to the...

  • Page 49: Smart Switches

    2.14 Smart Switches The motherboard has three smart switches: power switch, reset switch and clear CMOS switch, allowing users to quickly turn on/off or reset the sytem clear the CMOS values. Power Switch Power Switch is a smart switch, allowing users to quickly turn (PWRBTN) on/off the system.

  • Page 50: Dr. Debug

    2.15 Dr. Debug Dr. Debug is used to provide code information, which makes troubleshooting even easier. Please see the diagrams below for reading the Dr. Debug codes. Status Code Description 0x00 Not used 0x01 Power on. Reset type detection (soft/hard) 0x02 AP initialization before microcode loading 0x03...
  • Page 51 0x37 Post-Memory North Bridge initialization is started 0x38 Post-Memory North Bridge initialization (North Bridge module specifi c) 0x39 Post-Memory North Bridge initialization (North Bridge module specifi c) 0x3A Post-Memory North Bridge initialization (North Bridge module specifi c) 0x3B Post-Memory South Bridge initialization is started 0x3C Post-Memory South Bridge initialization (South Bridge module specifi...
  • Page 52 0x62 Installation of the South Bridge Runtime Services 0x63 CPU DXE initialization is started 0x64 CPU DXE initialization (CPU module specifi c) 0x65 CPU DXE initialization (CPU module specifi c) 0x66 CPU DXE initialization (CPU module specifi c) 0x67 CPU DXE initialization (CPU module specifi c) 0x68 PCI host bridge initialization 0x69...
  • Page 53 0xA6 SCSI Detect 0xA7 SCSI Enable 0xA8 Setup Verifying Password 0xA9 Start of Setup 0xAA Reserved for ASL (see ASL Status Codes section below) 0xAB Setup Input Wait 0xAC Reserved for ASL (see ASL Status Codes section below) 0xAD Ready To Boot event 0xAE Legacy Boot event 0xAF...

  • Page 54: Serial Ata (Sata) / Serial Ataii (Sataii) Hard Disks Installation

    2.16 Serial ATA (SATA) / Serial ATAII (SATAII) Hard Disks Installation ® This motherboard adopts Intel Z68 chipset that supports Serial ATA (SATA) / Serial ATAII (SATAII) hard disks and RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel Rapid Storage and Intel Smart Response Technology) functions.

  • Page 55: Hot Plug And Hot Swap Functions For Sata / Sataii Hdds

    2.18 Hot Plug and Hot Swap Functions for SATA / SATAII HDDs This motherboard supports Hot Plug and Hot Swap functions for SATA / SATAII in ® RAID / AHCI mode. Intel Z68 chipset provides hardware support for Advanced Host controller Interface (AHCI), a new programming interface for SATA host controllers developed thru a joint industry effort.

  • Page 56: Sata / Sataii / Sata3 Hdd Hot Plug Feature And Operation Guide

    SATA / SATAII / SATA3 Hot Plug support information of our motherboard is indicated in the product spec on our website: www.asrock.com 2. Make sure your SATA / SATAII / SATA3 HDD can support Hot Plug function from your dealer or HDD user manual.
  • Page 57 How to Hot Plug a SATA / SATAII / SATA3 HDD: Points of attention, before you process the Hot Plug: Please do follow below instruction sequence to process the Hot Plug, improper procedure will cause the SATA / SATAII / SATA3 HDD damage and data loss. Step 1 Step 2 Please connect SATA power cable 1x4-pin end...

  • Page 58: Driver Installation Guide

    2.21 Driver Installation Guide To install the drivers to your system, please insert the support CD to your optical drive fi rst. Then, the drivers compatible to your system can be auto-detected and listed on the support CD driver page. Please follow the order from up to bottom side to install those required drivers.

  • Page 59: Installing Windows

    2.23 Installing Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP ® / XP 64-bit Without RAID Functions ® If you want to install Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64- bit OS on your SATA / SATAII / SATA3 HDDs without RAID functions, please follow below procedures according to the OS you install.

  • Page 60: Vista Tm 64-Bit Without Raid Functions

    2.23.2 Installing Windows 7 / 7 64-bit / Vista / Vista 64-bit ® Without RAID Functions ® If you want to install Windows 7 / 7 64-bit / Vista / Vista 64-bit OS on your SATA / SATAII / SATA3 HDDs without RAID functions, please follow below steps. Using SATA / SATAII / SATA3 HDDs with NCQ function STEP 1: Set Up UEFI.

  • Page 61: Teaming Function Operation Guide

    2.24 Teaming Function Operation Guide Dual LAN with Teaming function enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective and improving the quality of transmission of distant images.
  • Page 62 4. Click the Create Team tab. * The Create Team tab appears only if there are teamable adapters available. 5. Click the Team Name fi eld to enter a team name. 6. Click the Team Type fi eld to select a team type. 7.
  • Page 63 9. Type the value for Team MTU. 10. Click Create to save the team information. 11. Repeat steps 5. through 10. to defi ne additional teams. As teams are defi ned, they can be selected from the team list, but they have not yet been created. Click the Preview tab to view the team structure before applying the changes.
  • Page 64 14. Confi gure the team IP address. a. From Control Panel, double-click Network Connections. b. Right-click the name of the team to be confi gured, and then click Properties. c. On the General tab, click Internet Protocol (TCP/IP), and then click Properties.

  • Page 65: Uefi Setup Utility

    Chapter 3: UEFI SETUP UTILITY Introduction This section explains how to use the UEFI SETUP UTILITY to confi gure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2>...

  • Page 66: Navigation Keys

    3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Enter>...

  • Page 67: Oc Tweaker Screen

    3.3 OC Tweaker Screen In the OC Tweaker screen, you can set up overclocking features. Advanced Turbo 50 You can use this option to increase your system performance. This option appears only when your CPU supports this function. Load Optimized CPU OC Setting You can use this option to load optimized CPU overclocking setting.
  • Page 68 Please note that enabling this function may reduce CPU voltage and lead to system stability or compatibility issue with some power supplies. Please set this item to [Disable] if above issue occurs. Intel Turbo Boost Technology Use this item to enable or disable Intel Turbo Boost Technology. Turbo Boost allows processor cores to run faster than marked frequency in specifi...
  • Page 69 CAS# Latency (tCL) Use this item to change CAS# Latency (tCL) Auto/Manual setting. The default is [Auto]. RAS# to CAS# Delay (tRCD) Use this item to change RAS# to CAS# Delay (tRCD) Auto/Manual setting. The default is [Auto]. Row Precharge Time (tRP) Use this item to change Row Precharge Time (tRP) Auto/Manual setting.
  • Page 70 ODT NOM (CHA) Use this item to change ODT NOM (CHA) Auto/Manual setting. The de- fault is [Auto]. ODT WR (CHB) Use this item to change ODT WR (CHB) Auto/Manual setting. The default is [Auto]. ODT NOM (CHB) Use this item to change ODT NOM (CHB) Auto/Manual setting. The de- fault is [Auto].

  • Page 71: Advanced Screen

    3.4 Advanced Screen In this section, you may set the confi gurations for the following items: CPU Confi gu- ration, North Bridge Confi guration, South Bridge Confi guration, Storage Confi gura- tion, Super IO Confi guration, ACPI Confi guration and USB Confi guration. Setting wrong values in this section may cause the system to malfunction.

  • Page 72: Cpu Confi Guration

    3.4.1 CPU Configuration Intel Hyper Threading Technology To enable this feature, it requires a computer system with an Intel processor that supports Hyper-Threading technology and an operating ® system that includes optimization for this technology, such as Microsoft ® ® ®...
  • Page 73 CPU Thermal Throttling You may select [Enabled] to enable CPU internal thermal control mechanism to keep the CPU from overheated. Intel Virtualization Technology When this option is set to [Enabled], a VMM (Virtual Machine Architecture) can utilize the additional hardware capabilities provided by Vanderpool Technology.

  • Page 74: North Bridge Confi Guration

    3.4.2 North Bridge Configuration Low MMIO Align Low MMIO resources align at 64MB/1024MB. The default value is [1024M]. VT-d ® ® Use this to enable or disable Intel VT-d technology (Intel Virtualization Technology for Directed I/O). The default value of this feature is [Disabled]. Primary Graphics Adapter This allows you to select [Onboard], [PCI] or [PCI Express] as the boot graphic adapter priority.
  • Page 75 DVMT Mode Select Use this option to adjust DVMT mode. The default value is [DVMT Mode]. DVMT (Dynamic Video Memory Technology) is an architecture that offers breakthrough performance for the motherboard through effi cient memory utilization. In DVMT mode, the graphics driver allocates memory as needed for running graphics applications and is cooperatively using this memory with other system components.

  • Page 76: South Bridge Confi Guration

    3.4.3 South Bridge Configuration Restore on AC/Power Loss This allows you to set the power state after an unexpected AC/power loss. If [Power Off] is selected, the AC/power remains off when the power recovers. If [Power On] is selected, the AC/power resumes and the system starts to boot up when the power recovers.
  • Page 77 ACPI HPET Table Use this item to enable or disable ACPI HPET Table. The default value is [Enabled]. Please set this option to [Enabled] if you plan to use this ® motherboard to submit Windows Vista certifi cation. Good Night LED Enable this option to turn off Power LED and Port80 LED when the system is power on.

  • Page 78: Storage Confi Guration

    3.4.4 Storage Configuration ASMedia SATA3 Mode This item is for SATA3_A1 to SATA3_A4 ports. Use this to select ASMedia SATA3 mode. Confi guration options: [IDE Mode], [AHCI Mode] and [Dis- abled]. The default value is [IDE Mode]. ASMedia SATA3 Bootable Use this to enable or disable Onboard ASMedia SATA3 Option ROM.
  • Page 79 SATA Controller 1 This item appears only when you set “SATA Mode“ to [IDE Mode]. Please ® select [Compatible] when you install legacy OS. If native OS (Windows XP / Vista / 7) is installed, please select [Enhanced]. Hard Disk S.M.A.R.T. Use this item to enable or disable the S.M.A.R.T.

  • Page 80: Super Io Confi Guration

    3.4.5 Super IO Configuration Serial Port Use this item to enable or disable the onboard serial port. Serial Port Address Use this item to set the address for the onboard serial port. Confi guration options: [3F8 / IRQ4] and [3E8 / IRQ4]. Infrared Port Use this item to enable or disable the onboard infrared port.

  • Page 81: Acpi Confi Guration

    3.4.6 ACPI Configuration Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Select [Auto] will enable this feature if the OS supports it. Check Ready Bit Use this item to enable or disable the feature Check Ready Bit. PS/2 Keyboard Power On Use this item to enable or disable PS/2 keyboard to turn on the system from the power-soft-off mode.

  • Page 82: Usb Confi Guration

    3.4.7 USB Configuration USB 2.0 Controller Use this item to enable or disable the use of USB 2.0 controller. USB 3.0 Controller Use this item to enable or disable the use of USB 3.0 controller. Legacy USB Support Use this option to select legacy support for USB devices. There are four confi...

  • Page 83: Hardware Health Event Monitoring Screen

    3.5 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. CPU Fan 1 &...

  • Page 84: Boot Screen

    3.6 Boot Screen In this section, it will display the available devices on your system for you to confi g- ure the boot settings and the boot priority. Setup Prompt Timeout This shows the number of seconds to wait for setup activation key. 65535(0XFFFF) means indefi...

  • Page 85: Security Screen

    3.7 Security Screen In this section, you may set or change the supervisor/user password for the system. For the user password, you may also clear it.

  • Page 86: Exit Screen

    3.8 Exit Screen Save Changes and Exit When you select this option, it will pop-out the following message, “Save confi guration changes and exit setup?” Select [OK] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard changes and exit setup?”...

  • Page 87: Software Support

    Click on a specifi c item then follow the installation wizard to install it. 4.2.4 Contact Information If you need to contact ASRock or want to know more about ASRock, welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information.
  • Page 88 Installing OS on a HDD Larger Than 2TB ® This motherboard is adopting UEFI BIOS that allows Windows OS to be installed on a large size HDD (>2TB). Please follow below procedure to install the operating system. ® 1. Please make sure to use Windows Vista 64-bit (with SP1 or above) or ®...
