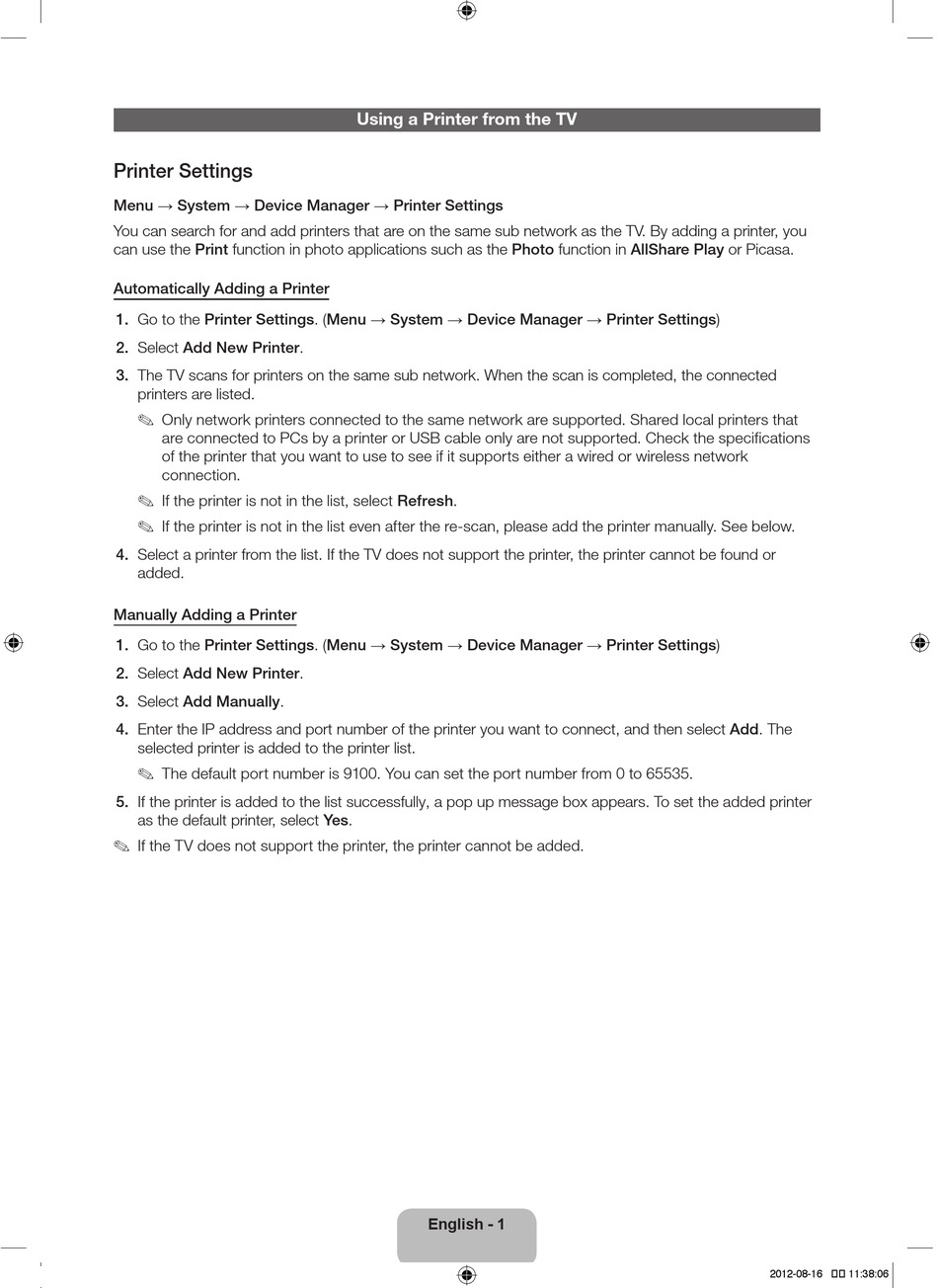

Printer Settings

Menu → System → Device Manager → Printer Settings
You can search for and add printers that are on the same sub network as the TV. By adding a printer, you
can use the Print function in photo applications such as the Photo function in AllShare Play or Picasa.
Automatically Adding a Printer
1. Go to the Printer Settings. (Menu → System → Device Manager → Printer Settings)
2. Select Add New Printer.
3. The TV scans for printers on the same sub network. When the scan is completed, the connected
printers are listed.
Only network printers connected to the same network are supported. Shared local printers that
are connected to PCs by a printer or USB cable only are not supported. Check the specifications
of the printer that you want to use to see if it supports either a wired or wireless network
connection.
If the printer is not in the list, select Refresh.
If the printer is not in the list even after the re-scan, please add the printer manually. See below.
4. Select a printer from the list. If the TV does not support the printer, the printer cannot be found or
added.
Manually Adding a Printer
1. Go to the Printer Settings. (Menu → System → Device Manager → Printer Settings)
2. Select Add New Printer.
3. Select Add Manually.
4. Enter the IP address and port number of the printer you want to connect, and then select Add. The
selected printer is added to the printer list.
The default port number is 9100. You can set the port number from 0 to 65535.
5. If the printer is added to the list successfully, a pop up message box appears. To set the added printer
as the default printer, select Yes.
If the TV does not support the printer, the printer cannot be added.
Printer_NA.indb 1
Using a Printer from the TV
English - 1
2012-08-16
11:38:06
