Compaq t1000 - Terminal Thin Client PC Quick Reference Manual page 27

First Terminal Start after New Image Installation
Upgrade Using Image Upgrade Dialog Box
24
A newly flashed terminal (new from the factory or immediately after
a firmware image upgrade) initially displays a one-time-only (does
not display on subsequent terminal restarts) message indicating that
the system must be turned off and restarted to initialize the write filter
(Wfilter). The terminal automatically restarts. Ignore and do not
respond to any error messages that displays during the restart
process. If the administrator performs the restart upon completion of
the upgrade, the user never has to see this message.

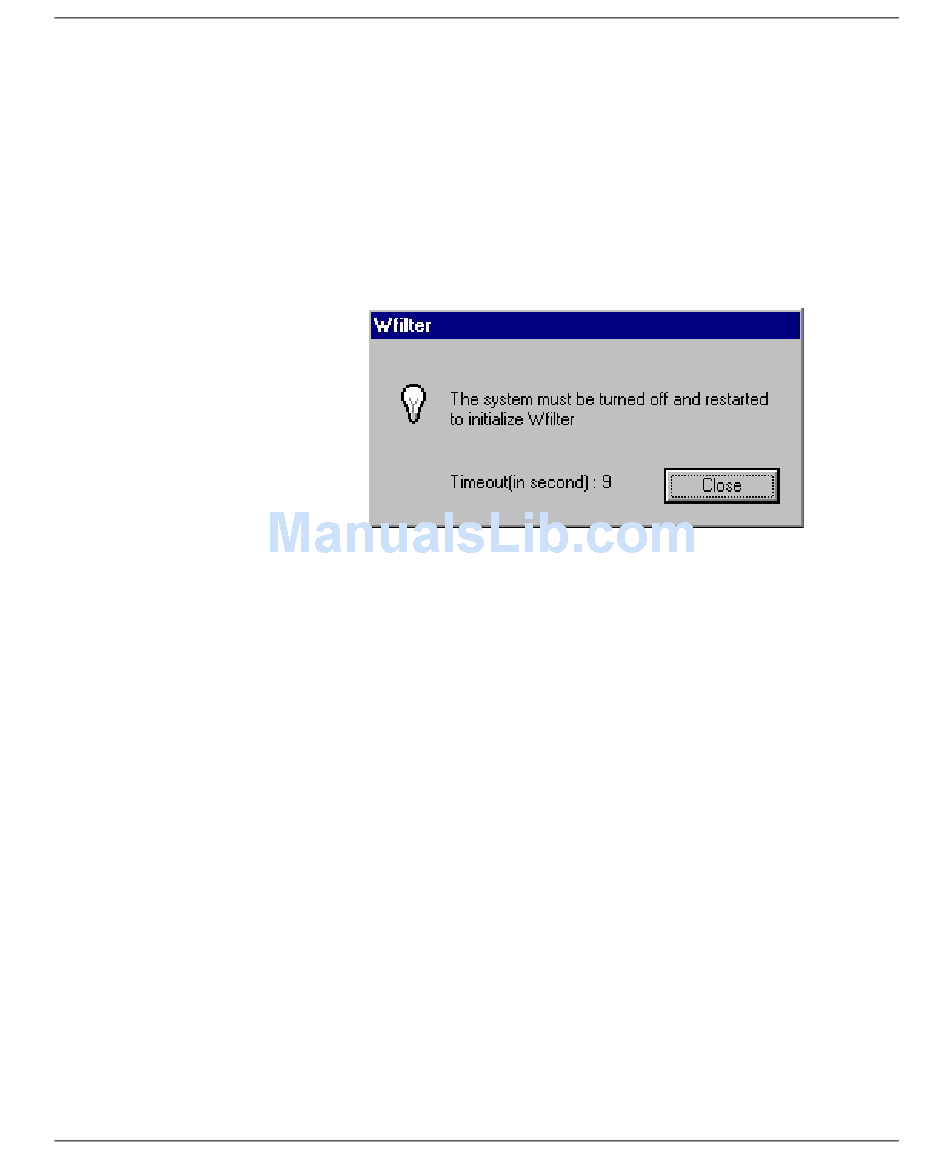

Write Filter Initialization Message Box
Use this method to upgrade one terminal at a time. Proceed as
follows:
1. Open the Image Upgrade dialog box (Start > Programs >
Image Upgrade).
2. In the Path text box, type the path to the directory where the
upgrade can be found.
3. Type your user name and password for the share in the User
Name and Password text boxes, respectively.
4. In the Domain Name text box, type the name of the domain for
which the user name and password you typed in steps 2 and 3 are
valid.
5. Click the Save Password check box if you want the
above-entered information to be retained for a future upgrade.
Quick Reference Guide
