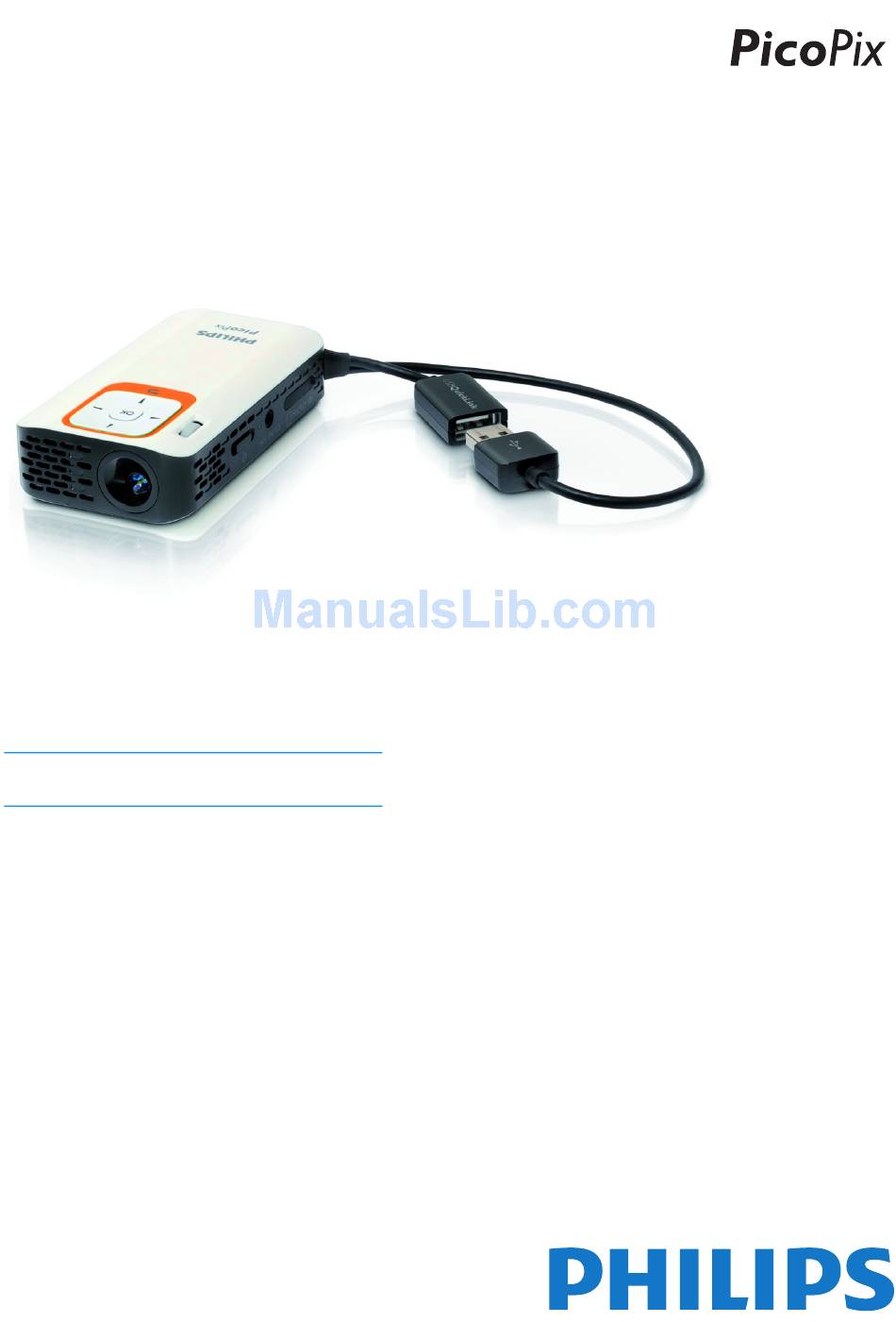

- Page 1 Register your product and get support at www.philips.com/support PPX2330 PPX2340 User Manual...
-
Page 2: Table Of Contents
7 Settings ..........18 8 Service..........20 Care Instructions for the Battery ........ 20 Battery Deep Discharge ..........20 Cleaning ................21 Device Overheated ............21 Troubleshooting ............... 22 9 Appendix..........23 Technical Data ..............23 Philips · PPX2330 · 2340... -
Page 3: Overview
Overview Dear Customer Thank you for purchasing our Pocket Projector. We hope you enjoy your device and its many functions! About this User Manual With the installation guide on the following pages, you can start using your device quickly and easily. Detailed descriptions can be found in the following sections of this user manual. -
Page 4: General Safety Information
Batteries (battery pack or batteries installed) must not be exposed to flame or excessive heat including from direct sunshine or the like. Attention should be drawn to the environment aspects of battery disposal. Philips · PPX2330 · 2340... - Page 5 DANGER! Risk of explosion with incorrect type of batteries Only replace the batteries with the same or comparable batteries. There is a risk of explosion if the incor- rect battery type is used. Switch the device on or off using the power switch before removing the power supply from the wall.
-
Page 6: Overview
/ during video playback start forward or Bottom of the Device backward / during picture playback select previous, next picture ‚ Tripod connection 5—¿ key ¿—One menu step back, one directory level back / cancelling a function Philips · PPX2330 · 2340... -
Page 7: Overview Of The Menu Functions
Overview of the Menu Functions 1 After switching on the device the main menu appears. 2 Select the desired menu using the navigation keys ¡/¢, À/Á. 3 Confirm with à. 4 By pressing the ¿ key several times you will return to the main menu. -
Page 8: Initial Operation
1 Use the navigation keys to select Set- tings. 2 Confirm with à. 3 Select with ¡/¢ Language. 4 Confirm with à. 5 Select the desired language with ¡/¢. 6 Confirm with à. 7 Exit with ¿. Philips · PPX2330 · 2340... -
Page 9: Memory Card / Usb Storage Device
4 Memory Card / USB Storage Device Inserting a Memory Card Connecting USB Storage Device 1 Remove the cover to the memory card slot MICRO 2 Insert a memory card with the contacts facing upwards into the MICRO SD slot at the side of the device. -
Page 10: Connect To A Computer (Usb)
4 If a memory card has been inserted, it will be dis- played as another disk drive. 5 You can move, copy or delete data from the com- puter, the memory card (if inserted) and the internal memory. Philips · PPX2330 · 2340... -
Page 11: Connect To The Playback Device
5 Connect to the Playback Device Only use the supplied cable or cables that are available Connecting using Audio/ as accessories to connect the projector. Video (CVBS) Adaptor Supplied Cables Video-(CVBS) cable (PPX2340) Cable (PPX2340) Connecting to a Computer Use the projector's audio/video cable (A/V cable) to (PPX2340) connect camcorders, DVD players or digital cameras. -
Page 12: Connecting The Headphones
This could lead to the risks of hearing damage. Before connecting the headphones, turn down the volume on the device. After connecting the headphones, increase the vol- ume to a comfortable level. Philips · PPX2330 · 2340... -
Page 13: Media Playback
6 Media Playback 9 Press ¿ to end playback and return to the over- Video Playback view. 10 When you press ¿ again, you will return to the Video Playback (USB/SD Card/ main menu. Internal Memory) Note 1 Switch the device on using the on/off switch on the Navigation During Playback side. -
Page 14: Photo Playback
¡/¢. 1 Press à to stop the slide show and open the menu. 6 Confirm with à. 2 Select with À/Á Ÿ and confirm with à to rotate the current image. Philips · PPX2330 · 2340... -
Page 15: Music Playback
9 Press à to stop or continue playback. Zoom in / Zoom out 1 Press à to stop the slide show and open the menu. Note 2 Select with À/Á Ò and confirm with à to Navigating when Image Playback is switched off enlarge the current image. -
Page 16: Delete Files
Error If errors occur during the copying process, make sure that enough free space is avail- able on the device. Note Removing Storage Device Only remove the storage device after the copy process is complete. Philips · PPX2330 · 2340... - Page 17 13 Use ¡/¢ if you want to delete the files or cancel the deletion process. 14 Confirm with à. Note Error If errors occur during the deletion pro- cess, make sure that the storage device is not write-protected. Note Deleting Photos on the Memory Card When deleting photos via the computer, note that the photos may not be correctly dis- played when the memory card is inserted into...
-
Page 18: Settings
Wall color correction—Colour correction of the pro- jected image to adjust to coloured projection surfaces Smart Settings—Select predefined settings for bright- ness / contrast / colour saturation. If you modify these settings, the setting is switched to Manual. Philips · PPX2330 · 2340... - Page 19 Language Select the desired language for the menu. Maintenance Reset settings—Reset settings to factory defaults. Firmware Update—Update Firmware Note Keep the device connected to a power outlet for the duration of the firmware update. Information—Display free space in the internal mem- ory and information on the device (Capacity: / Free space: / Firmware Version / Device name: / Model) Settings...
-
Page 20: Service
Do Not Replace the Battery Yourself Do not try to replace the battery yourself. Incorrect handling of the battery or using the wrong type of battery can cause damage to the device or cause injury. Philips · PPX2330 · 2340... -
Page 21: Cleaning
Cleaning Device Overheated A overheat symbol appears if the device is overheated. DANGER! • At maximum level of brightness the symbol Switching Off the Device! appears in the status bar and the device turns automatically to minimum level of brightness. Switch the device on or off using the power •... -
Page 22: Troubleshooting
Deactivate the function “USB debugging“ in the set- ample mobilephone/smartphone with Android operating tings menu of your Android device before connect- system) when connected via USB. ing the Pocket Projector via USB; your Android device should be recognized as USB storage device. Philips · PPX2330 · 2340... -
Page 23: Appendix
9 Appendix Technical Data Dimensions (L¦×¦H¦×¦W)....3.7¦×¦0.87¦×¦2.09 inch Weight ................. 4.94¦oz Recommended Ambient........5¦–¦35¦ºC Relative Humidity ....15¦–¦85¦% (non-condensing) File format........ *.avi, *.mov, *.mp4, *.mkv, *.divx, *.dat, *.mpg, *.mpeg, *.vob, *.ts, *.rm, *.rmvb Photo formats ............. JPEG, BMP Music formats....MP3, WAV, WMA, OGG,AAC Video Standard (CVBS) (PPX2340) ........ - Page 24 Sagemcom Documents SAS / energy and, if not installed and used in accordance with PHILIPS products or Sagemcom Documents SAS / the instructions, may cause harmful interference to PHILIPS approved products.
- Page 25 PHILIPS and the PHILIPS’ Shield Emblem are registered trademarks of Koninklijke Philips Electronics N.V. and are used by Sagemcom Documents SAS under license from Koninklijke Philips Electronics N.V. È 2012 Sagemcom Documents SAS All rights reserved Sagemcom Documents SAS Documents Business Unit Headquarters : 250, route de l’Empereur...
