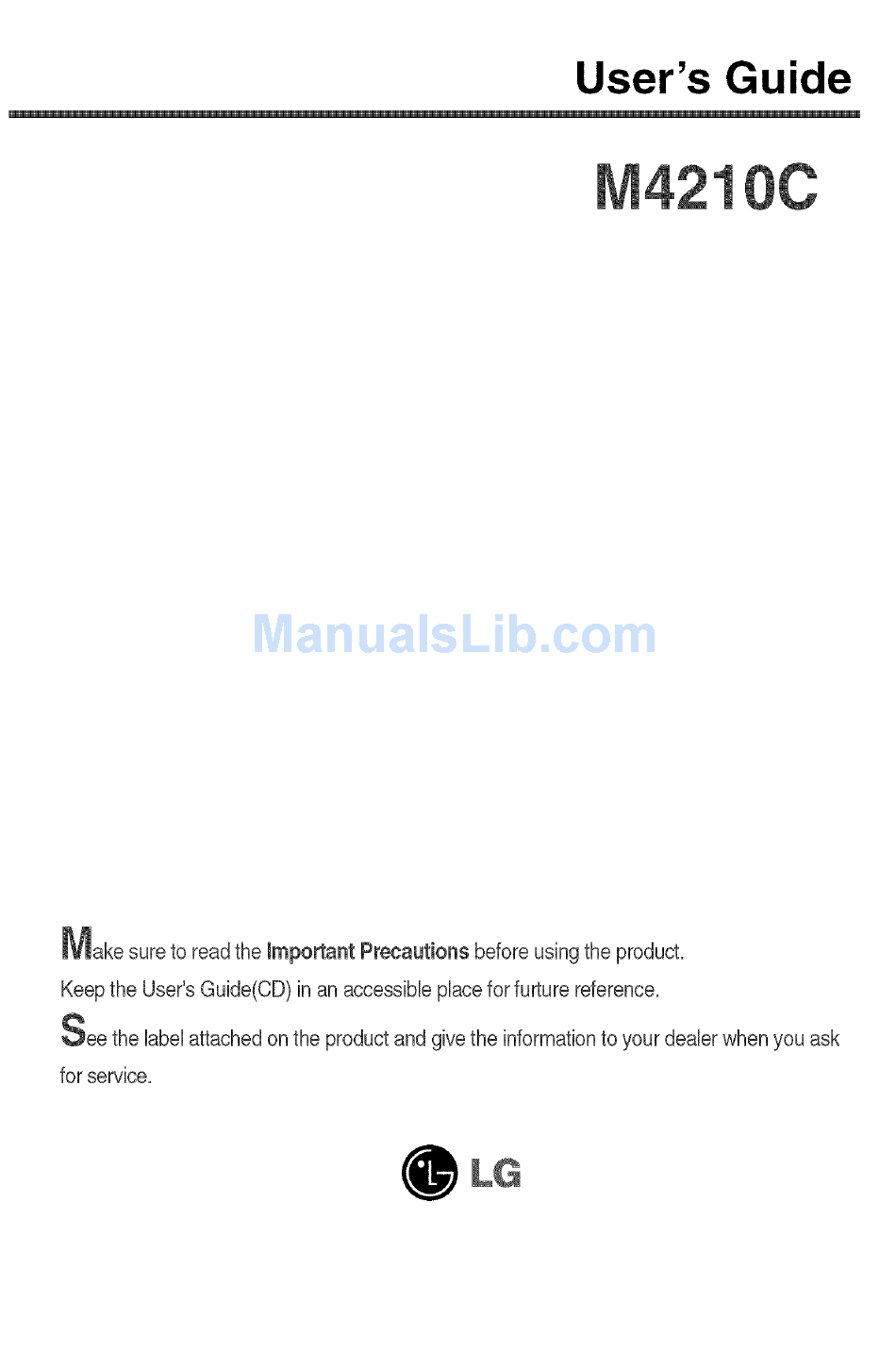

User's Guide
Make sure to read the important Precautions before usingthe product.
Keep the User'sGuide(CD)in an accessibleplacefor furture reference.
See the labelattachedon the product and givethe informationto your dealerwhen you ask
for service.

Advertisement

Table of Contents
loading

Related Manuals for LG M4210C-BA - - 42" LCD Flat Panel Display

Summary of Contents for LG M4210C-BA - - 42" LCD Flat Panel Display

  • Page 1 User's Guide Make sure to read the important Precautions before usingthe product. Keep the User'sGuide(CD)in an accessibleplacefor furture reference. See the labelattachedon the product and givethe informationto your dealerwhen you ask for service.
  • Page 2 Please read these safety precautions carefully before using the product. Precautions in installing the Product Warning • Keep away from heat sources like electrical heaters. - Electrical shock, fire, malfunction or deformation may occur. • Keep the packing anti-moisture material or vinyl packing out of the reach of children. - Anti-moisture material is harmful if swallowed.

  • Page 3: Electrical Power Related Precautions

    Electrical Power Related Precautions Warning • Make sure to connect the power cable to the grounded current. - You may be electrocuted or injured. • Use the rated voltage only. - The product can be damaged, or you may be electrocuted. •...

  • Page 4: Precautions In Using The Product

    Caution • Do not shock the product when moving it. - You may be electrocuted or the product can be damaged. • Do not dispose the product-packing box. Use it when you move. • Make the panel face forward and hold it with both hands to move. - If you drop the product, the damaged product can cause electric shock or fire.
  • Page 5 Name of the Remote Control Buttons (A type) Power On/Off Button • Mute button Button When watchingAV/S-Video/RGB/HDMI Component1/Component2 The productwill be automaticallyturned off after a certain periodof time. Pressthis button repetitively to select an appropriatetime duration Button - Automaticallyadjusts the image. Pressthis buttonrepetitivelyto set •...

  • Page 6: Inserting Batteries Into Remote Control

    • AV Button • Input Select Button Each time you press the Input button it will change to If you press the button once, Component1 the following Input Signal Component2 _ RGB_ Window will appear. Select HDMI/DVl the signal type you want using the •...
  • Page 7 @ Name of the Remote Control Buttons( B type) -_ F-o-q _ • Power On/Off Button • AV Button -- • Input Select Button (See next page) -- • ARC button • Sleep Button _[[_ (_l_ AUTO Whenwatching A V/S-Video/RGB/HDMI To select the image size of the /Component1/Component2 screen.
  • Page 8 POWER INPUT • AV Button • Input Select Button Each time you press the Input If you press the button once, button it will change to SLEEP AUTO the following Input Signal CD CD CD CD AV.--_,- Component1 Window will appear. Select Component2 _ RGB'_,- the signal type you want...
  • Page 9 * Applicableonly for modelsthat support the speakers Mount the product onto the speaker by using a screw as shown in the following picture, and then connect the speaker cable. Whenthe speaker is installed.

  • Page 10: Rear View

    * The product image in the user's guide could be different from the actual image. @ Rear View Power Connector : Connect the power cord Wired Remote Control Port RS-232C Serial Ports RGB, HDMI/DVI Ports PC Sound Jack : Connect the audio cable to the *LINE OUT jack of the PC sound card. AV Ports...
  • Page 11 First of all, see if the computer, product and the peripherals are turned off. Then, connect the signal input cable. When connecting with the D-Sub signal input cable. (_) When connecting with the HDMI to DVI signal input cable (not included). ®...
  • Page 12 Turn on power by pressing the power button on the product. Power button (_Turn on the PC. Select an input signal. Press the INPUT button on the remote control to select the input signal. INPUT---* •A i,---,- SET Or, press the SOURCE button on the back of the product. _SOURCE---* •...
  • Page 13 Use this function when displaying ANALOG RGB inputs of a PC to the other product. • To use different products connected to each other Connect one end of the signal input cable(15-pin D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect the other end to the RGB IN connector of other products.
  • Page 14 Connect the video cable as shown in the below figure and then connect the power cord (See page 10). When connecting with a S-Video cable. When connecting with a BNC cable. • Connect to the S-Video input terminal to • Connect the input terminal with a watch high image quality movies.
  • Page 15 onnect the video/audio cable as shown in the below figure and then, connect the power cord (See page 10). • Connect the input terminal with a proper color match. ® ® Product Product BNC Cable BNC Cable (not included (not included) HDTV Receiver HDTV Receiver Select an input signal.
  • Page 16 figure Connect the video/audio cable shown in the below and then connect power cord (See page 10). Product Product Product ® HDMI to DVl RCA-PC D-Sub Signal Signal Cable :{CA-PC HDMI Signal Cable Cable Audio Cable (not included) Audio Cable (not included) VCRiDVD/Set-top VCR/DVD/Set-top...
  • Page 17 • When you set the input signal of the main screen as 'AV (CVBS)', you can transmit the signal that you're watching to the AV output terminal. Video/TV BNCCable Audio Cable (not included) (not included) Product Audio Cable BNC Cable (not included) (not included) Video/TV...
  • Page 18 * Applicable only for models that support the stand. [] Arrange the cables in the center as shown in the following picture. Fit the cable management to the Holder Groove downwards. =t Bundle the cables using the supplied twister holder. * When you want remove it.
  • Page 19 * Applicable only for models that support the stand. • Set it up close to the wall so the product doesn't fall over when it is pushed backwards. The instructions shown below are a safer way to set up the product, which is to fix it on the wall so the product doesn't fall over when it is pulled forward.

  • Page 20: Name Of The Buttons In The Screen Adjustment Unit

    Name of the Buttons in the Screen Adjustment Unit _. Power Button * Press this button to turn on the power. Press this button again to turn it off. *This Indicator lights up blue when the display operates normally(on Indicator) ower mode).
  • Page 21 Name of the Buttons in the Screen Adjustment Unit AUTO/SETButton } [ForPCAnalog signal] [When XGA Mode is active and 1360 X768 is selected] SOURCE---_ • A---,- AUTO/SET {SOURCE Button} • Selectthe inputsignal Composite Video, Separate Video Component I HDTV, DVD Component 2 HDTV, DVD 15-pin D-Sub analog signal...
  • Page 22 @ OSD Menu Icon Function Description Adjusts screen brightness, contrast and color that you prefer. PICTURE SOUND Adjusts the timer function. TIMER Adjusts the screen video. SCREEN Note OSD(On screen Display) The OSD function enables you to adjust the sc[ee n status conveniently since it P[°vides I graphica! presentation,...

  • Page 23: How To Adjust The Osd (On Screen Display) Screen

    How to adjust the OSD (On Screen Display) screen (A Type) _ENU ce u I you wantto thestatus] adjust . MENU EXIT • Use the remote control to adjust the OSD screen. Press the MENU Button, then the main menu of the OSD appears. l i:iiii_ To access a control, use the ,,Buttons.

  • Page 24: Adjusting Screen Color

    Adjusting Screen Color The PSM function automatically adjusts the screen image quality depending on the AV usage environment. • Dynamic : Select this option to display with a sharp image. • Standard : The most general and natural screen display status. •...
  • Page 25 Adjusting Screen Color XD is LG Electronics' unique picture improving technology that displays a real HD source through an advanced digital signal processing algorithm. This function is not available in RGB-PC or HDMI/DVl PC modes. This menu is activated after selecting User1 or User2 of PSM.
  • Page 26 Adjusting the audio function The best sound tonequality will be selectedautomaticallydependingon the video typethat you'recurrentlywatching. • Surround MAX : Set the Surround MAX on. This function plays back the mono or stereo sound input with the dynamic surround effects. It will provide rich and profound sound tone. If you set the Surround MAX on, user audio setting can not be adjusted.

  • Page 27: Adjusting The Timer Function

    Adjusting the timer function Clock If the time is on the clock is incorrect, reset the clock manually. 1) Press the MENU button and then use • • button to select the TIME menu. 2) Press the • button and then use • • button to select the Clock menu. 3) Press the •...
  • Page 28 Selecting the options Language To choose the language in which the control names are displayed. Child lock Use the V & buttons to select On or Off. The monitor can be set up so that it can only be used with the remote control. This feature can prevent unauthorized viewing. In order to lock the OSD screen adjustment, set the Child lock tab to the 'On' position.
  • Page 29 Selecting the options • To use this function - Must be displayed with various other products. - Must be in a function that can be connected to RS-232C or RGB Out Tile mode It is used to enlarge the screen and also used with several products to view screen.
  • Page 30 Selecting the options - Tile mode (product 1 ~ 9) : r(3) x c(3) column o Tile mode (product 1 ~ 2) : r(2) x c(1) olumn - Tile mode (product 1 ~16) : r(4) x c(4) olumn...

  • Page 31: Selecting The Options

    Selecting the options • Tile ID Select the location of the Tile by setting an ID. • H Size Adjust the horizontal size of the screen taking into account the size of the bezel. • V Size Adjust the vertical size of the screen taking into account the size of the bezel. •...
  • Page 32 Adjusting Screen CLOCK/PHASE and Position This button is for the automatic adjustment of the screen position, clock and phase. Auto-config. This function is suitable for analogue signal input only. (RGB PC input only) Manual- If the picture isn't clear after auto adjustment and characters are still trembling, adjust the picture phase manually.
  • Page 33 Adjusting Screen CLOCK/PHASE and Position To select the image size of the screen. Spectacle When your AV receives the wide screen signal, it will lead you to adjust the picture horizontally, in a nonlinear proportion, to fill the entire screen. Full When your AV receives the wide screen signal, it will lead you to adjust the picture horizontally or vertically, in a linear proportion, to fill the entire...
  • Page 34 g ms the product power cord connected? • See if the power cord is properly connected to the outlet. @ [s the power indicator light on? ° See if the power switch is turned on. @ Power is on, power indicator is blue but °...
  • Page 35 @ is the screen position wrong? • D-Sub analog signal- Press the "AUTO" button in the remote control to automatically select the optimal screen status that fits into the current mode. If adjustment is not satisfactory, use the Position OSD menu. •...
  • Page 36 O No sound? • See if the audio cable is connected properly. • Adjust the volume. • See if the sound is set properly. • Select the appropriate equalize sound. • Adjust the volume. @ Screenhas poor color resolution • Set the number of colors to more than 24 bits (true (16 colors).
  • Page 37 The product specifications can change without prior notice for product improvement. LCD Panel 42 inches (106.73 cm) TFT (Thin FilmTransistor) LCD (Liquid Crystal Display)Panel Anti-Glare coating Visiblediagonalsize: 106.73cm 0.681mm (Pixel P itch) Power Rated Voltage AC 100-240V- 50/60Hz 2.2A Power Consumption On Mode : 220WTyp.
  • Page 38 The product specifications can change without prior notice for product improvement. RGB : 1600 X 1200 @60Hz Video Signal Max.Resolution HDMI/DVI: 1280 X 1024 @60Hz-It maynotbesupported depending o ntheOS or video cardtype. Recommended Resolution RGB:WSXGA1360X768 @60Hz HDMI/DVl • WSXGA 1360 X 768 @60Hz - It may not be supported depending on the OS or video card type.

  • Page 39: Power Indicator

    @ PC Mode - Preset Mode 640x 350 60.123 720x 400 68.68 640x 480 44.772 VESA 640 x 480 VESA 640 x 480 47.72 VESA 800 x 600 VESA 800 x 600 63.981 VESA 800 x 600 79.98 832x 624 75.00 VESA 1024 x 768 RGB : Mode 1 - Mode 19...
  • Page 40 VESA wall mounting Connected to another object (stand type and wall-mounted type.) This product accepts a VESA- compliant mounting interface pad.- (This has to be purchased separately if required.) For further information, refer to the VESA Wall Mounting Instruction Guide. Kensington Security Slot- (This has to be purchased separately if required.) Connected to a locking cable that can be purchased...

  • Page 41: Connecting The Cable

    Use this method to connect several products to a single PC. You can control several products at a time by connecting them to a single PC. @ Connecting the cable Connect the RS-232C cable as shown in the picture. * The RS-232C protocol is used for communication between the PC and product. You can turn the product on/off, select an input source or adjust the OSD menu from your PC.
  • Page 42 @ Command Reference List COMMAND1 COMMAND2 DATA(Hexa) 01. Power OOH - 01H 02H - 09H 02. Input Select 01H - 09H 03. Aspect Ratio 04. Screen Mute OOH - 01H 05. Volume Mute OOH - 01H 06. Volume Control OOH - 64H 07.

  • Page 43: Transmission / Receiving Protocol

    Transmission / Receiving Protocol Transmission I [Commandl][Command2][ ][Set ID][ ][Data][Cr] I * [Command 1]: First command. (j, k, m, d) * [Command 2]: Second command. * [Set ID]: Set up the Set ID number of product. range • 1-99. by setting '0', server can control all products. * In case of operating with more than 2 sets using set ID as '0' at the same time, it should not be checked the ack message.
  • Page 44 @ Transmission / Receiving Protocol 01. Power(Command : a) • To control Power On/Off of the Set. Transmission I [k][a][ ][Set ID][ ][Data][Cr] Data 0 : Power Off 1 : Power On Acknowledgement I [a][ ][Set ID][ ][OK][Data][x] • To show the status of Power On/Off. Transmission I [k][a][ ][Set ID][ ][gg][Cr] Acknowledgement...
  • Page 45 Transmission / Receiving Protocol 03. Aspect Ratio(Command : c) (Main picture format) • To adjust the screen format. You can also adjust the screen format using the ARC (Aspect Ratio Control) button on remote control or in the Screen menu. Transmission I [k][c][ ][Set ID][ ][Data][Cr] 5 : Zoom2...
  • Page 46 @ Transmission / Receiving Protocol 05. Volume Mute(Command : e) • To control On/Off of the Volume Mute. Transmission I [k][e][ ][Set ID][ ][Data][Cr] Data 0 • Volume Mute On (Volume Off) 1 • Volume Mute Off (Volume On) Acknowledgement I [e][ ][Set IU][ ][OK][Uata][x] Data 0 •...
  • Page 47 Transmission / Receiving Protocol 07. Contrast(Command : g) • To adjust screen contrast. You can also adjust the contrast in the Picture menu. Transmission I [k][g][ ][Set ID][ ][Data][Cr] Data Min : 00H - Max : 64H • Refer to 'Real data mapping' as shown below. Acknowledgement I [g][ ][Set ID][ ][OK][Data][x] * Real data mapping...
  • Page 48 @ Transmission / Receiving Protocol 09. Color(Command :i) (Video only) • To adjust the screen color• You can also adjust the color in the Picture menu. Transmission I [k][i][ ][Set ID][ ][Data][Cr] Data Min • OOH- Max" 64H (Hexadecimal code) •...
  • Page 49 Transmission / Receiving Protocol 11. Sharpness(Command : k) (Video only) • To adjust the screen Sharpness. You can also adjust the sharpness in the Picture menu. Transmission I [k][k][ ][Set ID][ ][Data][Cr] Data Min • OOH- Max • 64H (Hexadecimal code) •...
  • Page 50 @ Transmission / Receiving Protocol 14 Balance(Command : t) • To adjust the sound balance. Transmission I [k][t][ ][Set ID][ ][Data][Cr] Data Min : OOH- Max : 64H (Hexadecimal code) • Refer to 'Real data mapping' page A7. Acknowledgement I [t][ ][Set IU][ ][OK][Uata][x] Data Min •...
  • Page 51 Transmission / Receiving Protocol 16. Abnomal state (Command : z) • Abnormal State • Used to Read the power off status when Stand-by mode. Transmission I [k][z][ ][Set ID][ ][Data][Cr] Data FF : Read 0 : Normal (Power on and signal exist) 1: No signal (Power on) 2 : Turn the monitor off by remote control 3 : Turn the monitor off by sleep time function...
  • Page 52 @ Transmission / Receiving Protocol 18. Auto Configure(Command: j u) • To adjust picture position and minimize image shaking automatically, it works only in RGB(PC) mode. Transmission I [j][u][ ][Set ID][ ][Data][Cr] Data 1 • To set Acknowledgement I [u][ ][Set ID][ ][OK][Data][x] 19.
  • Page 53 @ Transmission / Receiving Protocol 20. Tile Mode(Command : d d) • Change a Tile Mode. Transmission I [d][d][][Set ID][][Data][x] Data Description Tile mode is off. 1 x 2 mode(column x row) 1 x 3 mode 1 x 4 mode 4 x 4 mode * The data can not be set to OX or XO except 00.
  • Page 54 @ Transmission / Receiving Protocol 21. Tile H Size(Command : d g) set the Horizontal size. Transmission I [d][g][][Set ID][][Data][x] Data Min : OOH- Max : 64H Acknowledgement I [g][][Set IU][][OK/NG][Uata][x] 22. Tile V Size(Command : d h) set the Vertical size. Transmission I [d][h][][Set ID][][Data][x] Data...
  • Page 55 @ Transmission / Receiving Protocol 23. Tile ID Set(Command : d i) • To assign the Tile ID for Tiling function. Transmission I [d][i][][Set ID][][Data][x] Data Min : 00H - Max : 10H (Hexadecimal code) Acknowledgement I [i][][Set IU][][OK/NG][Uata][x] 24. Elapsed time return(Command : d I) •...
  • Page 56 @ Transmission / Receiving Protocol 25. Temperature value (Command : d n) • To read the inside temperature value. Transmission [d][n][][Set ID][][Data][x] * The data is always FF(in Hex). Acknowledgement [n][][Set IU][][OK/NG][Uata][x] * The data is 1 byte long in Hexadecimal. 26.
  • Page 57 • Connect your wired remote control to Remote Control port on the Product. • Output waveform single pulse, modulated with 37.917KHz signal at 455KHz Carrier frequency __[--] I--l__ FCAR = 1/tc = fosc/12 _[--_ Duty ratio = T1/Tc = 1/3 •...
  • Page 58 [RCodes Function Note Code(Hexa) R/C Button R/C Button R/C Button VOL(I_) R/C Button VOL(, POWER ON/OFF PR/C Button (Power On/Off) POWER Discrete IR Code(Only Power On) POWER Discrete IR Code(Only Power On) MUTE R/C Button R/C Button INPUT R/C Button SLEEP R/C Button MENU...
