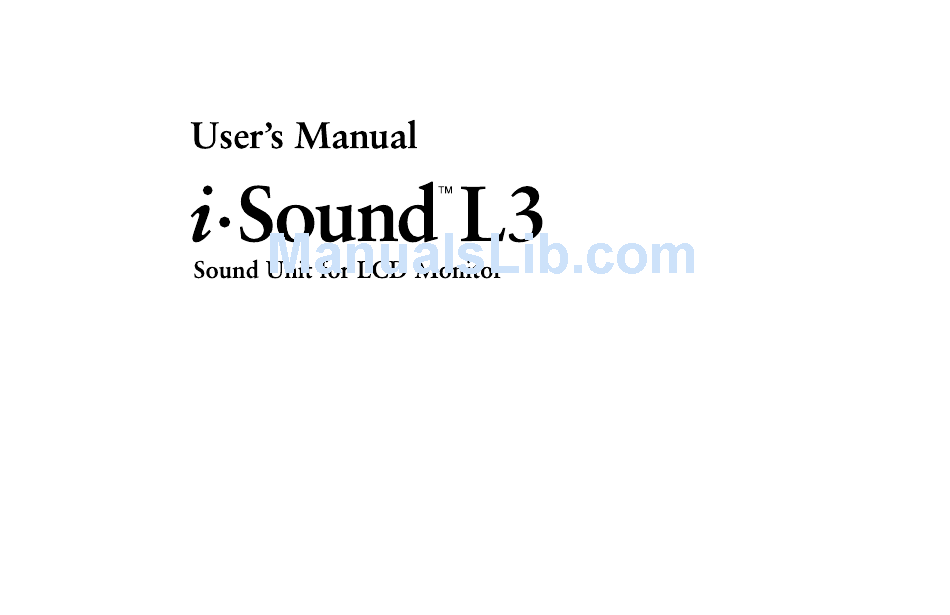

Eizo i-Sound L3 User Manual

Eizo i-Sound L3 User Manual

Sound unit for lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eizo i-Sound L3 and is the answer not in the manual?

Questions and answers

Related Manuals for Eizo Eizo i-Sound L3

Summary of Contents for Eizo Eizo i-Sound L3

  • Page 2: Safety Symbols

    EIZO NANAO CORPORATION’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO sound unit specifi cations are subject to change without notice.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PRECAUTIONS ...4 1. INTRODUCTION ...6 2. CONTROLS & CONNECTORS ...7 3. INSTALLATION ...8 4. SPEAKERS & SOUND CONTROL ... 11 5. TROUBLESHOOTING ...12 6. CLEANING ...13 7. SPECIFICATIONS ...14 LIMITED WARRANTY ...16...

  • Page 4: Precautions

    PRECAUTIONS To ensure personal safety and proper maintenance, please read this section and the caution statements on the unit (refer to the fi gure below). [Location of the Caution Statement] ● Top view WARNING Keep small objects or liquids away from this product. If small objects or liquid accidentally enters into this product, fi...

  • Page 5: For Proper Operation

    Attaching to other monitors may cause the monitor to fall, which may result in injury or equipment damage. For the specifi ed monitors, please visit our website at http://www.eizo.com/. For proper operation This product is shielded to prevent magnetic fi eld interference. However, do not place any magnetic items (ex.

  • Page 6: Introduction

    1. INTRODUCTION Thank you for choosing the EIZO i·Sound™ L3 sound unit. Package Contents Please contact your local dealer for assistance if any of the listed items are missing or damaged. Please retain the packing materials for future transport of this product.

  • Page 7: Controls & Connectors

    2. CONTROLS & CONNECTORS ● Top view ● Front view 1. USB upstream port 2. Headphones jack 3. Volume control dial 4. Speakers When this port is connected to a downstream port of a PC, the PC provides sound and power. On/Off operation depends on the PC’s main power.

  • Page 8: Installation

    3. INSTALLATION 1. Check the mounting positions of the monitor and the sound unit shown below. Monitor (Rear) Sound Unit (Front) Hook 2 Slot 1 Slot 2 Hook 1...
  • Page 9 2. Attach the sound unit to the monitor. 1. Attach the sound unit to the monitor. Place the sound unit under the monitor screen and insert the hook 1 on top of the unit into the slot 1 located at the bottom rear of the monitor. 2.
  • Page 10 3. Connect the USB cable to the sound unit. Connect the USB downstream port of a PC to the USB upstream port of the sound unit using the USB Cable. To Computer (USB Downstream Port) To Sound Unit (USB Upstream Port)

  • Page 11: Speakers & Sound Control

    4. SPEAKERS & SOUND CONTROL 1. See the volume setting of your PC. If you use Windows OS, maximize the volume control of the PC. 2. Use the volume control dial of the sound unit to adjust to the desired sound level.

  • Page 12: Troubleshooting

    5. TROUBLESHOOTING If a problem persists even after applying the remedies suggested below, contact an EIZO dealer. Problem □ Check that the USB cable is correctly connected. 1. No sound □ Check that the PC is turned ON. □ Check the settings of the PC and the audio playback software.

  • Page 13: Cleaning

    6. CLEANING Periodic cleaning is recommended to keep the sound unit looking new and to prolong its operation lifetime. To remove stains, wipe the unit with a soft, lightly moistened cloth using a mild detergent. NOTE • Never use thinner, benzene, or other strong solvents or abrasive cleaners to clean this product, as these may cause damage.

  • Page 14: Specifications

    7. SPECIFICATIONS List of Specifi cations Speakers Speaker System Amplifi er Output (min.) Frequency Response Interface Control Power Supply Power Consumption (max.) Dimensions Weight Environmental Temperature Operating: 0 °C ~ 35 °C (32 °F ~ 95 °F) Conditions Humidity 4 cm x 2.8 cm (two) Stereo system with built-in amplifi...
  • Page 15 Dimensions mm (inch)

  • Page 16: Limited Warranty

    (3) years from the date of purchase. EIZO and Distributors will cease to hold or store any parts of the Product upon expiration of fi ve (5) years after the production of such parts is discontinued.

  • Page 17: Fcc Declaration Of Conformity

    We, the Responsible Party EIZO NANAO TECHNOLOGIES INC. 5710 Warland Drive, Cypress, CA 90630 Phone: (562) 431-5011 declare that the product Trade name: EIZO Model: i·Sound L3 is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
