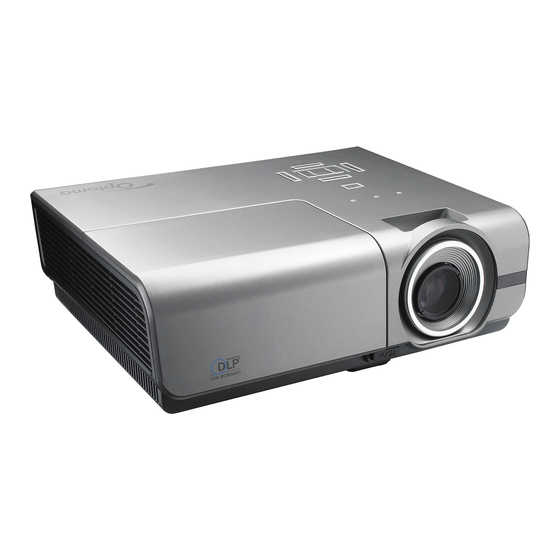

Summary of Contents for Optoma TH1060P

Page 1: Table Of Contents
Table of contents Table of Contents ................... 1 Usage Notice ..................3 Safety Information ..................3 Precautions....................4 Eye Safety Warnings ..................6 Introduction..................... 7 Package Overview..................7 Product Overview ..................8 Main Unit ........................ 8 Connection Ports ....................9 Remote Control ....................10 Installation .................... 11 Connecting the Projector ................11 Connect to Notebook ...................
Page 2 Remote Control ....................41 Replacing the Lamp..................42 Compatibility Modes ..................45 RS232 Commands and Protocol Function List..........46 RS232 Pin Assignments (projector side) ............. 46 RS232 Protocol Function List ................47 Ceiling Mount Installation ................53 Optoma Global Offices ................54 Regulation & Safety Notices ................56...
Page 3: Usage Notice
Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair. 7. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.
Page 4: Precautions
Usage Notice Precautions Please follow all warnings, precautions and maintenance as recommended in this user’s guide. ▀■ Do not look into the projector's lens when the Warning- lamp is on. The bright light may hurt your eyes. ▀■ To reduce the risk of fire or electric shock, do Warning- not expose this projector to rain or moisture.
Page 5 Usage Notice ▀■ Turn off and unplug the power plug from the AC outlet before cleaning the product. ▀■ Use a soft dry cloth with mild detergent to clean the display housing. ▀■ Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
Page 6: Eye Safety Warnings
Usage Notice Eye Safety Warnings ▀■ Avoid staring/facing directly into the projector beam at all times. Keep your back to the beam as much as possible. ▀■ When projector is used in a classroom, adequately supervise students when they are asked to point out something on the screen.
Page 7: Introduction
Introduction Package Overview Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact Optoma customer service. Projector with lens cap Power Cord 1.8m 15 pin D-sub VGA Cable...
Page 8: Product Overview
Introduction Product Overview Main Unit 1. Tilt-Adjustment Button 2. Tilt-Adjustment Feet 3. Lens Cap 4. LED Indicators 5. Power Button 6. Function Keys 7. Zoom 8. Focus 9. IR Receiver 10. Lens 11. Connection Ports...
Page 9: Connection Ports
Introduction Connection Ports 1. Power Socket 2. USB Connector (Connect to PC for Remote Mouse function) 3. Component Video 4. S-Video 5. Composite Video 6. VGA Output 7. VGA Input 8. HDMI 1 9. HDMI 2 10. 12V OUT 11. Kensington Microsaver Lock Port 12.
Page 10: Remote Control
Introduction Remote Control 1. Laser 2. Status LED 3. Power 4. Up 5. Left 6. Enter 7. L 8. Source/Left Key 9. Enter 10. Keystone +/- 11. DVI-D/YPbPr/1 12. HDMI/4 13. S-Video/7 14. Menu/2 15. IR transmitter 16. Laser 17. Right 18.
Page 11: Installation
Installation Connecting the Projector Connect to Notebook VGA, DVI, HDMI Due to the difference in applications for each country, some regions HDMI 1 HDMI 2 12V OUT S-VIDEO VIDEO VGA OUT VGA / SCART / YPbPr may have different AUDIO OUT AUDIO IN L-AUDIO IN-R accessories.
Page 12: Connect To Video Sources
Installation Connecting the Projector Connect to Video Sources DVD player, Set−top Box HDTV receiver DVD player, Set−top Box HDTV receiver Video Output Due to the difference in applications for each country, some regions HDMI 1 HDMI 2 12V OUT S-VIDEO VIDEO VGA OUT VGA / SCART / YPbPr...
Page 13: Powering On/Off The Projector
Installation Powering On/Off the Projector Powering On the Projector 1. Remove the lens cover. 2. Connect the power cord to the projector. 3. Turn On the connected devices. 4. Ensure the Power LED is flashing and then press the power Turn on the projector button to turn On the projector.
Page 14: Powering Off The Projector
Installation Powering Off the Projector 1. Press the " " button on the remote control or " " button on the panel of the projector to turn off the projector. First push of button will display the following message on the screen.
Page 15: Adjusting The Projected Image
Installation Adjusting the Projected Image Adjusting the Projector's Height The projector is equipped with elevator feet for adjusting the image height. The projector  To raise the image: table or stand should be level Lift the projector and press the height-adjuster button and sturdy.
Page 16: Adjusting Projection Image Size
Installation Adjusting Projection Image Size Standard projection lens: Wide - 1.59 Tele - 1.908 Screen Size W X H (16:9) Projection distance (D) Offset Diagonal length (inch) size (feet) (feet) of 16:9 Screen Width Height Width Height wide tele wide tele (feet) 30.00...
Page 17: User Controls
User Controls Remote Control Using the Remote Control Refer to the "Power On the Projector" section on page 13. Power On/Off Refer to the "Power Off the Projector" section on page 14. Laser Press to operate the on-screen pointer. Up arrow when connected through USB to a PC.
Page 18: Using The Remote Control
User Controls Using the Remote Control Automatically synchronize the projector Re-Sync to the input source. Right Use directional select keys to select Directional items or make adjustments to your selec- Select Key tion. Down selection when OSD on. Page Down key for emulation of USB Page- keyboard via USB when OSD off.
Page 19: On-Screen Display Menus
User Controls On-screen Display Menus The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source. How to operate To open the OSD menu, press "Menu" on the Remote Control or Control Panel.
Page 20: Menu Tree
User Controls Menu Tree...
Page 21: Image
User Controls Image Display Mode There are many factory presets optimized for various types of images. Presentation: Good color and brightness from PC input.  Brightness: Optimized for maximum brightness.  Movie: For home theater.  sRGB: Standardised accurate color. ...
Page 22 User Controls Brightness Adjust the brightness of the image. Press the t to darken image.  Press the u to lighten the image.  Color Adjust a video image from black and white to fully saturated color. Press the t to decrease the color saturation in the image. ...
Page 23: Image | Advanced
User Controls Image | Advanced Noise Reduction The motion Adaptive Noise Reduction reduces the amount of visible noise in interlaced signals. The range is from "0" to "10". (0=Off) Gamma This allows you to set up gamma curve type. After the initial setup and fine tuning is completed, utilize the Gamma Adjustment steps to optimize your image output.
Page 24: Display
User Controls Display Format Use this function to choose your desired aspect ratio. 4:3: This format is for 4x3 input sources.  16:9: This format is for 16x9 input sources, like HDTV and DVD  enhanced for Widescreen TV. Letter Box: This format is for non-16x9, letterbox source and ...
Page 25 User Controls Native: This format displays the original image without any  scaling. Display area Picture area Input Signal Display on Screen Zoom Press t to reduce the size of the image.  Press u to magnify an image on the projected screen.  V Image Shift Shift the projected image position vertically.
Page 26: System
User Controls System Menu Location Choose the menu location on the display screen. Lamp Settings Choose this menu to adjust your desired lamp setting. Projection Front-Projection  This is the default selection. The image is projected straight on the screen. Rear-Desktop  When selected, the image will appear reversed. Rear-Desktop and Rear-Ceiling are to be Front-Ceiling used with a translucent  screen. When selected, the image will turn upside down. Rear-Ceiling  When selected, the image will appear reversed in upside down position. Background Color Use this feature to display a "Dark Blue", "Gray", or "Black" screen when no signal is available. Startup Image Select the screen to display during startup.
Page 27 User Controls Power Mode (Standby) Set the projector in ECO Mode or Active Mode. Audio Settings Enter the Audio Settings menu. Set audio level properties. Projector ID Select a two digit projector ID from 0 through 99. RS232 Allows RS232 control of an individual projector. Network Allows LAN via web browser (Internet Explore) to control of projector.
Page 28: System | Lamp Settings
User Controls System | Lamp Settings Lamp Hour Display the cumulative lamp operating time. Lamp Reminder Choose this function to turn on the lamp reminder. Lamp reminder will pop up 30 hours before reaching end of its life. Brightness Mode Choose "Bright"...
Page 29: System | Startup Image
User Controls System | Startup Image Image Select the screen to display during startup. Default - the supplied default startup screen.  User - customized screen capture using the Image Capture  function. Image Capture Capture a displayed screen to use as the startup screen. 1.
Page 30: System | Network
User Controls System | Network For simplicity and ease of operation, the Optoma projector provides diverse networking and remote management features. The Network function of the projector through a network, such as re- motely manage: Power On/Off, Brightness and Contrast settings. Also, projector status information, such as: Video-Source, Sound-Mute, etc.
Page 31 User Controls On the PC (Laptop), select Start -> Control Panel -> Network Connections. Right click on your Local Area Connection and select Properties. In the Properties window, select the General tab, and select Internet Protocol (TCP/IP). Click Properties.
Page 32 User Controls 6. Fill in the IP address and Subnet mask, then press OK. 7. Press the Menu button on the projector. 8. Select OSD-> SETUP-> Network-> Enabled. 9. Input the following: IP Address: 10.10.10.10  Subnet Mask: 255.255.255.0  Gateway: 0.0.0.0 ...
Page 33 User Controls 14. Based on network web-page for the input-string in [tools] tab, the limitation for Input-Length is in the below list (“space” and the other punctuation key included): Category Item Input-Length (characters) IP Address IP ID Crestron Control Port Projector Name Projector Location...
Page 34: Setup
User Controls Setup Language Choose the multilingual OSD menu. Press t or u into the sub menu and then use the p or q key to select your preferred language. Press "Select (Enter)" to finalize the selection. Input Filter Enable the input filter. Press t or u into the next menu as below and then use p or q to select.
Page 35 User Controls Source Lock When this function is turned off, the projector will search for other signals if the current input signal is lost. When this function is turned on, it will search for a specified connection port. High Altitude Choose "On"...
Page 36 User Controls A utomatic: Enable or disable Automatic to automatically select  the appropriate settings. Enabled - the projector will automatically select the  appropriate settings. Disabled - the projector won’t automatically select the  appropriate settings. Frequency: Change the display data frequency to match the ...
Page 37: Appendicess
Appendices Security Security Timer: Enter the Security Timer sub menu to change  the settings. Enter the Months, Days, and hours that the projector can be No password is used without entering the password. Exiting to the Setup menu required to access activates the Security Timer.
Page 38: Troubleshooting
Appendices Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. Image No image appears on-screen Ensure all the cables and power connections are correctly and ...
Page 39: Other
Appendices Image is too small or too large Adjust the zoom lever from the lens.  Move the projector closer to or further from the screen.  Press [Menu] on the projector panel, go to "Display->Format".  Try the different settings. Image has slanted sides: If possible, reposition the projector so that it is centered on the ...
Page 40: Projector Led Status Indicator
Appendices Projector LED Status Indicator Power LED Temp LED Lamp LED Message (Green) (Red) (Red) Slow Flashing 2 sec off Standby State (Input power cord) 2 sec on Flashing 0.5 sec off Power on (Warming) 0.5 sec on Power on & Lamp lighting Flashing 1 sec off Power off (Cooling)
Page 41: Remote Control
Appendices LED states On Screen Messages Fan failed:  The projector will switch off automatically. Over temperature:  The projector will switch off automatically. Replacing the lamp:  Lamp is approaching the end of its rated life. Replacement suggested. Warning: Only use genuine lamps.
Page 42: Replacing The Lamp
Appendices Replacing the Lamp The projector automatically detects the lamp life. When the lamp life is nearing the end of use, you will receive a warning message. When you see this message, please contact your local reseller or service center to change the lamp as soon as possible.
Page 43 Appendices...
Page 44 Appendices Lamp Replacing Procedure: 1. Switch off the power to the projector by pressing the Power button. 2. Allow the projector to cool down at least 30 minutes. 3. Disconnect the power cord. 4. Open the screw cover.  5. Remove the single screw on the lamp compartment cover.  6.
Page 45: Compatibility Modes
Appendices Compatibility Modes H-SYNC V-SYNC COMPOSITE Signal Resolution COMPONENT ( KHz ) ( Hz ) S_VIDEO (Analog) (Digital) NTSC 15.734 60.0      PAL/SECAM 15.625 50.0      720 x 400 37.9 85.0  ...
Page 46: Rs232 Commands And Protocol Function List
Appendices RS232 Commands and Protocol Function List RS232 Pin Assignments (projector side) Pin no. Name I/O (From Projector Side) RS232 RS232...
Page 47: Rs232 Protocol Function List
Appendices RS232 Protocol Function List Function RS232 Command Code Power on ~XX00 1 ~XX00 0 Power off ~XX00 2 Resync ~XX01 1 AV Mute on ~XX02 1 ~XX02 0 AV Mute off ~XX02 2 Freeze on ~XX04 1 ~XX04 2 Unfreeze ~XX04 0 IR Function on...
Page 48 Appendices Item Key Definition ASCII Pass Fail Volume + n=18 DVI-D/YPbPr/1 n=19 4 / I Freeze/5 n=23 AV Mute/6 n=24 S-Video/7 n=25 OSD/Image/Display/Setup RS232 Main Menu Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values\Menu Items Command Code Presentation ~XX20 1 Bright...
Page 49 Appendices RS232 Main Menu Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values\Menu Items Command Code Reset (2a) ~XX33 1 Exit (2a) ~XX37 2 Color Space ~XX37 3 Auto ~XX37 1 Normal RGB Channel Green Blue Exit Exit (2) ~XX60 1 16:9...
Page 50 Appendices RS232 Main Menu Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values\Menu Items Command Code ~XX114 1 Power Mode ~XX114 2 (Standby) Active ~XX114 0 ~XX80 1 Mute ~XX80 2 ~XX80 0 Volume 0~10 ~XX81 n Audio Settings Mini ~XX89 1...
Page 51 Appendices RS232 Main Menu Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values\Menu Items Command Code ~XX101 0 ~XX101 2 High Altitude (1) ~XX101 1 ~XX102 0 ~XX102 2 Information Hide (1) ~XX102 1 Auto Power Off (1) 0 ~ 60 min ~XX106 n Disable...
Page 52 Appendices Function RS232 command Response HDMI 1 HDMI 2 S-video Video d = Firmware Version dddd e = Display mode None Presentation e=1 Bright Movie sRGB Classroom Blackboard User1 User2 Input Source ~XX121 1 None HDMI 1 HDMI 2 S-video Video Component Software Version...
Page 53: Ceiling Mount Installation
Appendices Ceiling Mount Installation 1. To prevent damage to your projector, please use the Optoma ceiling mount. 2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attached a mount to the...
Page 54: Optoma Global Offices
Appendices Optoma Global Offices For service or support please contact your local office. 715 Sycamore Drive Tel : 408-383-3700 Milpitas, CA 95035, USA Fax : 408-383-3702 www.optomausa.com Service : services@optoma.com Canada 5630 Kennedy Road, Mississauga, Tel : 905-361-2582 ON, L4Z 2A9, Canada Fax : 905-361-2581 www.optoma.ca...
Page 55 Appendices Latin America 715 Sycamore Drive Tel : 408-383-3700 Milpitas, CA 95035, USA Fax: 408-383-3702 www.optoma.com.br www.optoma.com.mx Taiwan 231,台北縣新店市民權路108號5樓電話：+886-2-2218-2360 傳真：+886-2-2218-2313 www.optoma.com.tw 服務處：services@optoma.com.tw asia.optoma.com Hong Kong Unit A, 27/F Dragon Centre, 79 Wing Hong Street, Cheung Sha Wan Kowloon, Hong Kong...
Page 56: Regulation & Safety Notices
Appendices Regulation & Safety Notices This appendix lists the general notices of your Projector. FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 57: Operation Conditions
Appendices Operation conditions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation.
