FLIGHT ID DISPLAY AND MOTION VECTOR
The Flight IDs of other aircraft (when available) can be displayed on the Traffic Page.
When a flight ID or call sign is received, it will appear below the corresponding traffic
symbol when enabled. Traffic ground track is indicated on Garmin Pilot by the Motion
Vector, a short line, extending in the direction of target movement or relative movement.
The track vector has two settings, TargetTrend
shown as a white vector. Absolute vectors extend from the traffic symbol showing the
traffic's ground track. TargetTrend traffic vectors are displayed relative to your position
and ground speed. For example if traffic is ahead of you and traveling in the same
direction but at a slower ground speed, the motion vector would point opposite of its
direction of flight, indicating that you are overtaking the traffic. Thus, the TargetTrend
motion vector is relative to you, where absolute motion vectors are based on the traffic's
speed and direction. The end of the Motion Vector represents the predicted absolute or
relative location of the traffic, based the traffic's reported track, ground speed and the
Vector Duration setting (15, 30, 60, or 120 seconds).
Relative Altitude (in
this case 500 feet
above own aircraft)
Aircraft
Identification (tail
number or Flight
ID number)
NOTE: Traffic Altitude Filters and Motion Vector settings can only be changed on the
dedicated Traffic Page. The Altitude Filter and Motion Vector settings from the Traffic
Page will be used on the Map Page as well.
Changing the Motion Vector:
1) From any page tap
2) Tap the Motion Vector field in the upper left corner of the Traffic Page and
select TargetTrend or Absolute.
190-01532-00 Rev. A
shown as a green vector, or Absolute
™

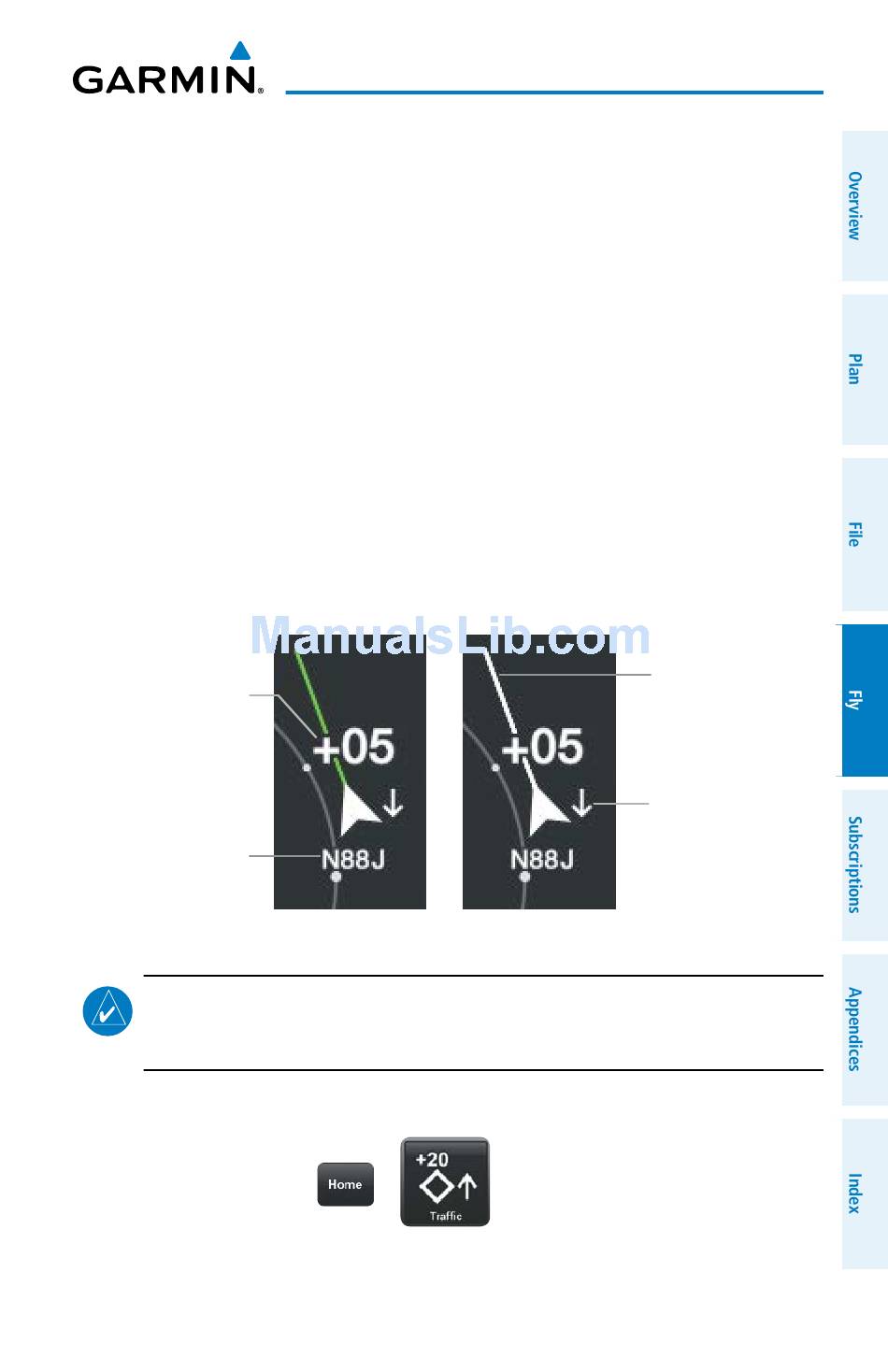

Example ADS-B Traffic
> .
Garmin Pilot for Android User's Guide
Fly
Motion Vector
(Absolute is shown
in white and
TargetTrend is
shown in green)
Altitude Trend (up
arrow indicates
climbing, down
arrow indicates
descending)
