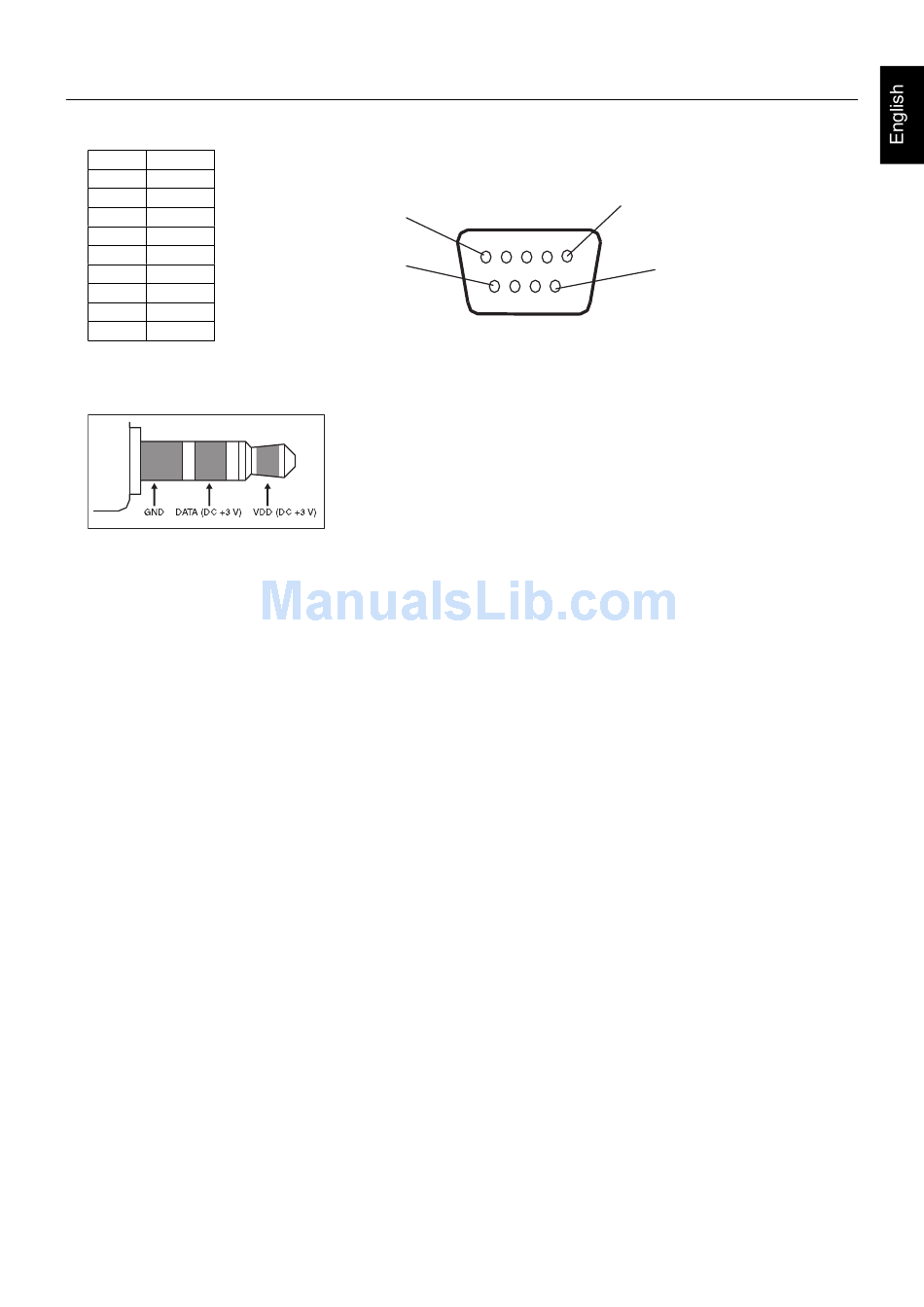

Pin Assignment

1) RS-232C input/output
Pin No Name
1 NC
2 RXD
3 TXD
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC
This LCD monitor uses RXD, TXD and GND lines for RS-232C control.
2) REMOTE IN
D-SUB 9P
1
6
English-41
5
9
