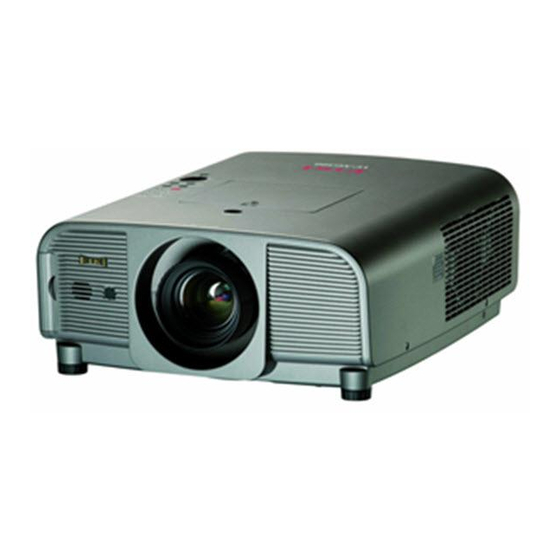

Owner's Manual
Multimedia Projector
Quick Reference Guide
MODEL
LC-XG300/LC-XG250
LC-XG300L
(*Models without lens.)
Use this book as a reference guide when setting up the projector.
For detailed information about installation, setup, and operation of
the projector, refer to the owner's manual on the CD-ROM.
READ THE SAFETY INSTRUCTIONS IN THE OWNER'S MANUAL
(CD-ROM) BEFORE USING THE PROJECTOR.
/LC-XG250L
*
*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eiki LC-XG250L*
Summary of Contents for Eiki LC-XG250L*
-

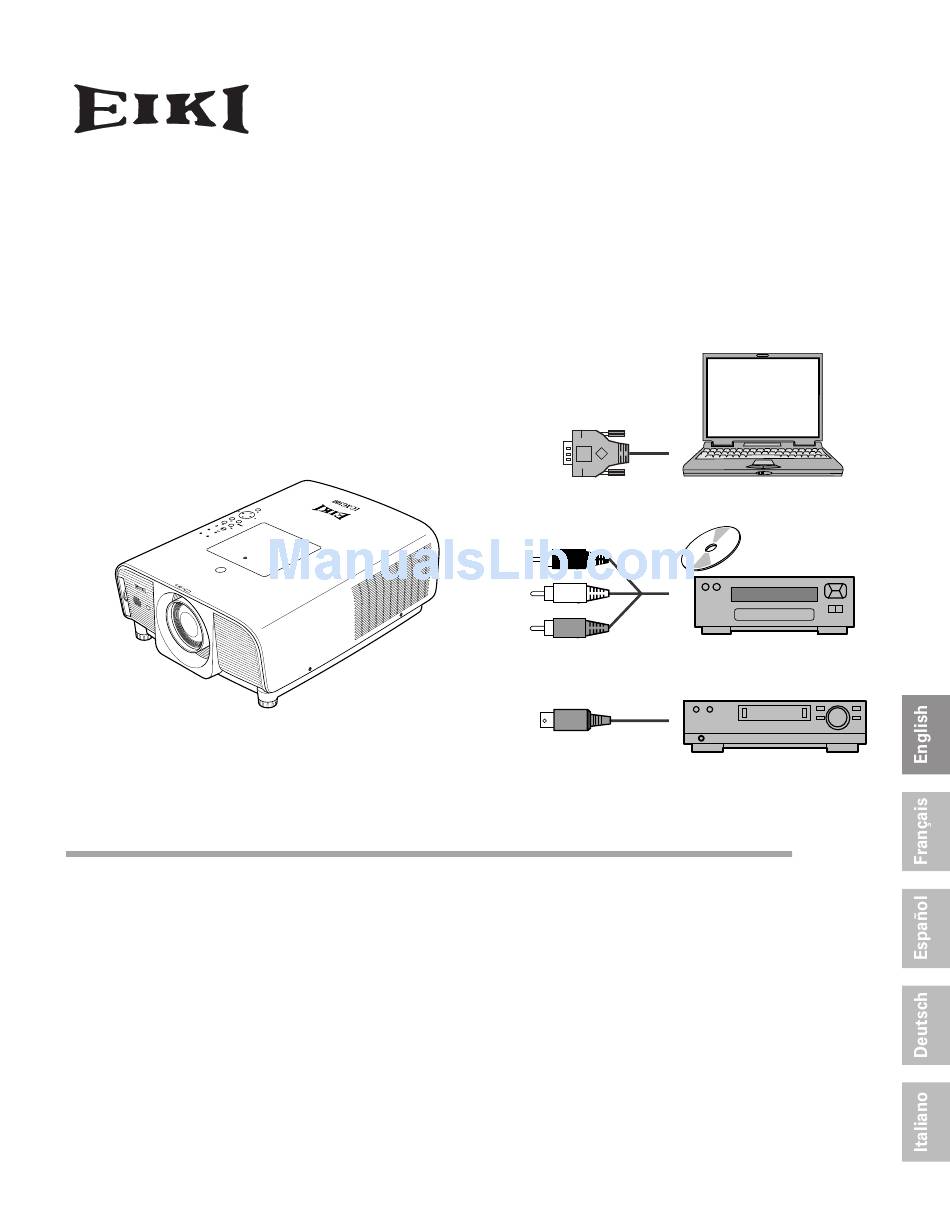

Page 1: Quick Reference Guide
LC-XG300/LC-XG250 LC-XG300L (*Models without lens.) Use this book as a reference guide when setting up the projector. For detailed information about installation, setup, and operation of the projector, refer to the owner’s manual on the CD-ROM. READ THE SAFETY INSTRUCTIONS IN THE OWNER’S MANUAL (CD-ROM) BEFORE USING THE PROJECTOR. -
Page 2: Safety Precaution
WITH THIS UNIT. NOTE: This symbol and recycle system are applied only to EU countries and not applied to the countries in the other area of the world. Your EIKI product is designed and manufactured with materials and components which can be recycled and reused. -
Page 3: Safety Instructions
Do not use attachments not recommended by the manufacturer as they may cause hazards. Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. -
Page 4: Air Circulation
In order to care for the projector appropriately, regular cleaning is required. Remove any dirt or dust that has accumulated on the projector and on or in the filter. If the projector detects that the filter is clogged, a “Filter warning” icon (red) will appear on the screen and “WARNING FILTER”... -
Page 5: Installing The Projector In Proper Directions
Installing the Projector in Proper Directions Use the projector properly in specified positions. Improper positioning may reduce the lamp life and result in severe accident or fire hazard. This projector can project the picture upward, downward, or backward, perpendicular to the plane of the screen as shown in the figure below. -
Page 6: Moving The Projector
For information about transporting the projector by courier or any other transport service, consult your dealer. – Do not put the projector in a case before it is cooled enough. Cautions in Handling the Projector Do not hold the lens when lifting or moving the projector. - Page 7 WARNING: FOR MAINTENANCE USE y Lens Cap (for LC-XG300/XG250) CAUTION Do not turn on the projector with the lens cap attached. High temperature from light beam may damage the lens cap and result in fire hazard. u Infrared Remote Receiver (Front) ✽...
-
Page 8: Rear Terminal
USB CONNECTOR (Series B) Use this connector when controlling a computer with the remote control of the projector. Connect the USB terminal of your computer to this connector with the supplied USB cable. y S-VIDEO INPUT JACK Connect the S-VIDEO output signal from video equipment to this jack. - Page 9 !2 MONITOR OUTPUT TERMINAL (ANALOG) This terminal outputs the video signal from computer to external video equipment. !3 CONTROL PORT CONNECTOR When controlling the projector from a computer, connect the computer to this connector with a control cable. !4 Infrared Remote Receiver (Back) The infrared remote receiver is also located in the front.
-
Page 10: Top Control
LAMP REPLACE indicator Lights yellow when the projection lamp reaches its end of life. e ON/STAND-BY button Turn the projector on or off. r INPUT button Select an input source. t LENS button Enter the focus, zoom, and lens shift adjustment mode. -
Page 11: Remote Control
– Pan the image in Digital zoom + mode. – Adjust the volume level (with Point !0 Presentaion Pointer button Move a pointer of the projector or a pointer for wireless mouse operation. !1 INFO. button Display the input source information. - Page 12 Remote Control !3 MENU button Open or close the On-Screen Menu. !4 P-TIMER button Operate the P-timer function. !5 D.ZOOM button Select the Digital zoom +/- mode and resize the image. !6 ZOOM buttons Zoom in and out the images. !7 LASER button –...
-
Page 13: Remote Control Battery Installation
16.4’ (5 m) and 60 degrees in front and rear of the projector. Infrared Remote Receivers are provided both in front and back of the projector. You can conveniently use both of the receivers. Adjustable Feet Projection angle can be adjusted up to 5.0 degrees with the... -
Page 14: Lens Installation
Attaching the lens to the projector Remove the lens mount cover. Fit the lens to the projector by aligning the red dot on the lens with the red dot of the projector. Slowly turn the lens clockwise until it clicks. Make sure that the lens is fully inserted to the projector. -
Page 15: Moving The Lens
Positioning the Projector (for LC-XG300/XG250) For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen. ✔ Notes: •The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image. -
Page 16: Connecting The Ac Power Cord
NOTE ON POWER CORD AC power cord must meet the requirements of the country where you use the projector. Confirm the AC plug type with the chart below and a proper AC power cord must be used. -
Page 17: Connecting To A Computer (Digital And Analog Rgb)
Connecting to a Computer (Digital and Analog RGB) Cables used for connection • VGA Cable (HDB 15 pin)* • DVI-Digital Cable • BNC Cable (*One cable is supplied; other cables are not supplied with the projector.) Monitor Audio Monitor Output Input... -
Page 18: Connecting To Video Equipment (Video, S-Video)
•The S-VIDEO jack connection overrides the VIDEO jack connection when selecting AUTO in the Input Menu. Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables. • Audio Cables (Mini Plug [stereo] x 2) •... -
Page 19: Connecting To Video Equipment (Component And Rgb Scart)
Y Cb/Pb Cr/Pr ✔Notes: •When connecting the AUDIO OUT to external audio equipment, the projector’s built-in speaker is disconnected. Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables. Digital Output RGB Scart... -
Page 20: Turning On The Projector
After the countdown, the input source that was selected the last time and the lamp control status icon appear on the screen. If the projector is locked with a PIN code, PIN code input dialog box will appear. Enter the PIN code as instructed below. -
Page 21: Turning Off The Projector
•The running speed of cooling fans is changed according to the temperature inside the projector. •Do not put the projector in a case before the projector is cooled enough. •While the POWER indicator is blinking, the lamp is being cooled down and the projector cannot be turned on. -
Page 22: How To Operate The On-Screen Menu
How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Menu. For each adjustment and setting procedure, refer to the respective sections in this manual. Press the MENU button on the top control or the remote control to display the On-Screen Menu.
