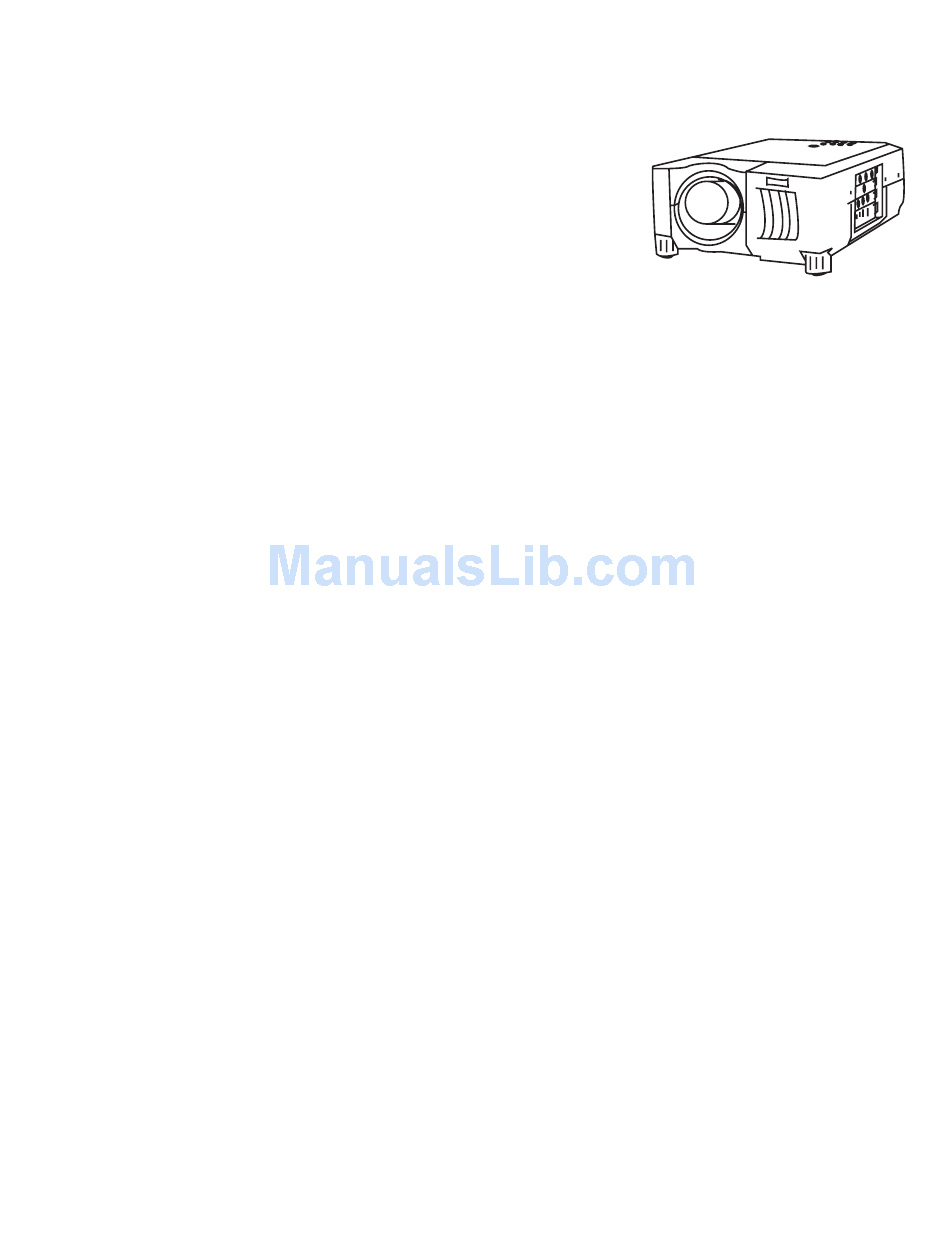

Eiki LC-X4LA Specification Sheet

A

KEY FEATURES: Model LC-X4A

5,200 ANSI Lumens bright at 90% uniformity and a 800:1 contrast ratio.
Native XGA. Campatible with UXGA through VGA. Video scaling.
Works on 120V AC power (15 amp circuit). No special wiring required!
Projects images up to 40' wide (600" diagonal). Wide choice of lenses.
New Quick Change Lens Installation System. Improved Power Lens Shift.
Compatible with most video signal input, including DVI, RGB, Y/C, DVD, HDTV.
Displays video 4:3 & 16:9 in NTSC/PAL/SECAM/NTSC 4.43/PAL-M/PAL-N.
Improved progressive scan with HDTV at 1080i and 2-3 pulldown support.
3 input channels. Interchangeable input modules permit reconfiguration.
Supplied software permits the preconfiguring of color adjustments.
Optional Network Control module permits network monitoring and control.
3 Year / 6000 Hr.* Warranty
INCLUDED ACCESSORIES - Owner's Manual. AC Power Cord 10' (3.m), Lens Aperture Cover. Computer Input Cable 6' (1.8m) HD15~HD15.
DVI Input Cable. HD-SDI Input Module. DVI~HD15 Adapter, MAC Adapter. Wireless/wired Remote with Mouse Control and Laser Pointer & 2 x
AA batteries and 1.5M wired remote cable. Mouse cables 9' (2.75m) each for PS/2, Serial Port, ADB Port. Dust Cover. Color Management
Software.
OPTIONAL ACCESSORIES - Telephoto, Midrange and Wideangle Lenses. Replacement Lamps. Additional DVI, 5 BNC, and Y/C Input Modules.
VGA (HD15) Input Module. Upconverter Input Module. Network Control Module. SD-SDI Input Module. Hard Shipping Case with wheels and
telescoping handle. Ceiling Mount and Post & Plate.
Screen Brightness 5200 ANSI Lumens (2600 ANSI Lumens in 1 Lamp mode)
Illumination Uniformity
Size of Color Palette
Contrast Ratio
Horizontal Resolution
Projection Lamp
Estimated Lamp Life
Imaging System
Screen Pixels
Total Pixels
Lens Type
Lens Speed & Focal Length
Lens Ratios
Image Diagonal
Image Width
Throw Distance
Front Elevation
Vertical Anti Keystone
Vertical Keystone Correction
Scanning Frequency
Dot Clock
Image Orientation
Local Control / Power Management
Remote Projector & Mouse Ctrl
Mouse Control Ports
Wired Remote Jack
RS-232 Port

Computer Native Resolution

Computer Compatibility

This model is ready for the installation of an optional lens selected from an extensive list of fixed, manual zoom, and power zoom lenses with throw-
to-width ratios ranging from approximately 0.8:1 up to more than 9.5:1. Weight: 46.3 lb (21.0 kg) Packaged Weight 61.5 lb (27.9 kg.)
The following warning is required by the US FDA and pertains to the laser pointer in the wireless remote control of this projector.
Caution! Laser Radiation – Do not stare into beam.
Specifications subject to change without notice. ©2003 Eiki International, Inc. Issued April 11, 2003.
Eiki International, Inc., 30251 Esperanza, Rancho Santa Margarita, CA 92688-2132. Tel: 800-242-3454; Fax: 800-457-3454, E-mail: usa@eiki.com
In Canada: 310 First St., Unit 2, P.O. Box 156, Midland, ON L4R 4K8. Tel: 800-563-3454, Fax: 800-567-4069, E-mail: canada@eiki.com
LC-X4A & LC-X4LA

SPECIFICATIONS: Model LC-X4A

800:1 (Full ON/OFF)
1.8" PolySilicon active matrix TFT Panels x 3
1024 x 768 in stripe configuration
2,359,296 ((1024 x 768) x 3)
Power Zoom and Focus
f:2.0~2.3; 2.98~3.84 in. (75.7~97.5mm)
Zoom Max:Min: 1.29:1; Throw:Width: 2.1~2.6:1
2.6 ~ 40 ft. (0.8 ~ 12.2m)
5. ~ 106 ft. (1.5 ~32.2.m)
Power Lens Shift, Ratio (T:B) >10:0~0:10
Digital: Variable Adjustment +40°~ -40°
Auto: H Sync. 15-120kHz; V Sync. 50-120Hz
Normal, Reversed, Inverted
Full Function / Auto Lamp Shut-Off
Wireless/Wired x 1 w/ Laser Pointer
On input modules 1 & 2: Mini DIN x 2, USB x 1
(In & Out) Dsub9 x 2
UXGA, SXGA, XGA, SVGA, VGA & MAC

LC-X4LA (Lensless Model)

Fax-on-Demand: (Toll Free) 877-345-4329 Visit our World Wide Web site: http://www.eiki.com
Computer: Image Sizing
90%
Video: Standards
16.7 Million
Video: Formats Supported
Video: Image Sizing
800 TV Lines
Video: Systems
200W UHP x 2
Input Channels
2000 hrs
Input Modules
1. Data:
2. RGB/DVD/HDTV:
3. Y/C:
Audio: Output - Line
Audio: Output - Amplifier
Audio: Output - Speakers
31~600 in.
Fan Noise
Size (H x W x D)
Weight
up to 6.9° up
Packaged Size (H x W x D) 21.0 x 26.2 x 32.6 in. (532 x 664 x 827 mm)
Packaged Weight
Power Requirements
Power Consumption / Heat
230 MHz
Power Cord
Safety Compliance
Operating Temperature
User Maintenance

Warranty: Projector

Mini Stereo x 1

Warranty: Lamp

1024 x 768 (XGA)
Max. Output: 1 mW. Wave Length: 660 +/- 20 mm. Class II Laser Product.
XGA
Powerhouse
Projector
LC-X4A
Normal or Smart compressed or expanded
NTSC/PAL/SECAM/NTSC 4.43/PAL-M/PAL-N
Normal 4:3 and Wide Screen 16:9
Composite, S-Video, Component
Interchangeable: standard configuration below
DVI-I x 1 & HD15 x 1 data, RCA x 2 audio, 8-pin DIN x 1 control
BNC x 5 video, RCA x 2 audio, 8-pin DIN x 1 control
(RGB G-sync, RGB H+V, RGBHV, Component and Y, Pb/Cb, Pr/Cr)
BNC x 2 & S-Video x 1 video, RCA x 2 audio
3 Watts RMS (each L&R) Stereo
9.1 x 17.3 x 23.9 in. (230 x 439 x 605 mm.)
100~120/200~240V AC, 50/60Hz
720 Watt / 2457 BTU / hr (620 Kcal / hr)
10' (3.m) Type 3, Detachable
Clean Air Filter, Replace Lamp
3 Yr./ 6000 Hr.*(Parts/Labor to Correct Defects)
90 Days.(Failed Lamp Replaced Pro-Rata)*
Progressive Video Scaling
3
(Stereo) RCA x 2 (L & R)
2 x 3.5 in. (5 x 9 cm) x 2
45 dBA
49.7 lbs. (22.5 kg)
65.7 lb. (29.8 kg)
UL Listed
0 0
41~95 F (5~35 C)
* Whichever occurs first
