Transition Networks E-TBT-FRL-01 User Manual

Specifications:

Case size dimensions:
Fiber Connection:
Fiber Optic Cable Maximum Distance: 2,000 meters (6,600 feet)
Fiber Optic Cable Recommended:
Optional:
Fiber Optic Transmitter Power:
Fiber Optic Receiver Power:
Twisted Pair Specifications:
Twisted Pair Maximum Distance:
Environment:
Warranty:

Power Supply Requirements:

Replace power supply with only the equivalent input rating (refer to the table below)
and output rating (regulated 9VDC at 0.5 A).
TN PN Requirement
3517 240 volts, 50 hertz
3516 230 volts, 50 hertz
3518 120 volts, 60 hertz
3514 100 volts, 50–60 hertz
3515 240 volts, 50 hertz
FCC Regulations:
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own cost.
Canadian Regulations:
Note: This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on the
radio interference regulations of the Canadian Department of Communications.
Copyright Restrictions
© 1995 Transition Networks, Inc.
All rights reserved. No part of this work may be reproduced or used in any form or by any means- graphic,
electronic, or mechanical- without written permission from Transition Networks, Inc.
Trademarks:
Ethernet is a registered trademark of the Xerox Corporation, Inc.
TRANSITION Networks is a trademark of TRANSITION Networks, Inc.
4.0" x 2.9" x 0.9"
(10.2 cm x 7.4 cm x 2.3 cm)
ST type connectors (SMA type available upon
request)
62.5 / 125 µm multimode fiber
100 / 140 µm multimode fiber
85 / 125 µm multimode fiber
50 / 125 µm multimode fiber
Average power: -15.0 dBm
Peak power: -12.0 dBm ±1dBm
Average power: -27.4 dBm
10 -
10
Bit error rate:
22, 24, or 26 gauge cable, type 3 or better
100 meters (330 feet)
0–50 degrees C, 5%–90% humidity
non-condensing, 0–10,000 foot altitude
Two years
Location
United Kingdom
Europe
USA/Canada/Mexico
Japan
Australia
10BaseFL/10BaseT Adapter

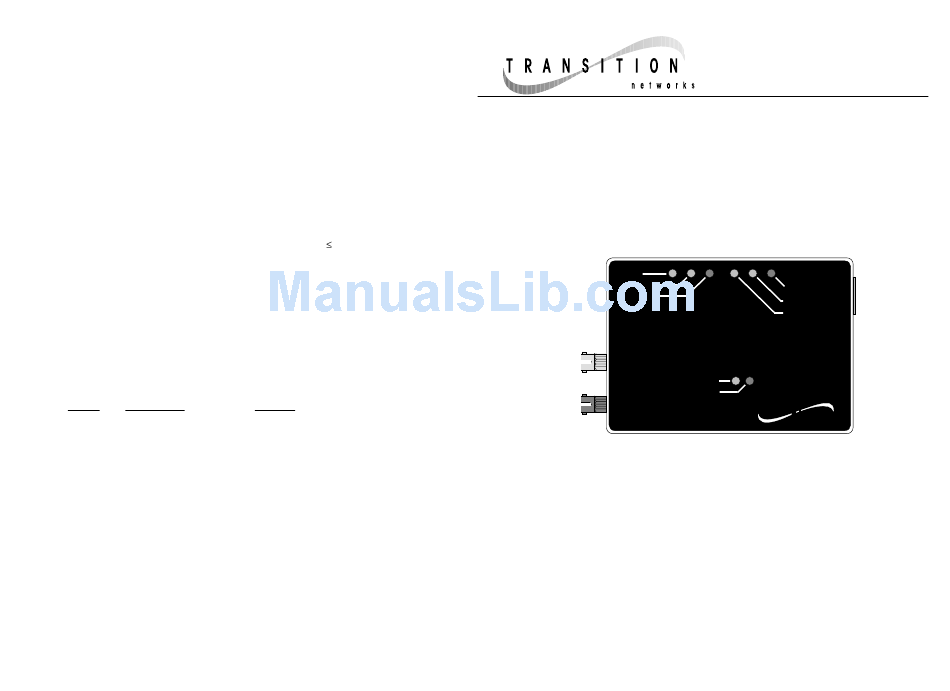

The TRANSITION Networks Ethernet™ 10BaseFL/10BaseT Adapter (media converter),
E-TBT-FRL-01, connects fiber optic cable (10BaseFL) to twisted pair (10BaseT).
The 10BaseFL/10BaseT Adapter provides an RJ-45 twisted pair connector and a set of
Receive and Transmit ST fiber optic connectors. The twisted pair connection allows a
10BaseT device to be located at a distance of up to 100 meters (185 feet). The fiber
optic ST connections allows a device to be located at a distance of up to 2000 meters
(6,600 feet). NOTE: A media converter with an SMA type fiber connection, E-TBT-
FRL-01(SMA), also is available.

Status LEDs provide the following information:

Link Illuminated green LED indicates the unit is receiving link pulses from a
compliant device.
Receive: Flashing or illuminated green LED indicates packet(s) are being received.
Collision: Flashing or illuminated red LED indicates collisions are occurring.
Power: Illuminated green LED indicates normal operation.
Jabber: Illuminated red LED indicates the unit is disabled.
7331.E
E-TBT-FRL-01
USER'S GUIDE
Link
Receive
Collision
Collision
Receive
Link
Ethernet™
10Base FL / 10BaseT Adapter
TX
Power
Jabber
RX
T R A N S I T I O N
E-TBT-FRL-01
Mpls, MN 55344
Minneapolis, MN 55344 USA
n e t w o r k s
