User Manual
NS-LTDVD26

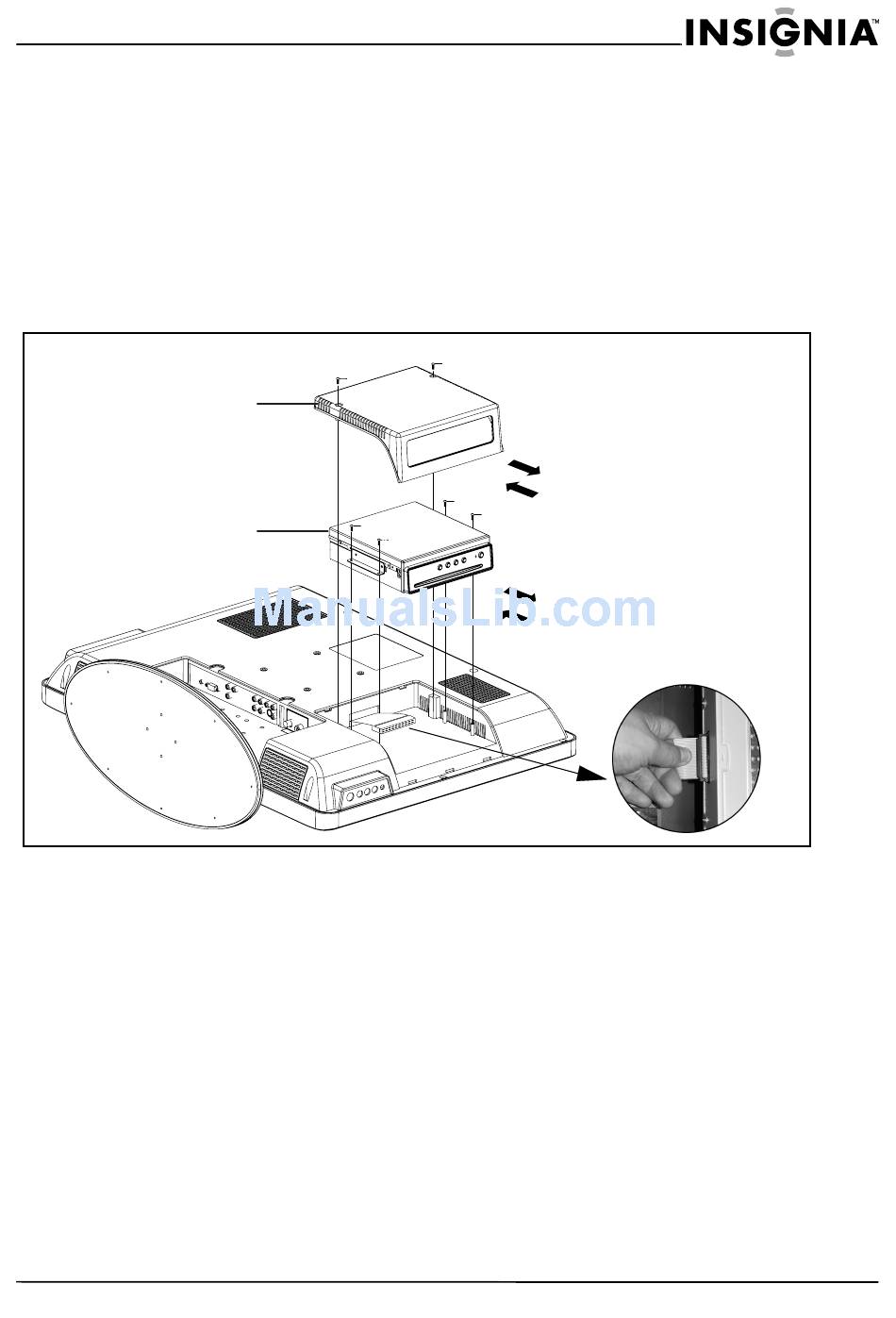

ATTACHING/DETACHING THE DVD UNIT
Before attaching/detaching DVD unit:
• Before detaching (or attaching) the DVD unit, unplug the AC cord from the AC
input terminal.
• Before performing work make sure to turn off the TV.
• Before performing work spread cushioning over the base area to lay the Display on.
This will prevent it from being damaged.
DVD cover
DVD unit
Detaching the DVD unit:
1. Remove the two screws ①.
2. Remove the DVD cover in the direction of arrow (A).
3. Remove the four screws ②.
4. Disconnect the connection between DVD unit and LCD TV as shown in the illustration.
5. Remove the DVD unit in the direction of arrow (B).
Attaching the DVD unit:
1. Attach the DVD unit in the direction of arrow (C).
2. Connect the connection between DVD unit and LCD TV as shown in the illustration.
3. Fasten the four screws ②.
4. Attach the DVD cover in the direction of arrow (D).
5. Fasten the two screws ①.
①
①
(D)
②
②
②
②
(C)
www.insignia-products.com
(A)
①--ST4×10
②--ST3×8
(B)
