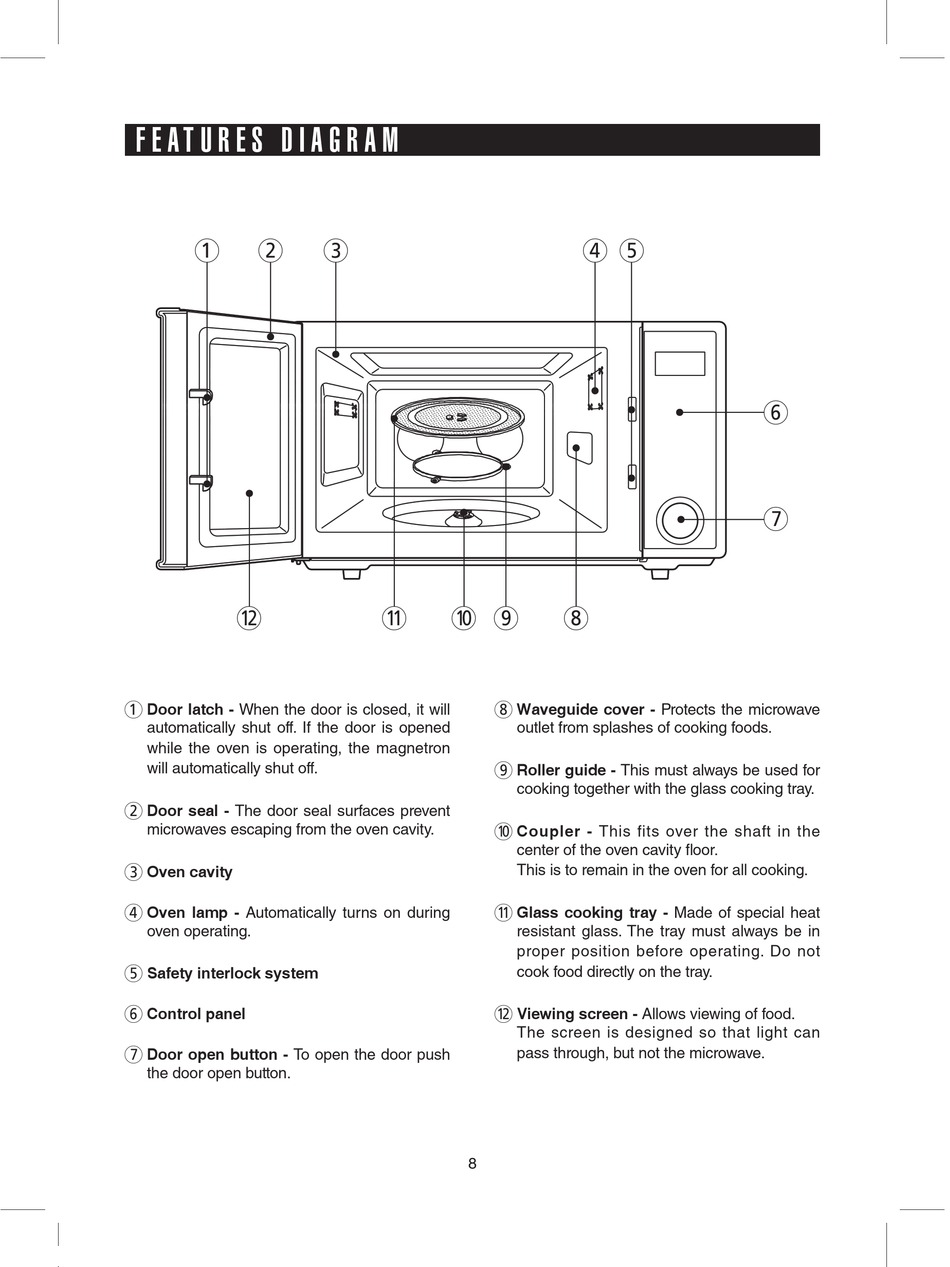

F E A T U R E S D I A G R A M
1 2
w
1 Door latch - When the door is closed, it will
automatically shut off. If the door is opened
while the oven is operating, the magnetron
will automatically shut off.
2 Door seal - The door seal surfaces prevent
microwaves escaping from the oven cavity.
3 Oven cavity
4 Oven lamp - Automatically turns on during
oven operating.
5 Safety interlock system
6 Control panel
7 Door open button - To open the door push
the door open button.
3
q 0 9
8 Waveguide cover - Protects the microwave
9 Roller guide - This must always be used for
0 Coupler - This fits over the shaft in the
q Glass cooking tray - Made of special heat
w Viewing screen - Allows viewing of food.
8
4 5
8
outlet from splashes of cooking foods.
cooking together with the glass cooking tray.
center of the oven cavity fl oor.
This is to remain in the oven for all cooking.
resistant glass. The tray must always be in
proper position before operating. Do not
cook food directly on the tray.
The screen is designed so that light can
pass through, but not the microwave.
6
7
