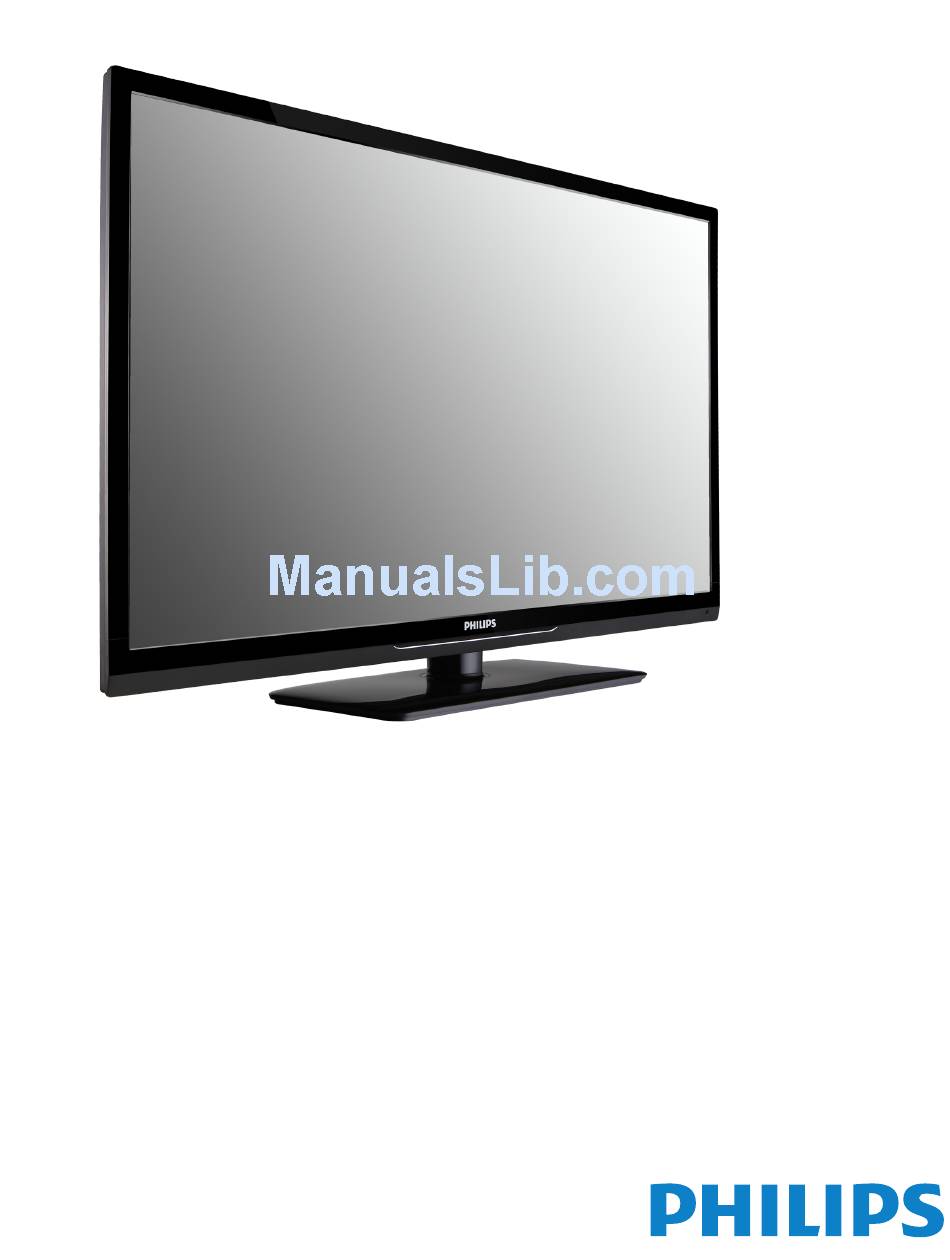

- Page 1 BDL3210Q BDL4210Q BDL4610Q www.philips.com/welcome User Manual (English)
-
Page 2: Safety Instructions
BDL3210Q / BDL4210Q / BDL4610Q Safety Instructions Warnings and Precautions KNOW THESE SAFETY SYMBOLS CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product. This symbol alerts you that important literature concerning operation and maintenance has been included with this product. -
Page 3: Regulatory Information
BDL3210Q / BDL4210Q / BDL4610Q Regulatory Information CE Declaration of Conformity We declare under our responsibility that the product is in conformity with the following standards: • EN60950-1:2006+A11:2009 (Safety requirement of Information Technology Equipment) • EN55022:2006+A1:2007 (Radio Disturbance requirement of Information Technology Equipment) •... - Page 4 BDL3210Q / BDL4210Q / BDL4610Q Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).
- Page 5 BDL3210Q / BDL4210Q / BDL4610Q Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows: 1. Remove fuse cover and fuse. 2.
- Page 6 BDL3210Q / BDL4210Q / BDL4610Q China RoHS 中国电子信息产品污染控制标识要求 (中国RoHS法规标示要求) 产品中有毒有害物质或元素 的名称及含量 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr 6+) (PBB) (PBDE) 外壳 液晶面板 电路板组件 附件 (遥控器， 电源线， 连接线) 遥控器电池 O: 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下. X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求. 環保使用期限...
- Page 7 Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
-
Page 8: Table Of Contents
BDL3210Q / BDL4210Q / BDL4610Q Table Of Contents Unpacking and Installation ........1 4.2.1. Picture menu ..........14 1.1. Unpacking ..............1 Input Mode ..............15 1.2. Package Contents .............1 Pixel Defect Policy ..........16 1.3. Installation Notes ............1 6.1. Pixels and Sub-Pixels ..........16 1.4. -
Page 9: Unpacking And Installation
Установка / Kurulum / 安装 Connect / Verbinden / Conexión / Connecter / Collegamento / Połącz / Подключить / Bağlan / 连接性 www.publicsignagesolutions.philips.com NOTES: • For all other regions, apply a power cord that conforms to the AC voltage of the power socket and has been approved by and complies with the safety regulations of the particular country. -
Page 10: Installing And Removing Table Stands
BDL3210Q / BDL4210Q / BDL4610Q 1.4. Installing and Removing Table Stands (optional) To install table stands: 1. Ensure your display is powered off. 2. Spread a protective sheet on a flat surface. 3. Grab and face-down the display and place on the protective sheet.. 4. -
Page 11: Mounting On A Wall
BDL3210Q / BDL4210Q / BDL4610Q 1.5. Mounting on a Wall To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with TUV-GS and/or UL1678 standard in North America. 1. -
Page 12: Parts And Functions
BDL3210Q / BDL4210Q / BDL4610Q Parts and Functions 2.1. Control Panel INPUT MENU POWER button Use this button to turn the display on or put the display to standby. MENU button Use this button to turn on the OSD. INPUT button Use this button to change input selection. -
Page 13: Input/Output Terminals
BDL3210Q / BDL4210Q / BDL4610Q 2.2. Input/Output Terminals HDMI RS-232 Connects to the HDMI output of an AV device or to the DVI-D RS-232 network connection input/output for loop through function. output of a PC. (Using a DVI-HDMI cable/adapter). VGA In Connects to the VGA output of a PC or media player. -
Page 14: Remote Control
BDL3210Q / BDL4210Q / BDL4610Q 2.3. Remote Control Yellow key N/A. 2.3.1. General functions Blue key Sleep clock. Switch your display to standby mode after user-defined time. Green key N/A. MENU Blu-ray IPTV Red key Demo menu (Digital crystal color, active control). OPTION SLEEP OPTION... - Page 15 BDL3210Q / BDL4210Q / BDL4610Q HDMI1 Select the HDMI1 SOURCE. HDMI2 Select the HDMI2 SOURCE. HDMI3 N/A. Select the VGA SOURCE. Select the AV1 SOURCE. Select the AV2 SOURCE. Select the CVI SOURCE. Connected USB device can be identified automatically. Select to browse the contents of the USB device in the main menu.
-
Page 16: Handling The Remote Control
BDL3210Q / BDL4210Q / BDL4610Q 2.3.2. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Align the batteries according to the (+) and (–) indications inside the battery compartment. -
Page 17: Connecting External Equipment
BDL3210Q / BDL4210Q / BDL4610Q Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using COMPONENT video input Audio Out COMPONENT Out (YPbPr) DVD / VCR / VCD [COMPONENT IN] (YPbPr) [AUDIO IN] 3.1.2. Using HDMI video input DVD / VCR / VCD HDMI Out [HDMI IN]... -
Page 18: Connecting A Pc
BDL3210Q / BDL4210Q / BDL4610Q 3.2. Connecting a PC 3.2.1. Using VGA input VGA Out D-Sub 15 pin [AUDIO IN] [VGA IN] 3.2.2. Using HDMI input HDMI Out [HDMI IN]... -
Page 19: Connecting Av Equipment
BDL3210Q / BDL4210Q / BDL4610Q 3.3. Connecting AV Equipment 3.3.1. Connecting an external AV device(AV IN 1) AV Out DVD / VCR / VCD [AV IN] 3.3.2. Connecting an external AV device(AV IN 2) AV Out DVD / VCR / VCD [AV IN]... -
Page 20: Connecting Usb Device
BDL3210Q / BDL4210Q / BDL4610Q 3.4. Connecting USB device Your display is fitted with a USB port that enables you to view photos, or play audio and video files stored on a USB storage device. Caution: The manufacturer is not responsible if the USB storage device is not supported, nor for any damage or loss of data caused by connecting your USB device. - Page 21 BDL3210Q / BDL4210Q / BDL4610Q 6. The display automatically sorts the files into 3 categories: Pictures, Music and Videos. Scroll [▲] or [▼] to choose the type of file to play, then press [OK] to enter. Folders Photo Music Video 7.
-
Page 22: Osd Menu
BDL3210Q / BDL4210Q / BDL4610Q OSD Menu 4.2. OSD Menu Overview An overall view of the On-Screen Display (OSD) structure is shown 4.2.1. Picture menu below. You can use it as a reference for further adjusting your display. 4.1. Navigating the OSD Menu Picture Reset Sound... -
Page 23: Input Mode
BDL3210Q / BDL4210Q / BDL4610Q Input Mode VGA Resolution: BDL3210Q: Active Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Refers to Resolution H Pixels V Lines 60 Hz 31.5 MHz Video Graphic Array WVGA 70 Hz 31.3 MHz 16:9 Wide Video Graphic Array SVGA 60 Hz 37.9 MHz... -
Page 24: Pixel Defect Policy
However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. -
Page 25: Dark Dot Defects
Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub- pixel defects exceeding the tolerances listed in the following table. -
Page 26: Cleaning And Troubleshooting
BDL3210Q / BDL4210Q / BDL4610Q Cleaning and Troubleshooting 7.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. -
Page 27: Troubleshooting
BDL3210Q / BDL4210Q / BDL4610Q 7.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of the 2. Make sure the power switch is switched on. display is not switched on. -
Page 28: Technical Specifications
BDL3210Q / BDL4210Q / BDL4610Q Technical Specifications Display: Item Specifications BDL3210Q BDL4210Q BDL4610Q Screen size 31.5” 42” 46” Viewable size 31.5” 42” 46” Aspect ratio 16:9 16:9 16:9 Number of Pixels 1366x768 1920x1080 1920x1080 Pixel pitch 0.17025 x 0.51075 0.1615 x 0.4845 0.17675 x 0.53025 Displayable colors 16.7M... - Page 29 BDL3210Q / BDL4210Q / BDL4610Q General: Item Specifications Power Supply 100 ~ 240 VAC Power Consumption BDL3210Q: 100W BDL4210Q: 140W BDL4610Q: 160W Display Dimension [W x H x D] BDL3210Q (mm/inch) Without Stand (mm/inch) 745.2 x 462.7 x 56.8 / 29.3 x 18.2 x 2.2 BDL4210Q (mm/inch) 978.2 x 593.1 x 56.9 / 38.5 x 23.4 x 2.2 BDL4610Q(mm/inch):...
- Page 30 2012 © Koninklijke Philips Electronics N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips Electronics N.V. and are used under license from Koninklijke Philips Electronics N.V. Specifications are subject to change without notice.
