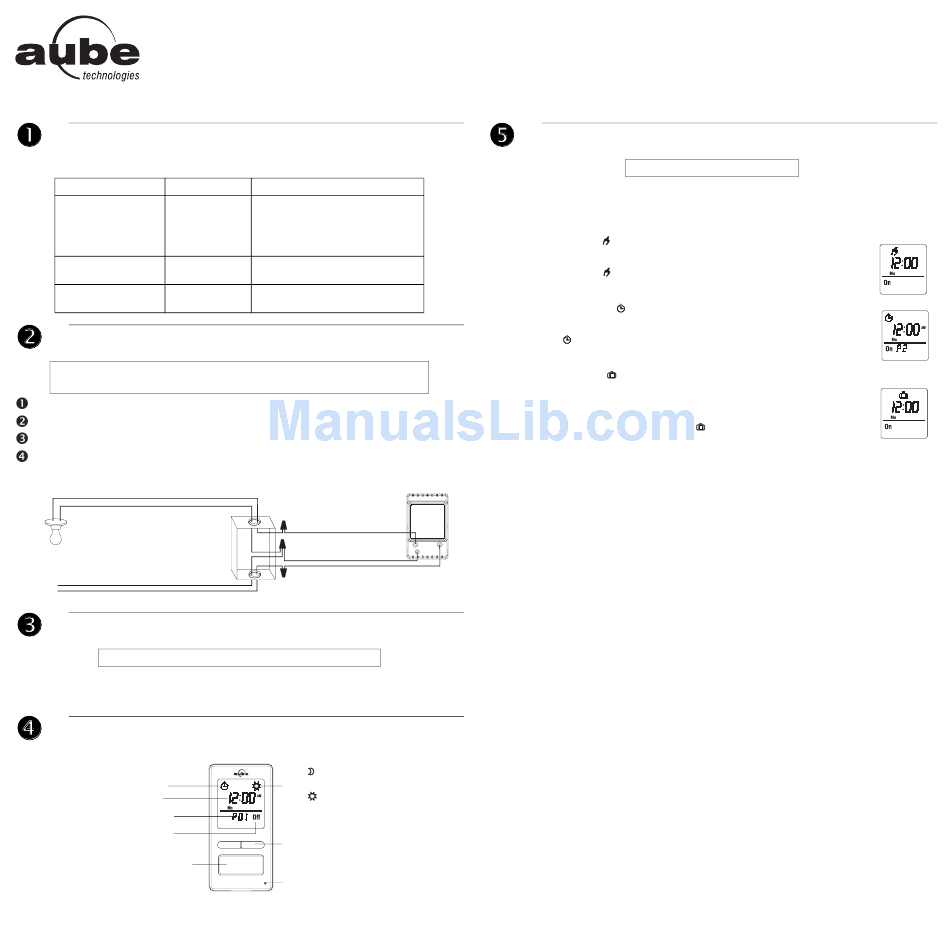

Applications
The TI071 programmable wall switch has been designed to control lights and motors:
Load types Maximum load
Lights and resistive 1800 W
loads (except tungsten) (15 A @ 120 V)
1440 W
Tungsten lights
(12 A @ 120 V)
Motors 3/4 hp
Installation
NOTE:
This switch cannot be used if there is no neutral wire (indicated
by white wires joint together) inside the electrical box.
Cut power at the circuit breaker to avoid electric shock.
Remove the existing switch.
Install the new switch.
Apply power at the circuit breaker.
black
white
white
120
VAC
black
Quick Start-up
Set the time and date before using the timer for the first time.
The TI071 will turn the lights on at sunset and turn them off at 11:00 pm by default. If these settings are
appropriate for you, you only need to set the time and date (see shaded zone in programming flowchart).
The switch is now ready to go.
Operation
Indicates the mode of
operation (see Section 5.1)
Indicates the time and day
Indicates the current program
Indicates the load on/off state
Briefly press this button to turn the
lights on or off. See "Temporary
Override" in Section 5.1.4.
TI071
Examples
• fluorescent lights
• compact fluorescent lights (CFL)
• electronic ballasts
• sodium lamps
• block heaters
• incandescent lights
• halogen lights
• pool filter pumps
• fans
blue (LOAD)
white (NEUTRAL)
black (LINE)
The icon indicates the current
program has been activated at sunset.
The icon indicates the current
program has been activated at sunrise.
You can change the mode of operation
by pressing this button for 1 second.
The LED illuminates when the load state
is on.
1. Programming
Refer to the programming flowchart.
5.1 Mode Menu
You can use the Mode menu to select one of the three modes of operation (see sections 5.1.1 to 5.1.3).

5.1.1 Manual Mode

In Manual mode, the TI071 operates like a regular switch. To turn the lights on or off, briefly
press the main button. The icon appears when the switch is in Manual mode.

5.1.2 Automatic Mode

In Automatic mode, the TI071 turns the lights on or off according to the set programs (see
2.
Section 5.4). The icon as well as the current program number are displayed.
5.1.3 Random Mode
In Random mode, the TI071 has no specific times to turn the lights on or off. This mode is
designed to give the impression the house is occupied during your absence. It is similar to
the Automatic mode except there is no fixed program. The programs are automatically set
to different times by the TI071 every day. The
Random mode.
The first "On" program occurs at sunset. Each "On" program lasts between 1 hour and 1
hour and 30 minutes; each "Off" program lasts between 15 and 30 minutes. The last "Off"
program occurs between 10:30 pm and midnight.
5.1.4 Temporary Override
When the TI071 is in Automatic or Random mode, you can press the main button at any time to override the
default state for the current program. The light will turn off if they are on and vice versa. The icon (On or Off)
of the new state flashes to indicate that the state is temporary. The new state is maintained until you press
the main button again or till the next "On" or "Off" program.
5.2

Time Menu

The time display flashes on the screen when the time has not yet been set or after a 4-hour power outage.
Use the Time menu to select the time format (12-hour or 24-hour) and to set the clock and date.
NOTE: The date is used to determine the sunset and sunrise times.
3.
5.3

Configuration Menu

Use the Configuration menu to set the following parameters (see sections 5.3.1 to 5.3.4).
5.3.1 Backlight mode (SCRN)
The screen is lit at high intensity for 8 seconds when you press any button. The rest of the time, depending
on the backlight mode selected, the screen behaves as follows:
4.
Scrn Off: The screen is not lit.
Scrn On HI: The screen is lit at high intensity.
Scrn On LO: The screen is lit at low intensity (default mode).
5.3.2 Automatic Daylight Savings Time Changeover (DLS)
When automatic daylight savings time changeover is on (DLS On), the TI071 changes to daylight savings
time (summer time) at 2:00 on the second Sunday of March and changes back to normal time (winter time)
at 2:00 on the first Sunday of November. This function is enabled (DLS On) by default.
5.3.3 Longitude and Latitude Coordinates (LONG and LAT)
The coordinates are used to turn the lights on at sunset and off at sunrise. The longitude is set to -75 and the
latitude to +45 by default. These settings provide approximate sunset and sunrise times for most North
American cities. To obtain your city's coordinates (or those of a nearby city), see the coordinates table. You
can also obtain this information at www.aubetech.com/timer or with a Global Positioning System (GPS)
device. The accuracy of the sunset and sunrise times depends on the accuracy of the coordinates you enter
for your city.
NOTE: Enter a negative value for a south latitude or a west longitude.
TI071

User guide

7-day Solar Programmable Wall Switch
icon appears when the switch is in
400-071-000-A 2007-12-13
5.
