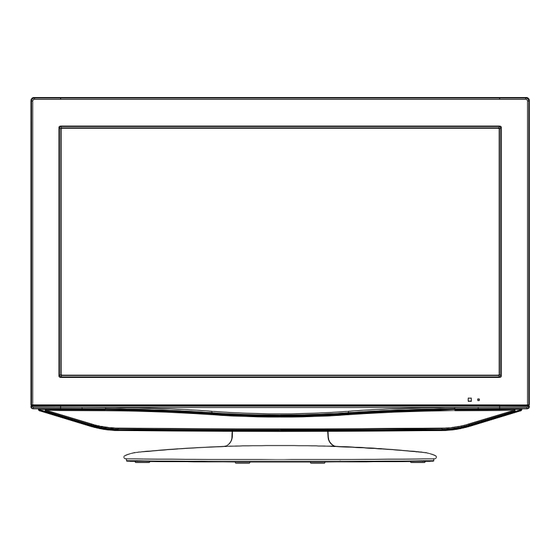

LCD COLOR TELEVISION
LC32SH12U
MODEL
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored
to its original condition and only parts identical to those specified should be used.
PART LIST AND EXPLODED VIEW
**Please See Attached Technical Bulletin**
Advertisement
Related Manuals for Sharp LC32SH12U - Flat Panel LCD Television HDTV
Summary of Contents for Sharp LC32SH12U - Flat Panel LCD Television HDTV
- Page 1 LCD COLOR TELEVISION LC32SH12U MODEL In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used. PART LIST AND EXPLODED VIEW **Please See Attached Technical Bulletin**...
- Page 2 LCD Television Technical Bulletin Sharp Electronics Corporation Services and Solutions Group 1300 Naperville Drive Romeoville, IL 60446 Number: LCDTV-220 Date: March 2008 Model(s): LC32SH12U Subject: Cabinet Color Differences of LC32SH12U from base model LC-32AV22U ***When servicing the LC -32SH12U refer to base model LC -32AV22U Service Manual posted on SharpNet.
-
Page 3: Mechanical Exploded View
MECHANICAL EXPLODED VIEW 104C 211 104C 211 104C 104A 102B 104C 104C 103A 104B 103A 104C 103C 102C 103B 102C 102A PCBD20 (AV PCB ASS'Y) PCBDH0 (DIGITAL PCB ASS'Y) PCB240 (POWER PCB ASS'Y) 101F 101G 101E 101G 101C 101H PCBDA0 101D 101H (REMOCON PCB ASS'Y) - Page 4 MECHANICAL EXPLODED VIEW (PACKING DIAGRAM) CD3805 HOLDER CORD POLYBAG INSTRUCTION INSTRUCTION BOOK(E/F/S) REGISTRATION CARD(SHARP) TM101 CLEANING CLOTH PACK PACKAGE TOP PACKAGE STAND-TOP PACKAGE STAND-BOTTOM PACKING SACK SCREW LAMIFILM BAG GIFT BOX SHEET BARCODE PACKAGE BOTTOM...
- Page 5 MECHANICAL EXPLODED VIEW (PACKING DIAGRAM) PACKAGE STAND-TOP PACKING SACK (791WHA0125) SCREW PACKING SACK (791WHA0126) PACKAGE STAND-BOTTOM...
-
Page 6: Mechanical Replacement Parts List
791WHA0126 PACKING SACK 791WHA0129 LAMIFILM BAG 792WHA0714 PACKAGE TOP 792WHA0715 PACKAGE BOTTOM 792WHA0716 PACKAGE STAND TOP 792WHA0717 PACKAGE STAND BOTTOM 793WCDD445 GIFT BOX 89001122A2 SCREW 890CCOR001 CLEANING CLOTH PACK J31C0331A INSTRUCTION BOOK(E/F/S) J3Y00417A REGISTRATION CARD(SHARP) JB5ND200 POLYBAG INSTRUCTION(RED CAUTION) K1-1... -
Page 7: Electrical Replacement Parts List
ELECTRICAL REPLACEMENT PARTS LIST REF. NO. PART NO. DESCRIPTION REMOCON PCB ASS'Y *** PCB *** PCBDA0 A31C03EDA0 REMOCON PCB ASS'Y CEF275A *** DIODES *** D2201 0021E9Q010 LTL-1BEFJ-002A *** CONNECTORS *** CP2201 069S250639 CONNECTOR PCB SIDE A2001WR2-5P *** OTHERS *** OS2201 077A033001 REMOTE RECEIVER ROM-V338TAO... - Page 8 ELECTRICAL REPLACEMENT PARTS LIST IC3404 I07F078200 BD7820FP-E2 ! IC3405 I07F078200 BD7820FP-E2 ! IC3406 I07F078200 BD7820FP-E2 IC3600 IG1F090250 SII9025CTU IC3601 S31C03EE02 MEMORY DATA BR24L02F-WE2 IC3602 S31C03EE03 MEMORY DATA BR24L02F-WE2 ! IC3603 I07F078200 BD7820FP-E2 ! IC3604 I07F078200 BD7820FP-E2 IC3901 S31C03EM01 MEMORY DATA R8J01047A71BG IC6200 I9UF032290...
- Page 9 ELECTRICAL REPLACEMENT PARTS LIST B2803 024HC51023 CORE,BEADS FCM1608KF-102T02 B2804 024HC51023 CORE,BEADS FCM1608KF-102T02 B3602 024HC51816 CORE,BEADS HCB1608KF-181T20 B3603 024HC51816 CORE,BEADS HCB1608KF-181T20 B3604 024HC51816 CORE,BEADS HCB1608KF-181T20 B3605 024HC51816 CORE,BEADS HCB1608KF-181T20 B3606 024HC56005 CORE,BEADS FCM1608CF-600T06 B3607 024HC51816 CORE,BEADS HCB1608KF-181T20 B3608 024HC51816 CORE,BEADS HCB1608KF-181T20 B3609 024HC51816 CORE,BEADS...
- Page 10 ELECTRICAL REPLACEMENT PARTS LIST NR3601 110P4330M5 R,NETWORK 4D02WGJ0330TCE NR3602 110P4330M5 R,NETWORK 4D02WGJ0330TCE NR3603 110P4330M5 R,NETWORK 4D02WGJ0330TCE NR3604 110P4330M5 R,NETWORK 4D02WGJ0330TCE NR3605 110P4330M5 R,NETWORK 4D02WGJ0330TCE NR7200 110P4220M5 R,NETWORK 4D02WGJ0220TCE NR7201 110P4220M5 R,NETWORK 4D02WGJ0220TCE *** OTHERS *** CP4305 06G2S21501 CONNECTOR PCB SIDE D229FD015G107BY CP7200 06G3VWT01A CONNECTOR PCB SIDE...
- Page 11 ELECTRICAL REPLACEMENT PARTS LIST Q4214 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK Q6500 TNAAB05003 COMPOUND TRANSISTOR KRC102SRTK Q6501 TPAAC05002 COMPOUND TRANSISTOR KRA103SRTK Q6503 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK Q6504 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK Q6505 TCAA3875SY TRANSISTOR SILICON KTC3875S_Y_RTK Q6511 T2AA5132E0 KTK5132E-RTK/P Q6513 T2AA5132E0 KTK5132E-RTK/P Q6515 TPAAC05002 COMPOUND TRANSISTOR KRA103SRTK...
- Page 12 ELECTRICAL REPLACEMENT PARTS LIST X901 100GT01806 CRYSTAL B18432E005 *** OTHERS *** SH3800 126D000044 TERMINAL PIN YQ-36 SH3801 126D000044 TERMINAL PIN YQ-36 SH3802 126D000044 TERMINAL PIN YQ-36 SH3803 126D000044 TERMINAL PIN YQ-36 SH3804 126D000044 TERMINAL PIN YQ-36 POWER PCB ASS'Y *** PCB *** PCB240 A31C03E240 POWER PCB ASS'Y...
- Page 13 ELECTRICAL REPLACEMENT PARTS LIST D421 DD7R0S3550 DIODE SILICON 1SS355 TE-17 D422 DD7R60M900 DIODE SCHOTTKY RB160M-90TR D423 DD7R0S3550 DIODE SILICON 1SS355 TE-17 D424 D4AT01H3E0 DIODE RECTIFIER 1H3-E ! D425 D2WXN40050 DIODE SILICON 1N4005-EIC D426 D1VT001330 DIODE,SILICON 1SS133T-77 ! D427 D2WXN40050 DIODE SILICON 1N4005-EIC D428 DD7R0S3550 DIODE SILICON...
- Page 14 ELECTRICAL REPLACEMENT PARTS LIST *** COILS *** B401 024HT03553 CORE,BEADS W5RH3.5X5X1.0 B402 024HC51816 CORE,BEADS HCB1608KF-181T20 B403 024HC51816 CORE,BEADS HCB1608KF-181T20 B404 024HT03553 CORE,BEADS W5RH3.5X5X1.0 ! L401 029X000129 COIL,LINE FILTER SS30V-R300071 ! L402 029X000129 COIL,LINE FILTER SS30V-R300071 ! L405 02167E220K COIL L408 021U0L470M COIL L409...
- Page 15 ELECTRICAL REPLACEMENT PARTS LIST SW2205 0504101T34 SWITCH,TACT EVQ21505R SW2206 0504101T34 SWITCH,TACT EVQ21505R *** CONNECTORS *** CP2203 069S230639 CONNECTOR PCB SIDE A2001WR2-3P AND OTHERS *** COILS *** TR7200 02AS6513C1 CORE FERRITE E04FG441312-TX3 TR7201 02AS6513C1 CORE FERRITE E04FG441312-TX3 *** CONNECTORS *** CD301 06CU144202 CORD CONNECTOR CU144202...
