Use and Care Manual
PRODUCT MODEL NUMBERS
WGD7300X, WGD7400X,
WGD7600X, WGD7800X
Dryer with extended back:
Bottom view:
NOTE: Most installations require a
minimum of 5" (127 mm) clearance
behind dryer for exhaust vent with
elbow. See "Venting Requirements".

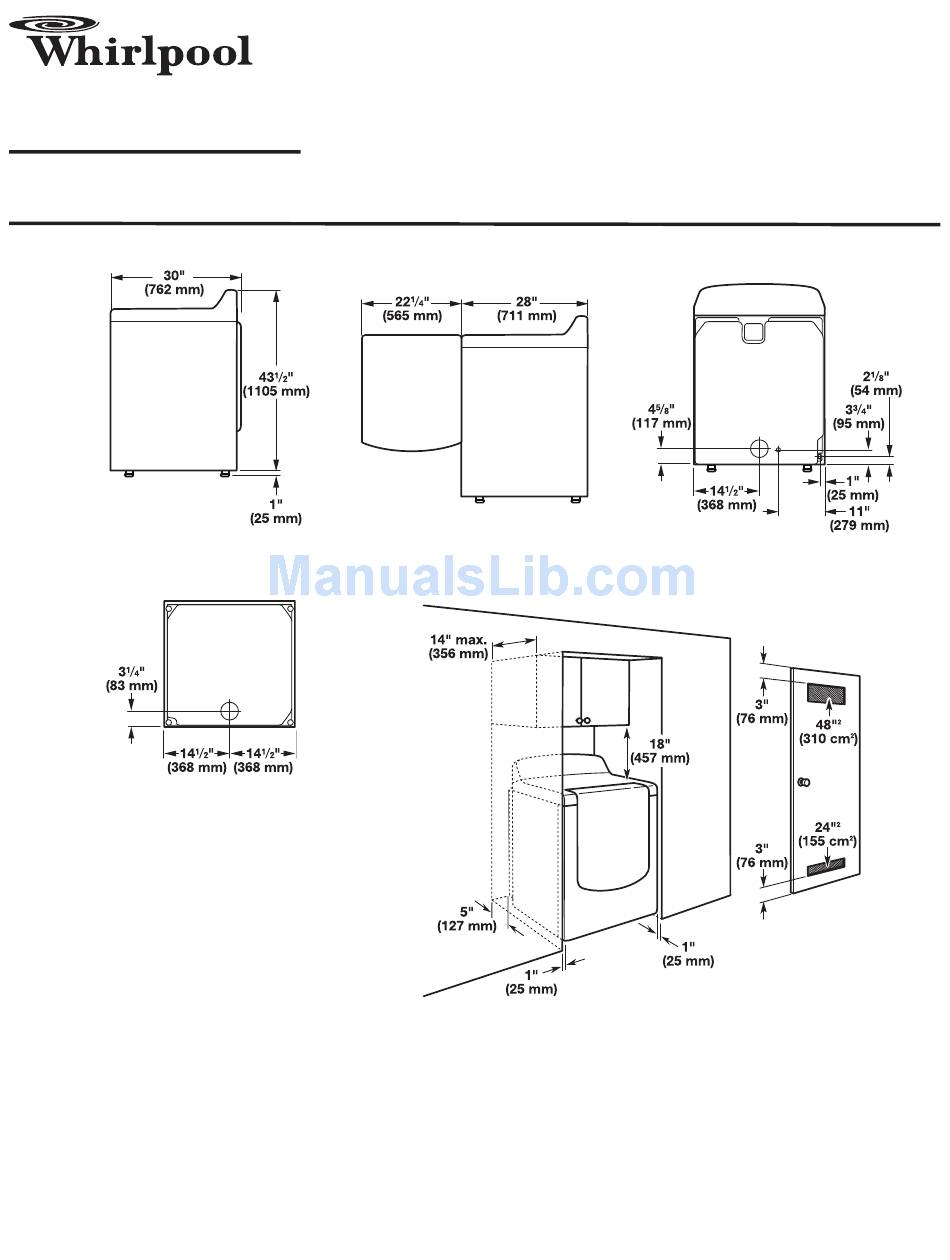

Spacing for recessed area or closet installation
All dimensions show recommended spacing allowed, with tested spacing of 0" (0 mm) clearance
on sides and rear.
Additional spacing should be considered for ease of installation and servicing.
■
Additional clearances might be required for wall, door, and floor moldings.
■
Additional spacing should be considered on all sides of the dryer to reduce noise transfer.
■
For closet installation, with a door, minimum ventilation openings in the top and bottom of the
■
door are required. Louvered doors with equivalent ventilitation openings are acceptable.
Companion appliance spacing should also be considered.
■
Gas Dryer
Dryer with flat back
:
Recommended Installation Spacing:
Back view:
W10388777
06/2011
